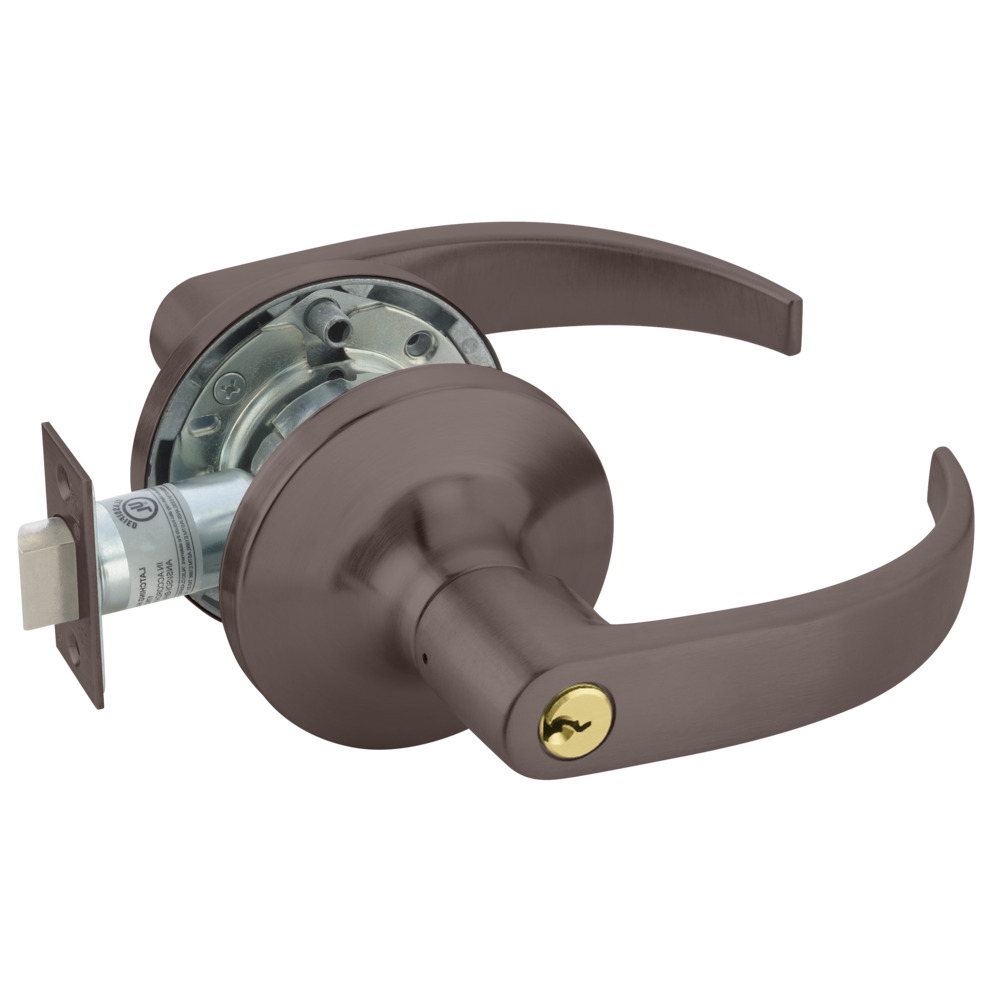

Yale PB5407LN 613E Grade 1 Entry Lockset is a top-tier solution for industrial, commercial, and institutional environments, combining rugged reliability with exceptional performance. This Grade 1 cylindrical lockset features a Pacific Beach lever in a sophisticated dark oxidized bronze finish, enhancing both aesthetics and durability. Engineered with a Free Wheeling lever mechanism, it offers increased resistance to vandalism while minimizing maintenance needs typical of standard locksets. Made with wear-resistant chassis plates and a stainless steel latchbolt, the Yale PB5407LN ensures a long-lasting, smooth operation. Its non-handed design accommodates various door thicknesses from 1-3/4" to 2", making installation straightforward and adaptable. This lockset boasts an impressive 24 available functions, including electrified options, and features patented adjustable rose support plates for easy customization. With three lever designs that comply with ADA requirements, it guarantees accessibility. The Yale PB5407LN also provides an array of cylinder and keying choices, ensuring flexibility for diverse security needs. Backed by a 7-year limited warranty, this lockset exemplifies Yale’s commitment to quality and security. Experience peace of mind with a product that meets the highest standards in door hardware.
Grade 1 Entry Cylindrical Lock, Pacific Beach Lever, Conventional Cylinder, Dark Oxidized Bronze Finish, Non-handed
Designed for industrial, commercial and institutional use, the ACCENTRA 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.
Attributes
Ansi: F109
Ansi Function: F109 - Entry/Office
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 613E/US10BE
Finish Description: 613E/US10BE
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 07-Entry
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Pacific Beach
Leverknob Design: PB - Pacific Beach Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Entry
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Pins: 6
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-1/8"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: ACCENTRA 5400LN Series Grade 1 Cylindrical Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 694
Std Latch Type: Beveled Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
