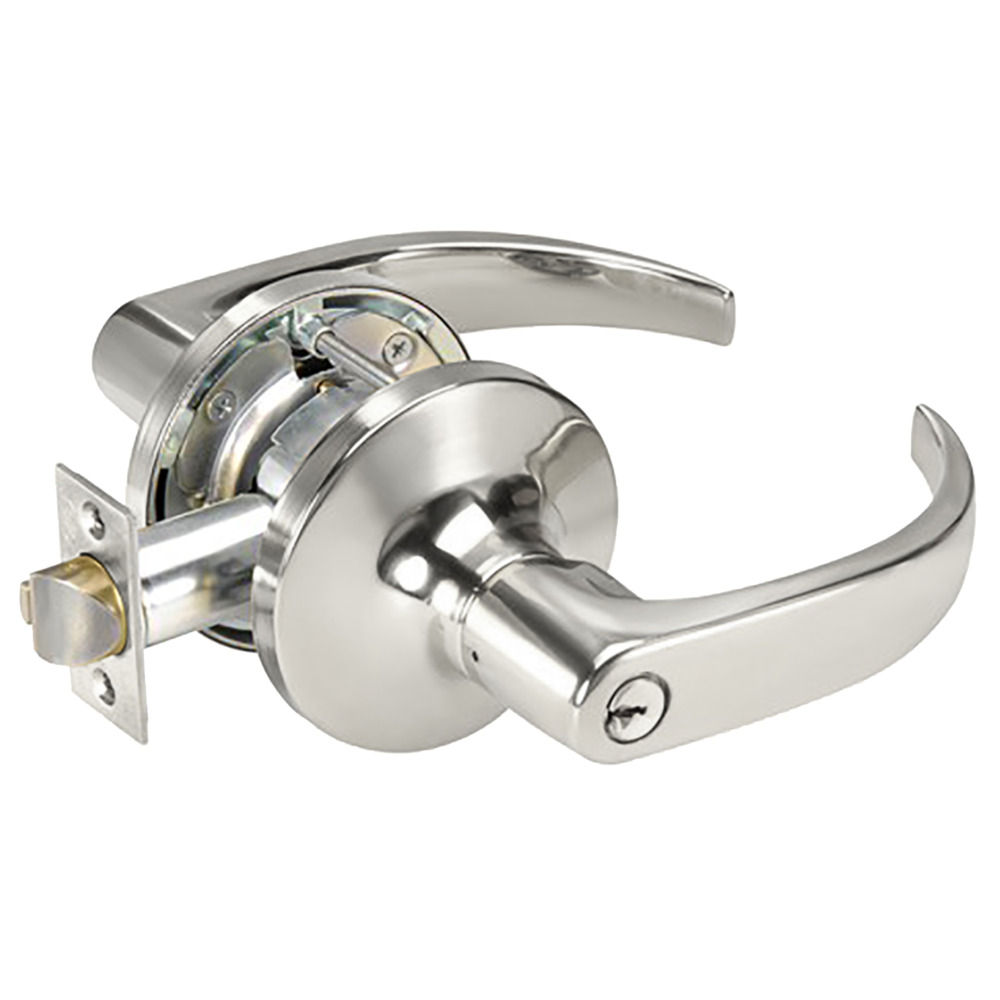

Yale PB5407LN 625 Grade 1 Entry Lockset delivers superior security and reliability, making it an ideal choice for industrial, commercial, and institutional applications. This Grade 1 cylindrical lockset features a Pacific Beach lever with a bright chrome finish, ensuring both durability and aesthetic appeal. Engineered with a Free Wheeling lever mechanism, it enhances vandal resistance while minimizing maintenance needs. Constructed from robust materials, the lockset includes wear-resistant chassis plates and a stainless steel latchbolt that provides excellent strength and longevity. With a direct 1/2" throw standard and an optional 3/4" throw available for fire-rated doors, it meets a variety of operational requirements. The lockset accommodates door thicknesses ranging from 1-3/4" to 2", and the patented adjustable rose support plates allow for easy installation on various door types. Featuring 24 functions, including electrified options, the Yale PB5407LN also offers an expanded range of cylinder and keying options, ensuring flexibility for different security needs. The non-handed design and multiple lever options comply with ADA requirements, making it user-friendly. With a limited 7-year warranty, this lockset exemplifies Yale's commitment to quality and performance in door hardware solutions.
Grade 1 Entry Cylindrical Lock, Pacific Beach Lever, Conventional Cylinder, Bright Chrome Finish, Non-handed
Designed for industrial, commercial and institutional use, the ACCENTRA 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.
Attributes
Ansi: F109
Ansi Function: F109 - Entry/Office
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 625/US26
Finish Description: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 07-Entry
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Pacific Beach
Leverknob Design: PB - Pacific Beach Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Entry
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Pins: 6
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-1/8"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: ACCENTRA 5400LN Series Grade 1 Cylindrical Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 694
Std Latch Type: Beveled Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
