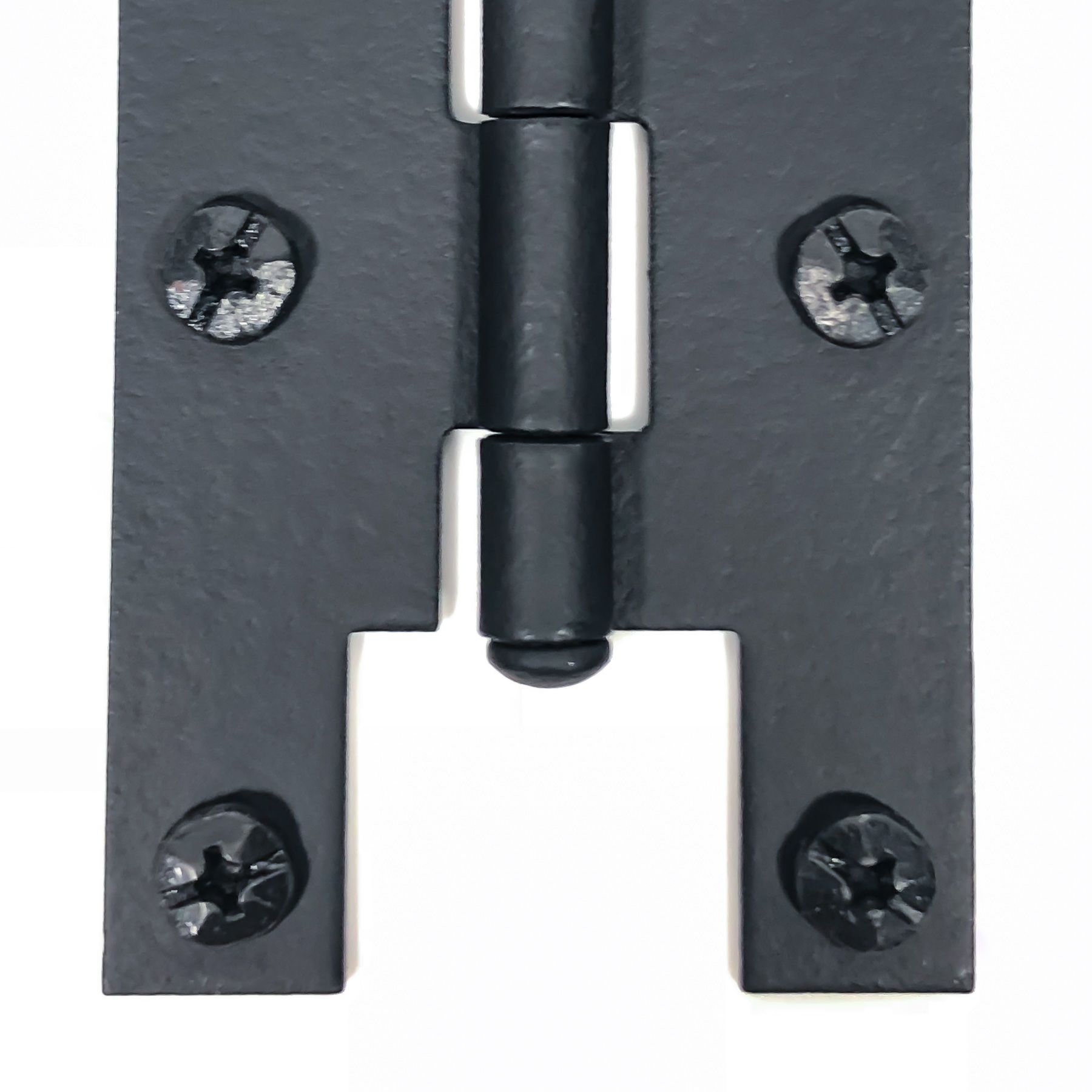

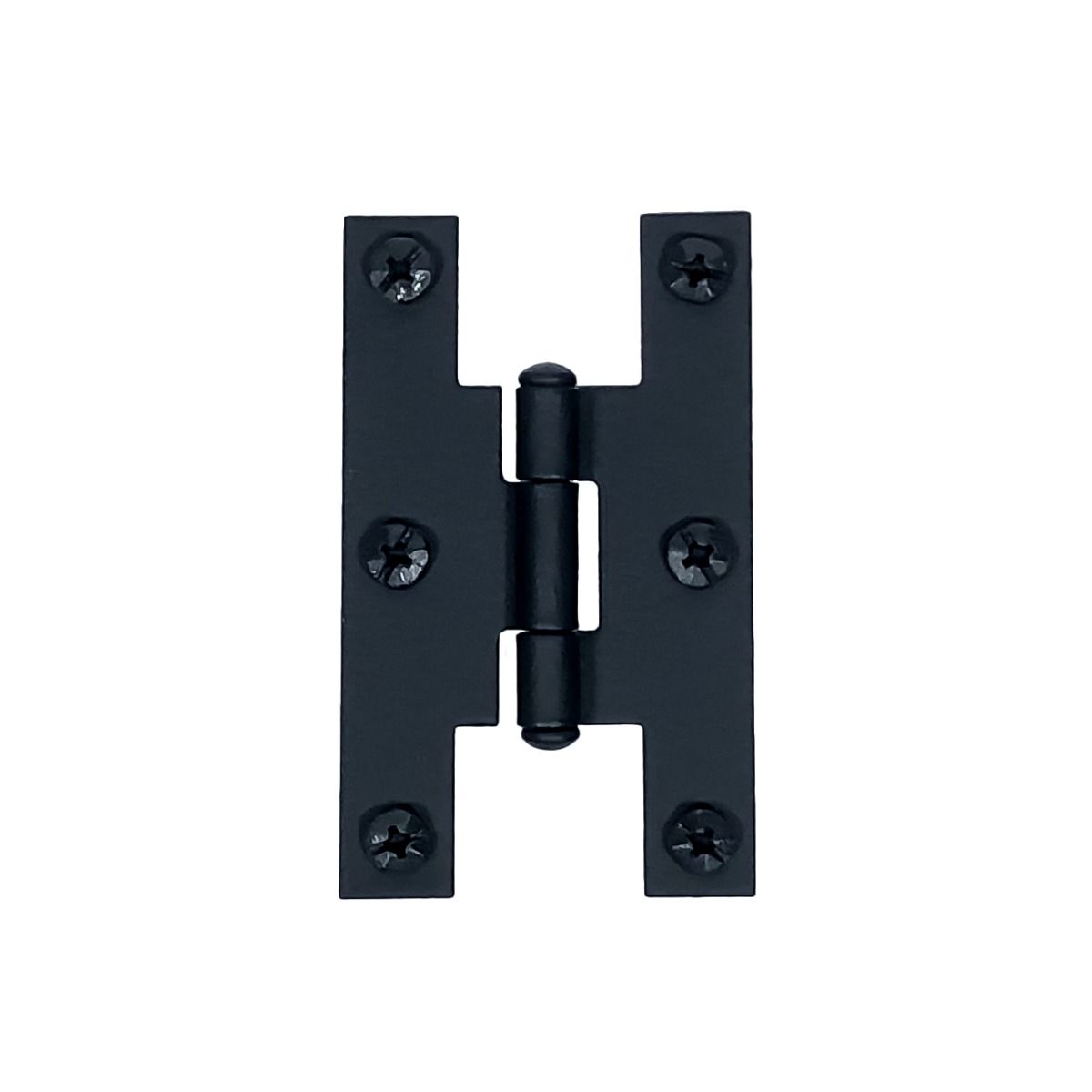

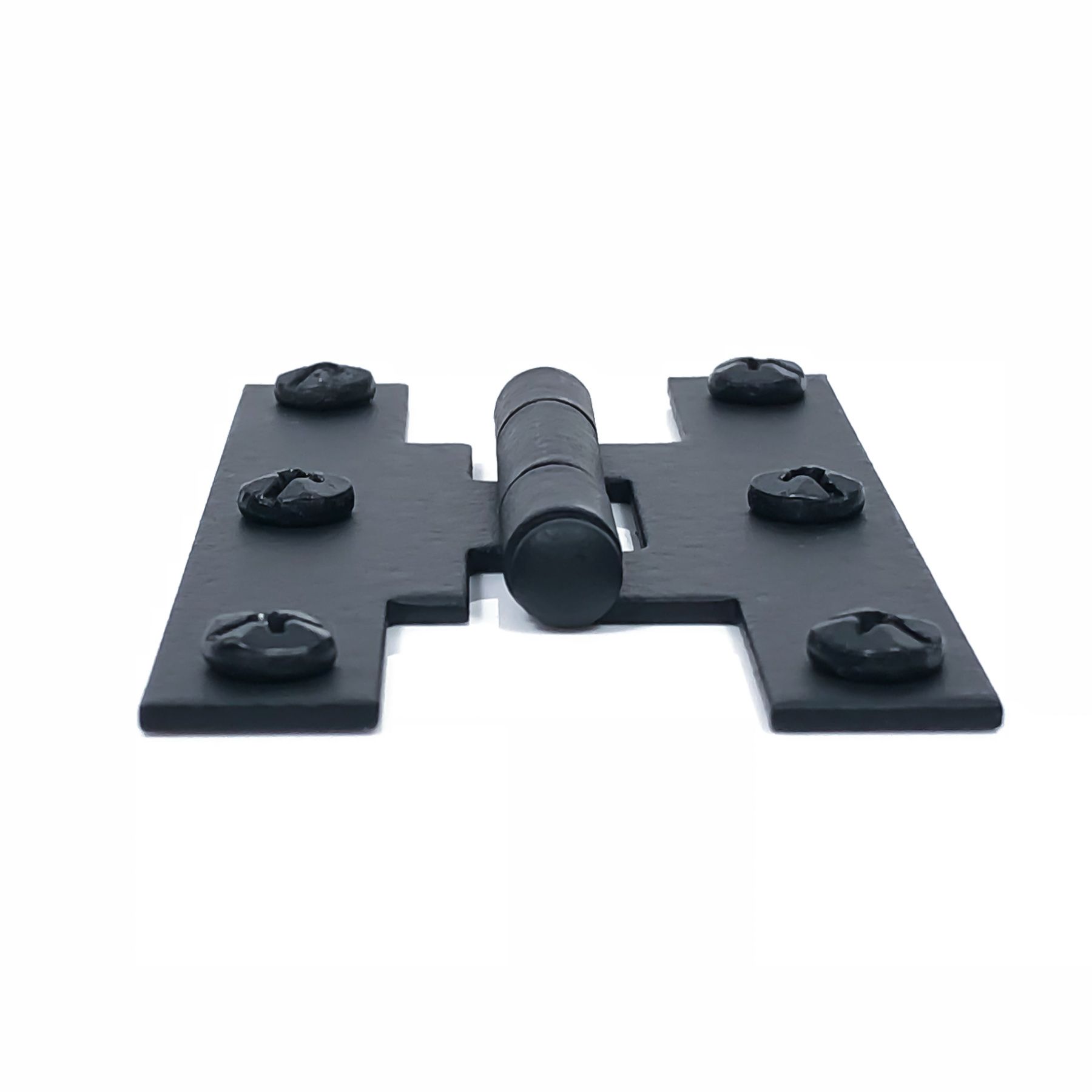

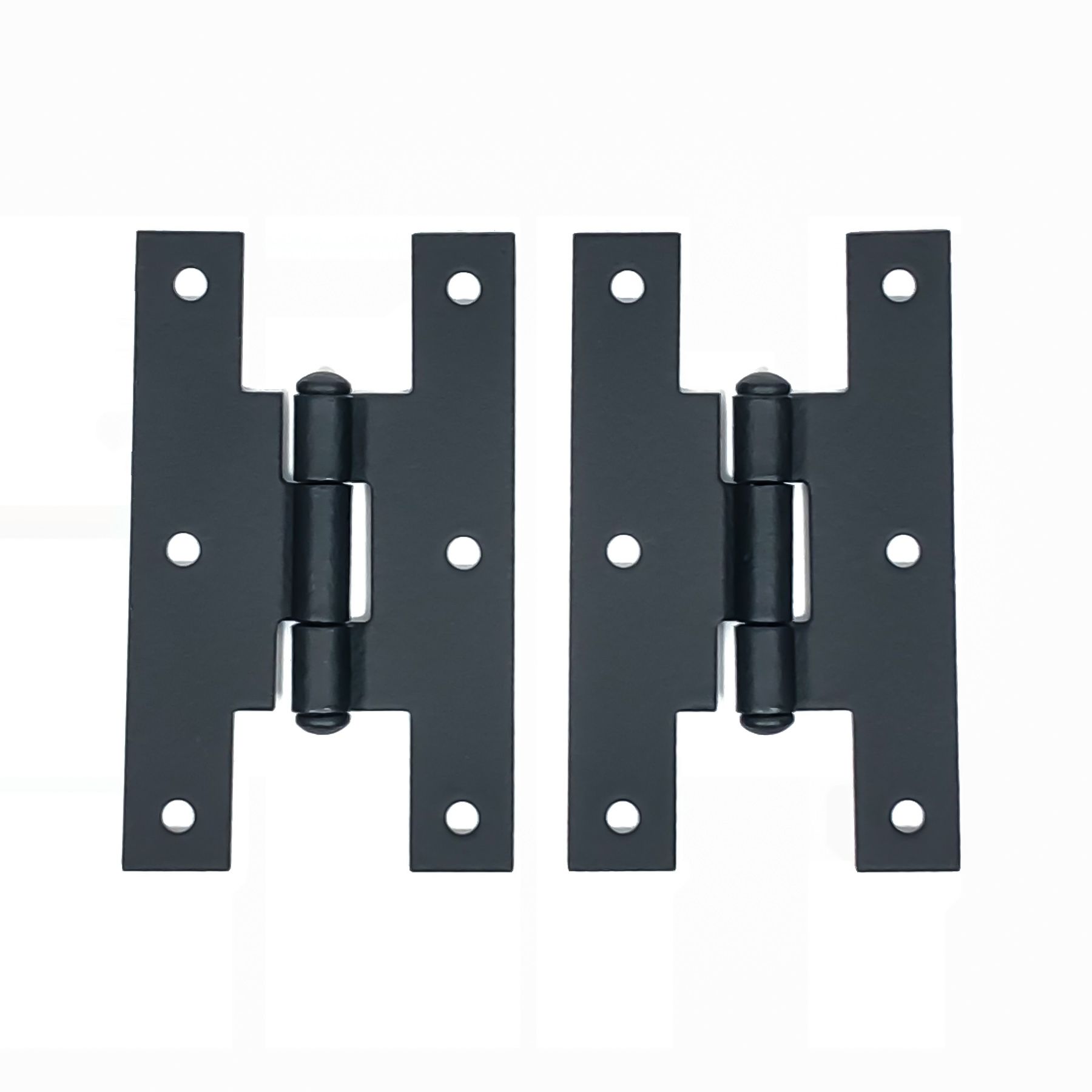

Acorn AH1BQ 3" Smooth H Hinge, Pair

Acorn AH1BQ 3" Smooth Cabinet H Hinge, Pair offers an ideal solution for both functionality and aesthetic appeal. Crafted from durable steel and finished in a sleek matte black, these hinges bring a modern touch to any cabinetry or door installation. The smooth texture enhances their elegant appearance, making them a perfect choice for discerning homeowners and building professionals alike. Designed for versatility, the Acorn AH1BQ hinges accommodate right or left swinging doors, ensuring seamless operation in any space. With an open measurement of 3" in height and 1-13/16" in width, these hinges are robust enough to hold up to 25 lbs when used in pairs. The hinge leaves measure 0.062" thick, while the barrels are 0.27" thick, providing the strength needed for daily use. Installation is straightforward with the included 12 #7 x 5/8" pyramid head screws, allowing for a secure fit. The center-to-center spacing of 1-5/16" horizontally and 1-1/4" vertically ensures compatibility with standard cabinetry. Proudly made in the USA, the Acorn AH1BQ hinges exemplify quality craftsmanship that enhances both the functionality and style of your home or project.

3" Smooth Cabinet H Hinge, Pair

AH1BQ - 3" Cabinet H Hinge, Smooth, Pair

• Hinges are made from steel and finished in matte black


• Smooth texture


• Can be used for right or left swinging doors.


• Opened hinges measure 3" height x 1-13/16" width


• Hinges leaves are 0.062" thick


• Barrells are 0.27" thick


• Includes 12, #7 x 5/8" pyramid head screws, for extra screws orderAQ2B9


• Two hinges hold 25 lbs.


• 1-5/16" center-to-center horizontally


• 1-1/4" center-to-center vertically


• Made in the USA

Installation Tips

• Predrill with 3/32" drillbit for softwood or 7/64" drillbit for hardwood.


• Hand tighten screws only, do not use power tools to porotect the finish.
