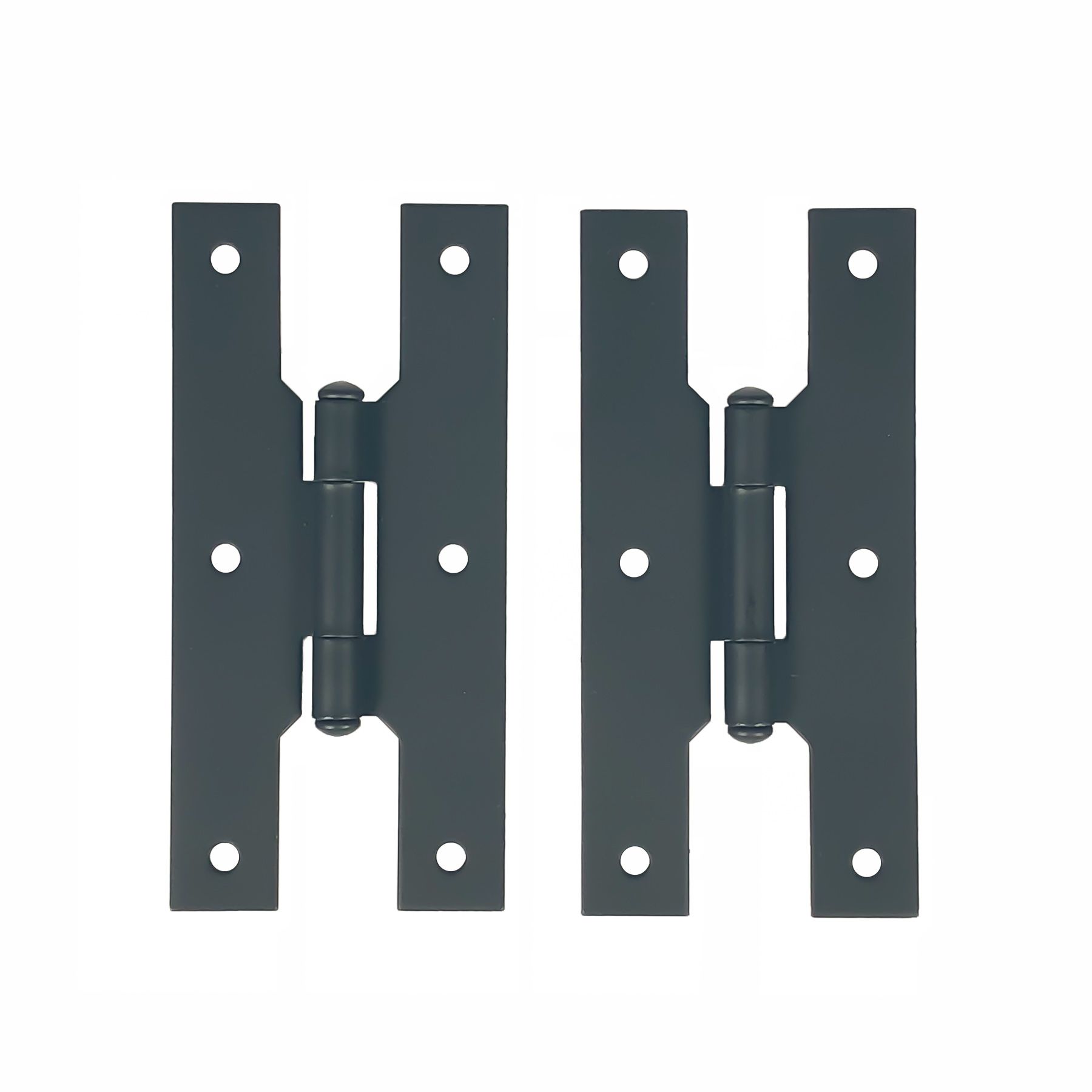

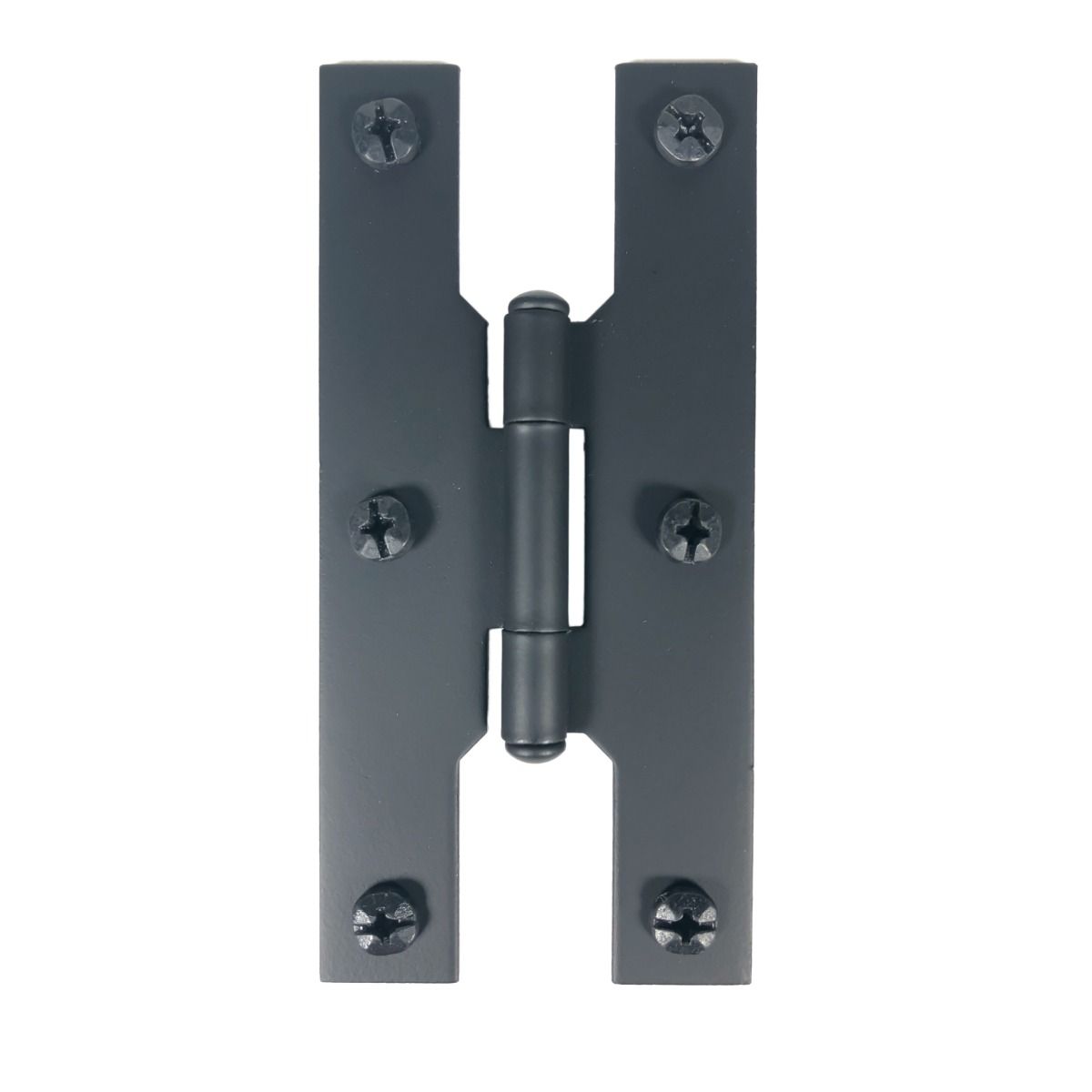

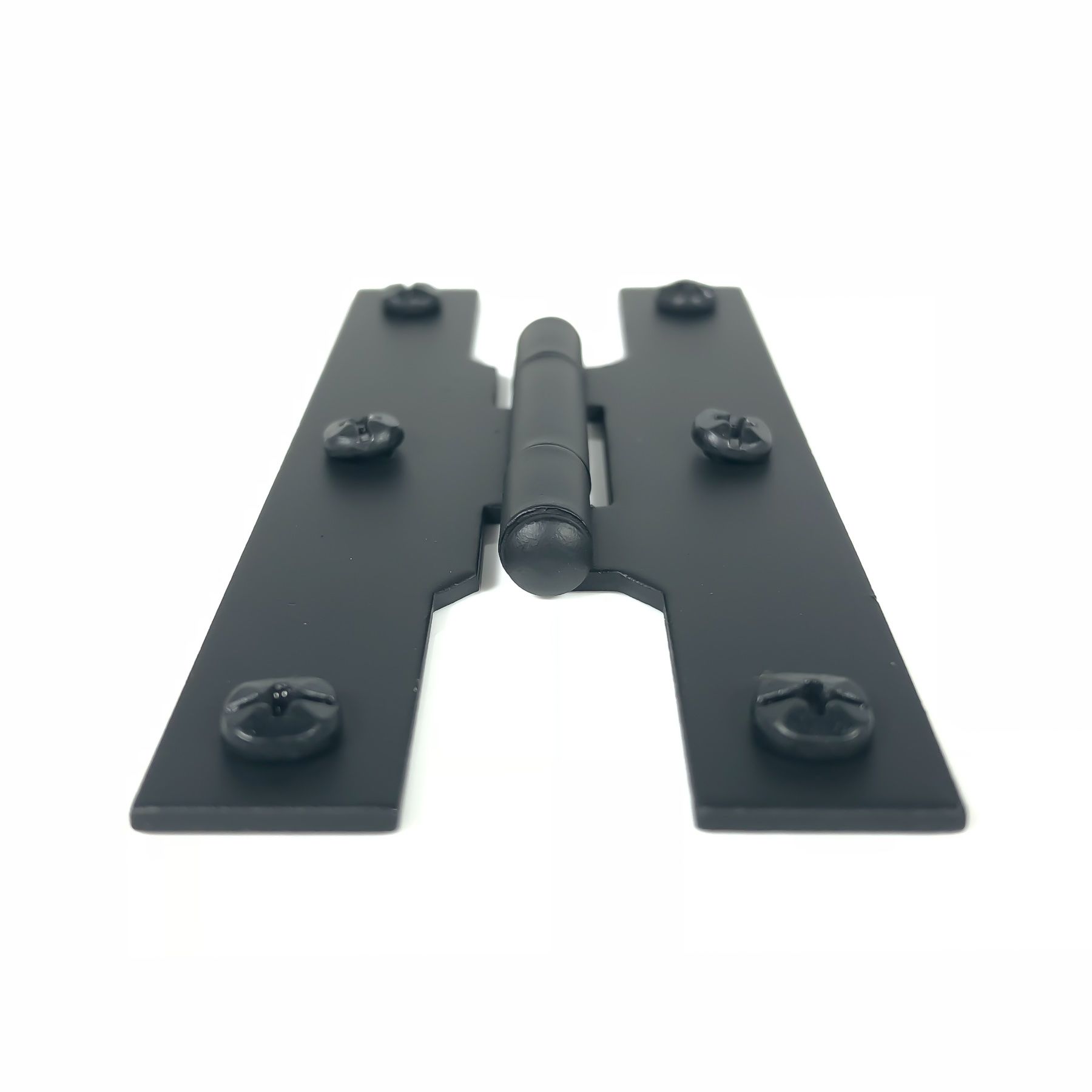

Acorn AH5BQ 4" Smooth H Hinge Pair

Acorn AH5BQ 4" Smooth Door H Hinge, Pair offers a seamless blend of functionality and style for your architectural needs. Crafted from American steel, these flush or surface mount hinges feature a smooth matte black finish that complements a variety of design aesthetics. Designed to accommodate both right- and left-hand doors, they provide flexibility in installation. Measuring 4 inches tall and 1 7/8 inches wide, each tab is 5/8 inches wide, making these hinges ideal for light doors and cabinets. The robust construction allows for a weight capacity of approximately 30 to 40 pounds for a pair, ensuring reliable performance for your projects. Each set includes 12, 5/8-inch #7 pyramid head screws for easy installation, allowing you to achieve a secure fit with minimal effort. Proudly made in the USA, the Acorn AH5BQ hinges not only enhance the functionality of your doors but also add a touch of handcrafted quality to your spaces. Whether you're a building professional or a knowledgeable homeowner, these hinges provide a dependable and stylish solution for your architectural hardware needs.

4" Smooth Door H Hinge, Pair

AH5BQ - 4" H, Smooth Iron, Flush Hinges

• Flush or surface mount hinges.


• Made from American steel.


• Has a smooth matte black finish.


• Can be used on either right- or left-hand doors.


• 4" tall by 1 7/8" wide, each tab is 5/8" wide.


• 12, 5/8" x #7 Pyramid head screws included.


• Weight capacity approx. 30 to 40 lbs. for 2 hinges.


• Can be used on light doors and cabinets.


• Sold in Pairs.


• Proudly made in the USA.

Installation Tips

• Prop door into opening ensuring door is level and in the desired location using shims or spacers.


• Place hinge in the desired location and mark the screw holes. You can use a small piece of double sided tape to hold the hinge in place.


• Drill pilot holes with a 7/64" drill bit for hard wood or 3/32" drill bit for soft wood to a 5/8" depth.


• Hand tighten screws to preserve the hinges finish.
