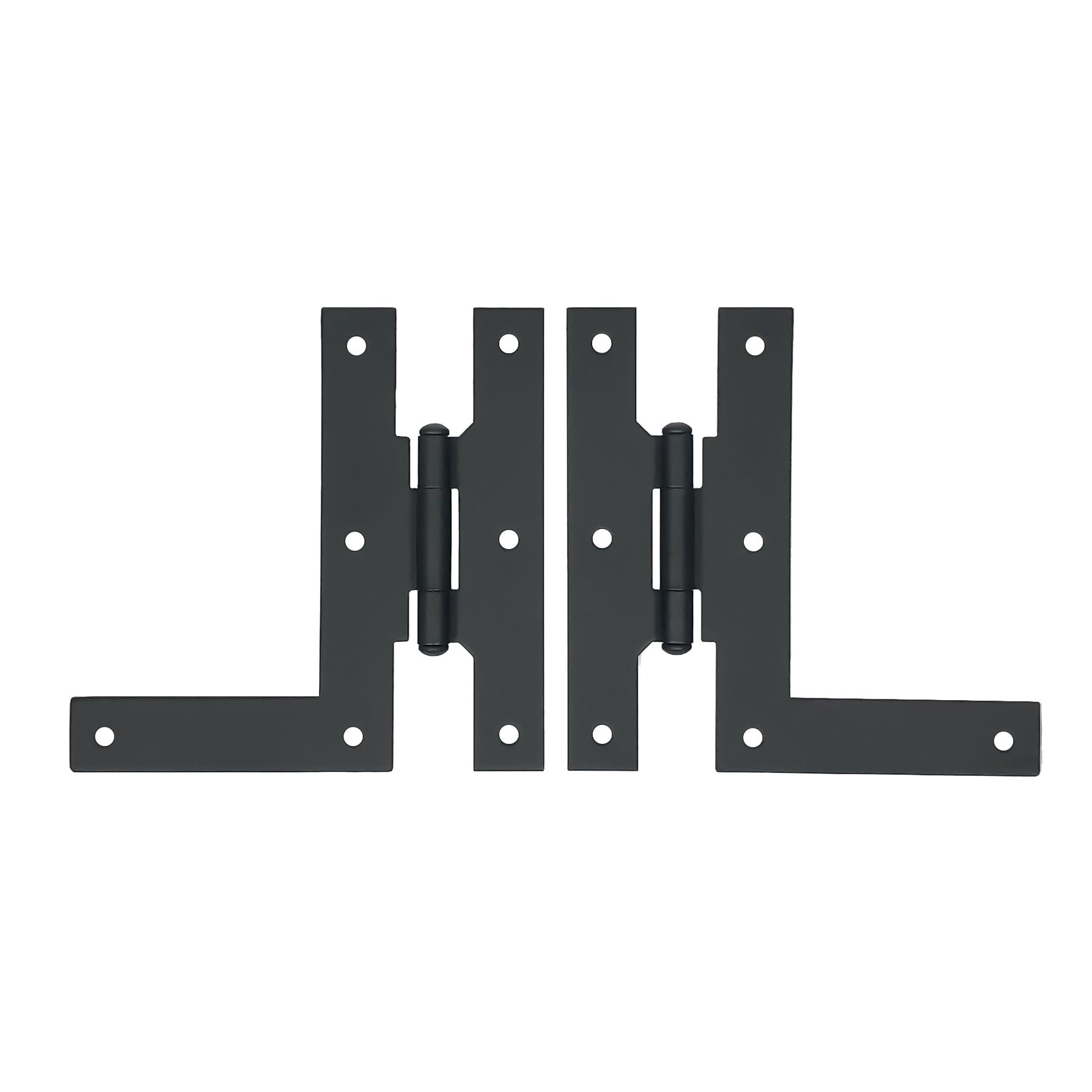

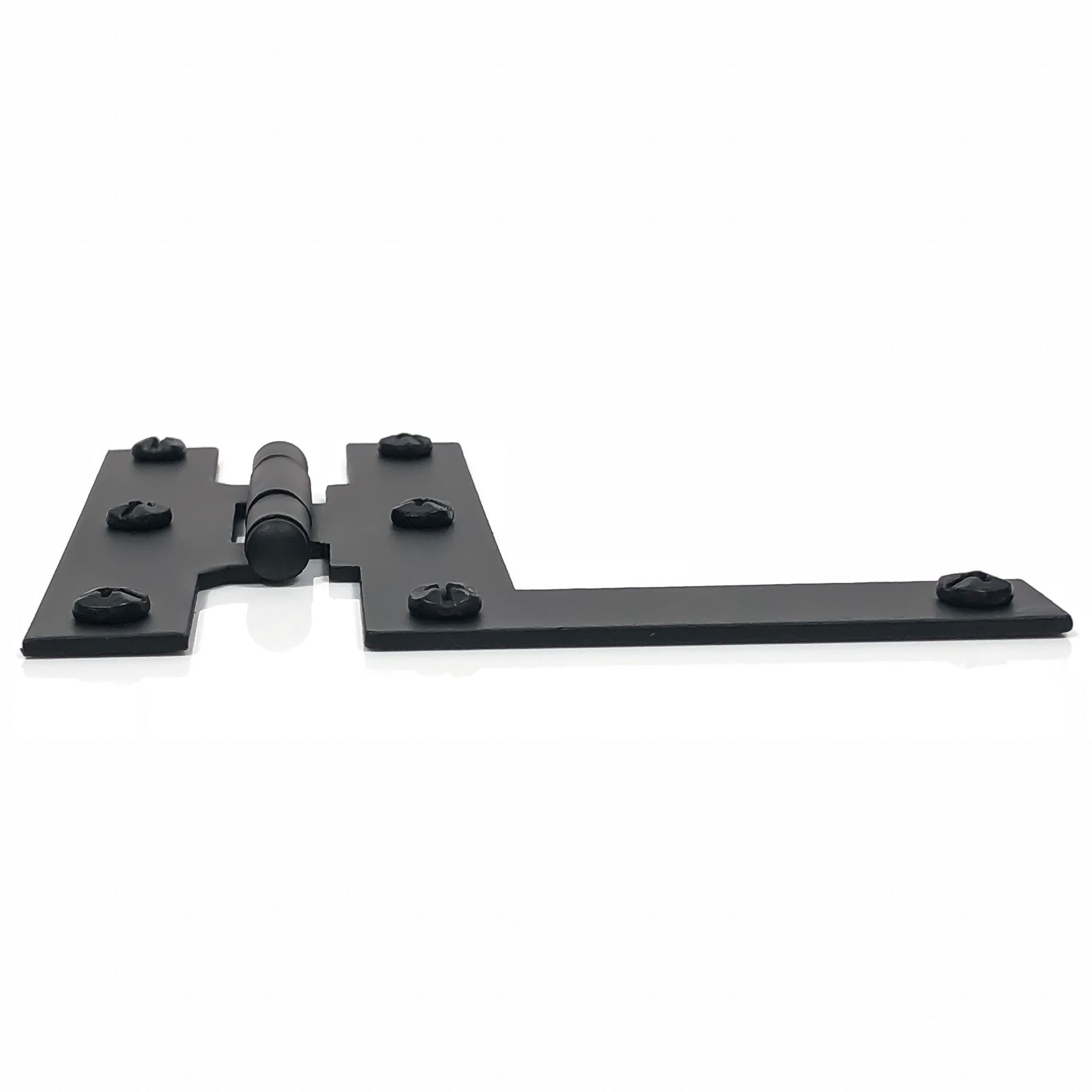

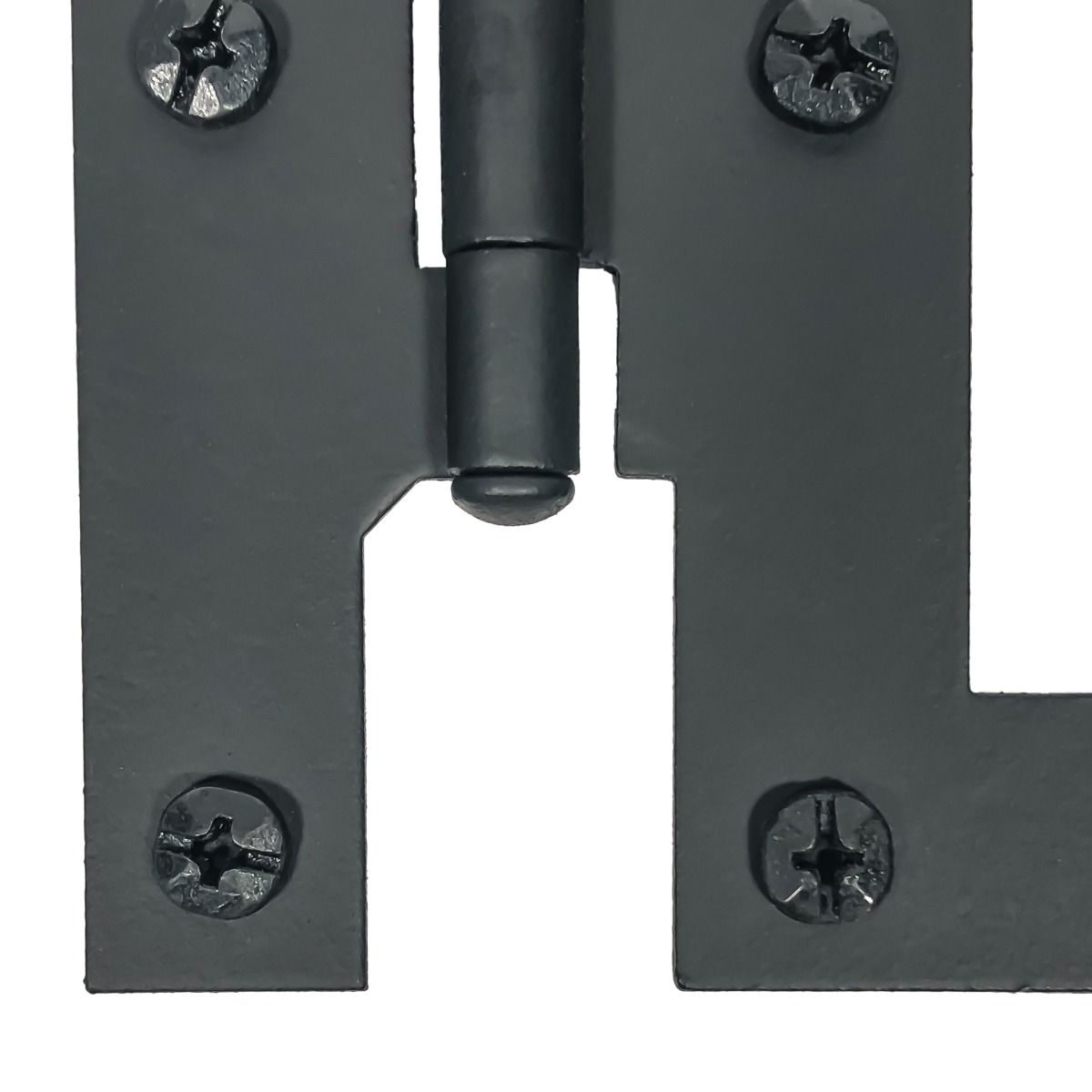

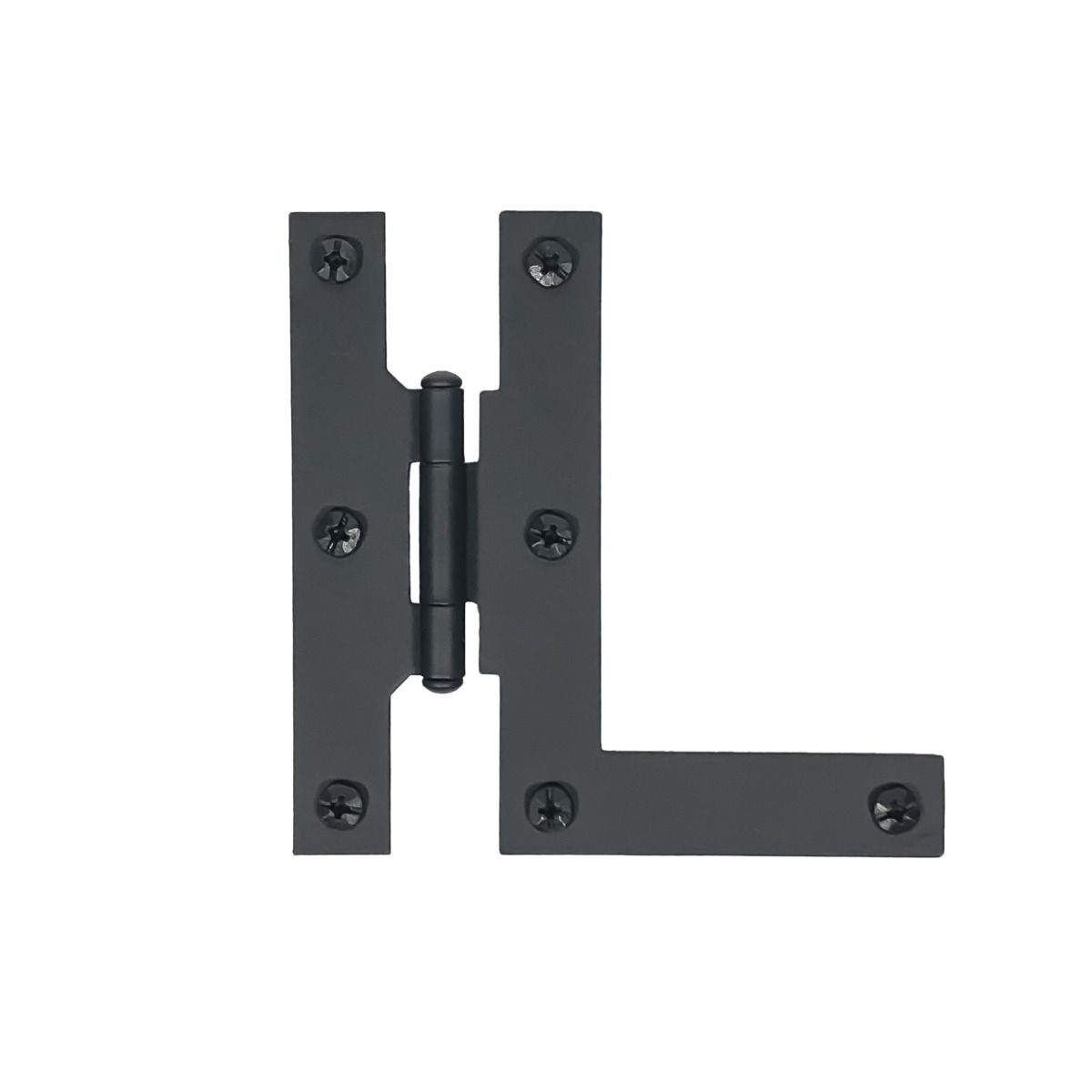

Acorn AH6BQ 4" Smooth Door Hinge, Pair

Acorn AH6BQ 4" Smooth Door HL Hinge, Pair offers a blend of durability and elegance for your architectural needs. Crafted from premium American steel, these flush or surface mount hinges feature a sleek, smooth matte black finish that complements both traditional and contemporary designs. With dimensions of 4" tall by 4-1/16" wide, they are well-suited for light doors and cabinets, supporting a weight capacity of approximately 30 to 40 lbs. when using two hinges. Designed for versatile application, these hinges can be installed on either right- or left-hand doors, providing flexibility for various projects. Each pair is sold in opposit styles, allowing for a seamless aesthetic when combined with an H Style hinge in the center of the door. For added convenience, 14, 5/8" x #7 pyramid head screws are included, ensuring a secure installation. Proudly made in the USA, Acorn’s AH6BQ hinges combine quality craftsmanship with functional design, making them an excellent choice for both building professionals and discerning homeowners. Elevate your space with these stylish and reliable hinges that stand the test of time.

4" Smooth Door HL Hinge, Pair

AH6BQ - 4" H and L, Smooth Iron, Flush Hinges

• Flush or surface mount hinges.


• Made from American steel.


• Has a smooth matte black finish.


• Can be used on either right- or left-hand doors.


• 4" tall by 4-1/16" wide.


• 14, 5/8" x #7 Pyramid head screws included.


• Weight capacity approx. 30 to 40 lbs. for 2 hinges.


• Can be used on light doors and cabinets.


• Sold in opposit style Pairs.


• Can be combined with one H Style hinge in the middle of the door.


• Proudly made in the USA.

Installation Tips

• Prop door into opening ensuring door is level and in the desired location using shims or spacers.


• Place hinge in the desired location and mark the screw holes. You can use a small piece of double sided tape to hold the hinge in place.


• Drill pilot holes with a 7/64" drill bit for hard wood or 3/32" drill bit for soft wood to a 5/8" depth.


• Hand tighten screws to preserve the hinges finish.
