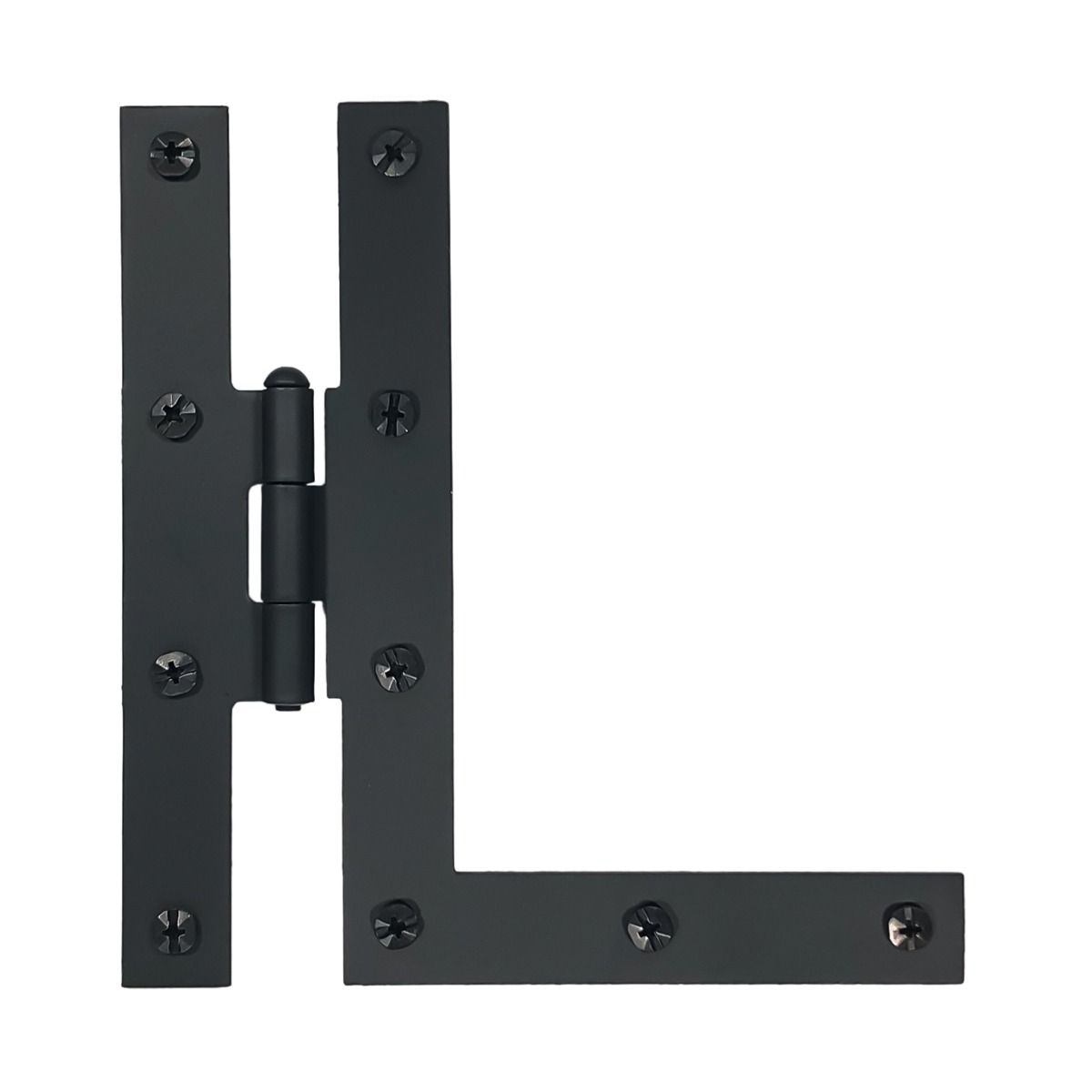

Acorn AH8BQ 7" Smooth Door Hinge, Pair

Acorn AH8BQ 7" Smooth Door HL Hinge, Pair offers a blend of functionality and style, making it an ideal choice for both cabinetry and doors. Crafted from high-quality American steel, these flush hinges boast a smooth matte black finish that adds a sleek touch to any interior space. Measuring 7 inches tall by 6-3/4 inches wide, they are designed to support light doors and cabinets with a weight capacity of approximately 70 to 80 pounds for two hinges. These versatile hinges can be easily mounted flush or on the surface and are suitable for use on either right- or left-hand doors, providing flexibility in installation. Each pair comes with 20, 3/4" x #8 pyramid head screws, ensuring you have everything needed for a secure fit. For added stability, consider combining them with one H Style hinge in the middle of your door. Proudly made in the USA, the Acorn AH8BQ hinges are perfect for homeowners and building professionals seeking durable and attractive hardware solutions. Elevate your projects with these expertly crafted hinges that promise to deliver both strength and aesthetic appeal.

7" Smooth Door HL Hinge, Pair

AH8BQ - 7" H and L, Smooth Iron Flush Cabinet Hinges

• Flush or surface mount hinges.


• Made from American steel.


• Has a smooth matte black finish.


• Can be used on either right- or left-hand doors.


• 7" tall by 6-3/4" wide.


• 20, 3/4" x #8 Pyramid head screws included.


• Weight capacity approx. 70 to 80 lbs. for 2 hinges.


• Can be combined with one H Style hinge in the middle of the door.


• Can be used on light doors and cabinets.


• Sold in Pairs.


• Proudly made in the USA.

Installation Tips

• Prop door into opening ensuring door is level and in the desired location using shims or spacers.


• Place hinge in the desired location and mark the screw holes. You can use a small piece of double sided tape to hold the hinge in place.


• Pre-drill with 7/64" drill bit for softwood and 1/8" drill bit for hardwood to a 3/4" depth.


• Hand tighten screws to preserve the hinges finish.
