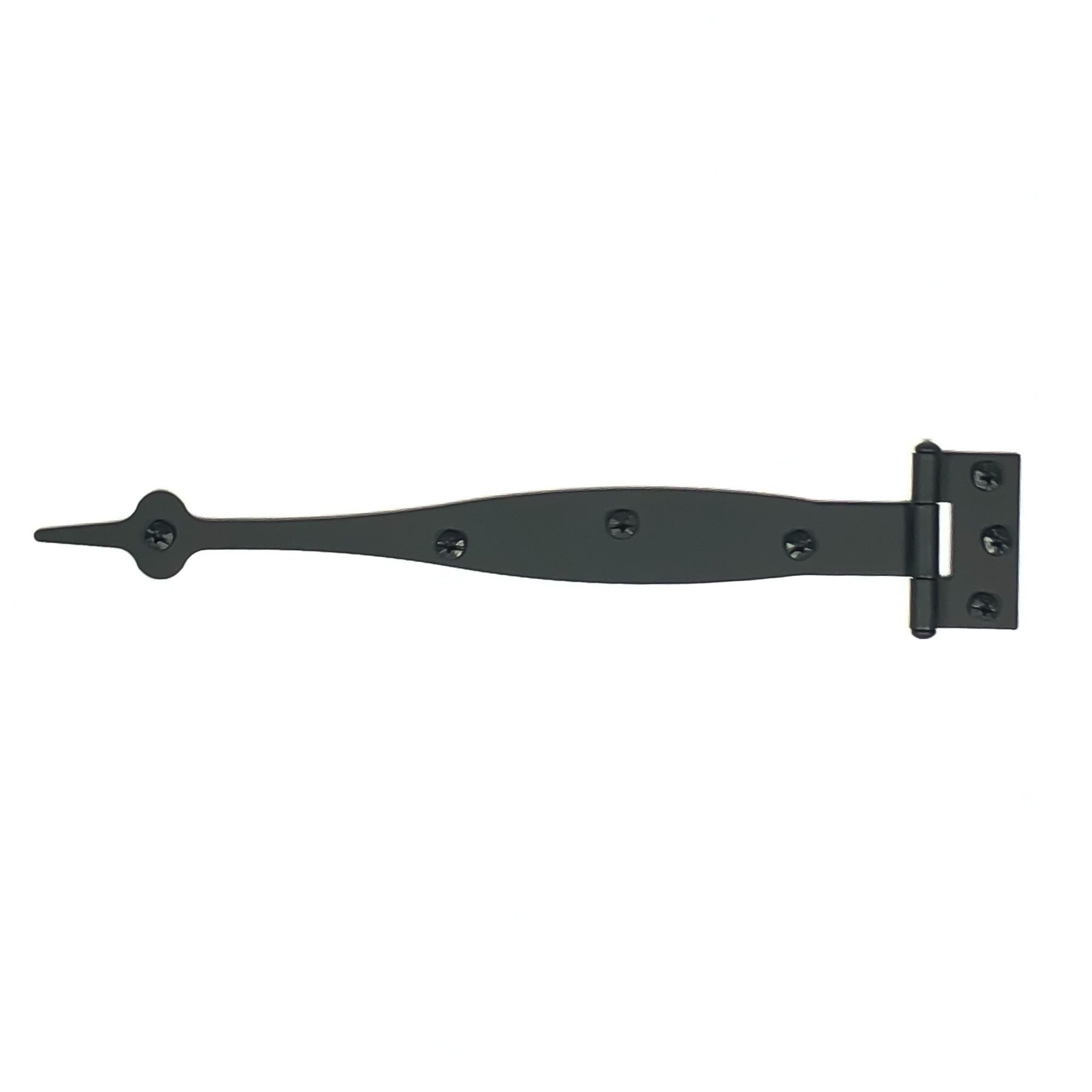

Acorn AI2BQ 9" Spear Cabinet Strap Hinge, Pair

Acorn AI2BQ 9" Spear Cabinet Strap Hinge, Pair, is expertly crafted from durable steel and finished in a sleek matte black, offering both style and functionality for your cabinetry. The smooth texture of these hinges enhances their aesthetic appeal while ensuring they blend seamlessly with a variety of design themes. Designed for use with flush mount cabinet doors, each hinge measures 9 inches from the center of the barrel to the tip of the strap, providing ample support for your doors. These hinges are versatile, allowing for installation on both right and left swinging doors, making them an ideal choice for any project. With a hinge strap width of 15/16" at its widest point and a thickness of 0.071", they are robust enough to support up to 25 lbs when installed in pairs. Each set includes 14 #7 x 5/8" pyramid head screws for easy installation, while additional screws can be ordered separately. Proudly made in the USA, the Acorn AI2BQ hinges not only deliver quality and strength but also bring an elegant touch to your cabinetry. For optimal installation, predrill with the appropriate drill bit for your wood type and hand tighten screws to protect the finish.

9" Spear Cabinet Strap Hinge, Pair

AI2BQ - 9" Spear Cabinet Strap Hinge, Smooth, Pair

• Hinges are made from steel and finished in matte black


• Smooth texture


• Hinges sold in pairs


• Can be used for right or left swinging doors.


• Hinges are 9" from center of barrel to the tip of the strap


• Designed for flush mount cabinet doors


• Hinge pad is 15/16" x 1-1/2"


• Hinge strap is 15/16" wide at its wideset point.


• Hinges are 0.071" thick


• Barrells are 0.27" thick


• Includes 14, #7 x 5/8" pyramid head screws, for extra screws orderAQ2B9


• Two hinges hold 25 lbs.


• Made in the USA

Installation Tips

• Predrill with 3/32" drillbit for softwood or 7/64" drillbit for hardwood.


• Hand tighten screws only, do not use power tools to porotect the finish.
