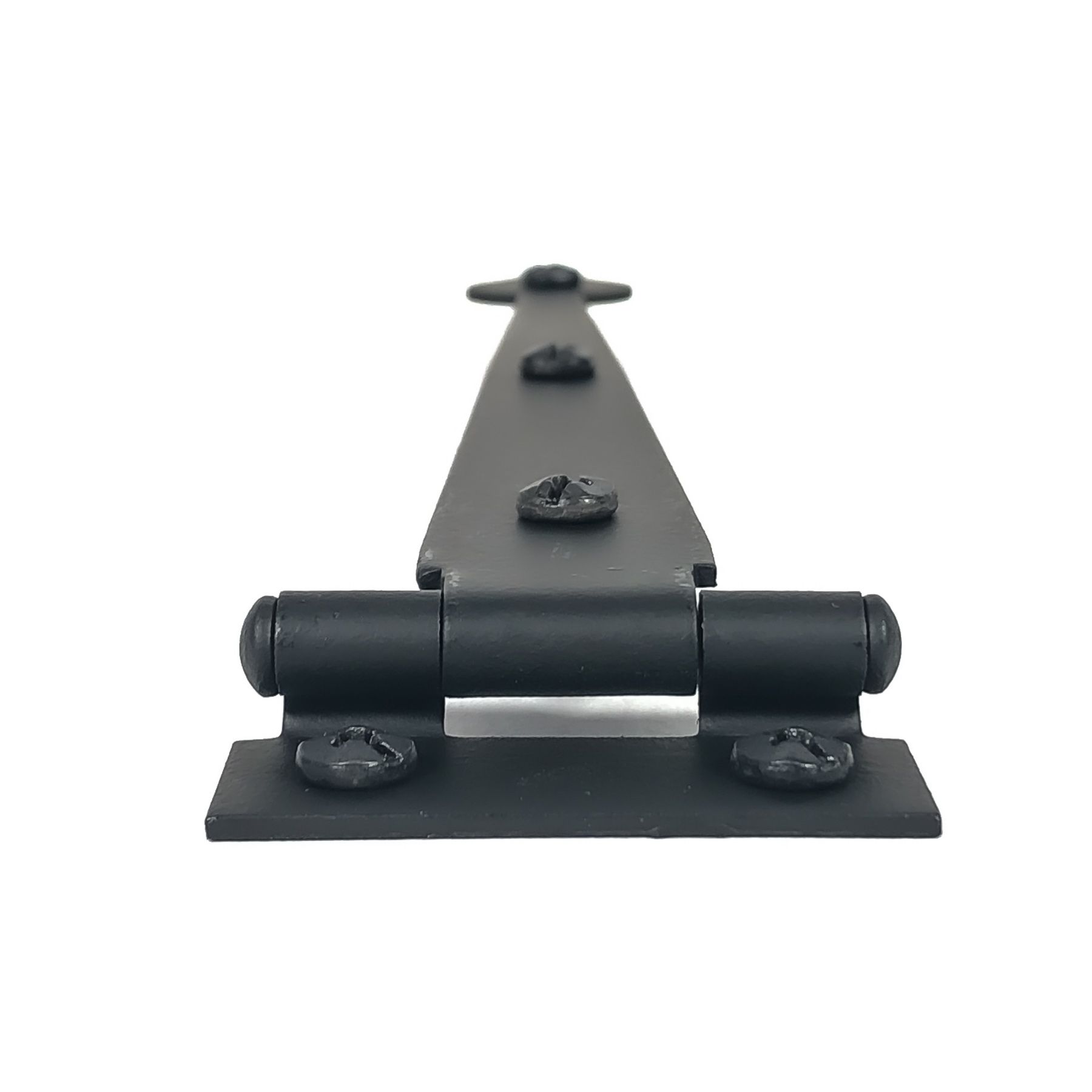

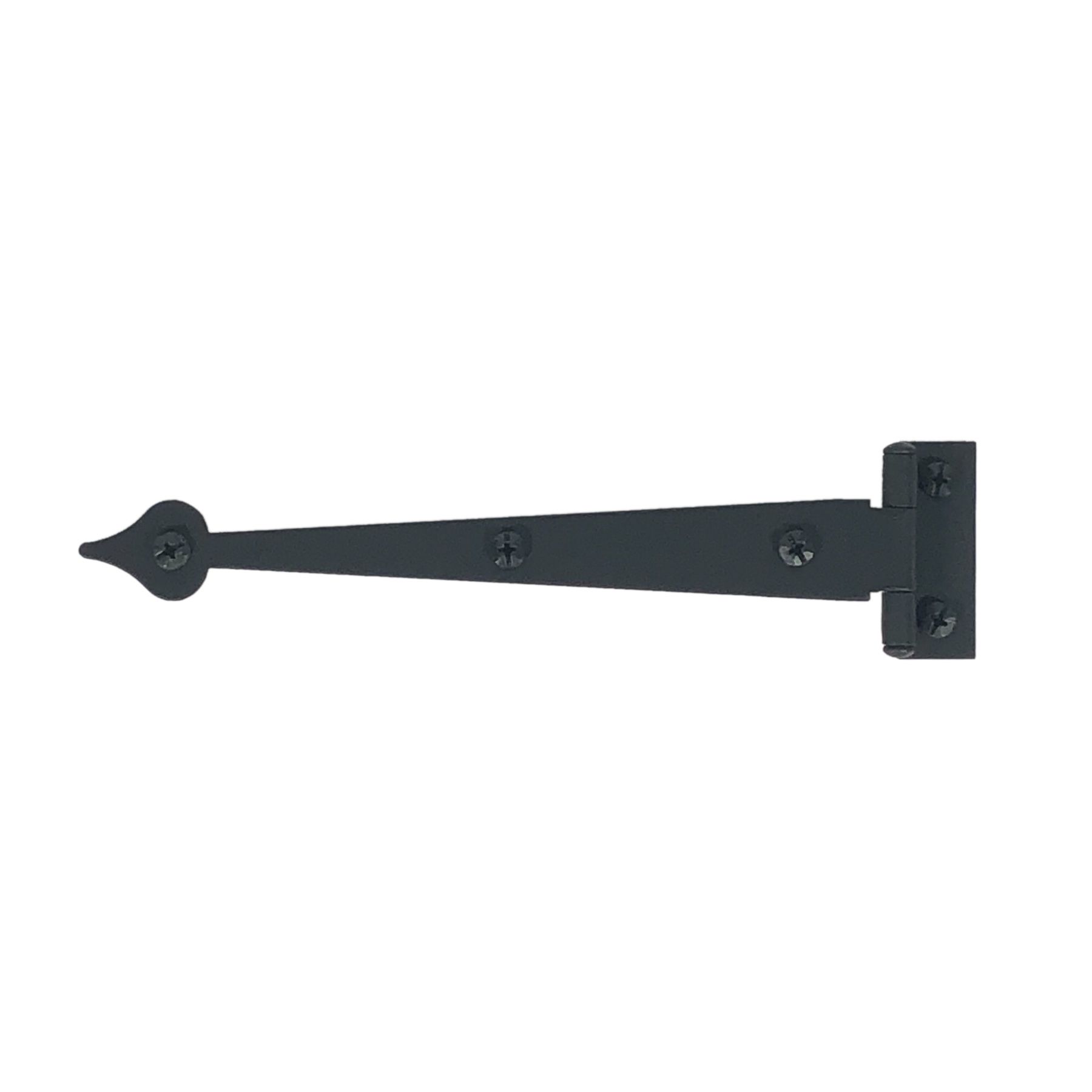

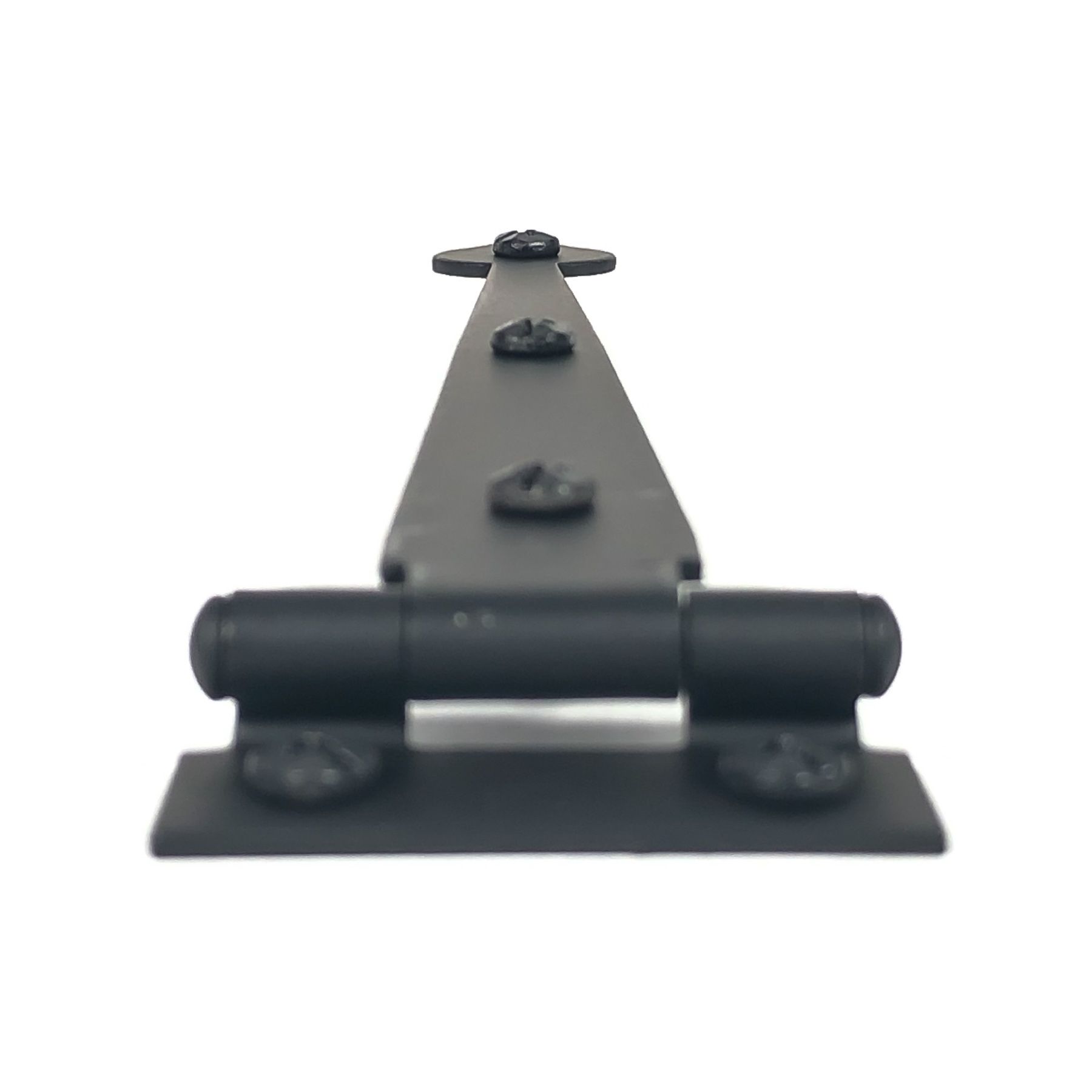

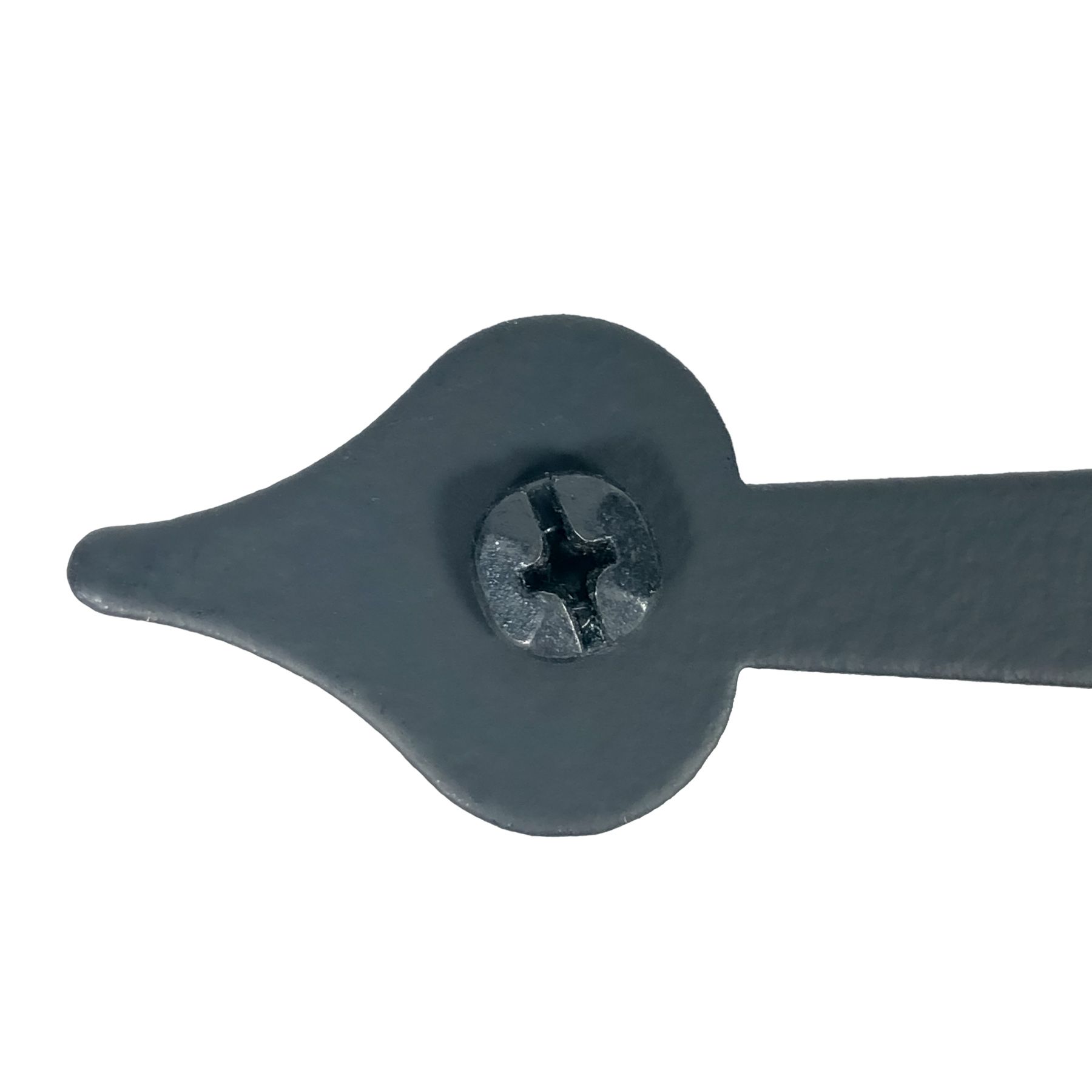

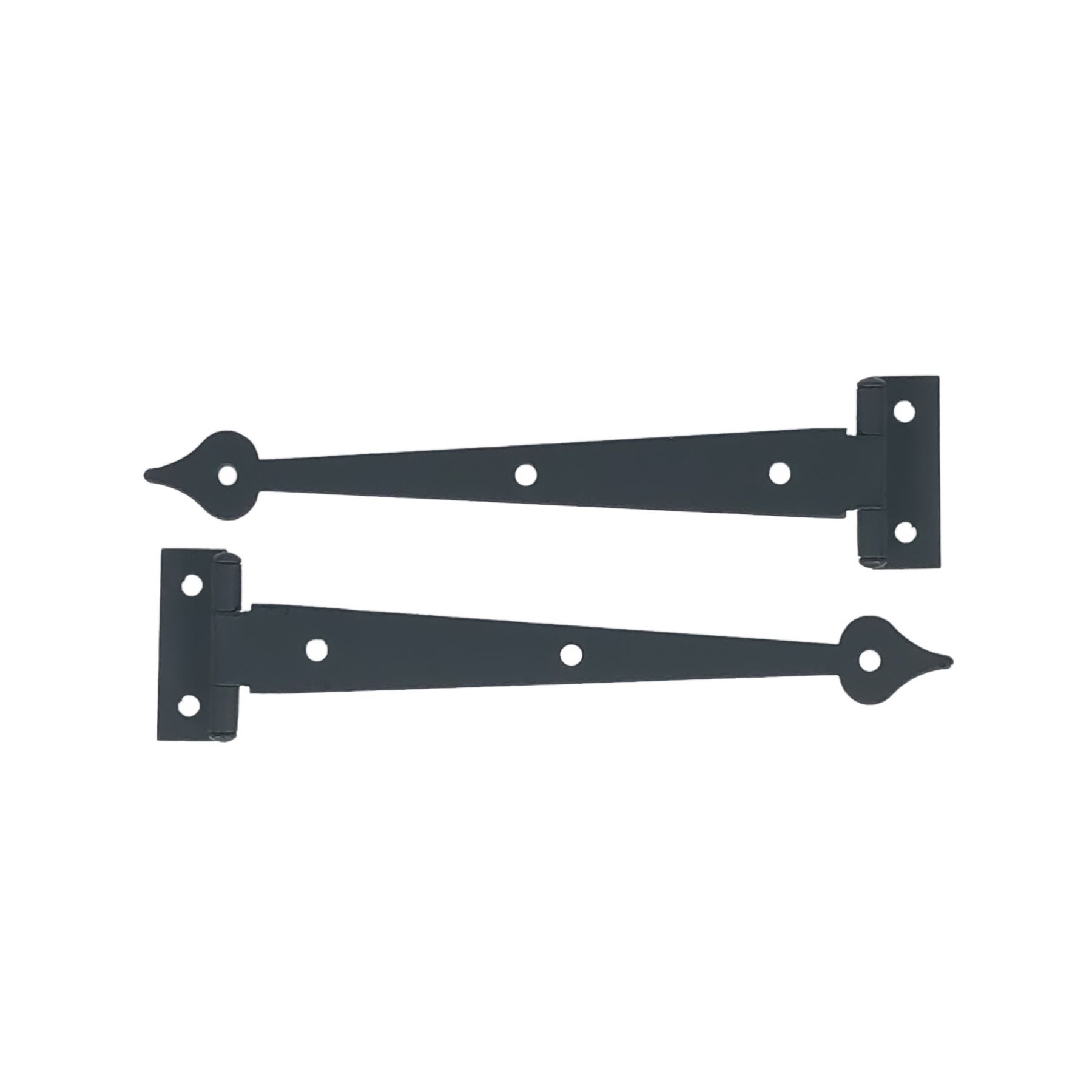

Acorn AIKBQ 6-1/2" Heart Cabinet Strap Hinge, 3/8" Offset, Smooth Finish, Pair

Acorn AIKBQ 6-1/2" Heart Cabinet Strap Hinge, 3/8" Offset, Pair, Smooth offers a timeless blend of functionality and style for your cabinetry needs. Crafted from durable steel and finished in a sophisticated matte black, these hinges feature a smooth texture that enhances their elegant design. Designed to accommodate both right and left swinging doors, they provide versatile installation options for various applications. With a 3/8" offset, the hinge is specifically tailored for cabinet doors, ensuring a perfect fit and reliable performance. The strap portion measures 6-5/8" long from the center of the barrel to the end, while the hinge pad dimensions are 5/8" x 1-3/4", offering robust support. At a thickness of 0.062", these hinges are built to withstand a weight capacity of up to 25 lbs when using two hinges. Included with your purchase are 10 #7 x 5/8" pyramid head screws for easy installation. For added convenience, it’s recommended to pre-drill with the appropriate drill bits based on your wood type, and to hand-tighten screws to preserve the finish. Proudly made in the USA, Acorn's Heart Cabinet Strap Hinges are the ideal choice for creating a classic look in your home.

6-1/2" Heart Cabinet Strap Hinge, 3/8" Offset, Pair, Smooth

AIKBQ - 6-1/2" Heart Cabinet Strap Hinge, Pair, Smooth

• Hinges are made from steel and finished in matte black


• Smooth texture


• Can be used for right or left swinging doors.


• Hinge is designed for cabinet doors with a 3/8" offset


• Strap portion is 6-5/8" long from center of barrel to end


• Hinge pad is 5/8" x 1-3/4"


• Hinges are 0.062" thick


• Barrells are 0.27" thick


• Includes 10, #7 x 5/8" pyramid head screws, for extra screws orderAQ2B9


• Two hinges hold 25 lbs.


• Made in the USA

Installation Tips

• Predrill with 3/32" drillbit for softwood or 7/64" drillbit for hardwood.


• Hand tighten screws only, do not use power tools to porotect the finish.
