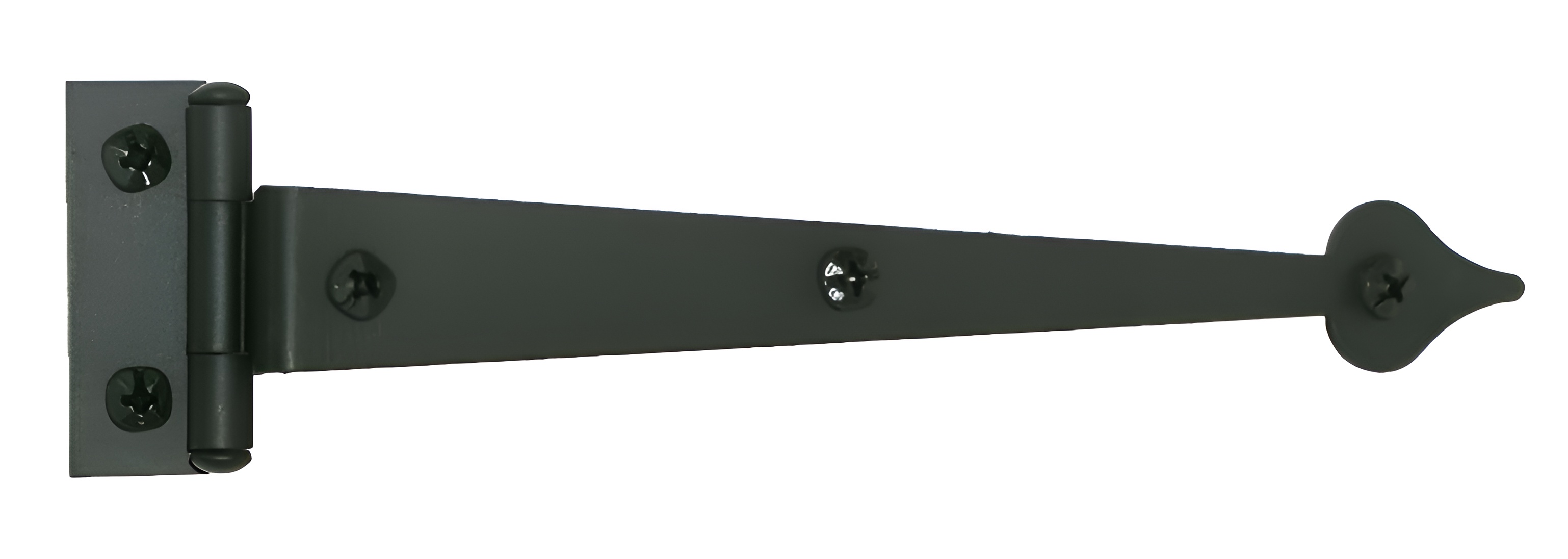

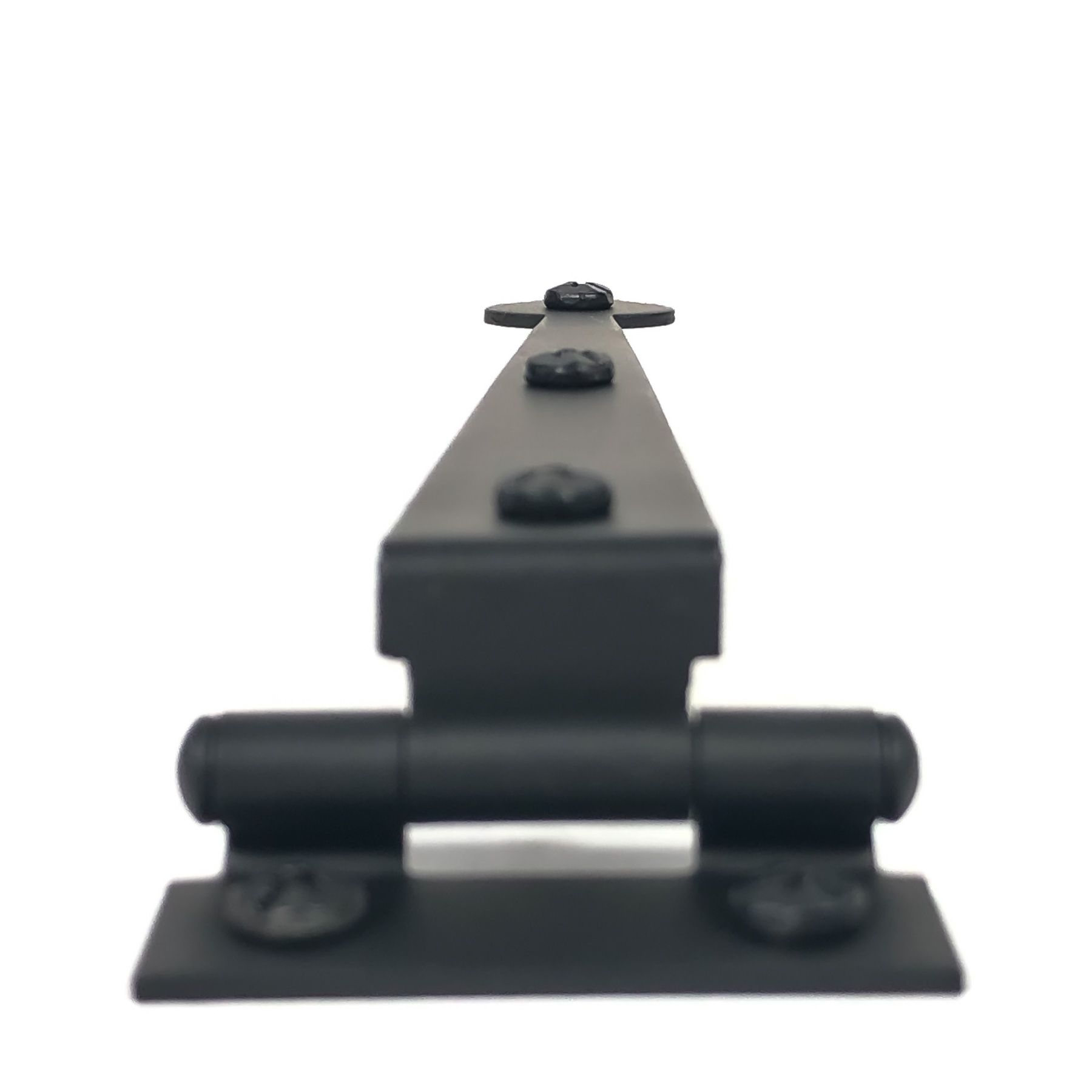

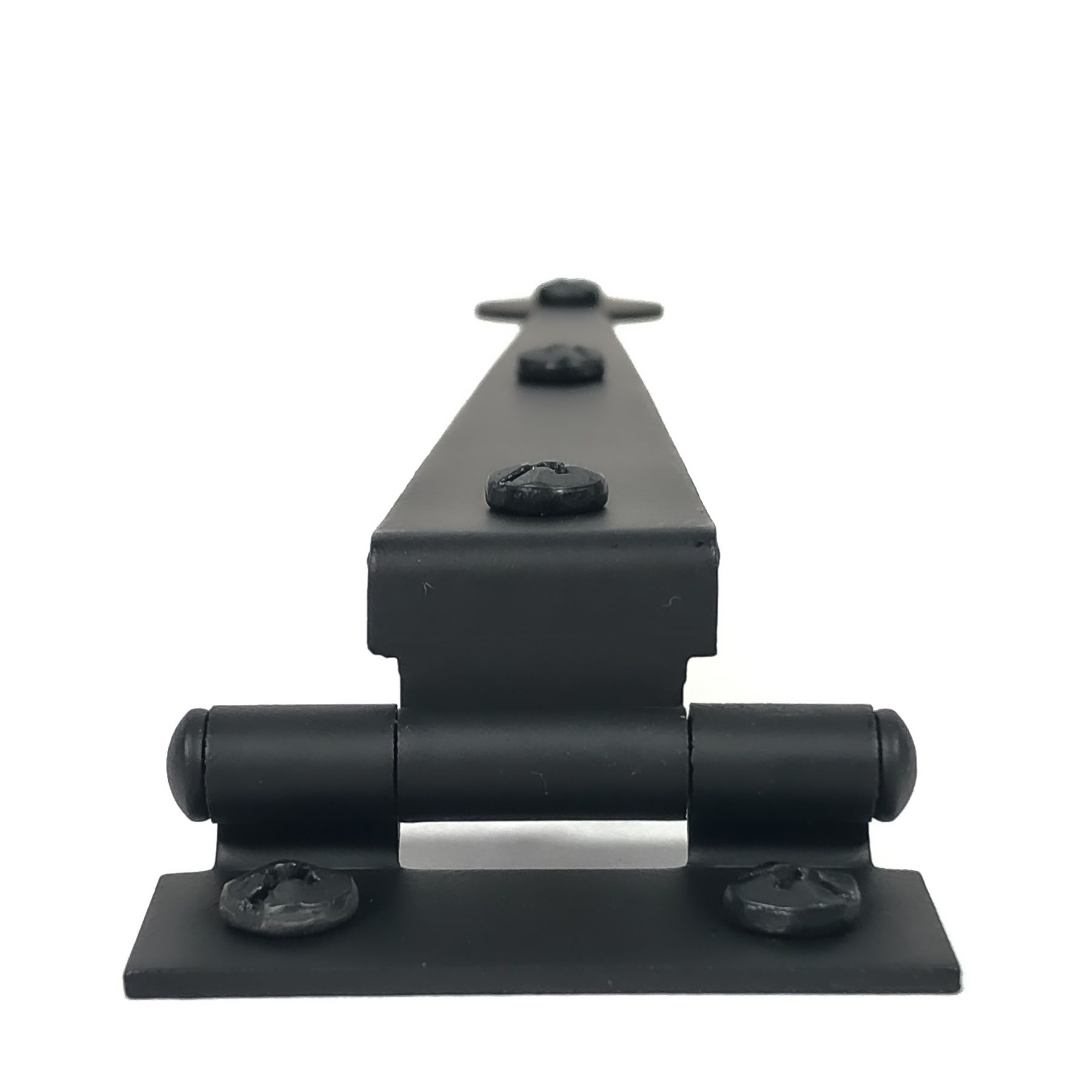

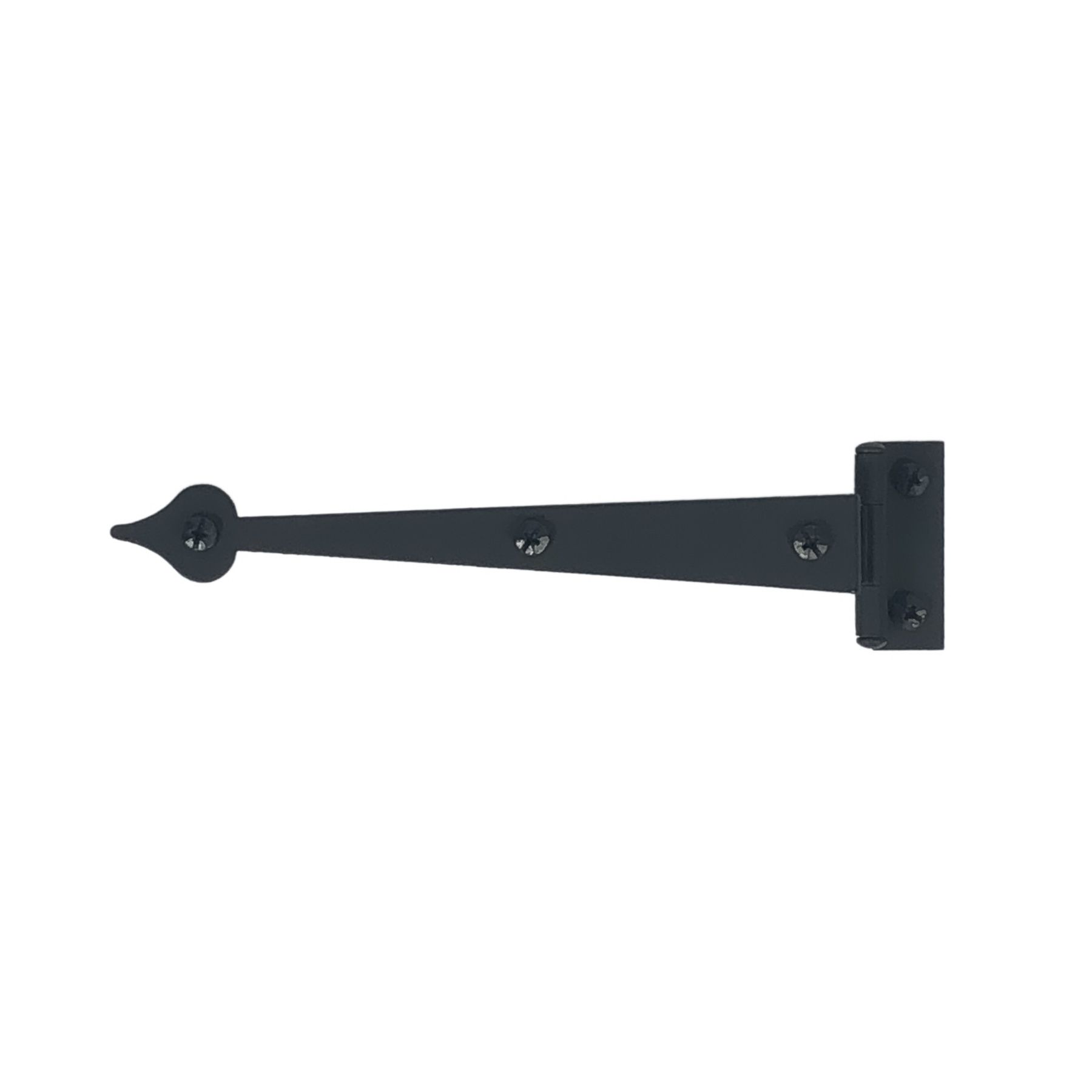

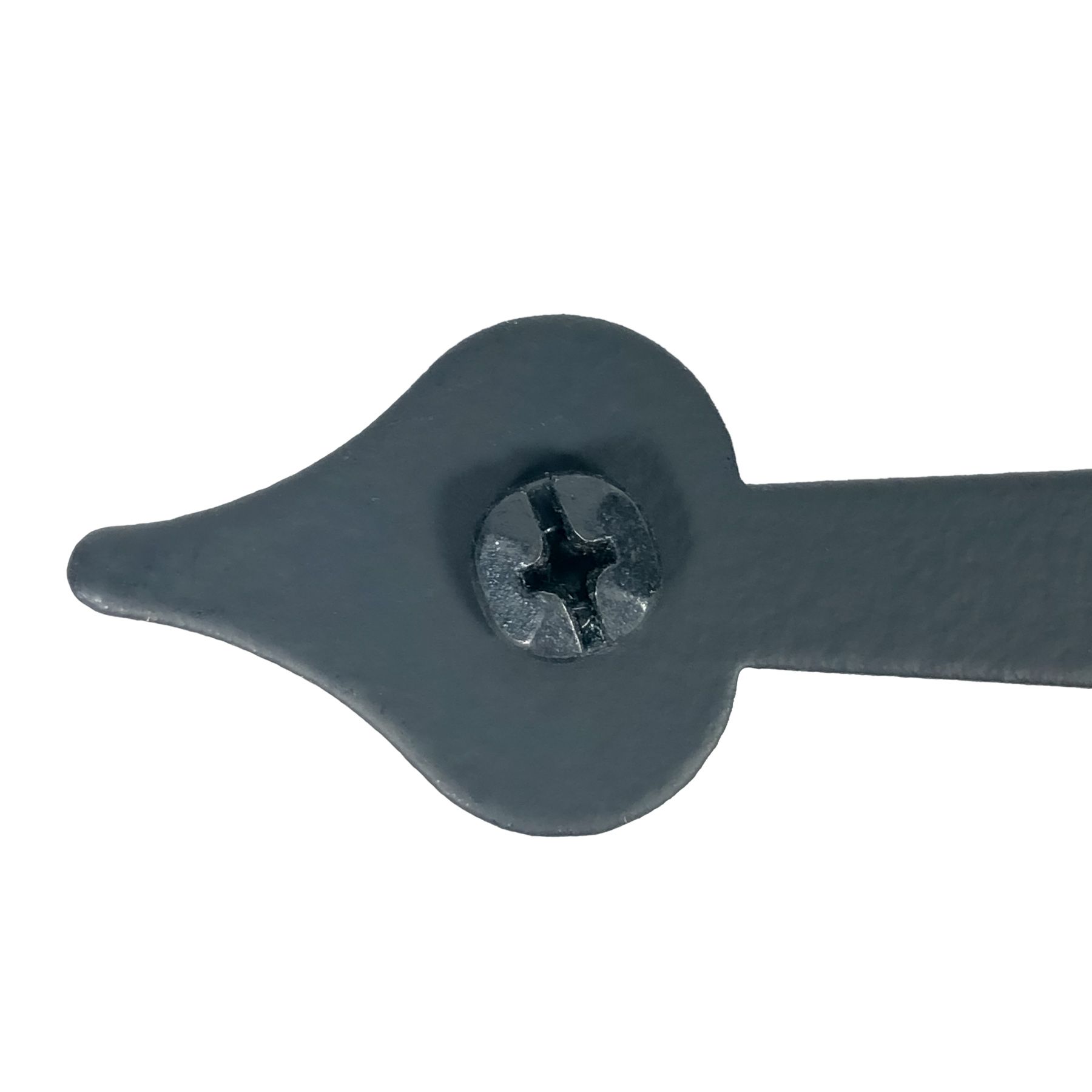

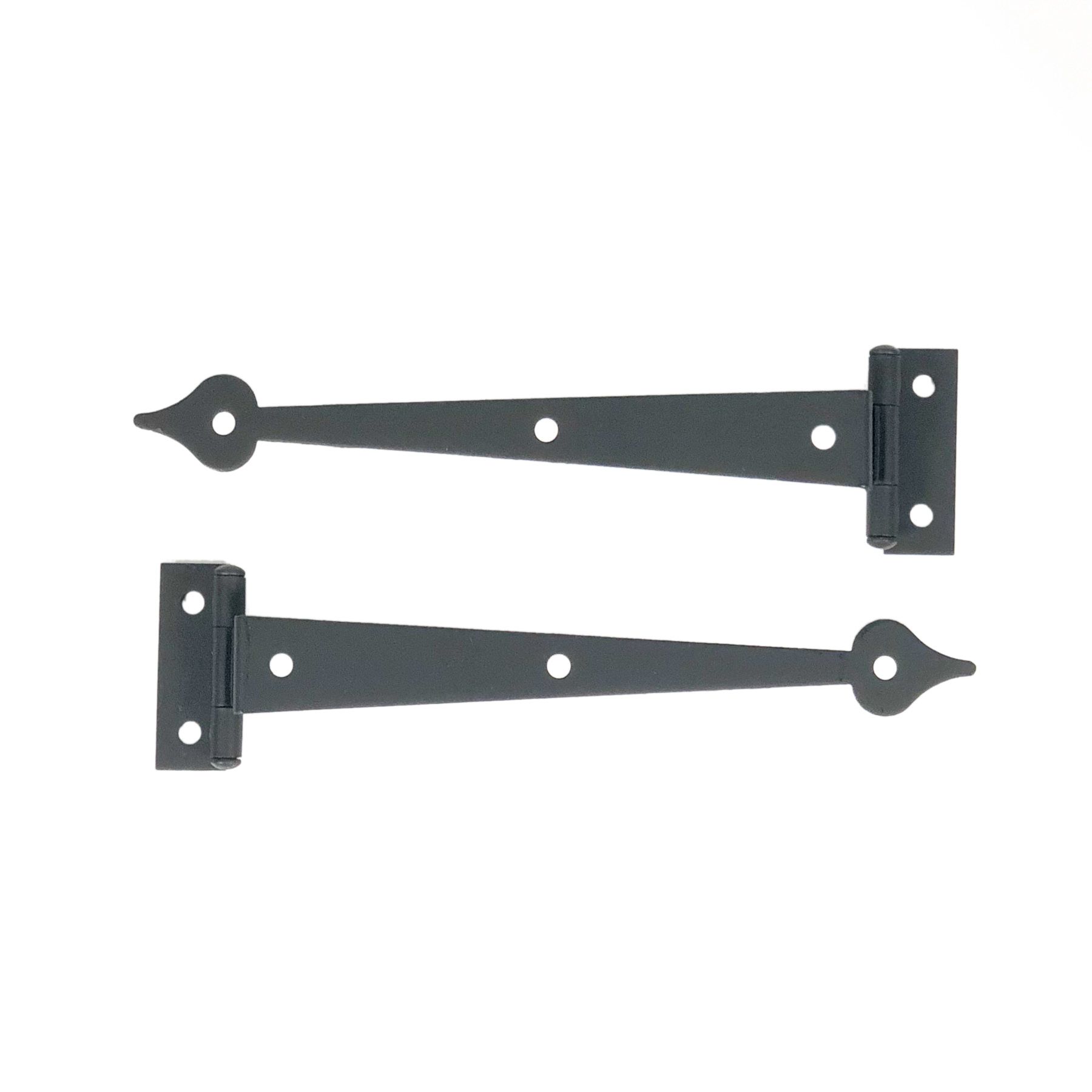

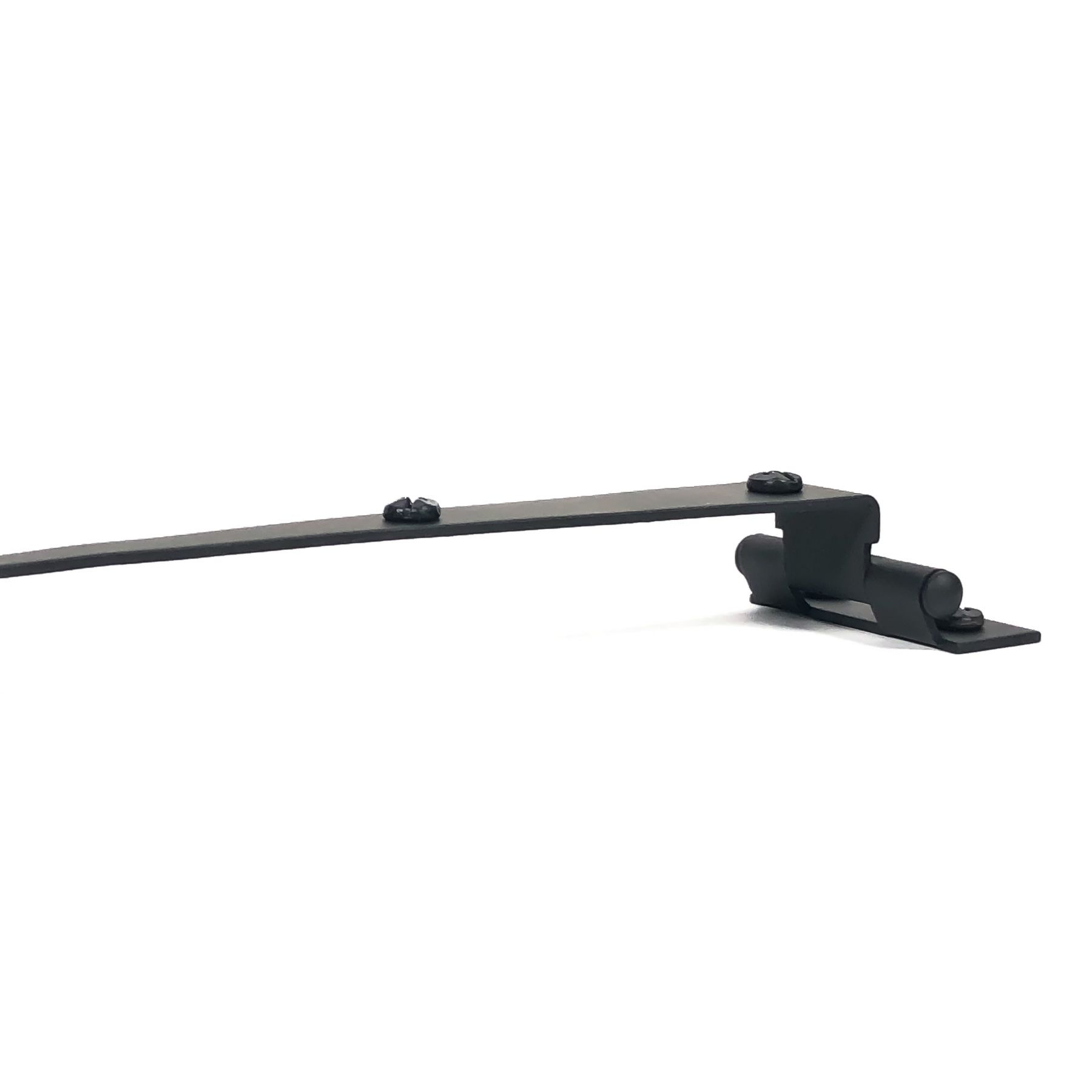

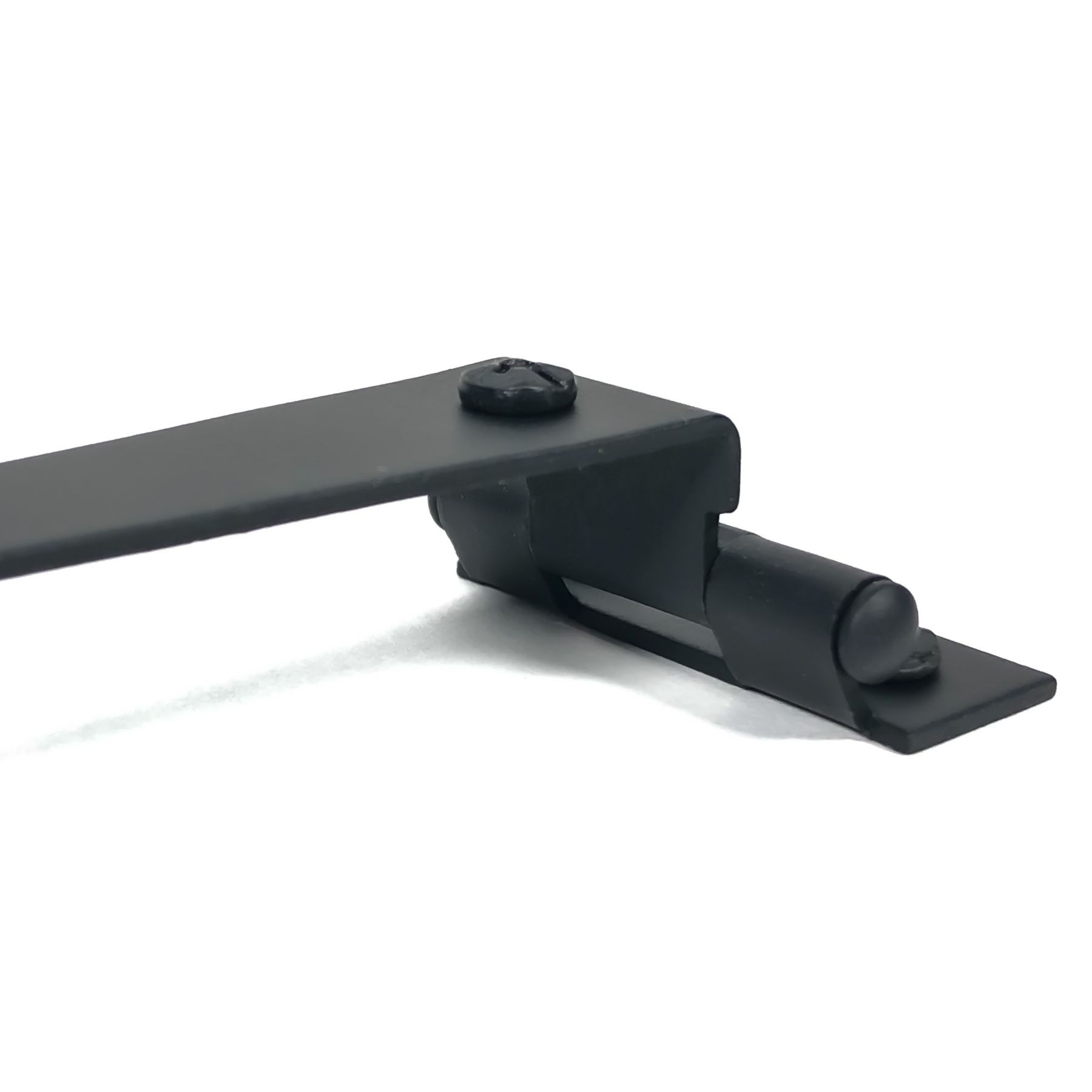

Acorn AIVBQ 6-1/2" Heart Cabinet Strap Hinge, 3/4" Offset, Pair

Acorn AIVBQ 6-1/2" Heart Cabinet Strap Hinge, 3/4" Offset, Pair is a beautifully crafted accessory that combines both form and function, perfect for enhancing your cabinetry. Made from durable steel and finished in a sleek matte black, these hinges add a touch of elegance to any door. The smooth texture not only looks sophisticated but also ensures easy operation. Designed for versatility, the AIVBQ hinges can accommodate both right and left swinging doors, making them ideal for a variety of applications. With a 3/4" offset, they are specifically tailored for cabinet doors, providing a reliable and sturdy hold. The strap portion measures 6-5/8" from the center of the barrel to the end, while the hinge pad dimensions of 5/8" x 1-3/4" ensure a secure fit. Each hinge is 0.062" thick, and the barrels are 0.27" thick, making them robust enough to support up to 25 lbs. when used in pairs. Included with the hinges are 10 #7 x 5/8" pyramid head screws, ensuring you have everything you need for installation. Made in the USA, the Acorn AIVBQ hinges reflect quality craftsmanship that building professionals and discerning homeowners can trust.

6-1/2" Heart Cabinet Strap Hinge, 3/4" Offset, Pair

AIVBQ - 6-1/2" Heart Cabinet Strap Hinge, 3/4" offset, Pair, Smooth

• Hinges are made from steel and finished in matte black


• Smooth texture


• Can be used for right or left swinging doors.


• Hinge is designed for cabinet doors with a 3/4" offset


• Strap portion is 6-5/8" long from center of barrel to end


• Hinge pad is 5/8" x 1-3/4"


• Hinges are 0.062" thick


• Barrells are 0.27" thick


• Includes 10, #7 x 5/8" pyramid head screws, for extra screws orderAQ2B9


• Two hinges hold 25 lbs.


• Made in the USA

Installation Tips

• Predrill with 3/32" drillbit for softwood or 7/64" drillbit for hardwood.


• Hand tighten screws only, do not use power tools to porotect the finish.
