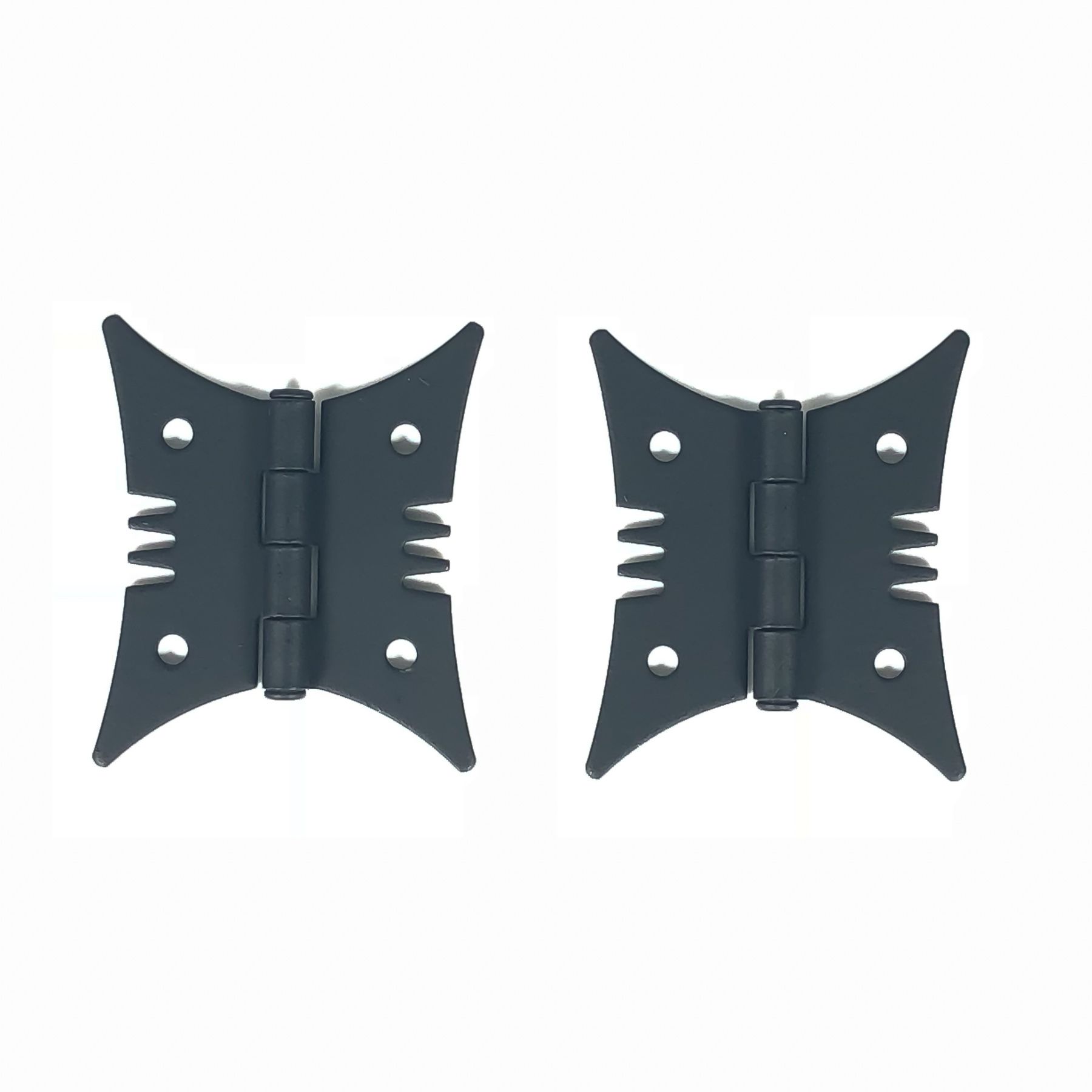

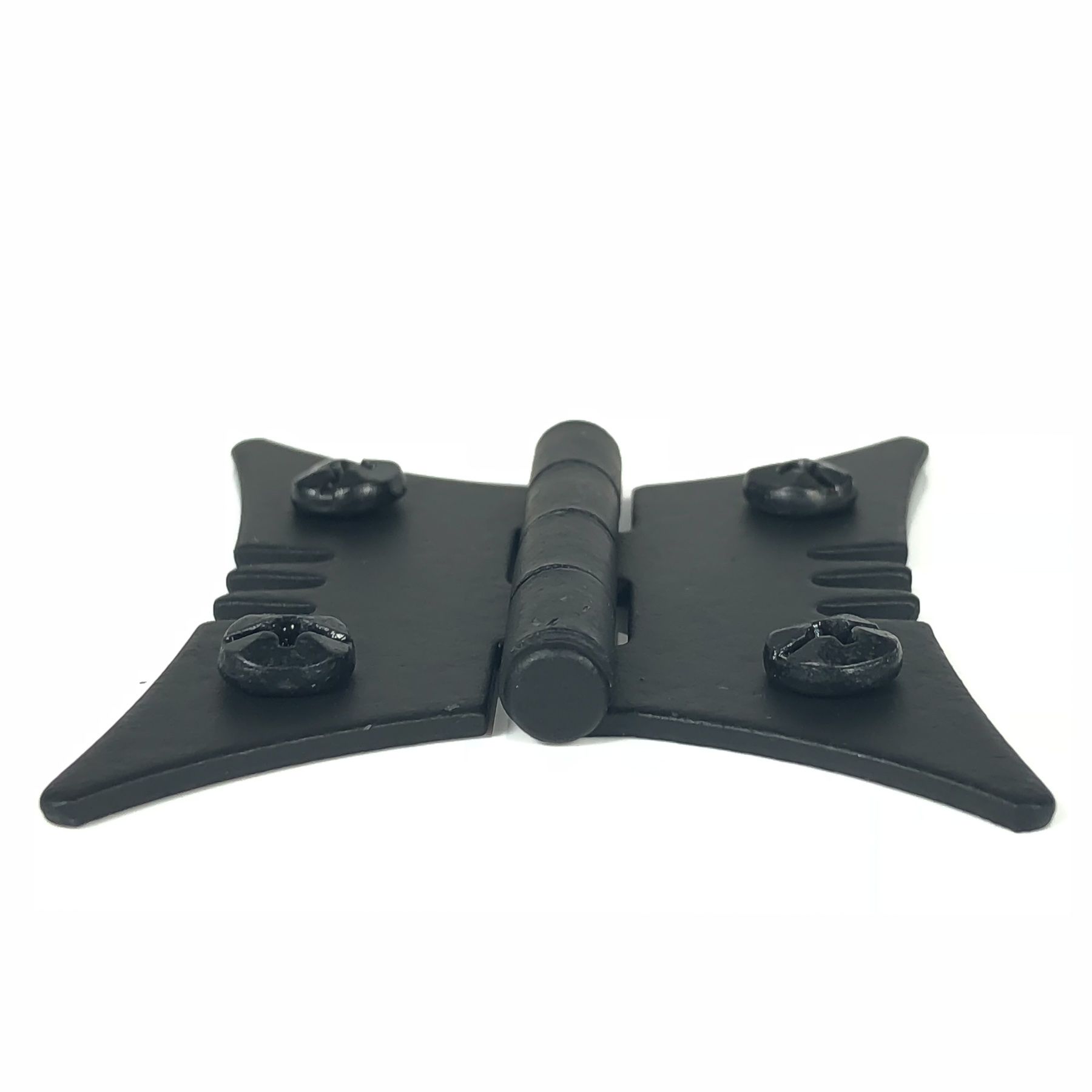

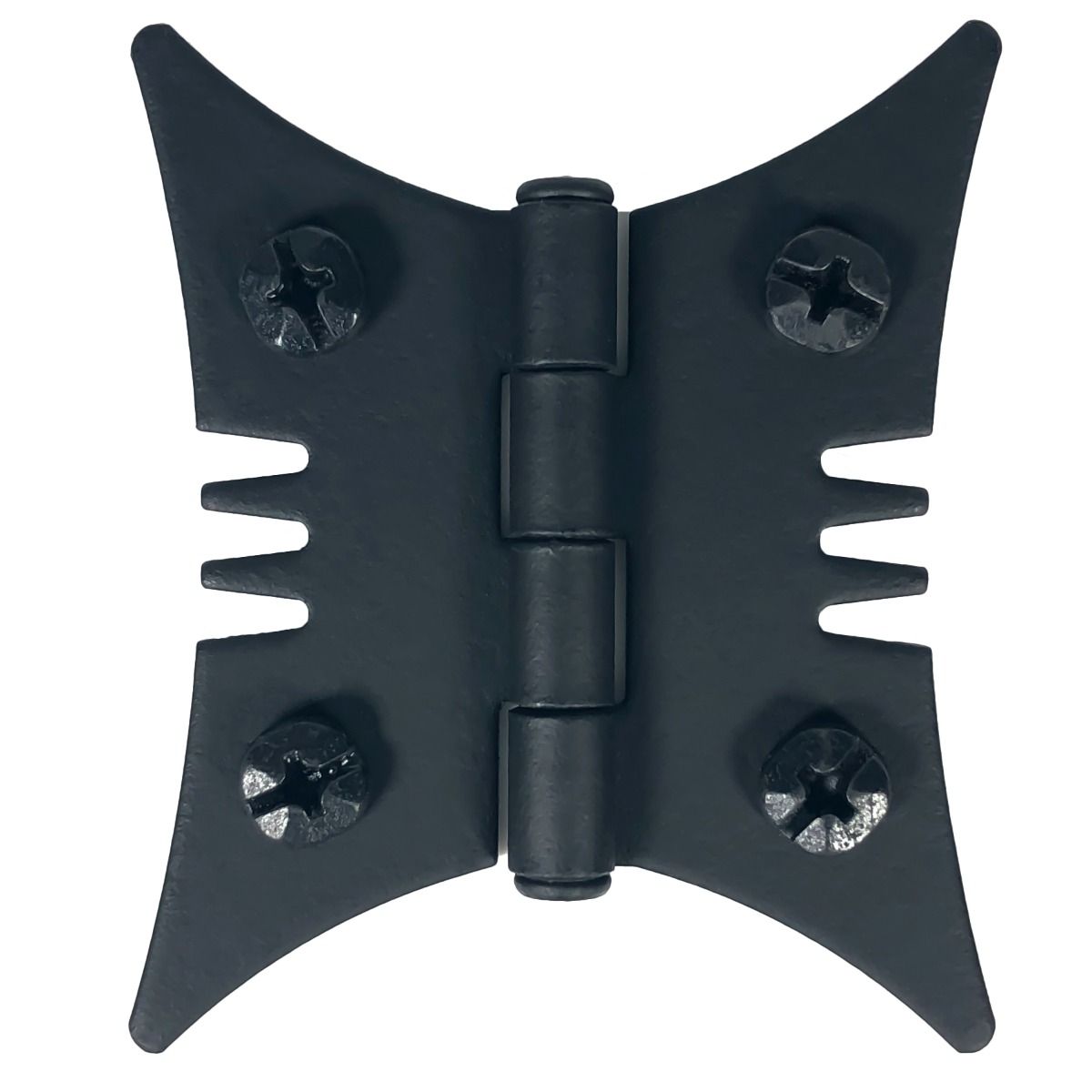

Acorn AJ1BQ Butterfly Flush Cabinet Hinge, Smooth, Pair

Acorn AJ1BQ Butterfly Flush Cabinet Hinge, Smooth, Pair offers a blend of durability and elegance, perfect for any cabinetry project. Crafted from robust steel and finished in a sophisticated matte black, these hinges provide a sleek aesthetic with a smooth texture that enhances the overall appearance of your cabinets. Designed for flush mount cabinet doors, the AJ1BQ hinges accommodate both right and left swinging doors, making them versatile for various installations. When opened, each hinge measures 2-3/8" in height and 2" in width, with hinge leaves that are 0.062" thick and barrels measuring 0.245" thick. For secure attachment, screw holes on the same leaf are spaced 1-1/8" apart, while those on the opposite leaf are 1-5/32" apart. This pair of hinges can support a total weight of 25 lbs., ensuring reliable functionality. Included with your purchase are eight #7 x 5/8" pyramid head screws, facilitating a straightforward installation process. Made in the USA, the Acorn AJ1BQ Butterfly Flush Cabinet Hinge stands as a testament to quality craftsmanship and design, making it an excellent choice for both building professionals and discerning homeowners.

Butterfly Flush Cabinet Hinge, Smooth, Pair

AJ1BQ - Butterfly Cabinet Hinge, Smooth, Pair

• Hinges are made from steel and finished in matte black


• Smooth texture


• Can be used for right or left swinging doors


• Designed for flush mount cabinet doors


• Opened hinges measure 2-3/8" height x 2" width


• Hinges leaves are 0.062" thick


• Barrells are 0.245" thick


• Screws holes on the same leaf are 1-1/8" apart


• Screws holes on opposite leaf are 1-5/32" apart


• Includes 8, #7 x 5/8" pyramid head screws, for extra screws orderAQ2B9


• Two hinges hold 25 lbs.


• Made in the USA

Installation Tips

• Predrill with 3/32" drillbit for softwood or 7/64" drillbit for hardwood.


• Hand tighten screws only, do not use power tools to porotect the finish.
