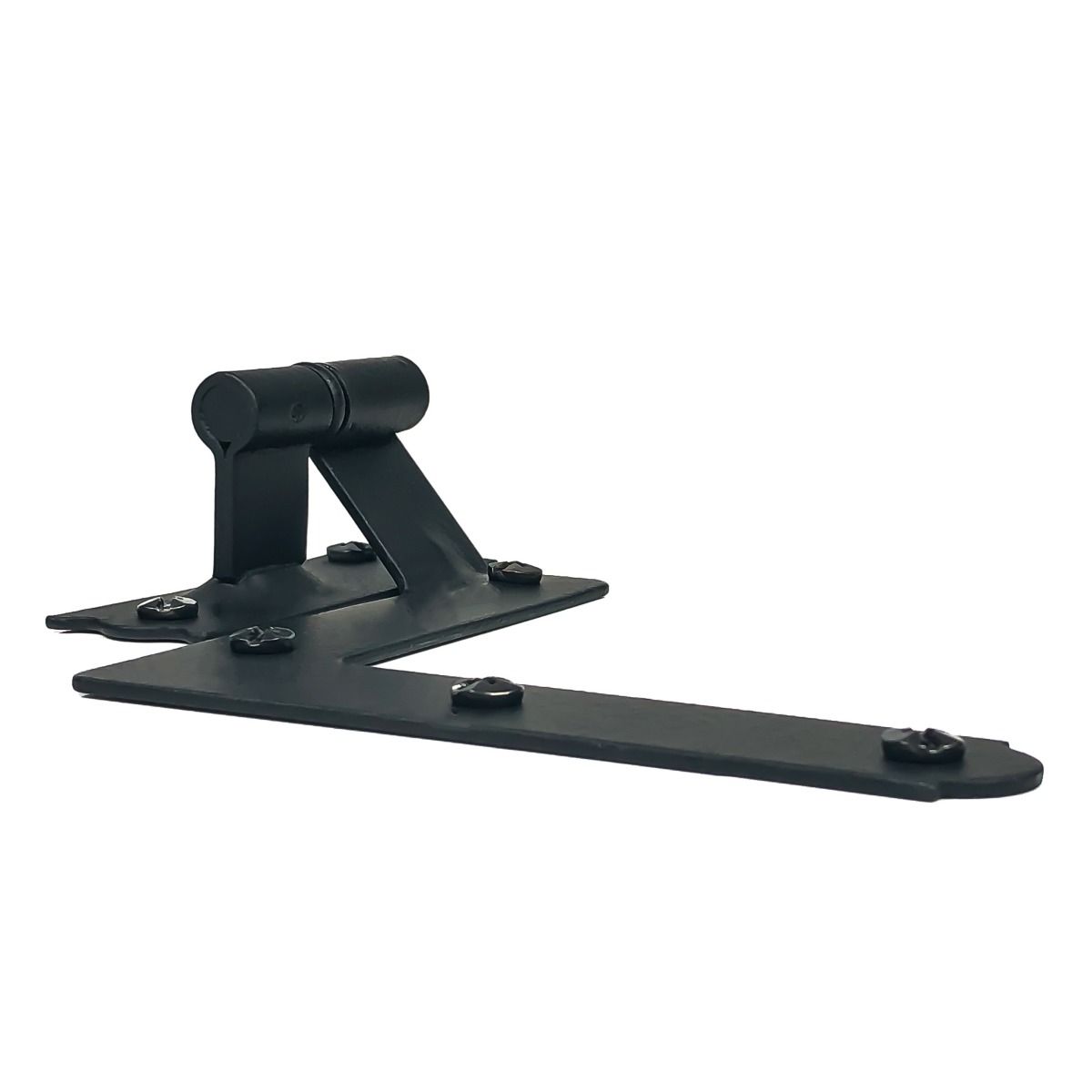

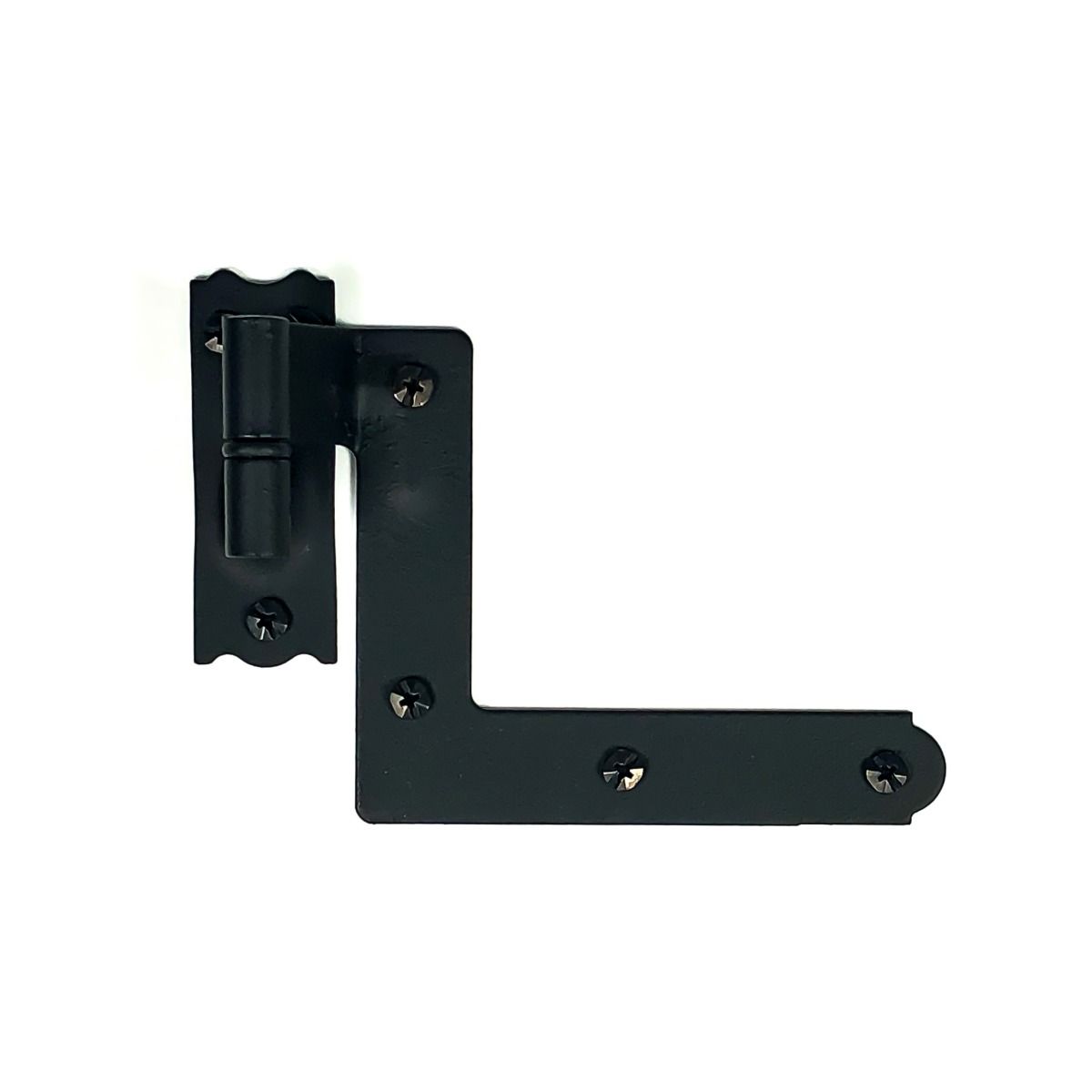

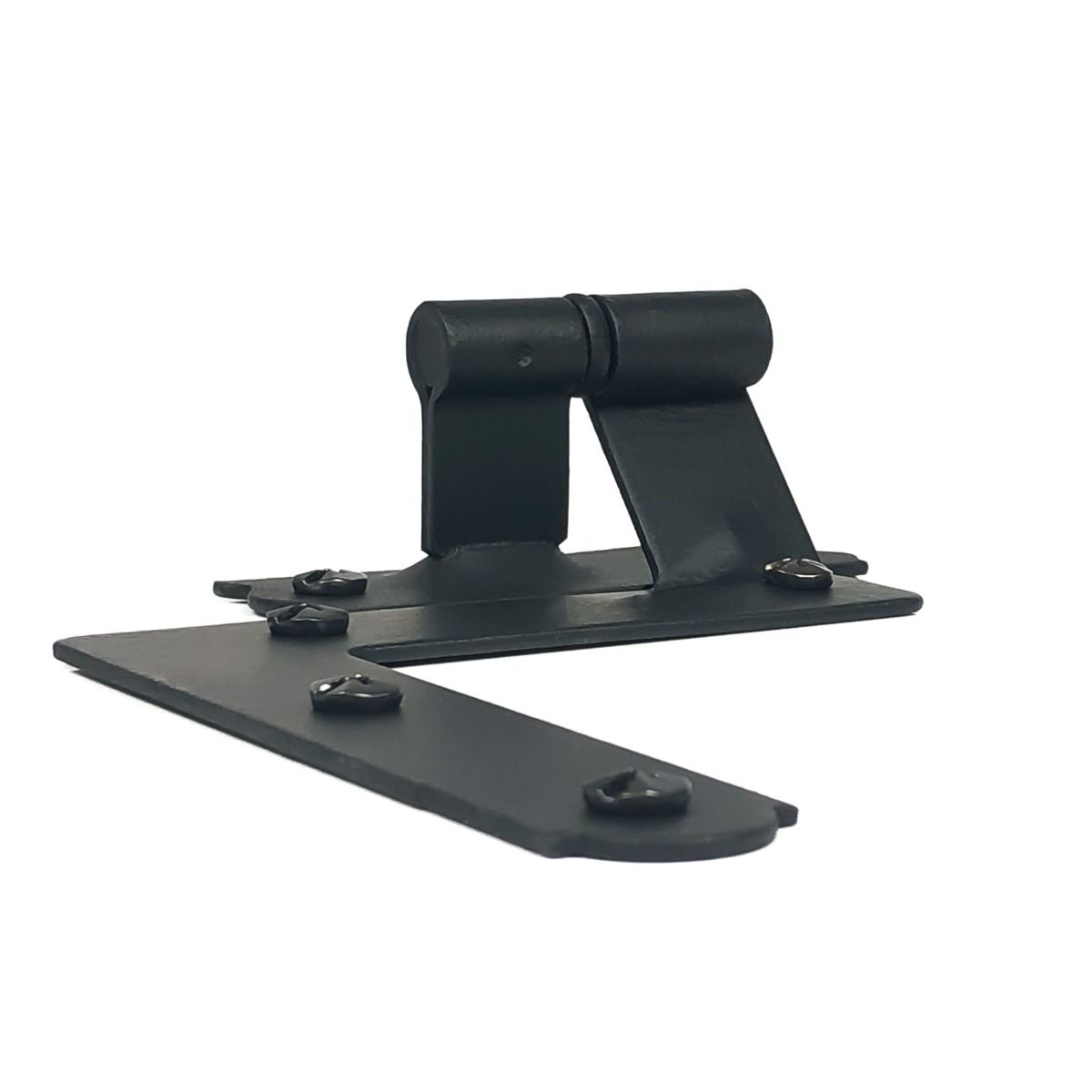

Acorn AK1BI New York Wood Shutter Hinge

Acorn AK1BI New York Shutter Hinge for Wood Homes combines functionality with durability, making it an ideal choice for enhancing your wood frame applications. Crafted from galvanized steel and finished with a matte black paint, these hinges not only provide a sleek aesthetic but are built to withstand the elements. Sold in sets of four, each set is designed to accommodate one window with two shutters, ensuring a complete installation. The hinge dimensions of 4-1/4" x 5" and the 1-1/8" x 3-1/8" pintle plate feature a thoughtful 1-1/4" offset, allowing for a clean fit over a 2-1/2" reveal. The lift-off design simplifies the hanging and removal of shutters, providing convenience when adjustments or maintenance are needed. Included are 14 stainless steel #8 x 3/4" pyramid head screws, ensuring a robust installation. For those requiring additional screws, the option to order ASRB9 is available. Whether you are a building professional or a knowledgeable homeowner, the Acorn AK1BI New York Shutter Hinge is a reliable choice that marries aesthetic appeal with practical functionality, enhancing the charm and usability of your wooden shutters.

New York Shutter Hinge for Wood Home

AK1BI - New York Shutter Hinge Set for Wood Homes

• Made of steel, galvanized and finished with matte black paint

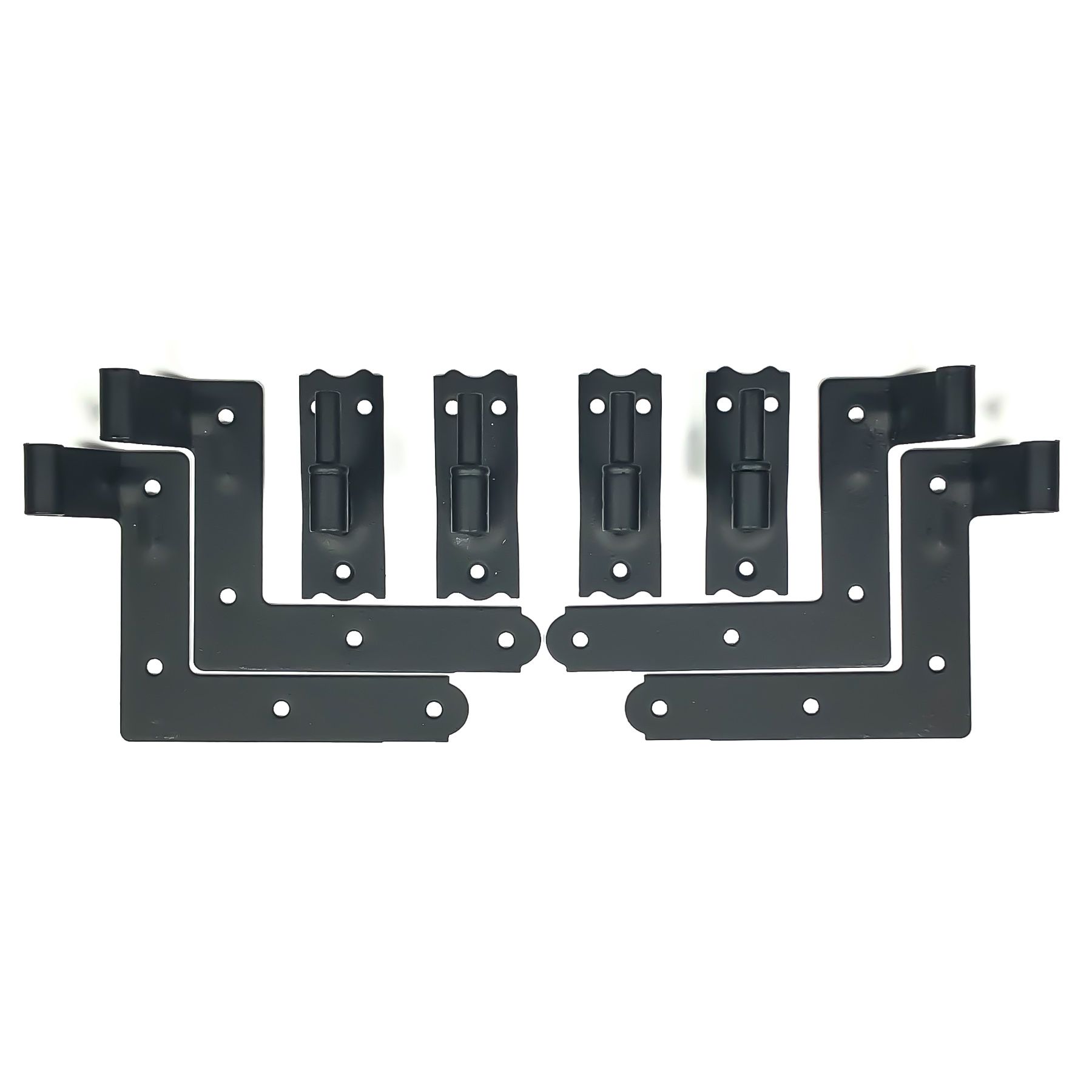

• Sold in sets of 4, one set is used for one window with 2 shutters

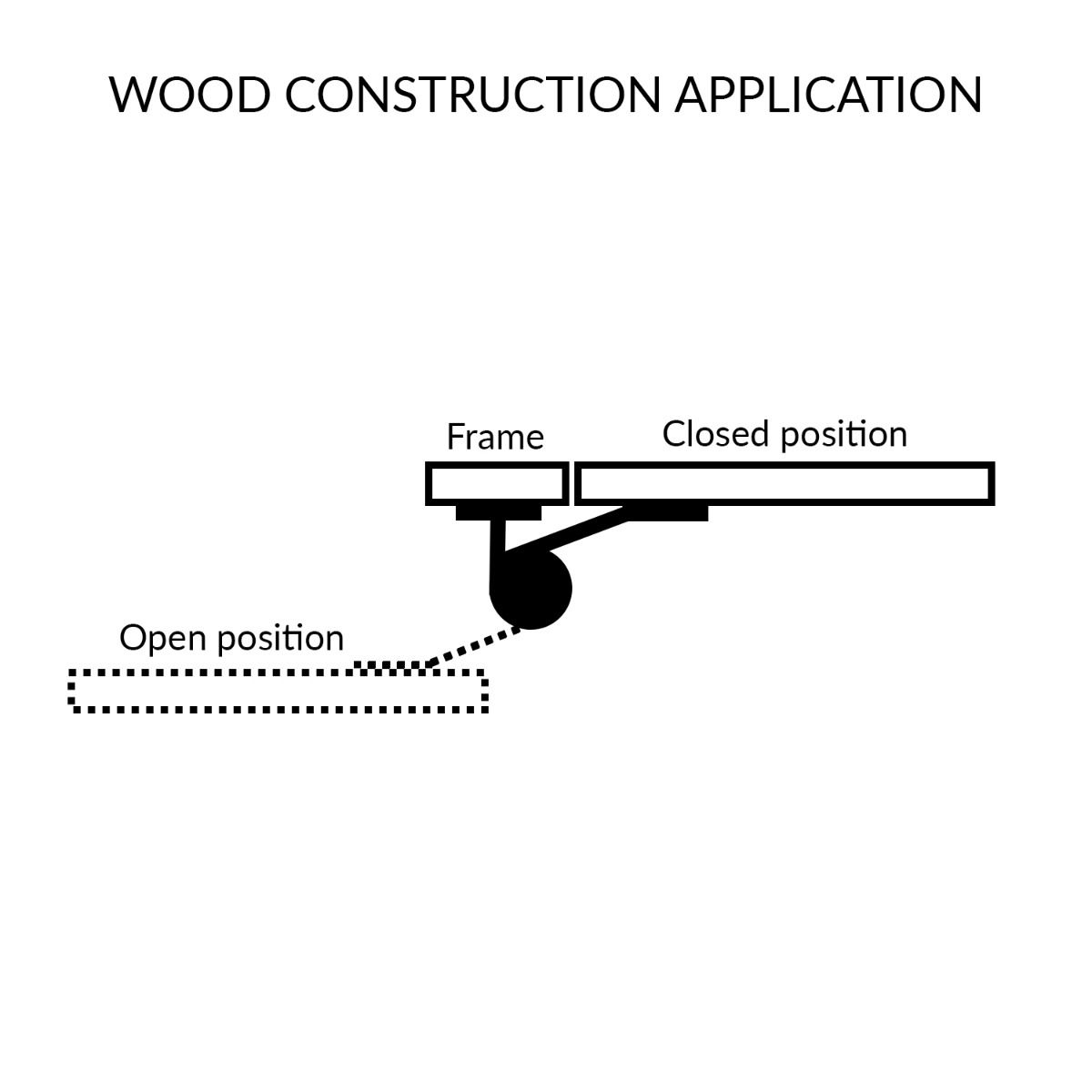

• For wood frame applications

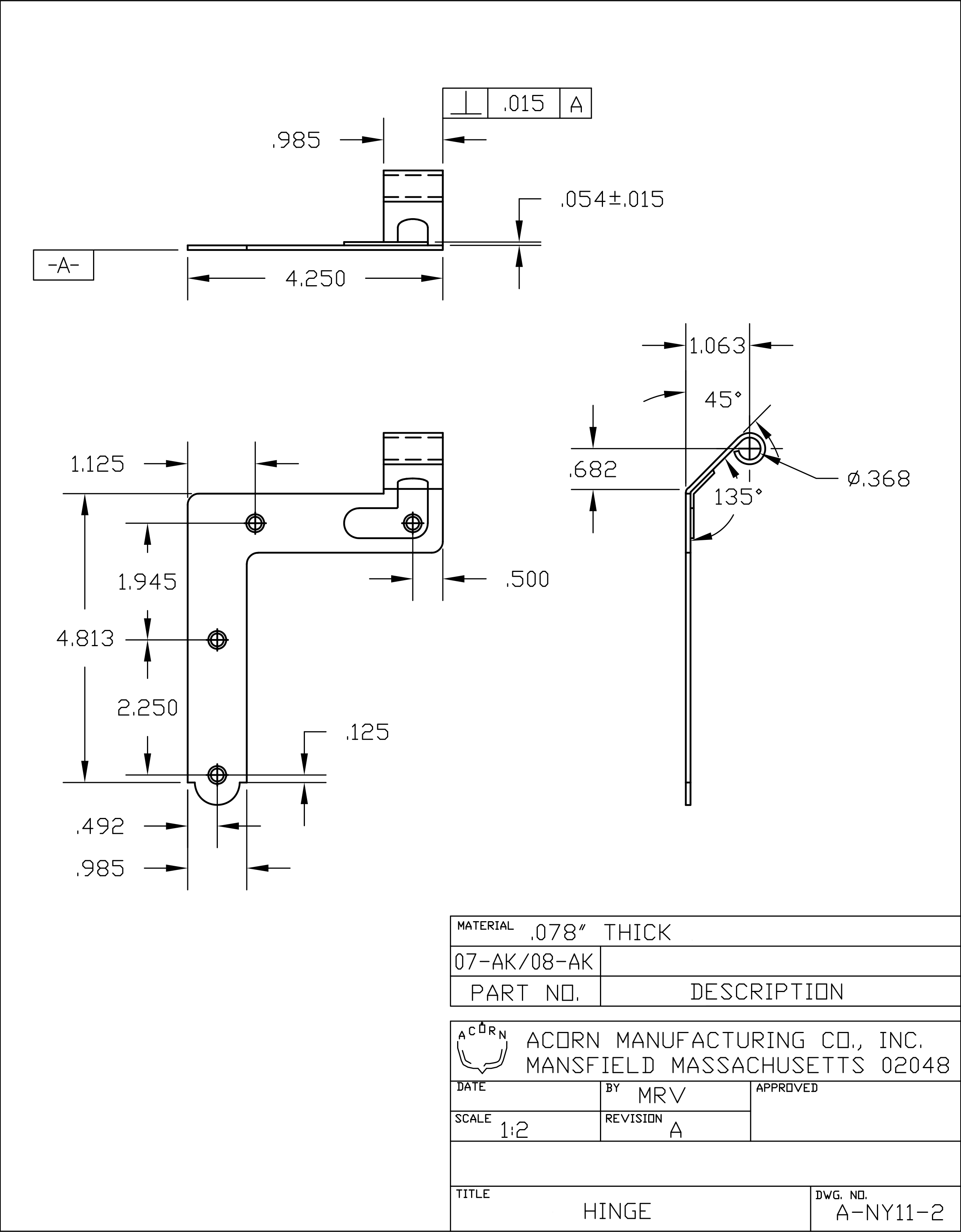

• 4-1/4" x 5" hinge

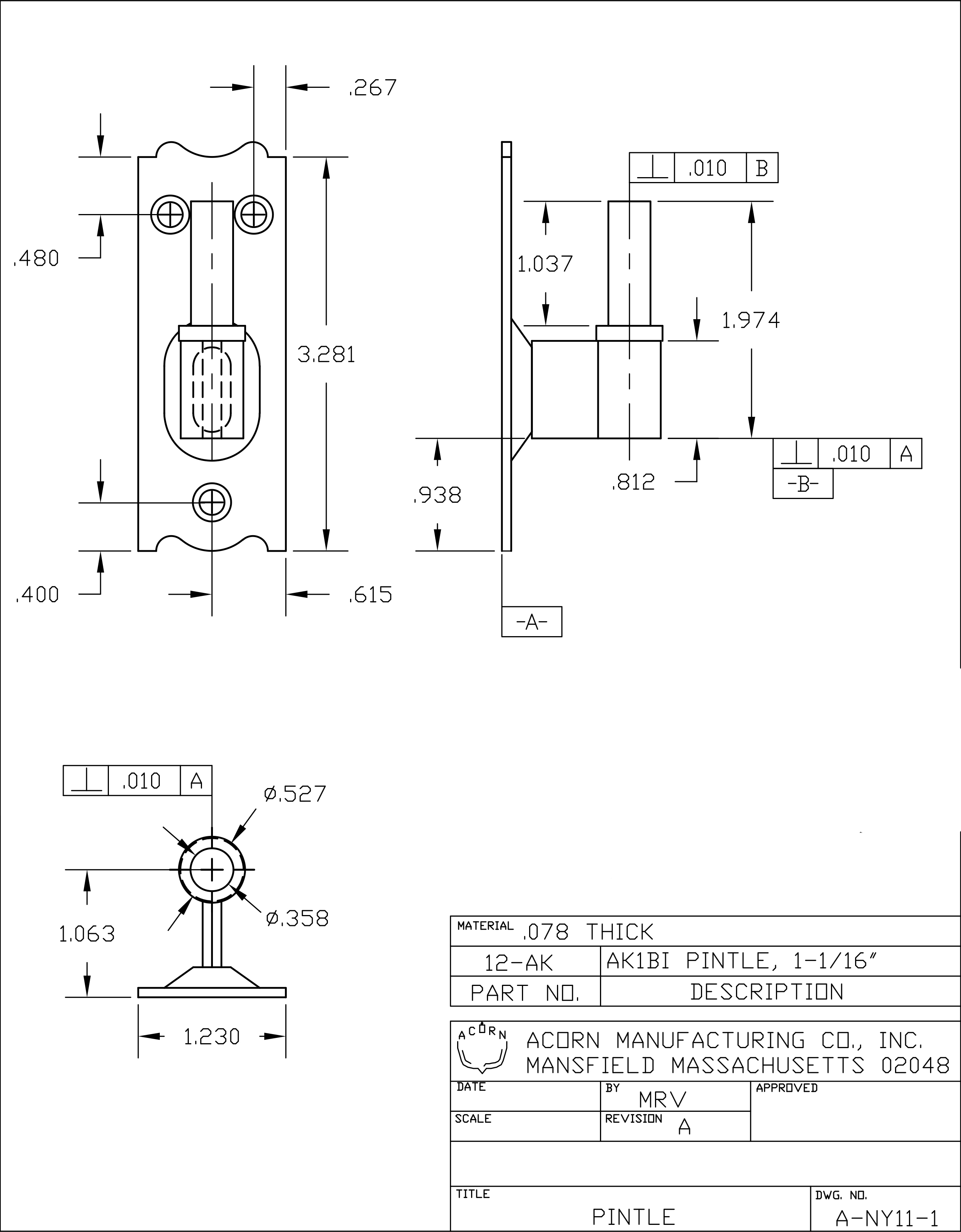

• 1-1/8" x 3-1/8" pintle plate


• 1-1/4" offset to clear 2-1/2" reveal


• Lift off design for easy hanging and removal of shutters


• All screws made from stainless steel


• 14, #8 x 3/4" pyramid head screws included


• Need extra screws? OrderASRB9

Installation Tips

• Predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood


• Hand tighten screws, do not use power tools with screws.


• When installing decorative hardwre use hand tools in good condition

Installation Instructions

• Holding a shutter and hinge in position, note their location to the window casing and sill.


• The location of the "L" half of the hinge should be central to the upper and lower shutter rails. Align the pintle plate to solid window casing.


• Pintle mounting screws should extend into the casing. Old construction may require longer screws to fasten to framing.


• Position the pintle (pins pointing upward) on the exterior window casing.


• Mark the hinge "L" holes (pencil or an awl) to the shutter. Attach the hinge half using two #8 pyramid head screws.


• Repeat steps 4 & 5 and attach both the pintle plates to the casing using only one screw.


• Check that movement is square and parallel. If satisfactory, hang the mating shutter. Inspect both shutters in the closed position. Re-align if necessary.


• While closed, install the remaining screws in both the "L" and pintle plates. It may be easier to lift the shutter off the pintles to install the remaining screws.
