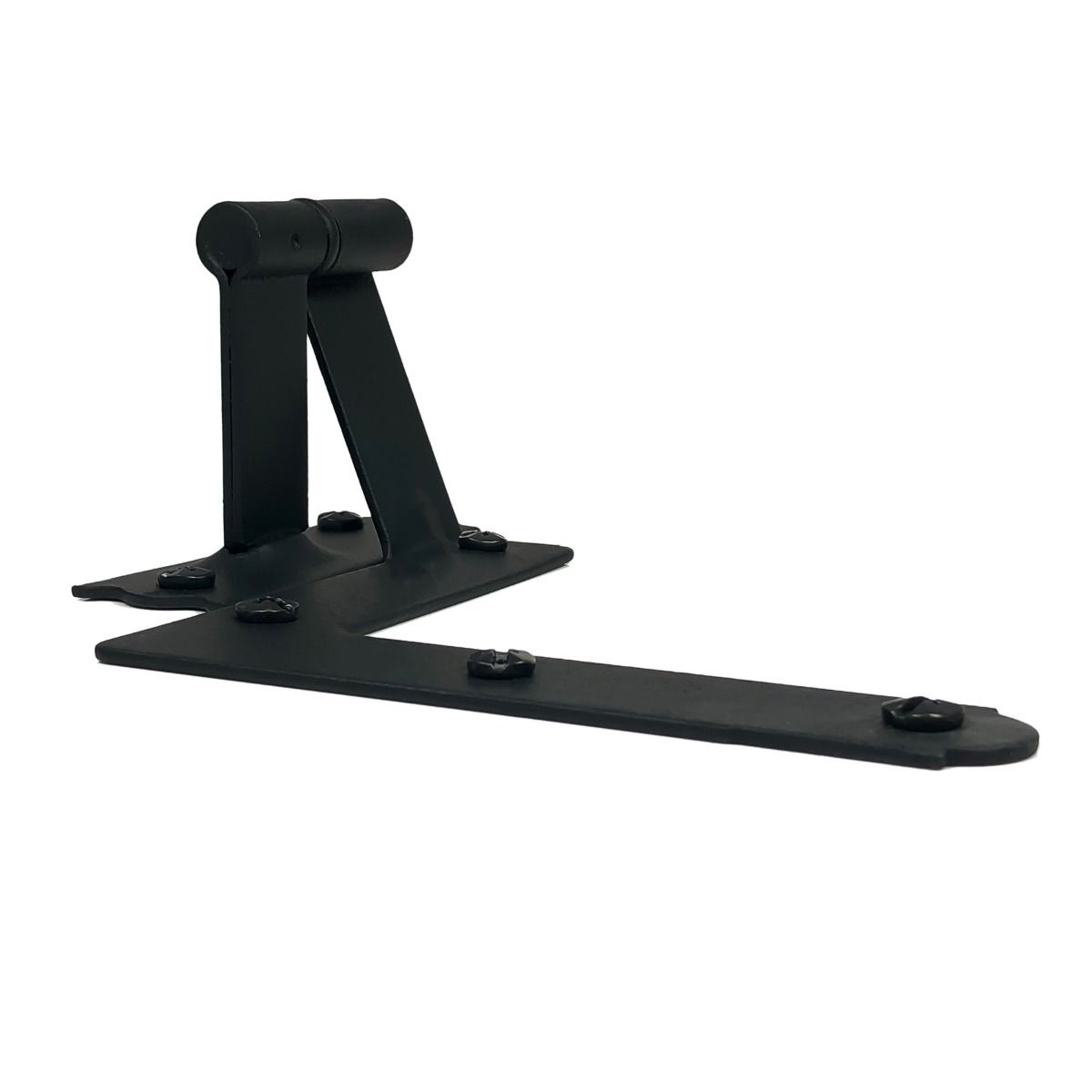

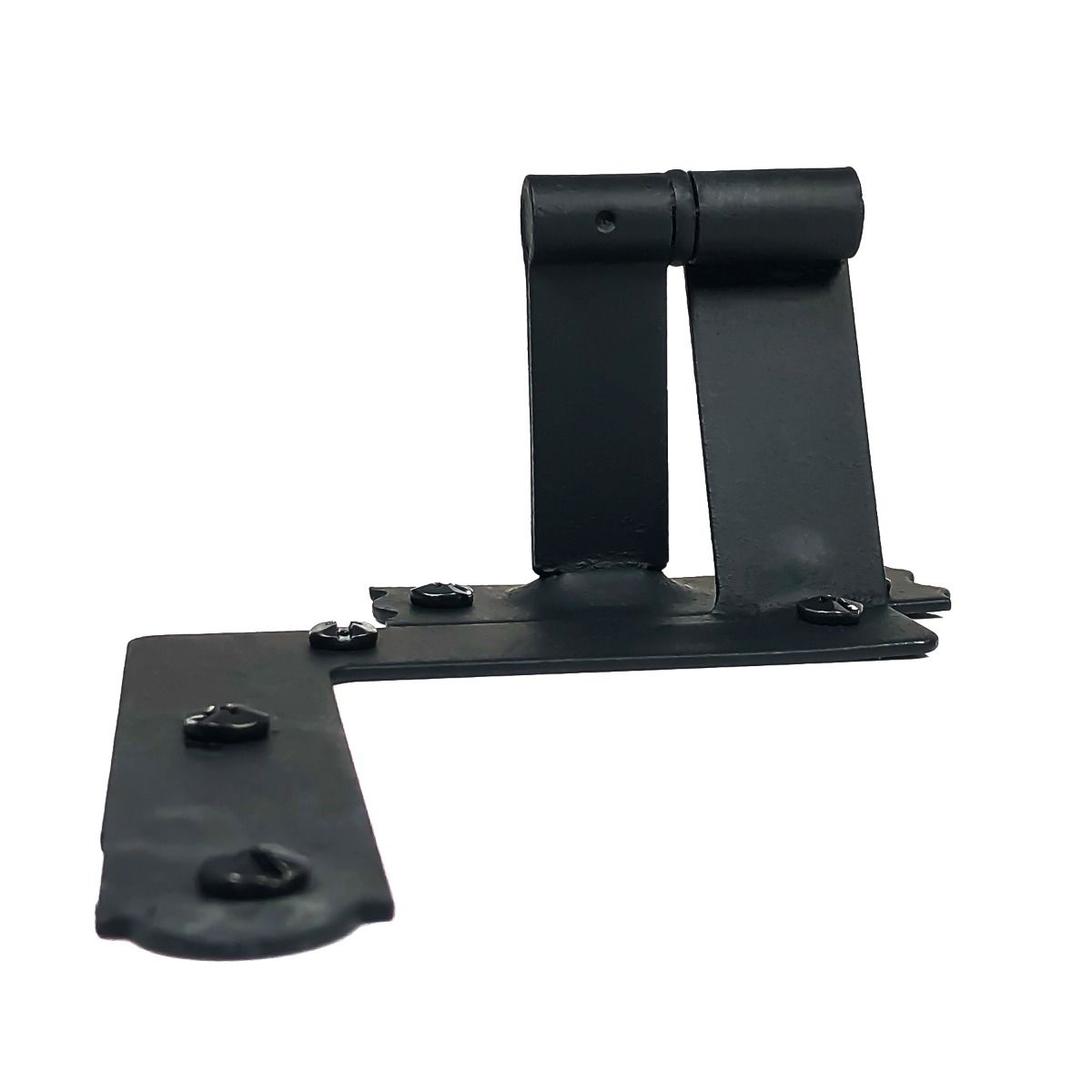

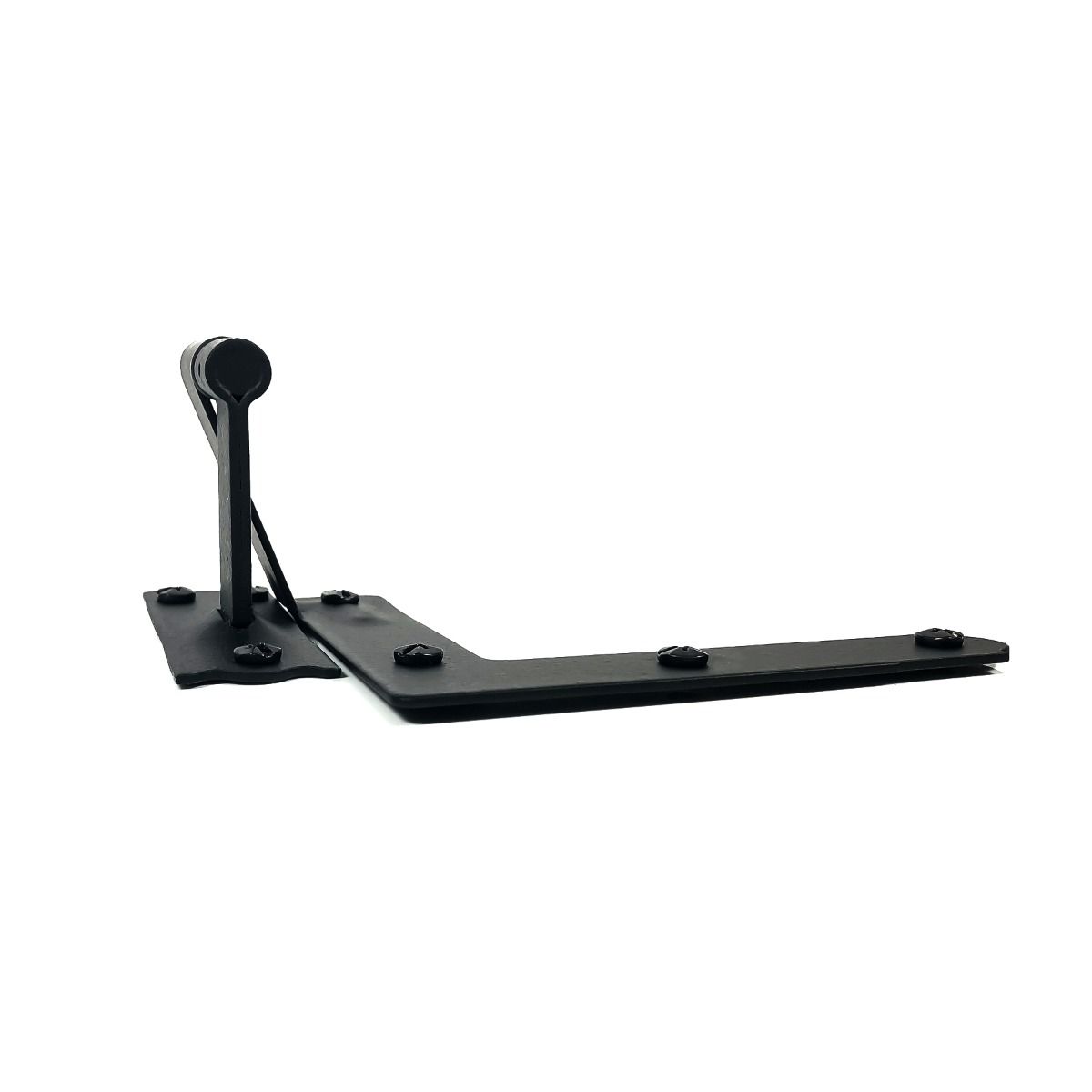

Acorn AK2BI New York Shutter Hinge for Brick Homes

Acorn AK2BI New York Shutter Hinge for Brick Home provides an ideal solution for securely attaching shutters to wooden window frames in brick applications. Crafted from durable steel, this hinge set is galvanized and finished with a sleek matte black paint, ensuring both longevity and aesthetic appeal. Each set includes four hinges, sufficient for one window outfitted with two shutters, making it a practical choice for your installation needs. Measuring 4-1/4" x 5", the hinge features a 1-1/8" x 3-1/8" pintle plate with a 2-1/4" offset designed to clear a 4-1/2" reveal. The convenient lift-off design allows for easy hanging and removal of shutters, making seasonal adjustments a breeze. To enhance durability, all included screws are made from stainless steel, and each set comes with 14 #8 x 3/4" pyramid head screws. This product is specifically engineered for brick applications, ensuring a secure and reliable installation. For those needing extra screws, the ASRB9 can be ordered separately. Elevate the functionality and style of your home with the Acorn AK2BI New York Shutter Hinge, a perfect blend of form and function.

New York Shutter Hinge for Brick Home

AK2BI - New York Shutter Hinge Set for Brick Homes

• Made of steel, galvanized and finished with matte black paint

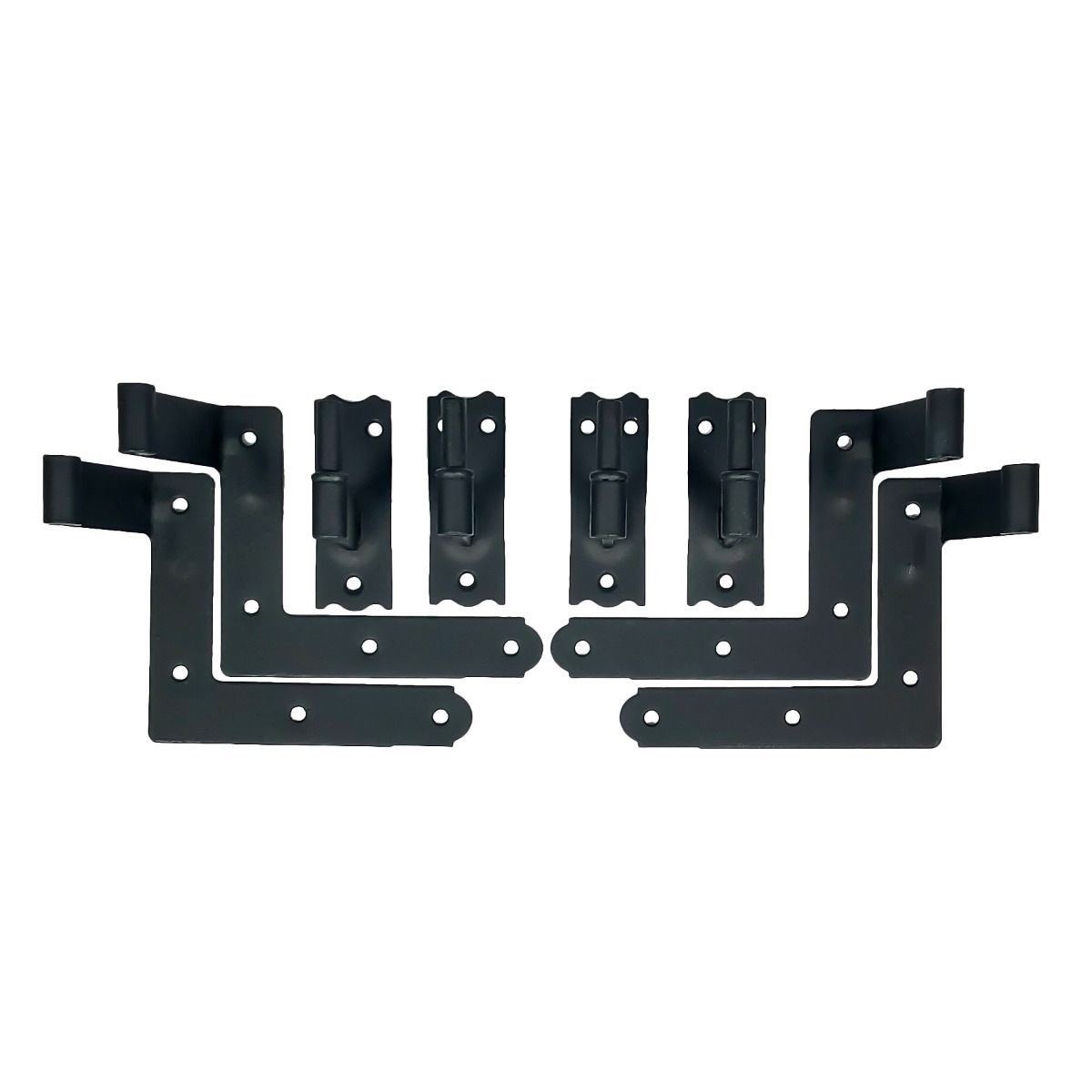

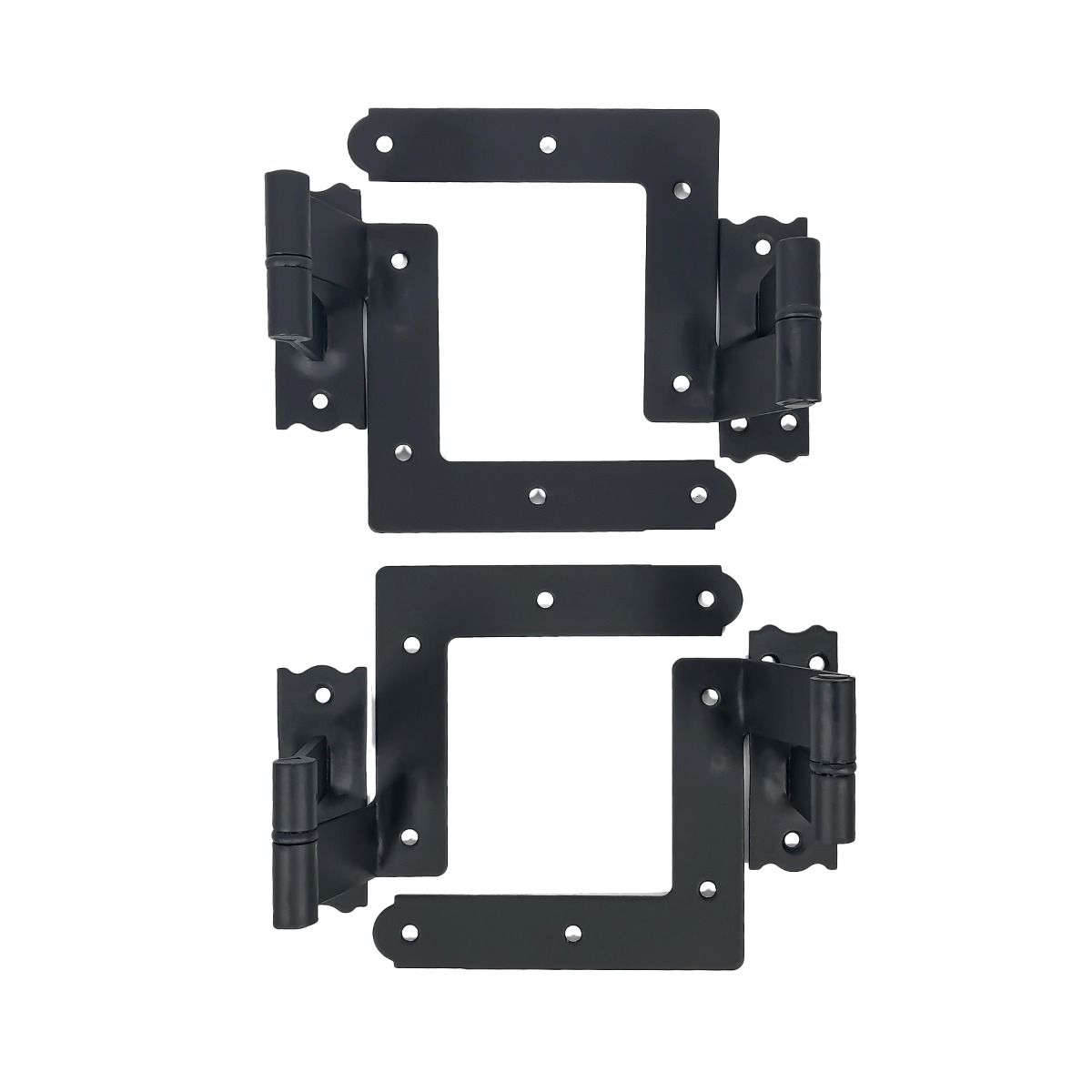

• Sold in sets of 4, one set is used for one window with 2 shutters

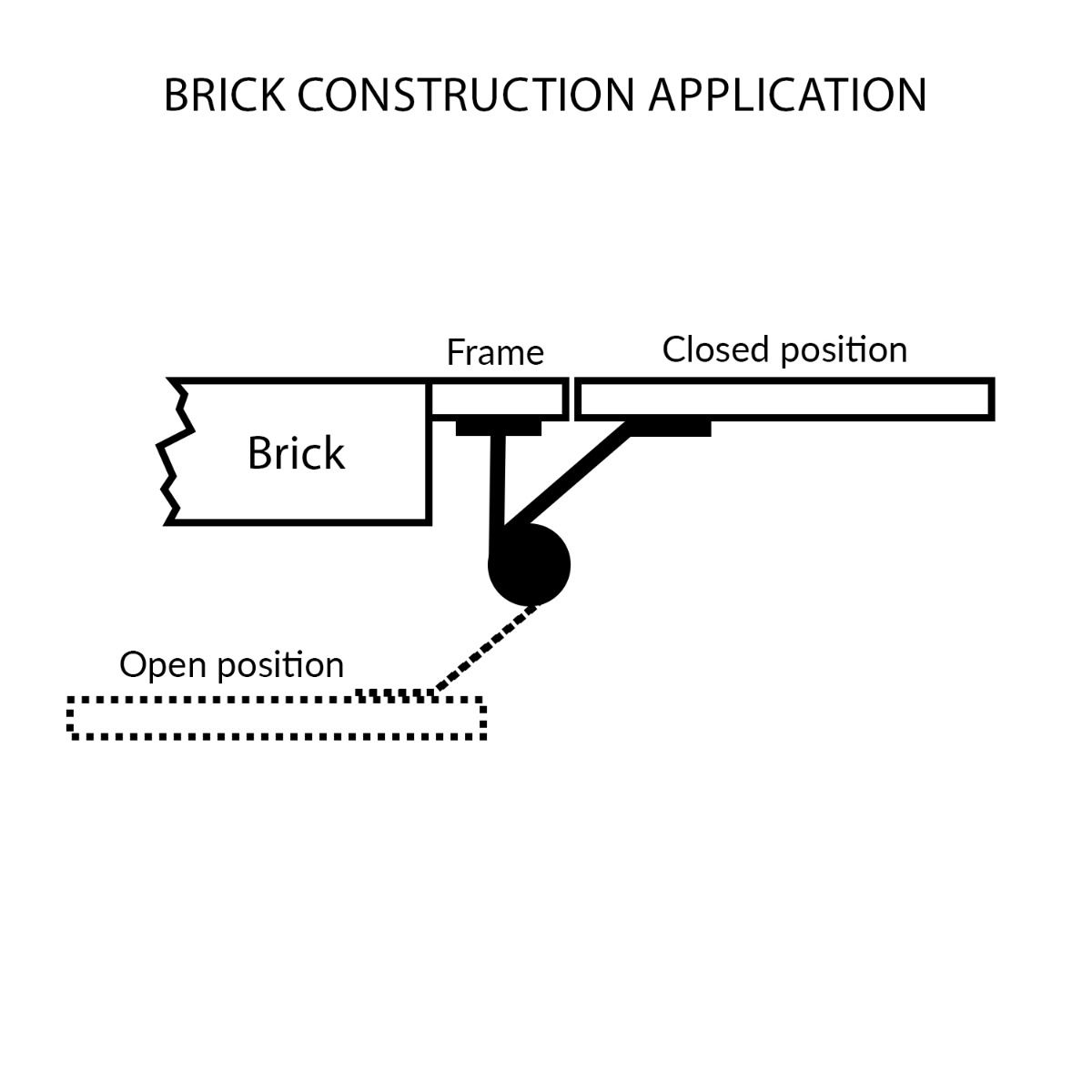

• For brick applications with wooden window frames

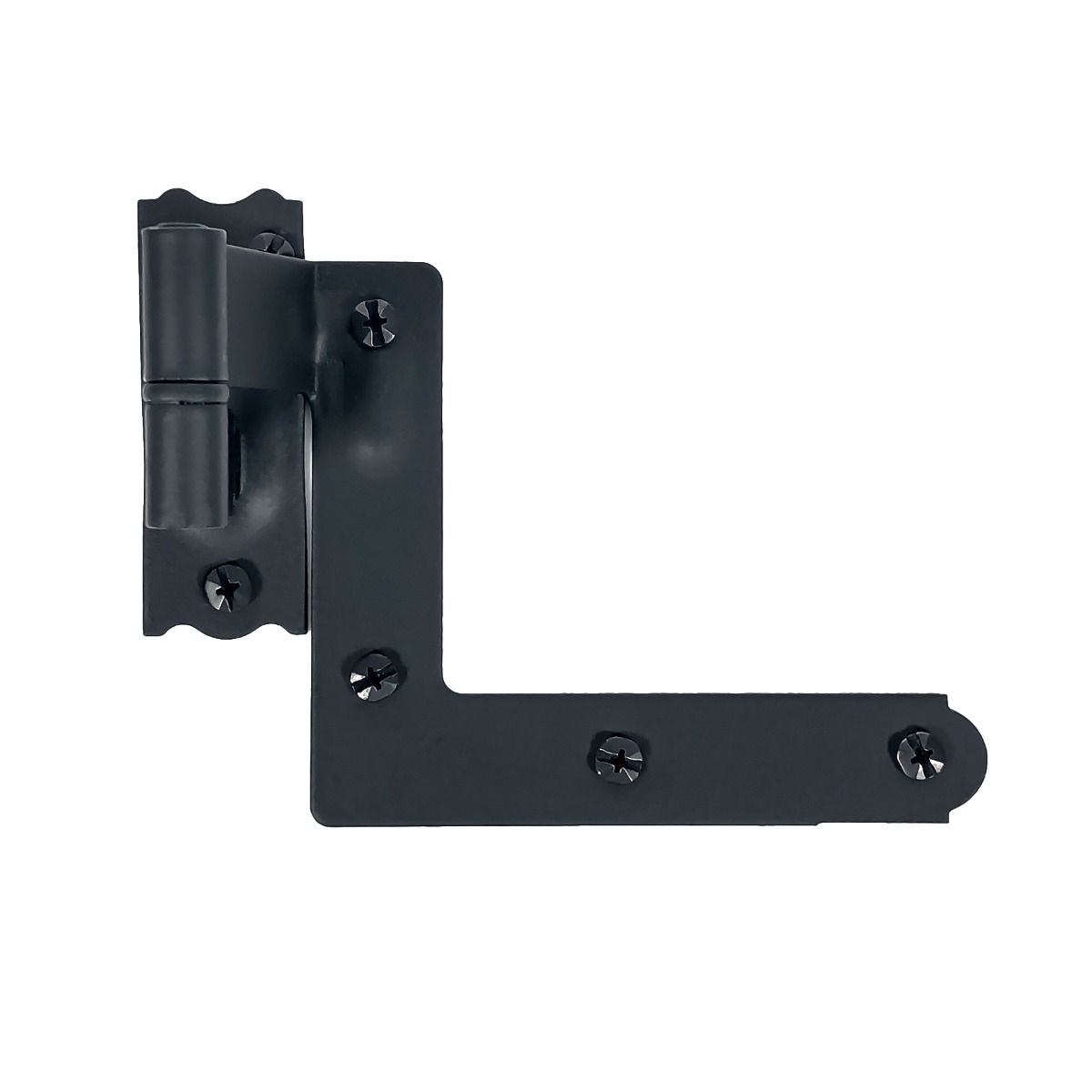

• 4-1/4" x 5" hinge


• 1-1/8" x 3-1/8" pintle plate


• 2-1/4" offset to clear 4-1/2" reveal


• Lift off design for easy hanging and removal of shutters


• All screws made from stainless steel


• 14, #8 x 3/4" pyramid head screws included


• Need extra screws? OrderASRB9

Installation Tips

• Predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood


• Hand tighten screws, do not use power tools with screws.


• When installing decorative hardwre use hand tools in good condition

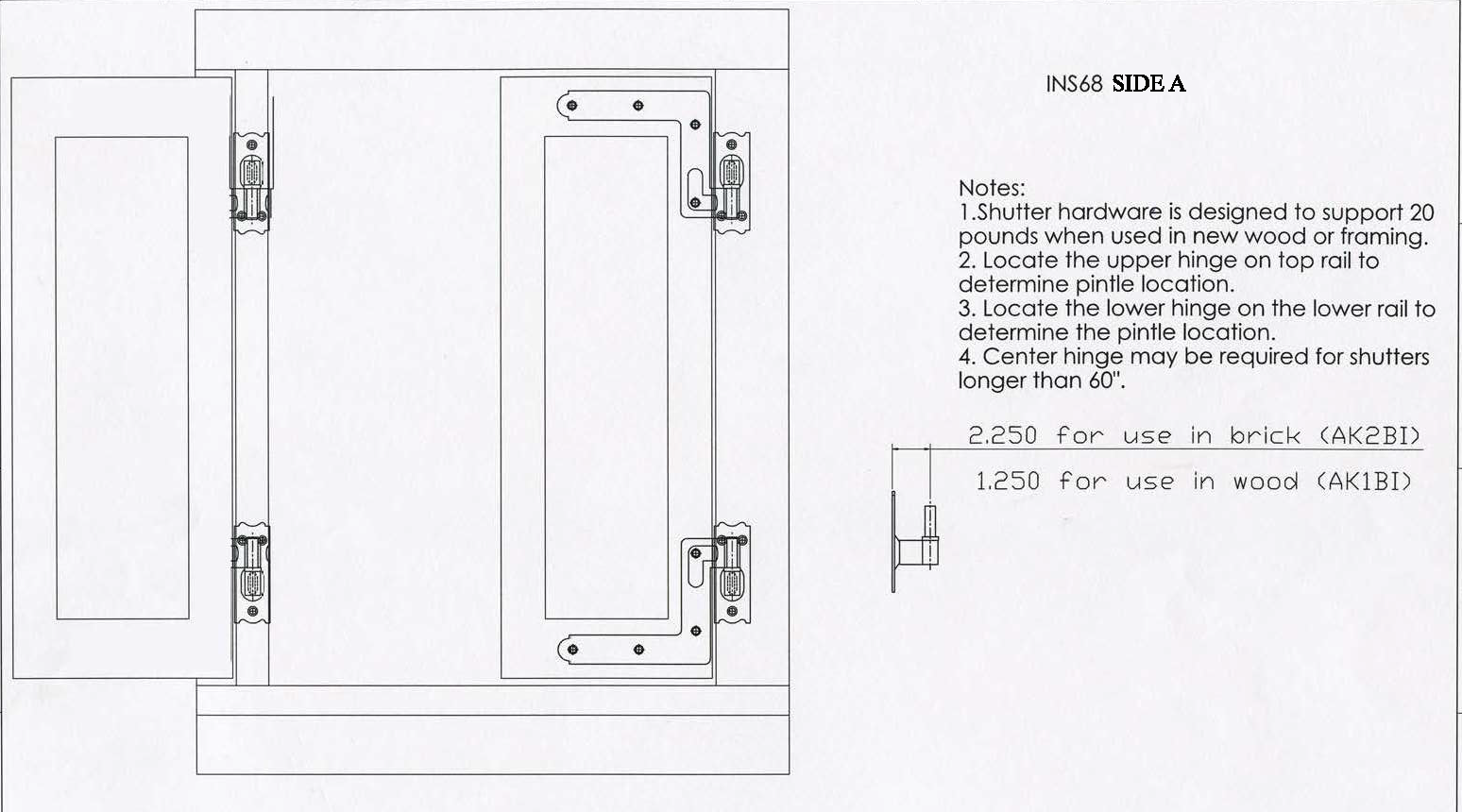

Installation Instructions

• Holding a shutter and hinge in position, note their location to the window casing and sill.


• The location of the "L" half of the hinge should be central to the upper and lower shutter rails. Align the pintle plate to solid window casing.


• Pintle mounting screws should extend into the casing. Old construction may require longer screws to fasten to framing.


• Position the pintle (pins pointing upward) on the exterior window casing.


• Mark the hinge "L" holes (pencil or an awl) to the shutter. Attach the hinge half using two #8 pyramid head screws.


• Repeat steps 4 & 5 and attach both the pintle plates to the casing using only one screw.


• Check that movement is square and parallel. If satisfactory, hang the mating shutter. Inspect both shutters in the closed position. Re-align if necessary.


• While closed, install the remaining screws in both the "L" and pintle plates. It may be easier to lift the shutter off the pintles to install the remaining screws.
