Acorn AK3BR 4" Flush Connecticut Shutter Hinge

Acorn AK3BR 4" Flush Connecticut Shutter Hinge Set combines durability and functionality, making it an ideal choice for your window shutter needs. Crafted from stainless steel and finished in an elegant matte black paint, these hinges not only offer a sleek appearance but also ensure long-lasting performance. Each set includes four hinges, sufficient for one window with two shutters, and comes with all necessary anchors for wood frame or brick applications. The 4" x 1" hinge design features a 3" long, 1/4" stainless steel pintle, allowing for a lift-off mechanism that simplifies both the hanging and removal of shutters. To further enhance installation convenience, the set includes 12 #8 x 3/4" pyramid head screws, all made from stainless steel to resist corrosion. For those needing additional screws, Acorn offers the ASRB9 for purchase. Designed for ease of use, these hinges are perfect for both professionals and homeowners. For optimal results, it is recommended to predrill holes with a 7/64" drill bit for softwood or a 1/8" drill bit for hardwood, and to hand-tighten screws for secure attachment. Elevate your shutter installation with the reliability and style of the Acorn AK3BR Flush Connecticut Shutter Hinge Set.

4" Flush Connecticut Shutter Hinge Set

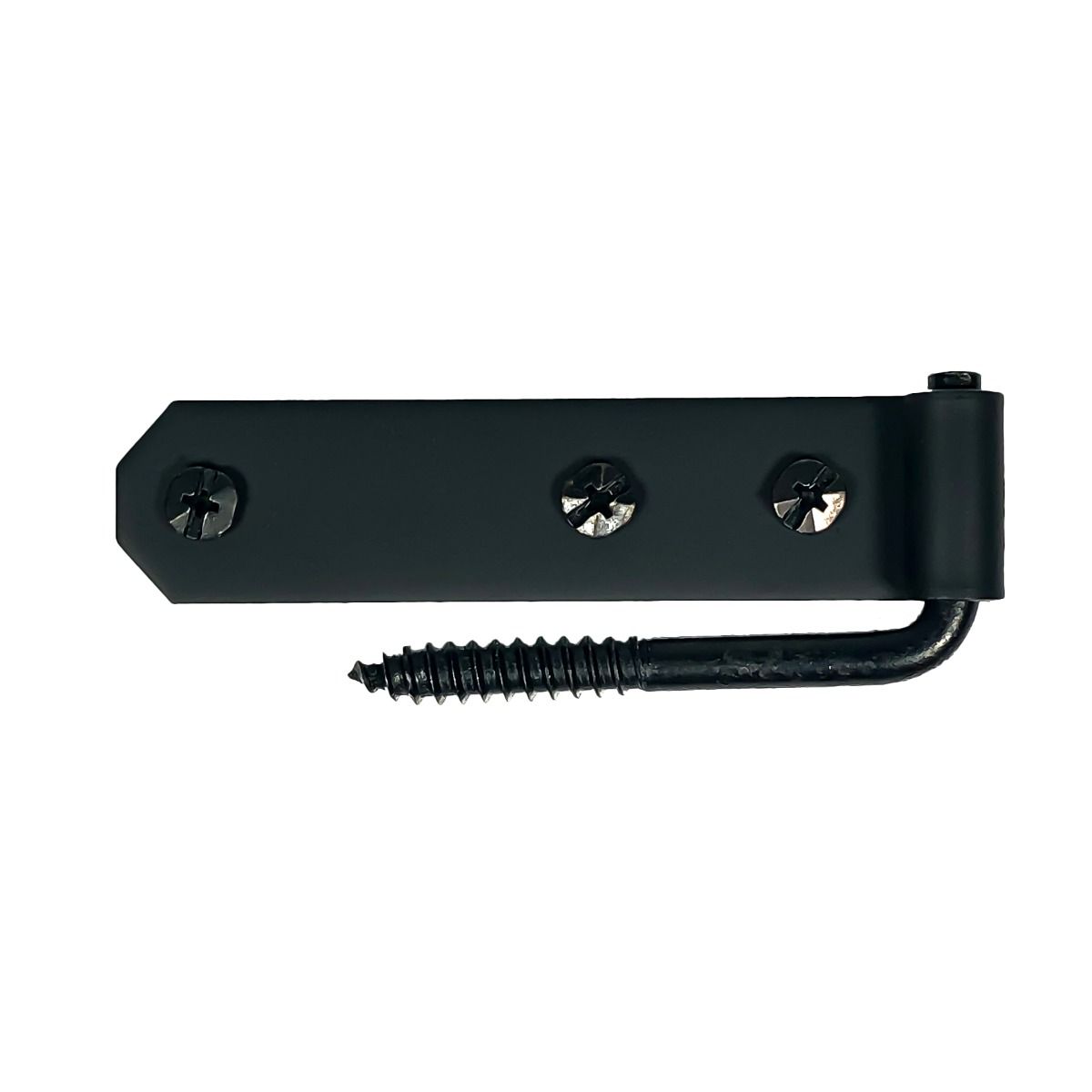

AK3BR - 4" Flush Connecticut Shutter Hinge, Set

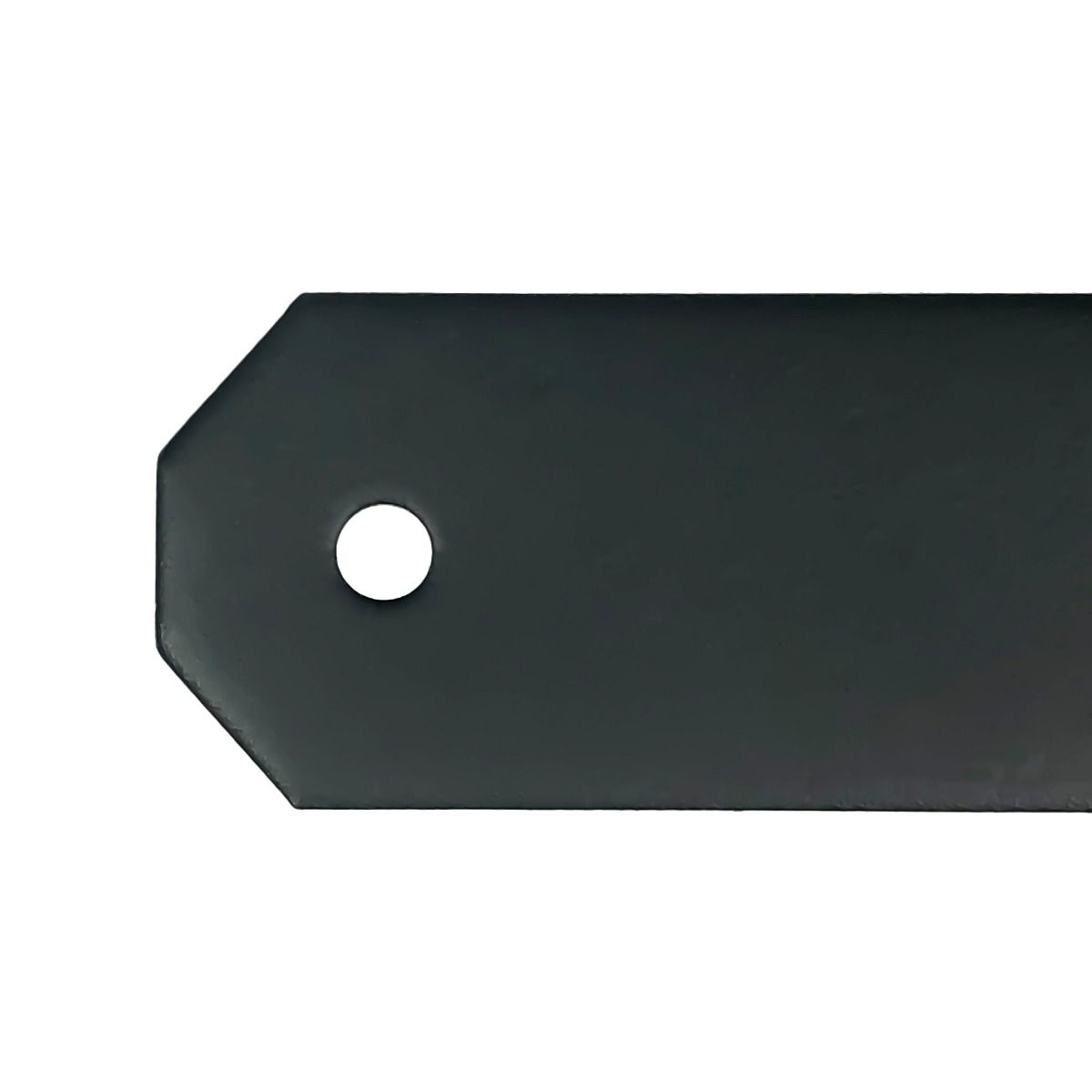

• Made of stainless steel and finished with matte black paint

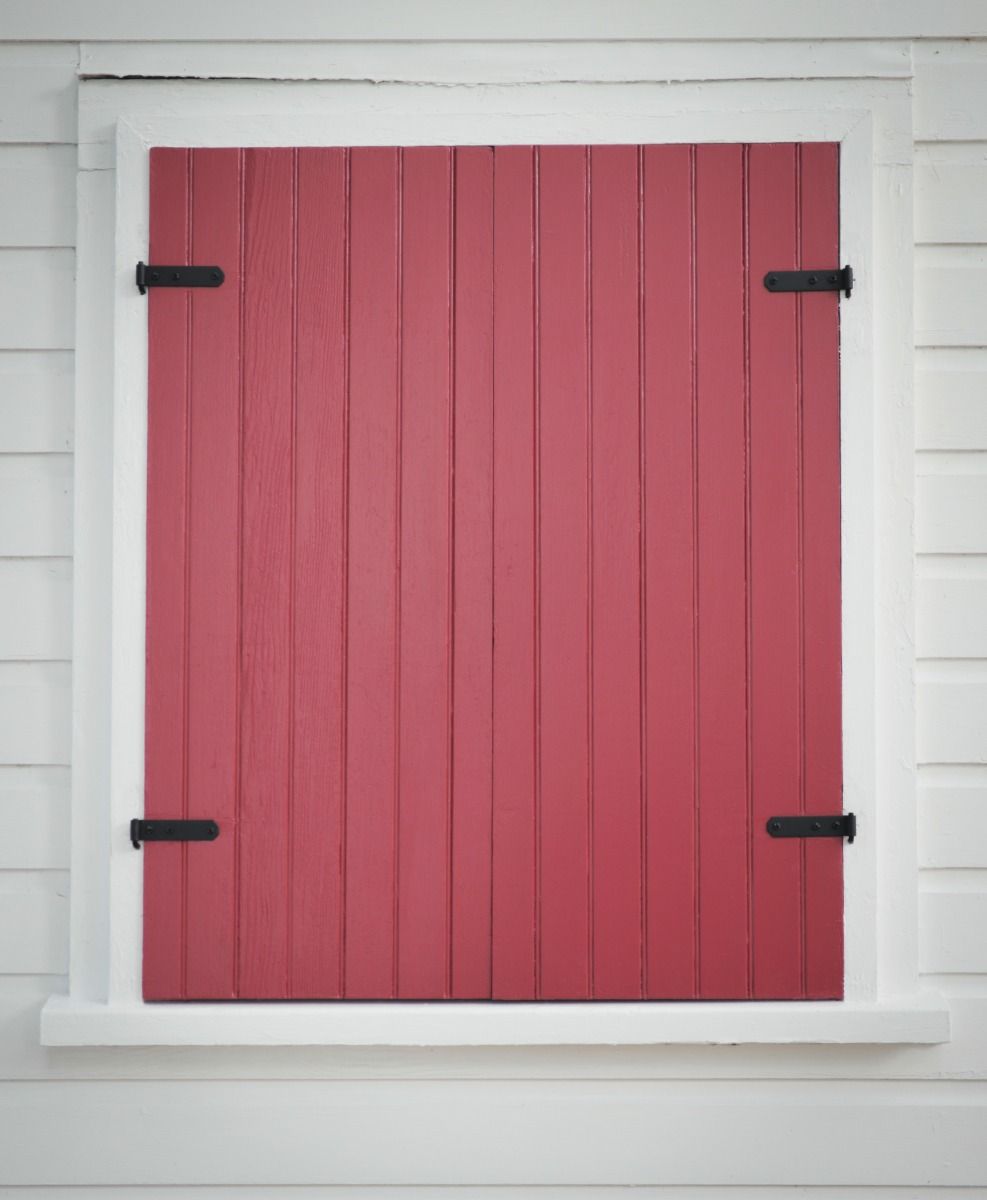

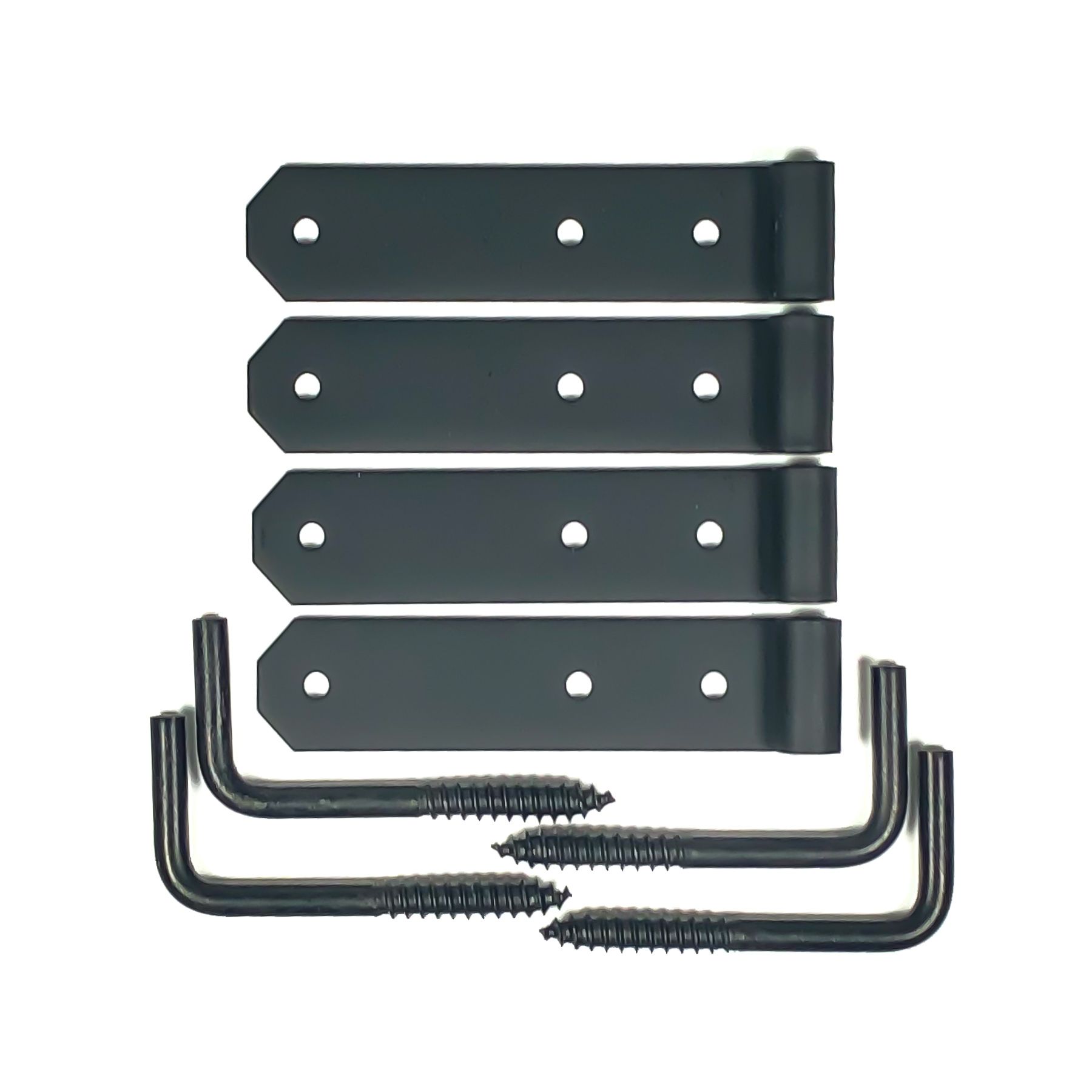

• Sold in sets of 4, one set is used for one window with 2 shutters


• For wood frame or brick applications, anchors included

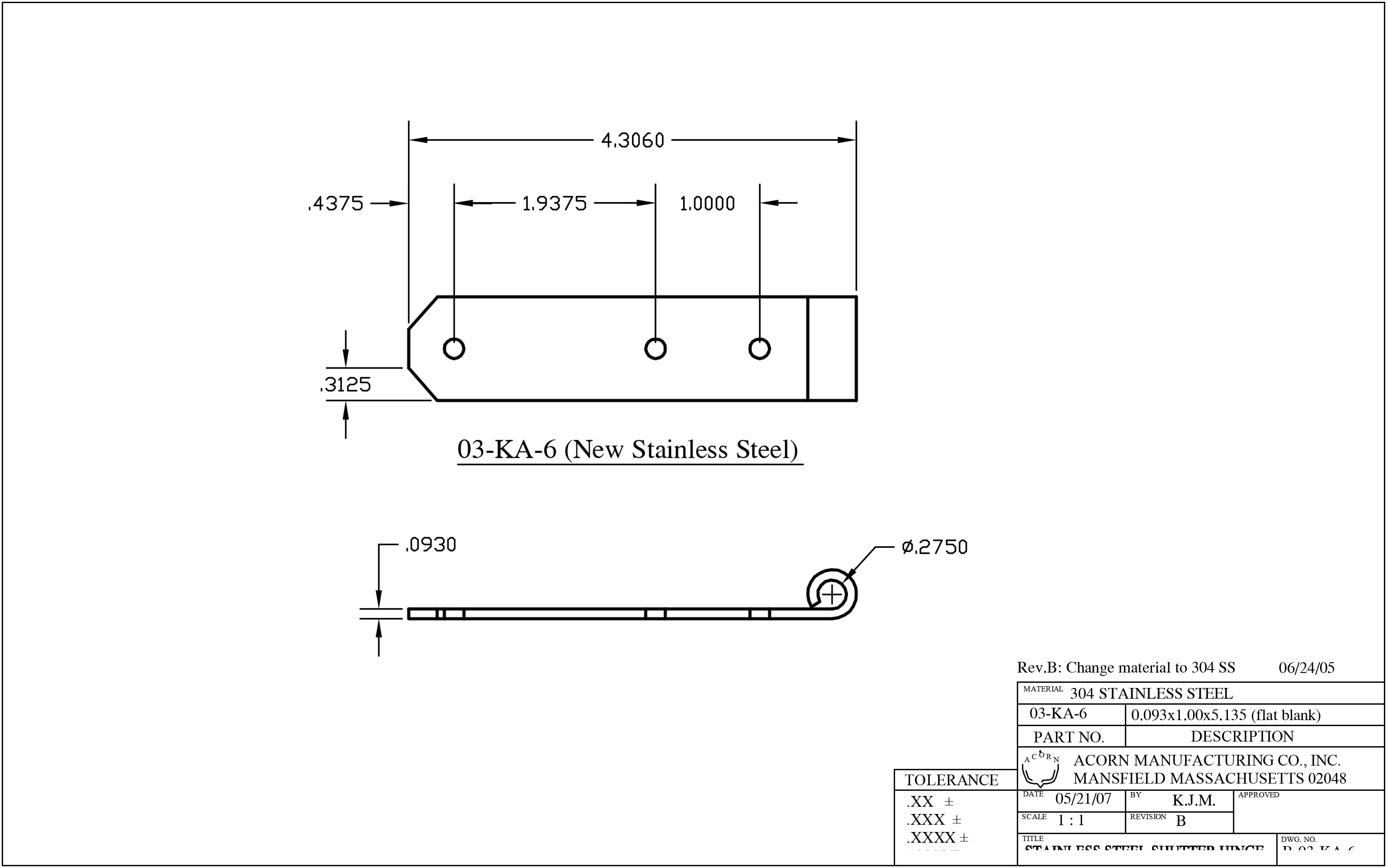

• 4" x 1" hinge

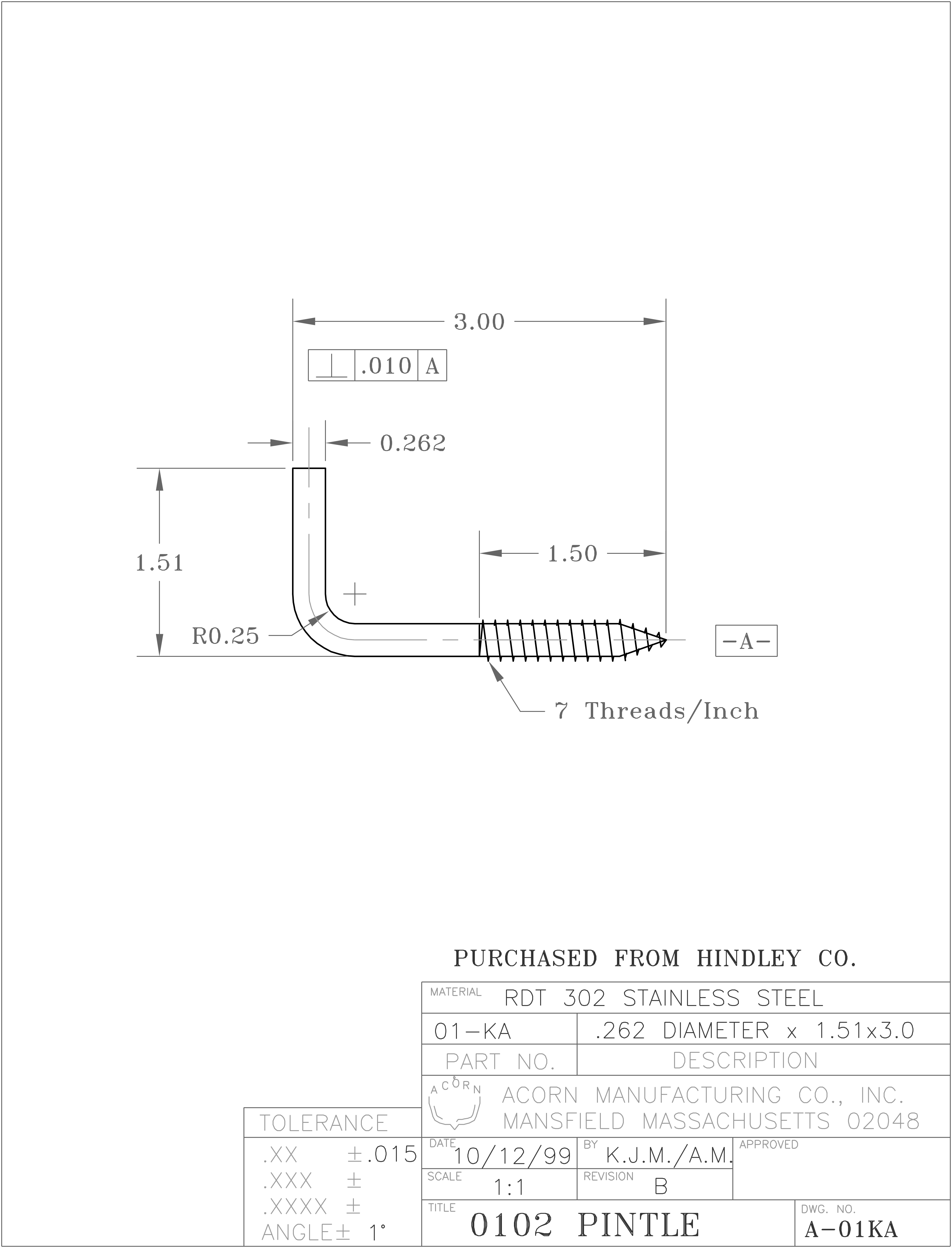

• 3" long 1/4" stainless steal pintle

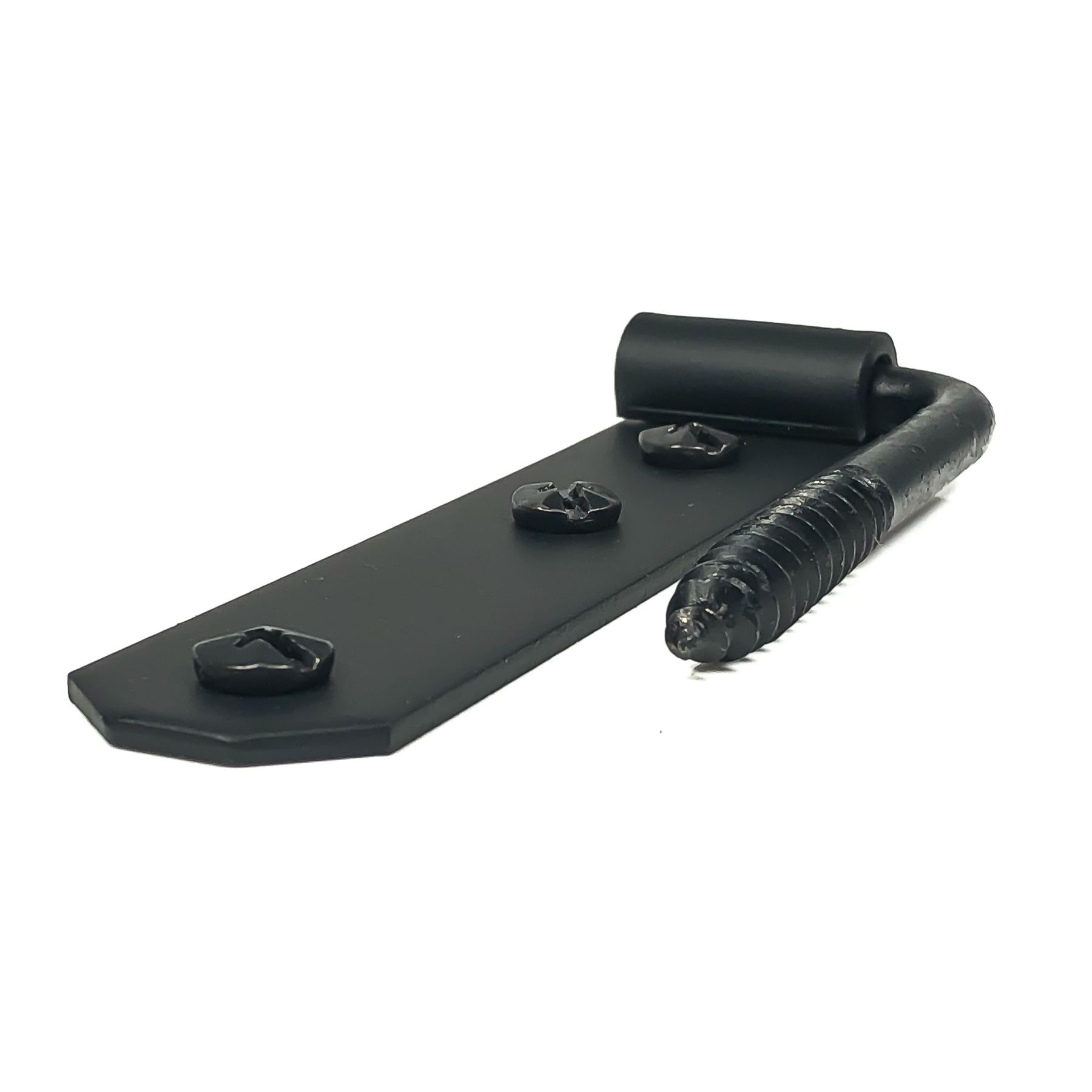

• Lift off design for easy hanging and removal of shutters


• All screws made from stainless steel


• 12, #8 x 3/4" pyramid head screws included


• Need extra screws? OrderASRB9

Installation Tips

• Predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood


• Hand tighten screws, do not use power tools with screws.


• When installing decorative hardwre use hand tools in good condition

Installation Instructions

• Holding a shutter and hinge in position, note their location to the window casing and sill.

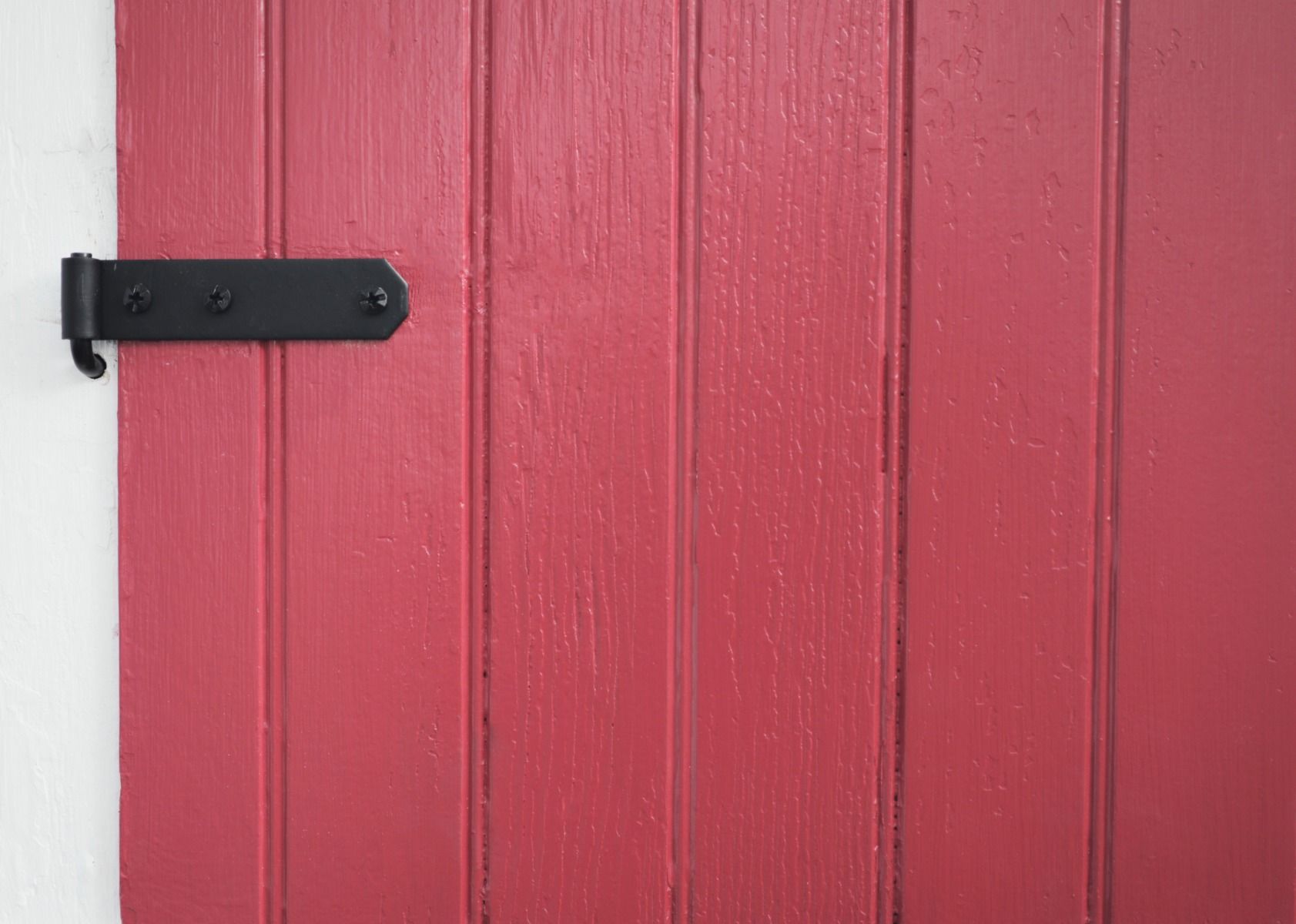

• The location of the "L" half of the hinge should be central to the upper and lower shutter rails. Align the pintle plate to solid window casing.


• Pintle mounting screws should extend into the casing. Old construction may require longer screws to fasten to framing.


• Position the pintle (pins pointing upward) on the exterior window casing.


• Mark the hinge "L" holes (pencil or an awl) to the shutter. Attach the hinge half using two #8 pyramid head screws.


• Repeat steps 4 & 5 and attach both the pintle plates to the casing using only one screw.


• Check that movement is square and parallel. If satisfactory, hang the mating shutter. Inspect both shutters in the closed position. Re-align if necessary.


• While closed, install the remaining screws in both the "L" and pintle plates. It may be easier to lift the shutter off the pintles to install the remaining screws.
