Acorn ALABP 2-1/4" Forged Iron Square Bolt

Acorn ALABP 2-1/4" Forged Iron Square Bolt is a versatile and robust addition to your architectural hardware collection. Crafted from durable steel and adorned with a sleek matte black finish, this square bolt not only provides security but also enhances the aesthetic appeal of your doors and cabinets. The spring-loaded design allows for ease of use in any direction, ensuring convenient operation. Measuring 2-1/4" wide by 1" high, the main body pad features a 5/8" throw for reliable locking, while the 3-1/4" bolt has a functional end of 1/4" x 1/4", offering a secure fit. With a 1" projection that may vary slightly due to its handcrafted curled end, this bolt is designed with attention to detail. Included with the ALABP are three types of strikes-surface, rim, and mortise-providing various installation options to suit your needs. The package also comes with six #7 x 5/8" pyramid head screws and two #7 x 1" flat head screws, ensuring you have everything required for installation. Proudly made in the USA, the Acorn ALABP 2-1/4" Forged Iron Square Bolt combines functionality with timeless craftsmanship, making it an ideal choice for discerning homeowners and building professionals alike.

2-1/4" Forged Iron Square Bolt

ALABP - 2-1/4" Forged Iron Square Bolt

• Made of steel with a matte black finish


• Spring loaded, can be used in any direction


• 5/8" throw


• Main body pad , 2-1/4" wide, 1" height


• 3-1/4" bolt


• Bolt functional end is 1/4" x 1/4"

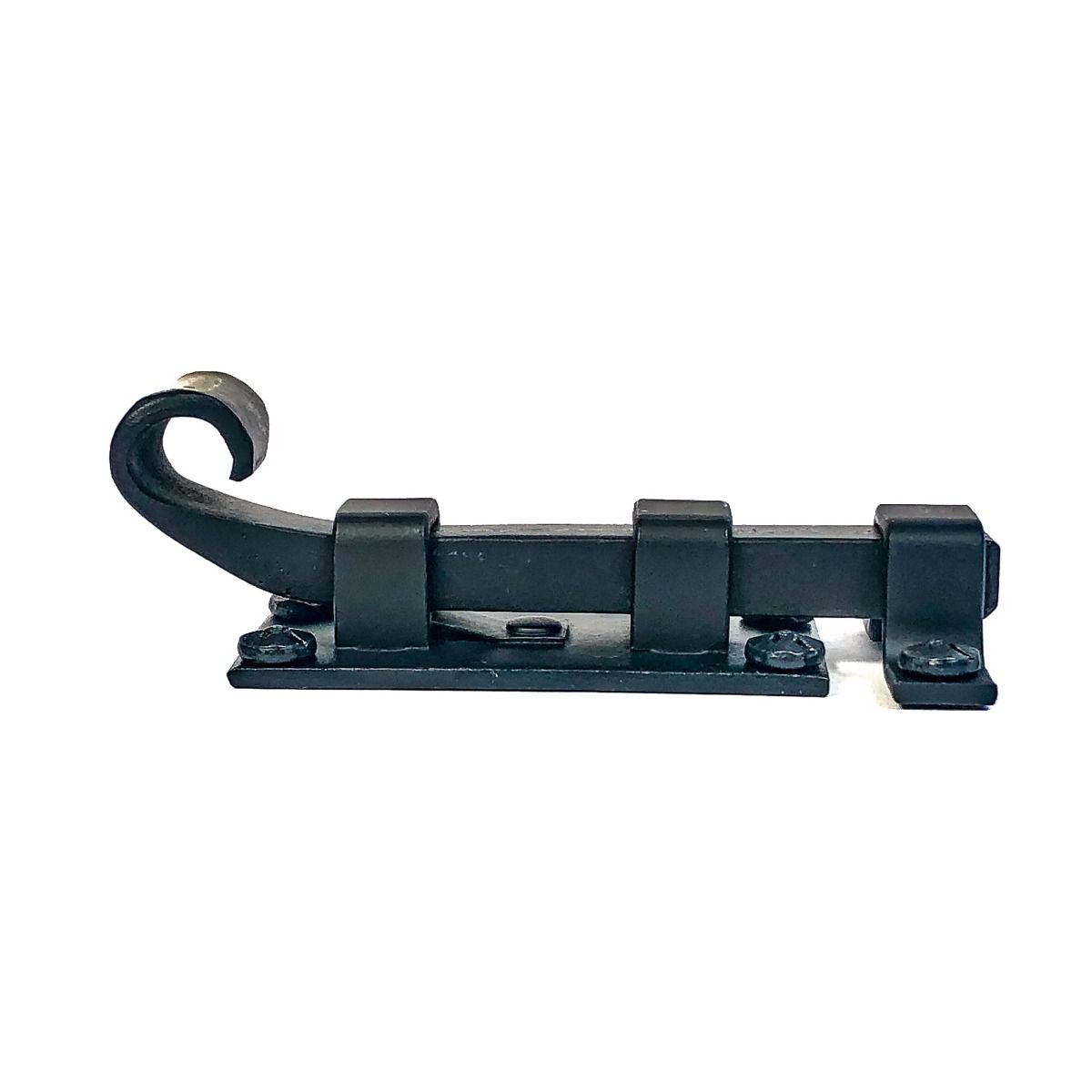

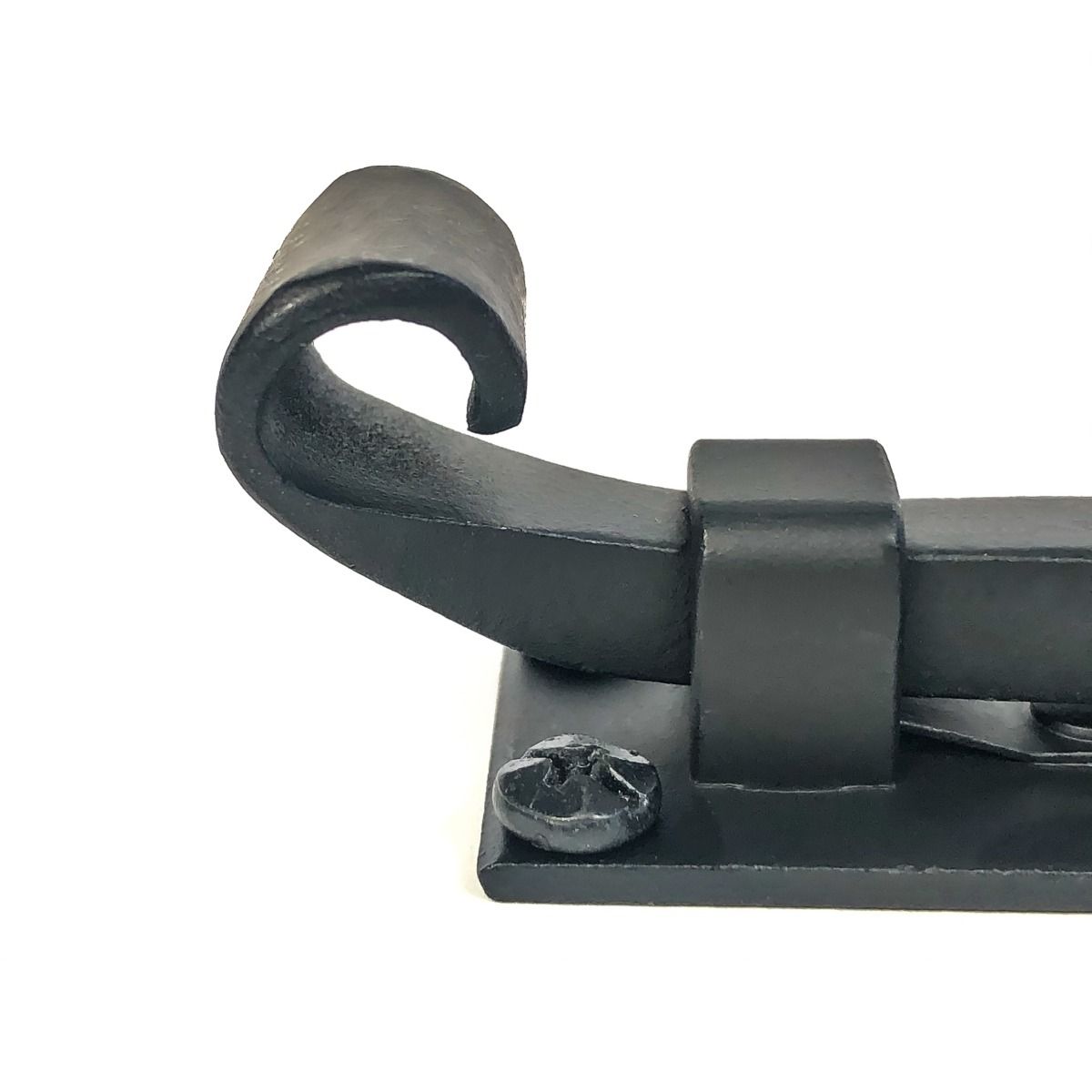

• 1" projection, will vary slightly due to hand forged curled end

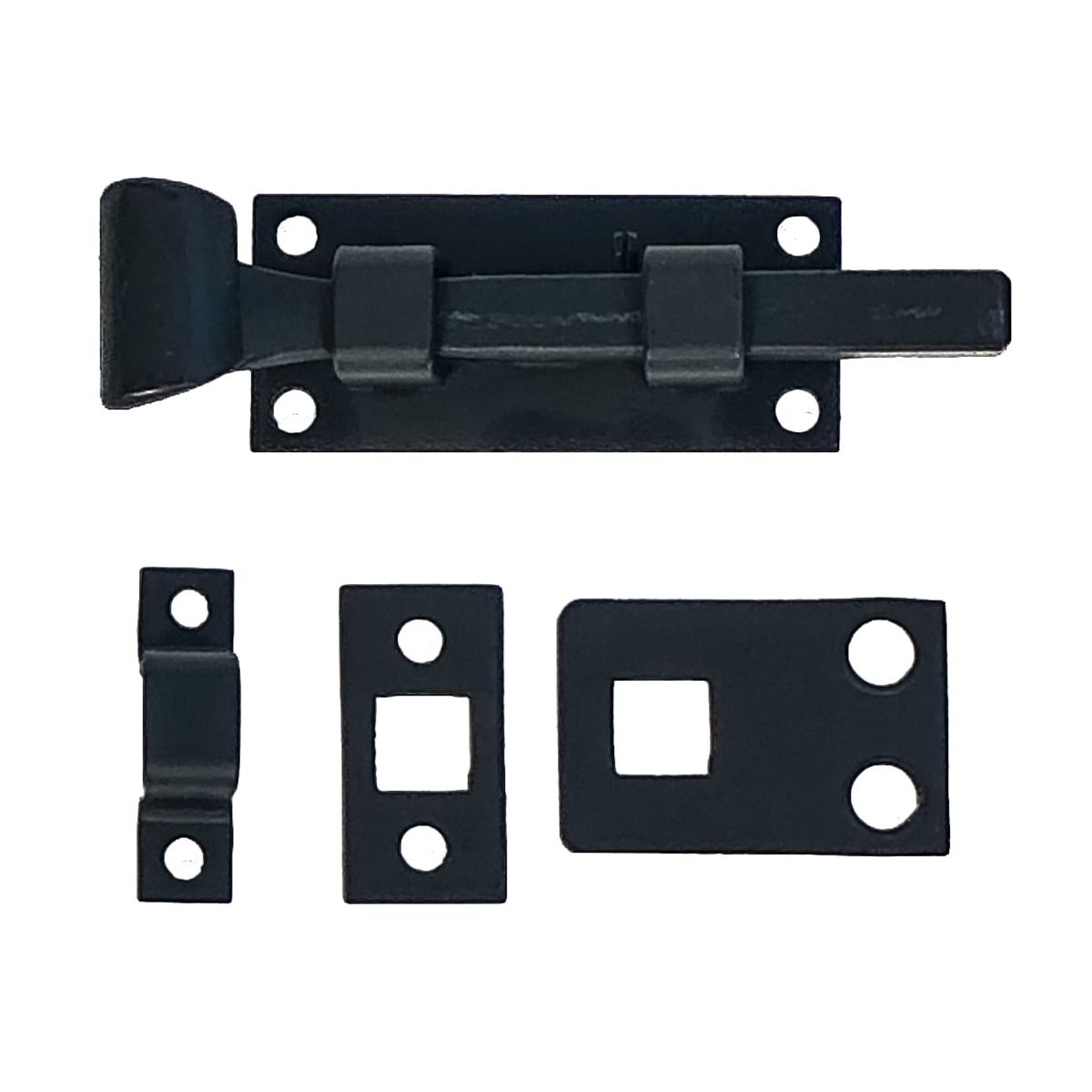

• 3 strikes included, surface, rim, and mortise


• 6, #7 x 5/8"  pyramid head and 2, #7 x 1" flat head screws included


• Need extra screws? Order:AQ2B9andAS9B7


• Made in the USA

Installation Tips

• Predrill with 7/64" drill bit for hardwaood applications and 3/32 for soft wood applications.


• Hand tighten screws only.
