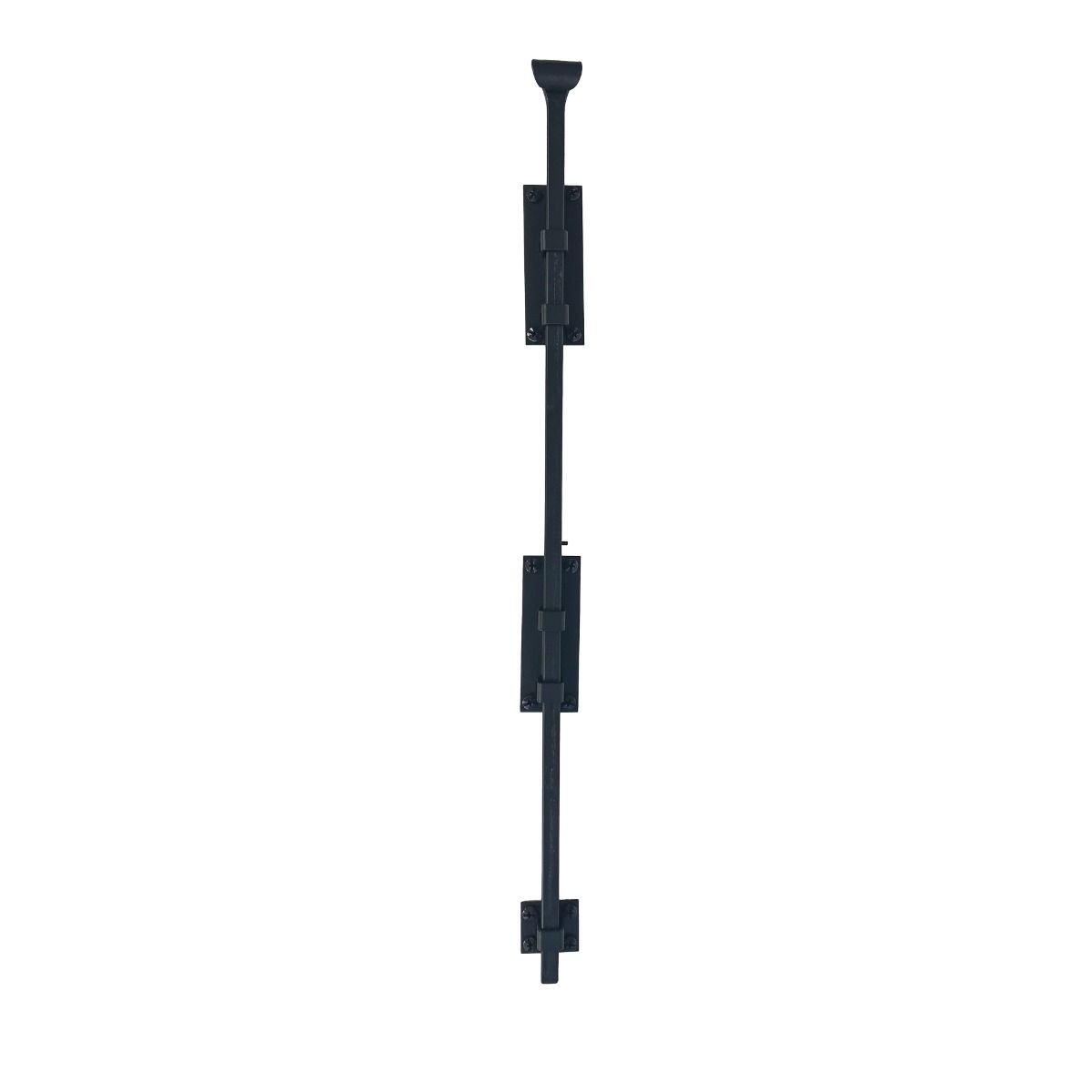

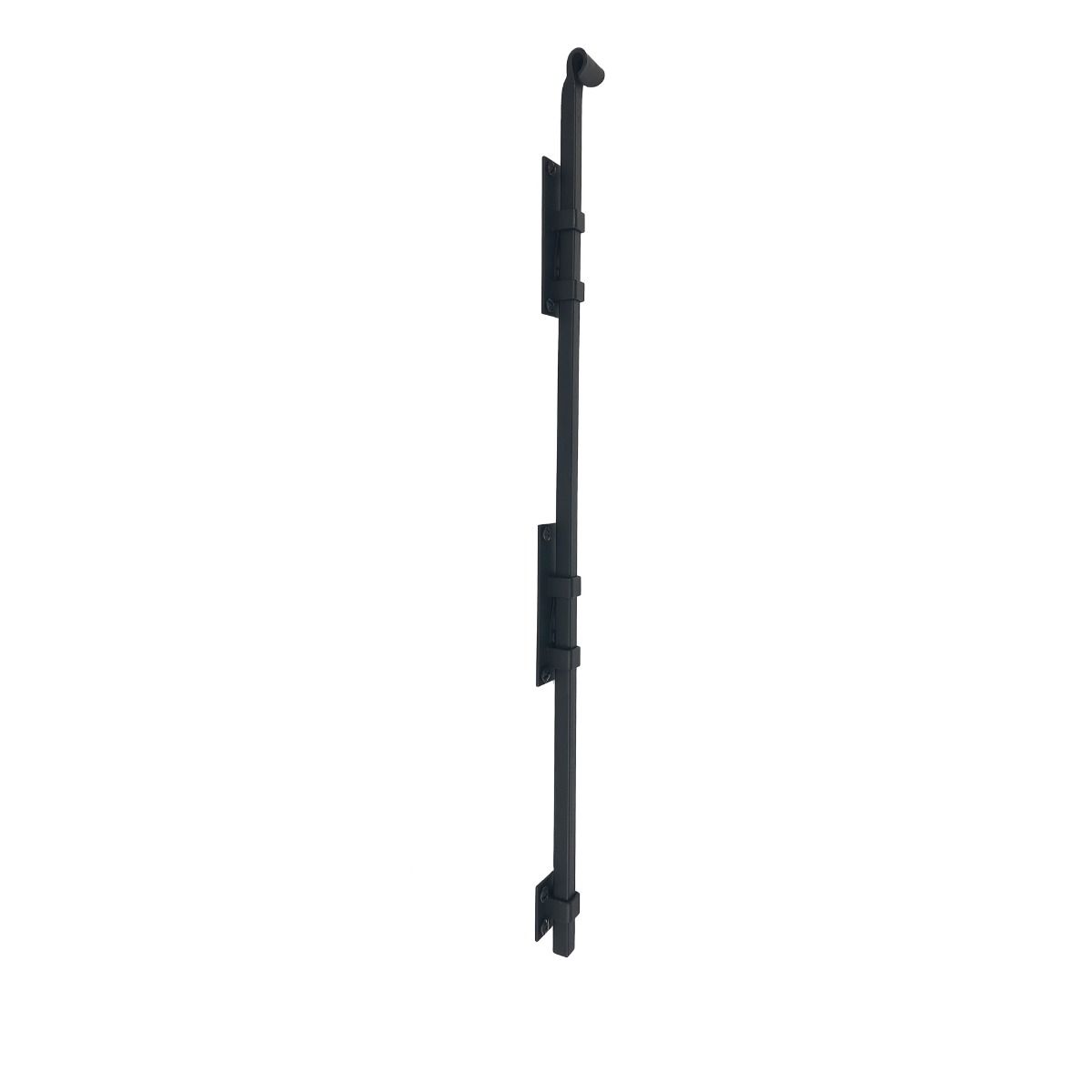

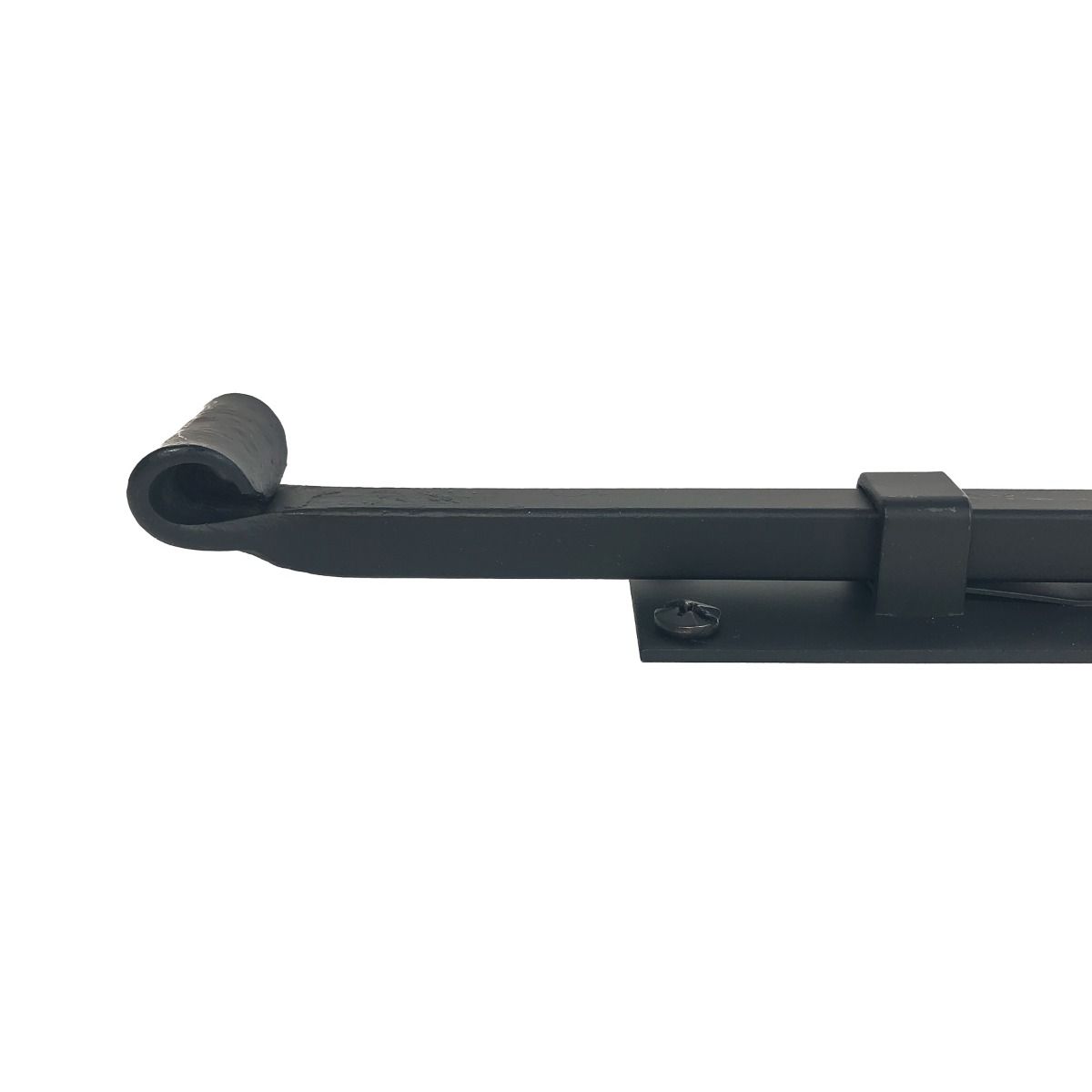

Acorn ALEBP 22-3/4" Forged Iron Cane Bolt

Acorn ALEBP 22-3/4" Forged Iron Cane Bolt combines functionality and durability, making it an essential addition to your architectural hardware collection. Crafted from high-quality steel and finished in a matte black, this cane bolt offers a sleek, timeless look that complements a variety of design styles. This versatile bolt is designed for both vertical and horizontal use, thanks to its spring-loaded mechanism, allowing for easy operation in multiple applications. The variable throw provides flexibility based on pad placement, ensuring secure fastening every time. With an overall length of 22-5/8" and a 7/16" square bolt, it is perfectly sized for effective use. The included surface strike, mortise strike, and cane cup enhance its functionality, while the main pads (1-1/2" x 4") guarantee stability. All included screws are made from stainless steel, ensuring long-lasting performance without corrosion. The package contains eight #8 x 3/4" pyramid head screws, four #8 x 1" pyramid head screws, and two #7 x 1" flat head screws, providing everything needed for installation. Proudly made in the USA, the Acorn ALEBP cane bolt is a reliable choice for discerning homeowners and building professionals alike, offering both quality and style.

22-3/4" Forged Iron Cane Bolt

ALEBP - 22-3/4" Forged Iron Cane Bolt

• Made of steel with a matte black finish

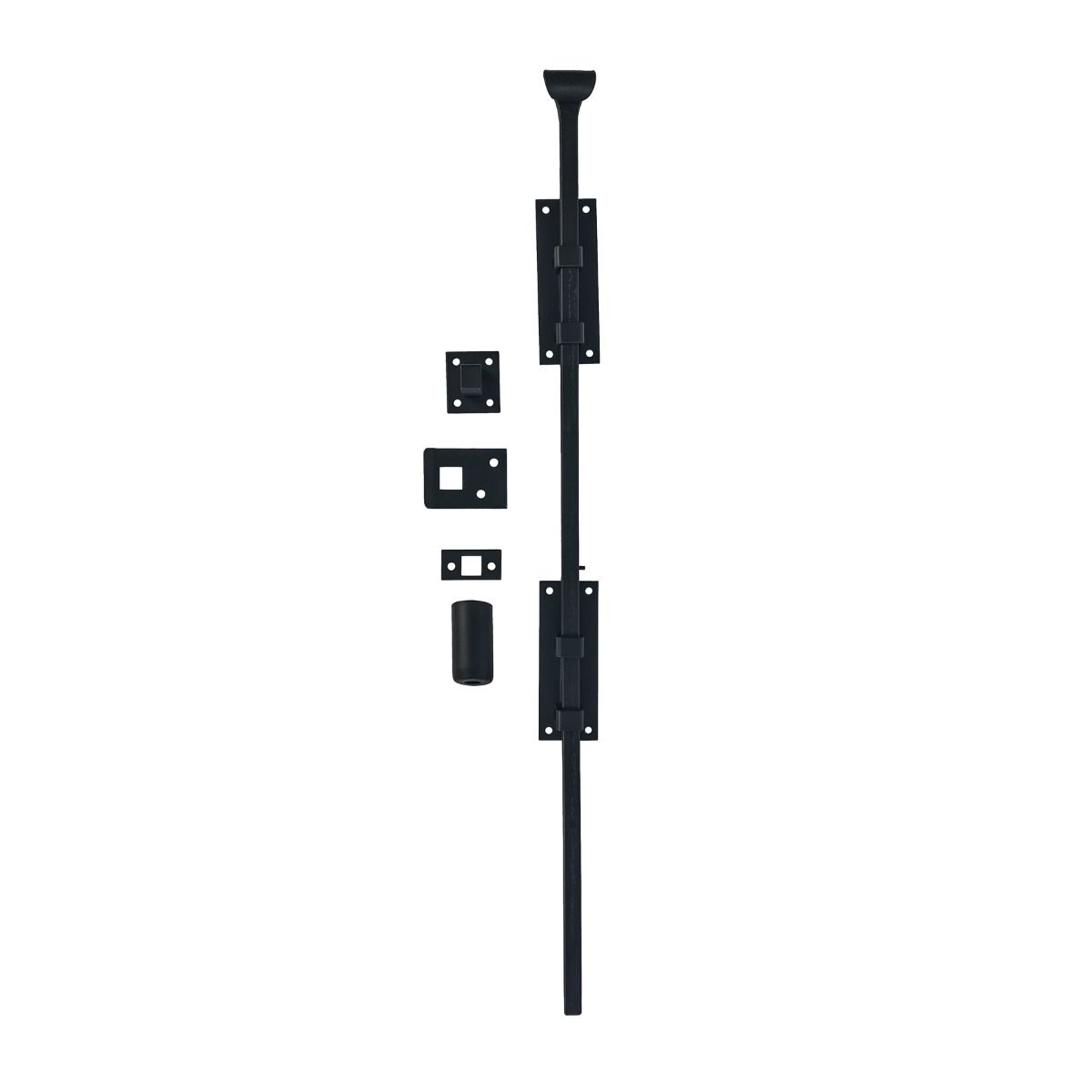

• Surface strike, mortise strike, and cane cup included


• Spring loaded for vertical or horizontal use


• Variable throw based on pad placement


• Main pads, 1-1/2" x 4"


• 7/16" square bolt


• 22-5/8" overall bolt length


• 1-1/4" projection


• All screws made from stainless steel


• 8, #8 x 3/4" pyramid head, 4, #8 x 1" pyramid head,  and 2, #7 x 1" flat head screws included


• Need extra screws? OrderASRB6,ASFB6and,AS9B7


• Made in the USA

Installation Tips

• For bolt and surface strike install with #8 screws, predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood


• For mortise and rim strike install with #7 flat head screws, predrill with 3/32" drill bit for softwood or 7/64: drill bit for hardwood


• Hand tighten screws, do not use power tools with screws.


• When installing decorative hardwre use hand tools in good condition
