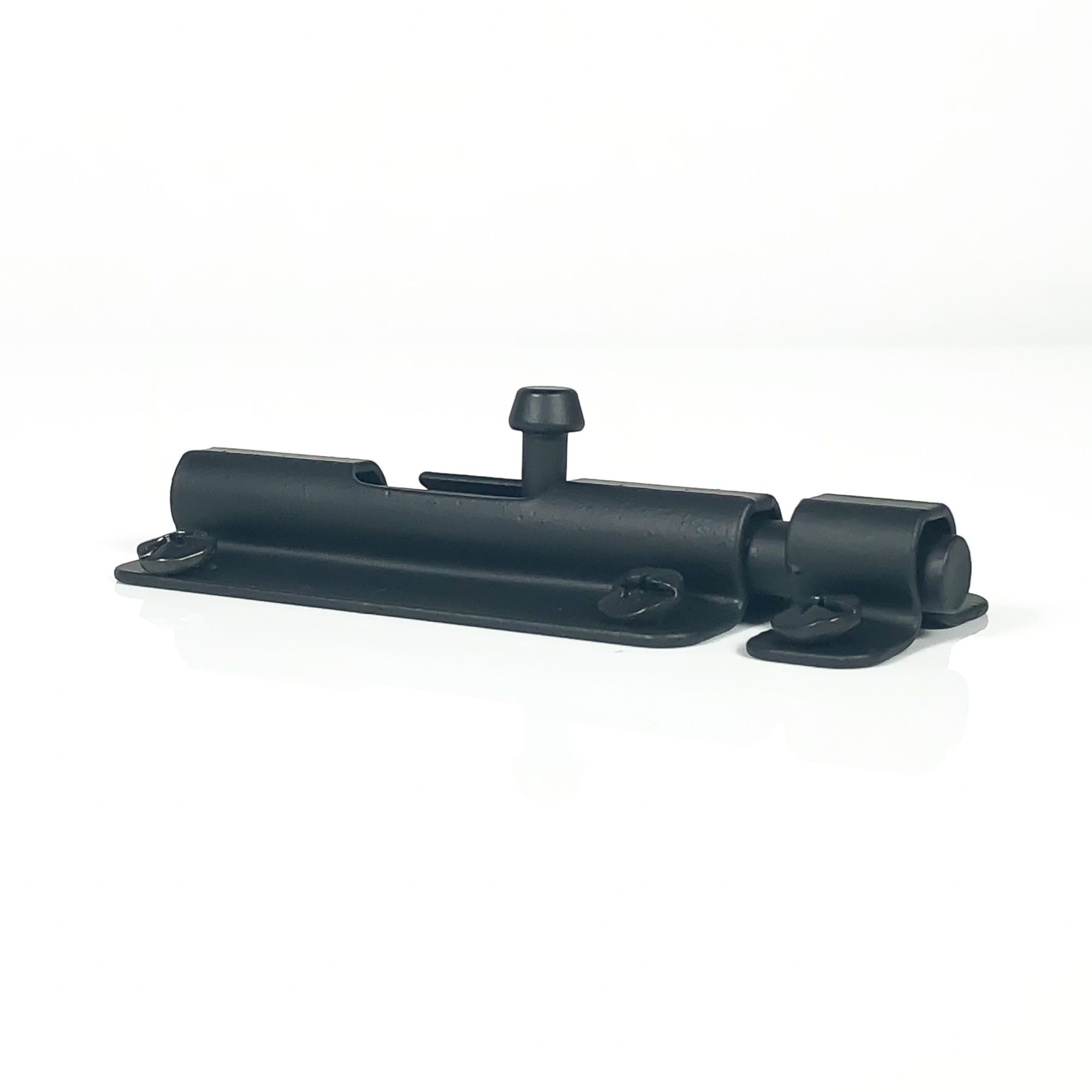

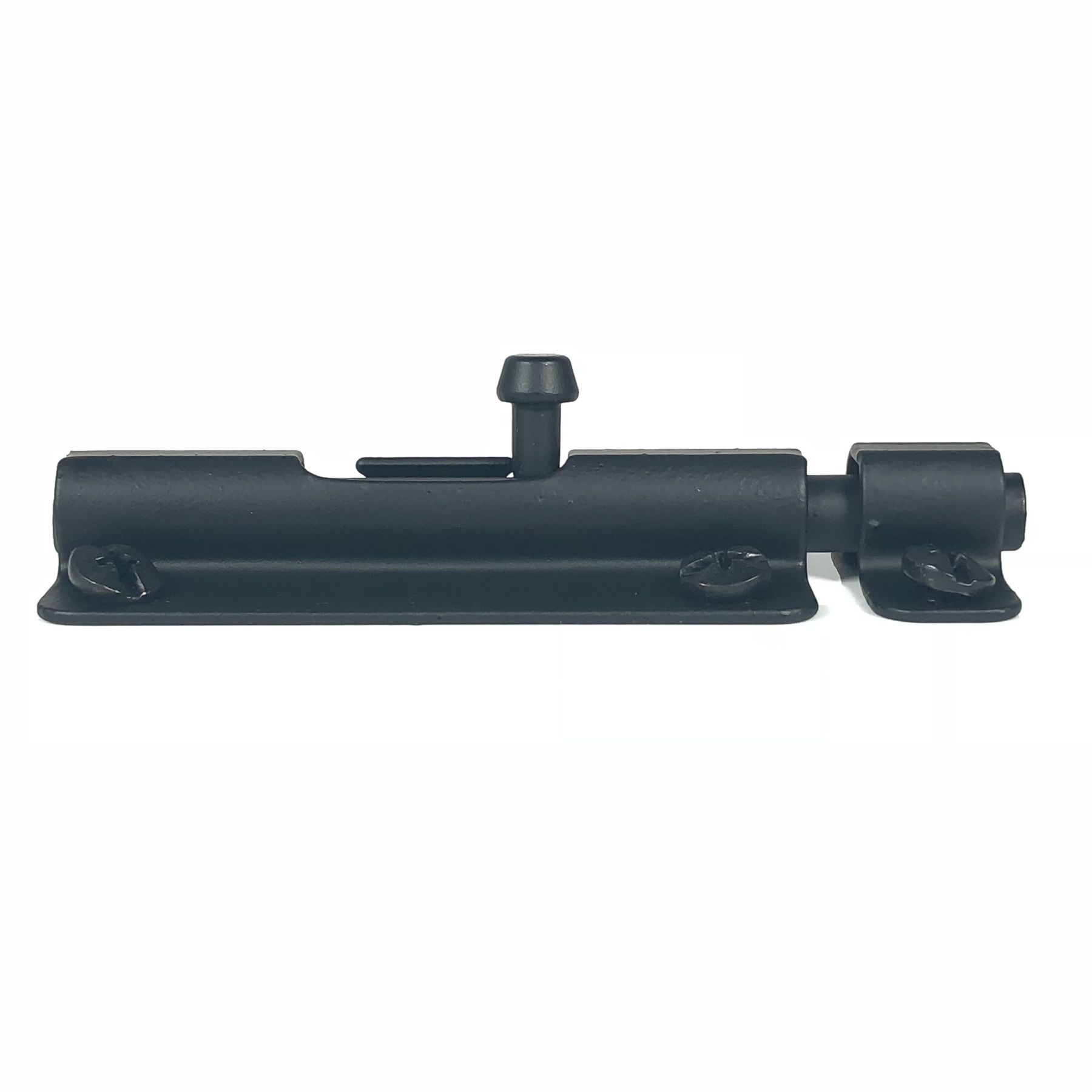

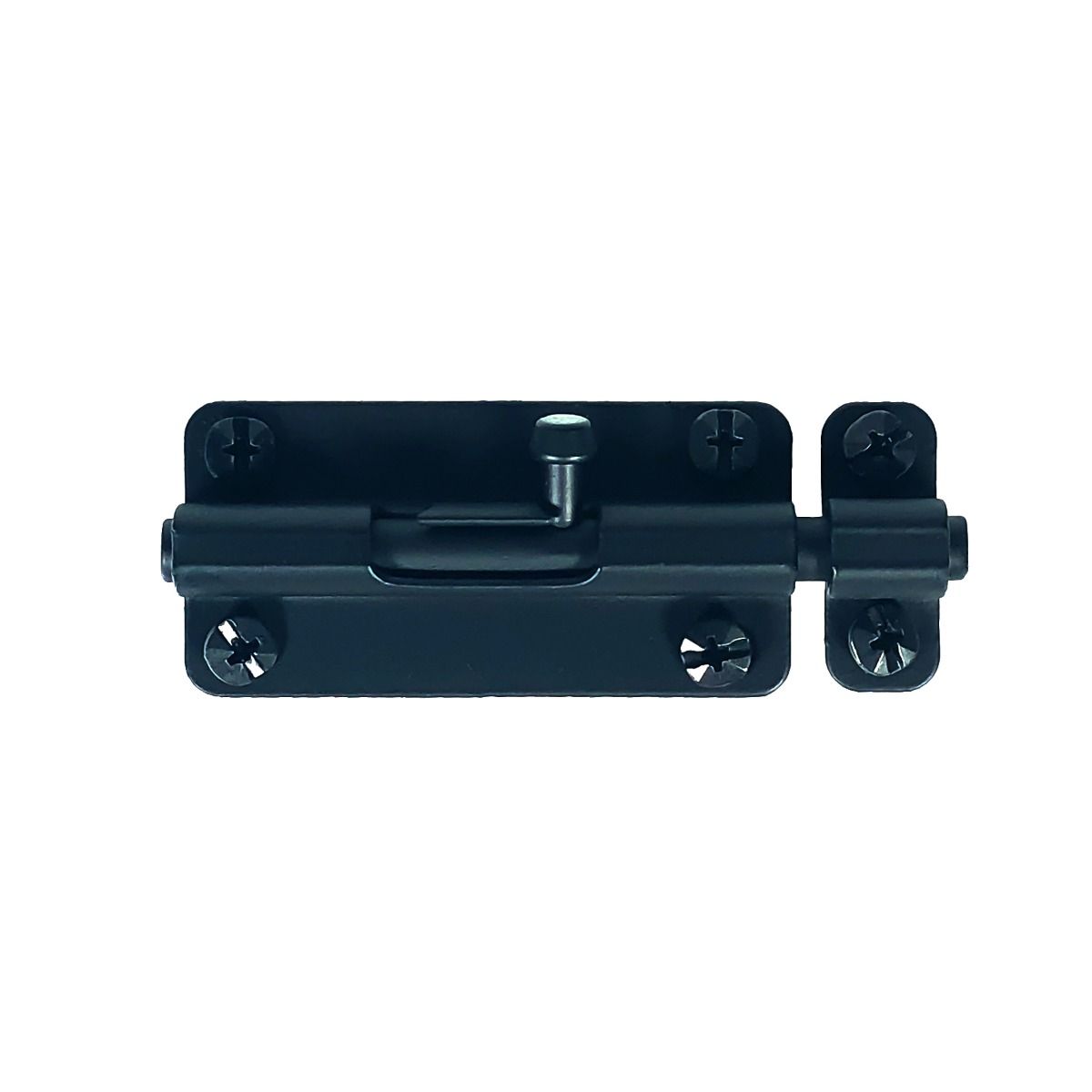

Acorn ALFBP Slide Barrel Bolt

Acorn ALFBP Slide Barrel Bolt offers a robust and stylish solution for securing doors and gates. Crafted from durable steel and finished with a sleek matte black coating, this slide bolt seamlessly blends functionality with aesthetic appeal. Its 15/16" throw ensures a secure lock, while the main body pad, measuring 3" wide by 1-1/2" high, provides a sturdy foundation for both residential and commercial applications. The 4" long bolt features a 1/4" diameter, delivering reliable performance with a 1/2" projection that fits snugly into the surface strike, which measures 1/2" x 1-1/2". Each unit comes complete with six #8 x 3/4" pyramid head screws, making installation straightforward and efficient. For those needing additional screws, the ASRB9 can be ordered separately. Ideal for a variety of wood types, predrilling is recommended with a 7/64" drill bit for hardwoods and a 3/32" bit for softwoods, ensuring a precise fit without compromising the wood. Hand-tightening the screws is advised to maintain the integrity of the installation. With its combination of strength and elegance, the Acorn ALFBP Slide Barrel Bolt is a perfect choice for enhancing security while adding a touch of classic style.

Slide Barrel Bolt

ALFBP - Slide Barrel Bolt

• Made of steel with a matte black finish


• 15/16" throw


• Main body pad , 3" wide, 1-1/2" height


• 4" bolt


• 1/4" diameter bolt


• 1/2" projection


• Surface strikes 1/2" x 1-1/2"


• 6, #8 x 3/4"  pyramid head screws included


• Need extra screws? Order:ASRB9

Installation Tips

• Predrill with 7/64" drill bit for hardwaood applications and 3/32 for soft wood applications.


• Hand tighten screws only.
