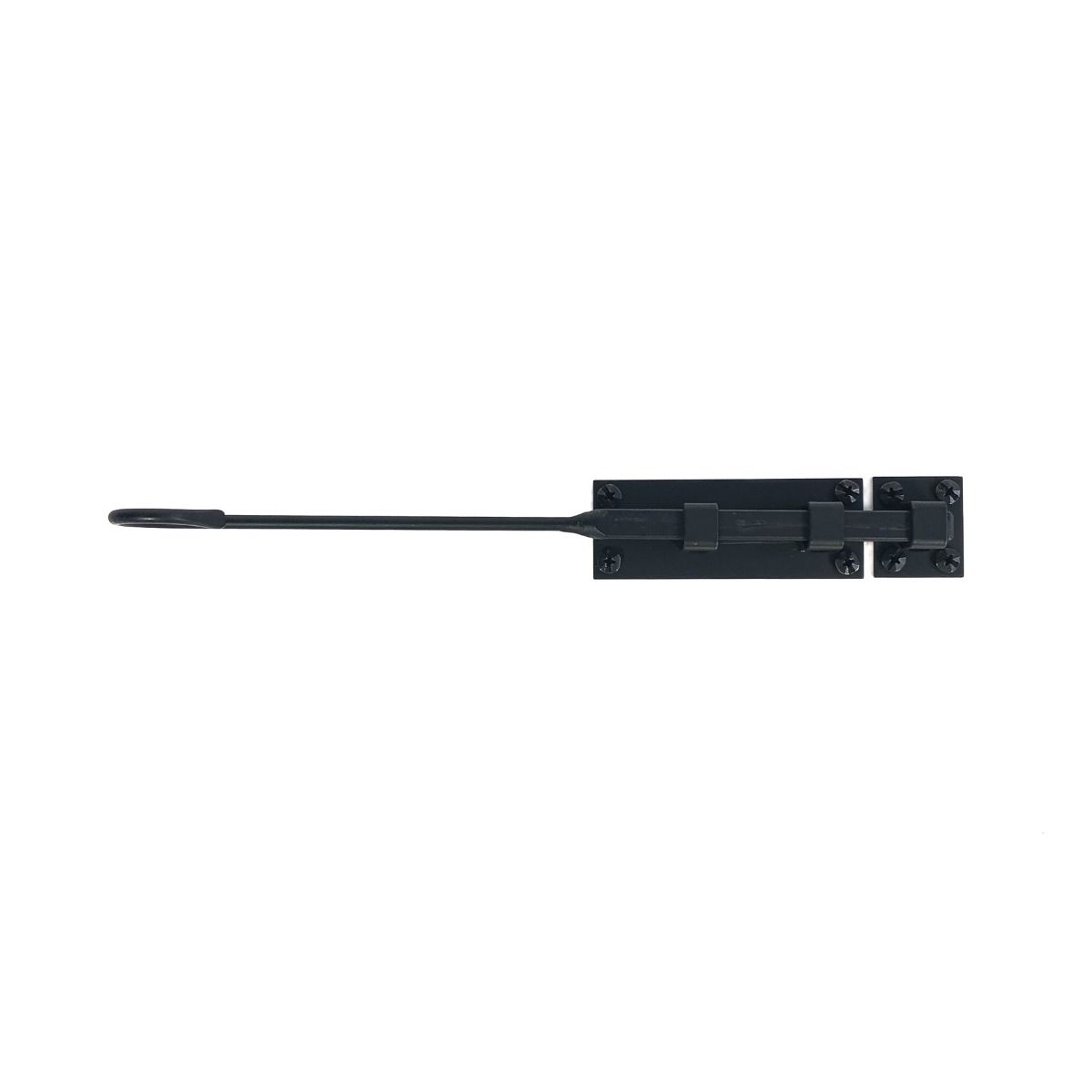

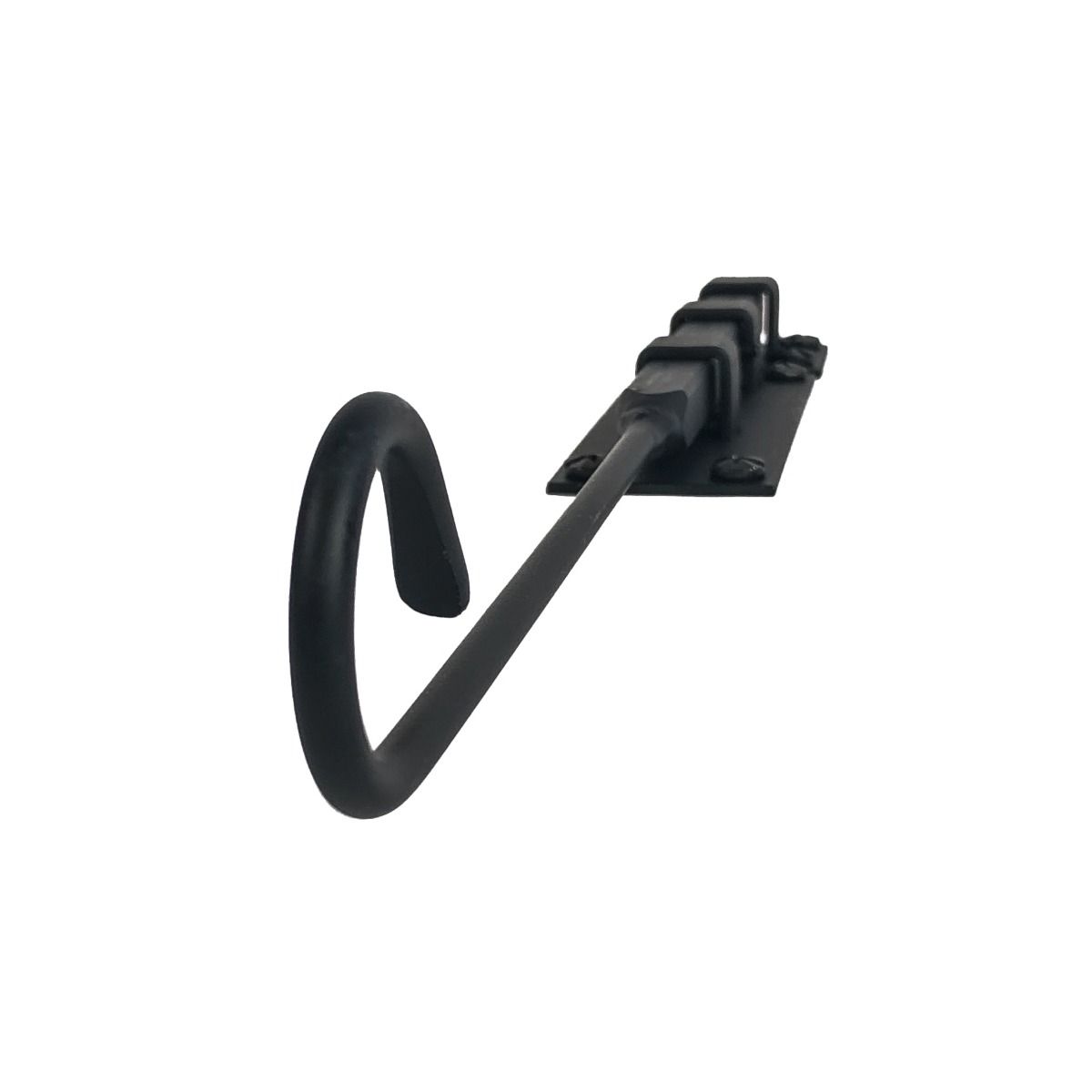

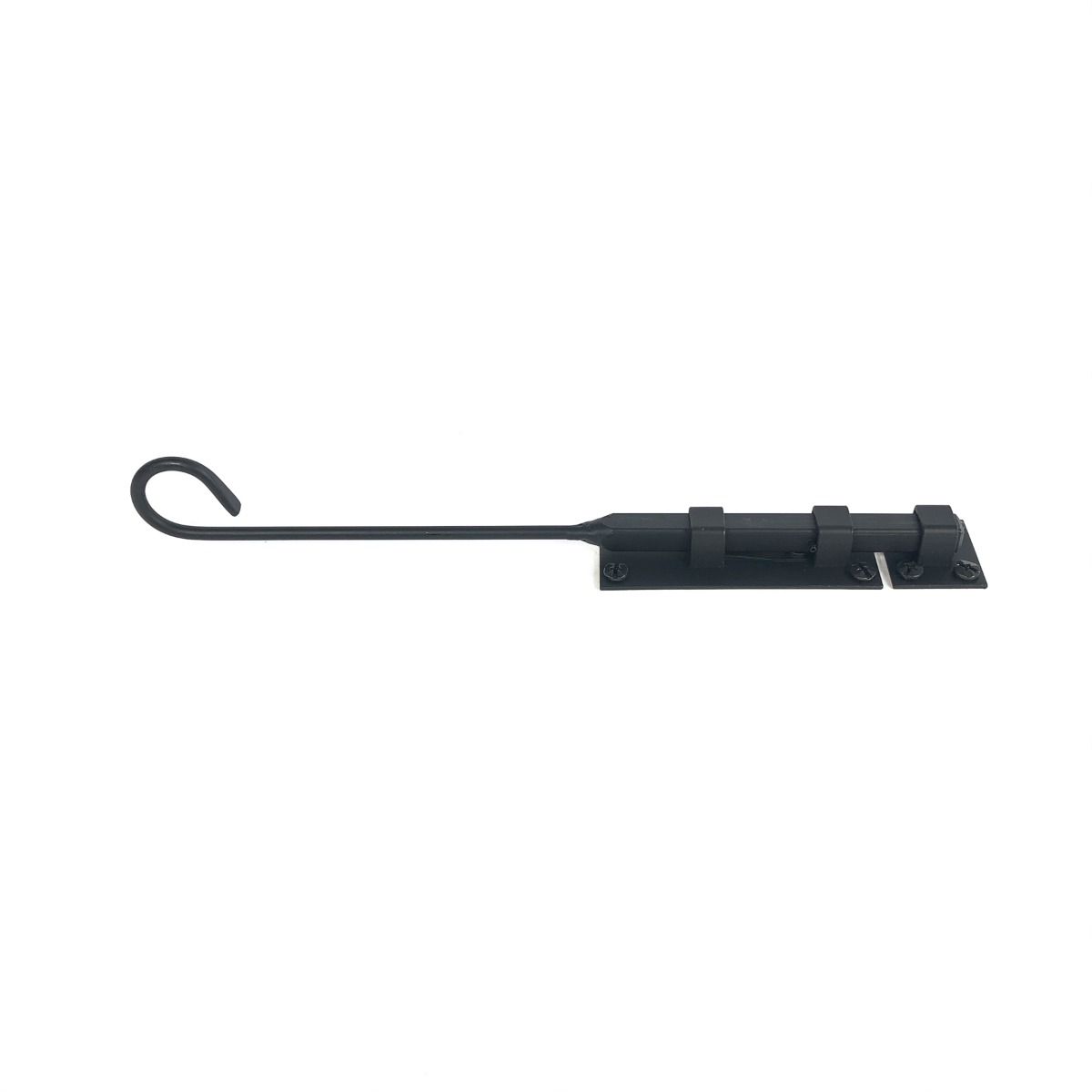

Acorn ALGBP 12" Forged Iron Cane Bolt

Acorn ALGBP 12" Forged Iron Cane Bolt combines durability and functionality, making it an essential addition to your architectural hardware. Crafted from high-quality steel and finished in a sophisticated matte black, this cane bolt is designed to complement a variety of architectural styles while enhancing security. The bolt features a robust 12-inch overall length with a 1-3/16" throw and a 7/16" diameter, providing reliable locking capabilities. Its spring-loaded design allows for versatile use, whether installed vertically or horizontally, ensuring ease of operation in any application. Included with the cane bolt are three types of strikes-surface, rim, and mortise-adding to its adaptability. Installation is straightforward, with all necessary stainless steel screws provided, including six #8 x 3/4" pyramid head screws and two #7 x 1" flat head screws. The 1-1/2" x 4" main pad ensures a solid foundation for the bolt. Designed and made in the USA, the Acorn ALGBP cane bolt not only offers exceptional performance but also maintains a classic aesthetic that enhances your doors or gates. It’s an ideal choice for building professionals and discerning homeowners seeking quality and reliability in their hardware solutions.

12" Forged Iron Cane Bolt

ALGBP - 12" Forged Iron Cane Bolt

• Made of steel with a matte black finish

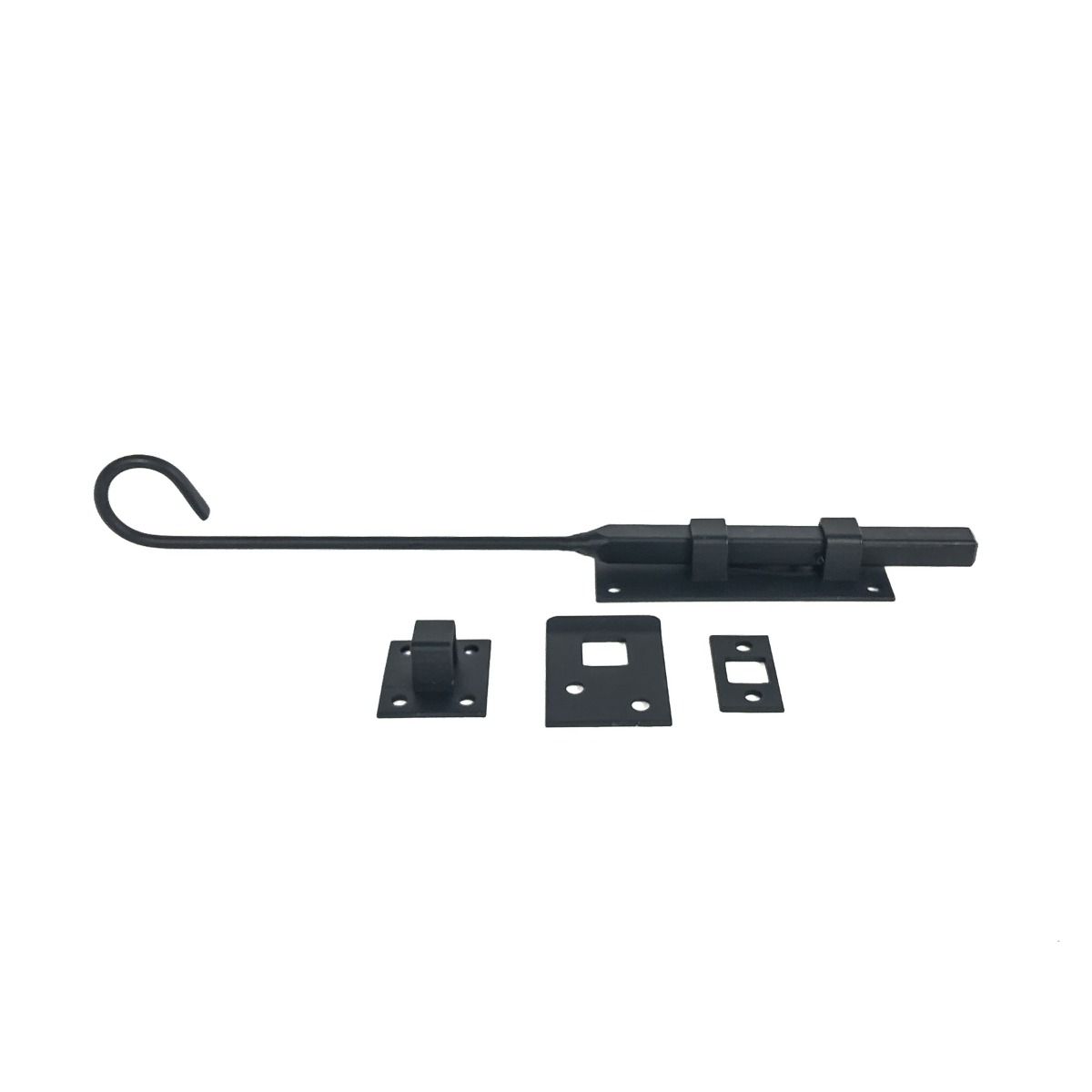

• 3 strikes included, surface, rim, and mortise


• Spring loaded for vertical or horizontal use


• 1-3/16" throw


• Main pad, 1-1/2" x 4"


• 7/16" bolt diameter


• 0.21" cane diameter


• 12" overall bolt length


• 1-3/4" projection


• All screws made from stainless steel


• 6, #8 x 3/4" pyramid head and 2, #7 x 1" flat head screws included


• Need extra screws? OrderASRB6andAS9B7


• Made in the USA

Installation Tips

• For bolt and surface strike install with #8 screws, predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood


• For mortise and rim strike install with #7 flat head screws, predrill with 3/32" drill bit for softwood or 7/64: drill bit for hardwood


• Hand tighten screws, do not use power tools with screws.


• When installing decorative hardwre use hand tools in good condition
