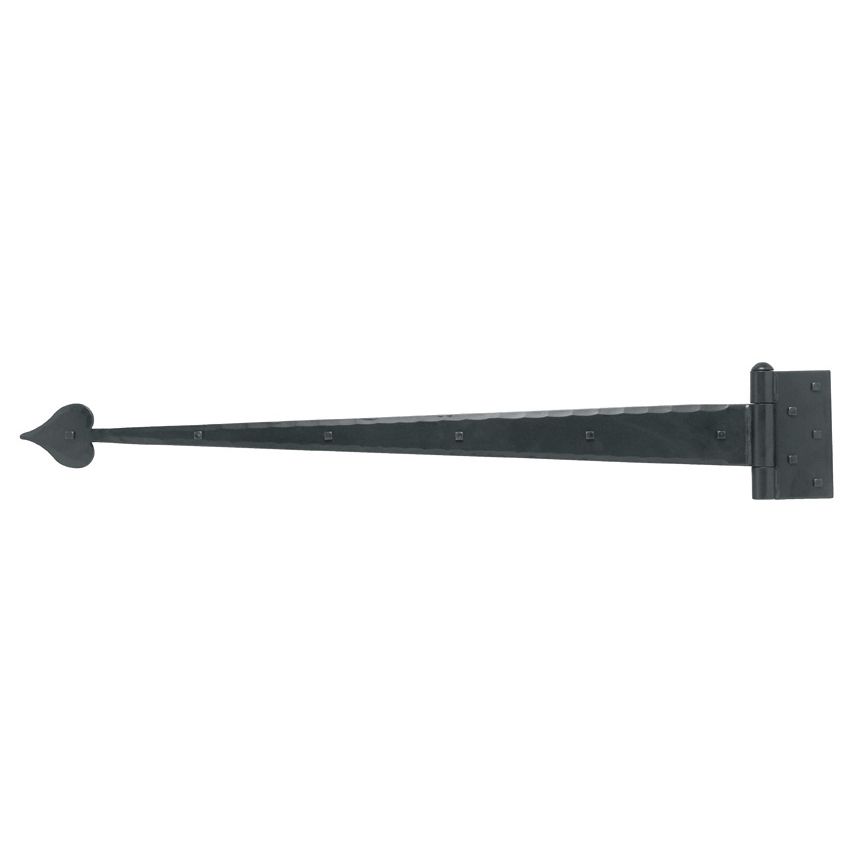

Acorn IHJBP 30-3/4" Heavy Duty Heart Strap Hinge

Acorn IHJBP 30-3/4" Heavy Duty Heart Strap Hinge is a robust solution for those seeking durability and aesthetic appeal in their architectural hardware. Crafted from high-quality steel and finished in a sleek matte black, this hinge not only enhances the look of your doors but also ensures long-lasting performance. With a strap length of 30-3/4" and a width of 3" at the hinge, it provides ample support while maintaining a refined appearance. The hinge pad measures 3-3/4" x 6" and features a 3/8" thickness, making it suitable for heavy-duty applications. Rated to support up to 600 lbs. per pair and rigorously tested to withstand loads of 1,000 lbs. per pair, you can trust its strength and reliability. The hinge comes equipped with a removable pin, which simplifies installation and maintenance. Included are 11, 1/4" x 2" square head stainless steel lag screws that provide secure fastening. Designed with three knuckles for smooth operation, this hinge is made in the USA, reflecting Acorn's commitment to quality craftsmanship. Elevate your architectural projects with the Acorn IHJBP Heavy Duty Heart Strap Hinge, where strength meets style.

30-3/4" Heavy Duty Heart Strap Hinge

IHJBP - 30-3/4" Heavy Duty Heart Strap Hinge

• Made of steel with a matte black finish


• 30-3/4" strap length, 3" strap width at hinge


• 3-3/4" x 6" hinge pad


• 3/8" thick


• Removable Pin


• 11, 1/4" x 2" square head, stainless steel lags included


• Rated for 600 lbs. pair


• Tested to 1,000 lbs. per pair


• 3 knuckles


• Made in the USA

Installation Tips

• Predrill with a 5/32" drill bit


• Hand tighten bolts to prevent paint chipping


• Use clean chrome plated tools to prevent rust
