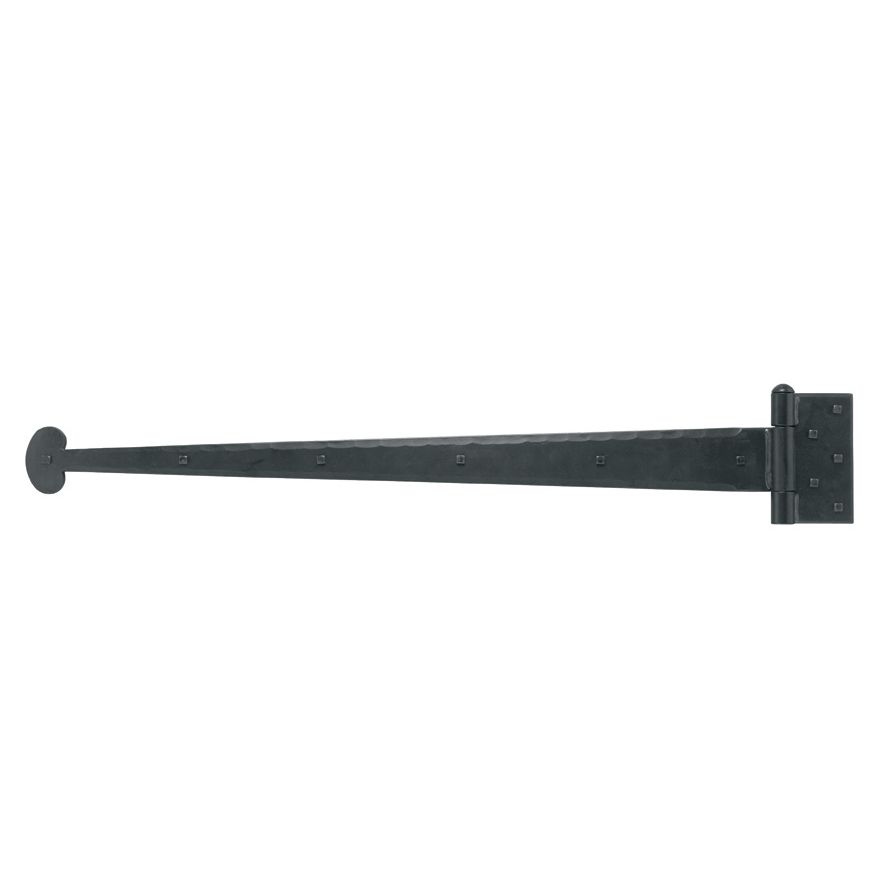

Acorn IHLBP 30-3/4" Heavy Duty Bean Strap Hinge

Acorn IHLBP 30-3/4" Heavy Duty Bean Strap Hinge combines durability with a sleek aesthetic, making it an ideal choice for both functional and decorative applications. Crafted from robust steel, this hinge features a striking matte black finish that enhances its visual appeal while providing resistance to wear and corrosion. Measuring 30-3/4 inches in strap length and 3 inches in strap width at the hinge, the IHLBP is designed to support heavy doors or gates with ease. It boasts a sturdy hinge pad of 3-3/4 inches by 6 inches, and a thickness of 3/8 inches, ensuring a solid installation. Rated for an impressive 600 lbs. per pair and tested to withstand up to 1,000 lbs. per pair, this hinge is built for strength and reliability. The removable pin feature adds convenience for maintenance, while the included stainless steel lag screws (11, 1/4" x 2" square head) ensure secure attachment. With three knuckles for smooth operation, this hinge is proudly made in the USA, reflecting Acorn's commitment to quality craftsmanship. Whether you are a building professional or a knowledgeable homeowner, the Acorn IHLBP hinge is a dependable choice for heavy-duty applications.

30-3/4" Heavy Duty Bean Strap Hinge

IHLBP - 30-3/4" Heavy Duty Bean Strap Hinge

• Made of steel with a matte black finish


• 30-3/4" strap length, 3" strap width at hinge


• 3-3/4" x 6" hinge pad


• 3/8" thick


• Removable Pin


• 11, 1/4" x 2" square head, stainless steel lags included


• Rated for 600 lbs. pair


• Tested to 1,000 lbs. per pair


• 3 knuckles


• Made in the USA

Installation Tips

• Predrill with a 5/32" drill bit


• Hand tighten bolts to prevent paint chipping


• Use clean chrome plated tools to prevent rust
