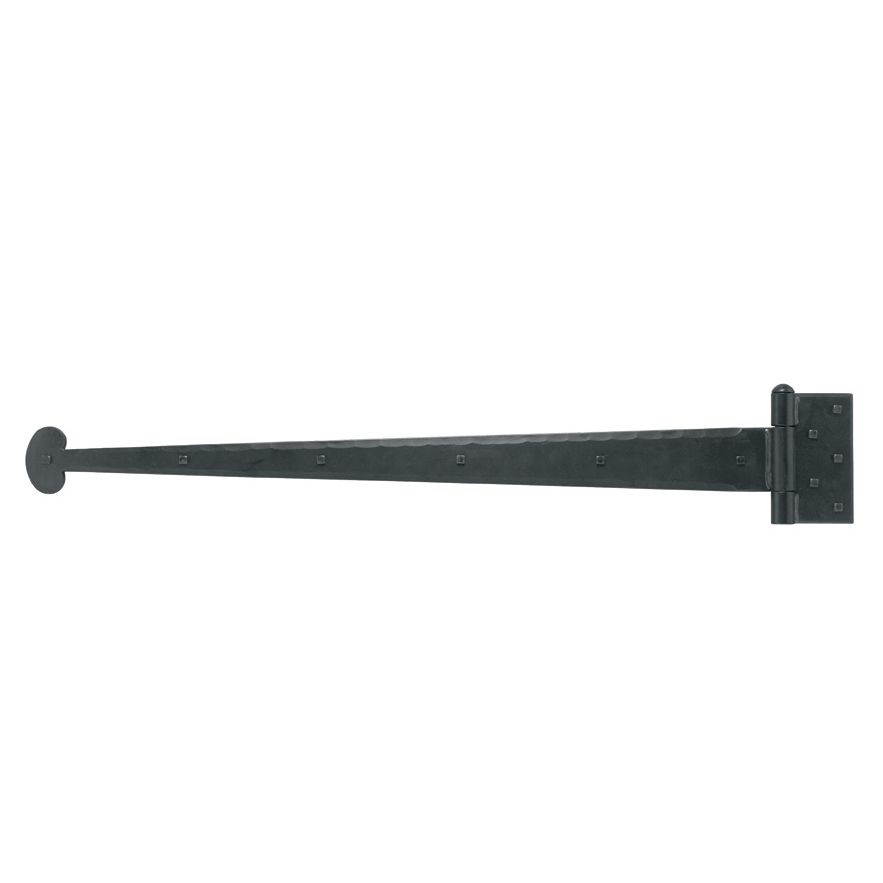

Acorn IHMBP 36-3/4" Heavy Duty Bean Strap Hinge

Acorn IHMBP 36-3/4" Heavy Duty Bean Strap Hinge offers unparalleled strength and durability for your architectural projects. Crafted from robust steel and finished in a sleek matte black, this hinge not only provides functionality but also enhances the aesthetic of your doors or gates. Measuring 36-3/4 inches in strap length and 3 inches at the hinge width, it supports heavy applications with ease. Designed with a 3-3/4" x 6" hinge pad and a thickness of 3/8", the IHMBP is rated to hold up to 600 lbs. per pair, with testing confirming a capacity of 1,000 lbs. per pair. This hinge features three knuckles, ensuring smooth operation and longevity. The removable pin allows for convenient maintenance or replacement, while the included 11, 1/4" x 2" square head stainless steel lags facilitate secure installation. Proudly made in the USA, the Acorn IHMBP is a perfect choice for builders and homeowners seeking reliable, heavy-duty hardware. Its robust construction and elegant design make it a versatile solution for any project requiring strength and style. Ensure a flawless installation by predrilling with a 5/32" drill bit and hand tightening bolts to prevent damage.

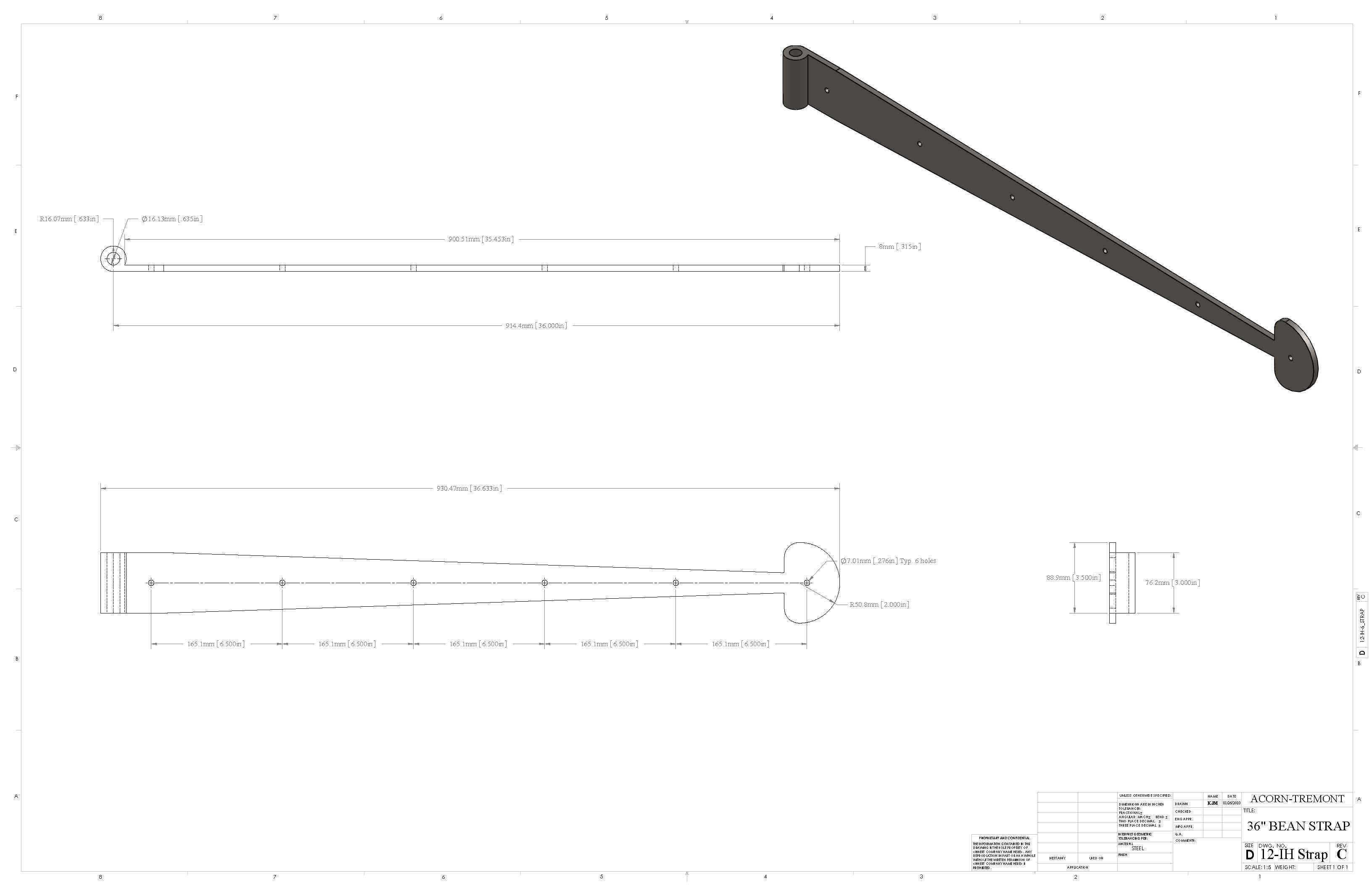

36-3/4" Heavy Duty Bean Strap Hinge

IHMBP - 36-3/4" Heavy Duty Bean Strap Hinge

• Made of steel with a matte black finish


• 36-3/4" strap length, 3" strap width at hinge


• 3-3/4" x 6" hinge pad


• 3/8" thick


• Removable pin


• 11, 1/4" x 2" square head, stainless steel lags included


• Rated for 600 lbs. pair


• Tested to 1,000 lbs. per pair


• 3 knuckles


• Made in the USA

Installation Tips

• Predrill with a 5/32" drill bit


• Hand tighten bolts to prevent paint chipping


• Use clean chrome plated tools to prevent rust
