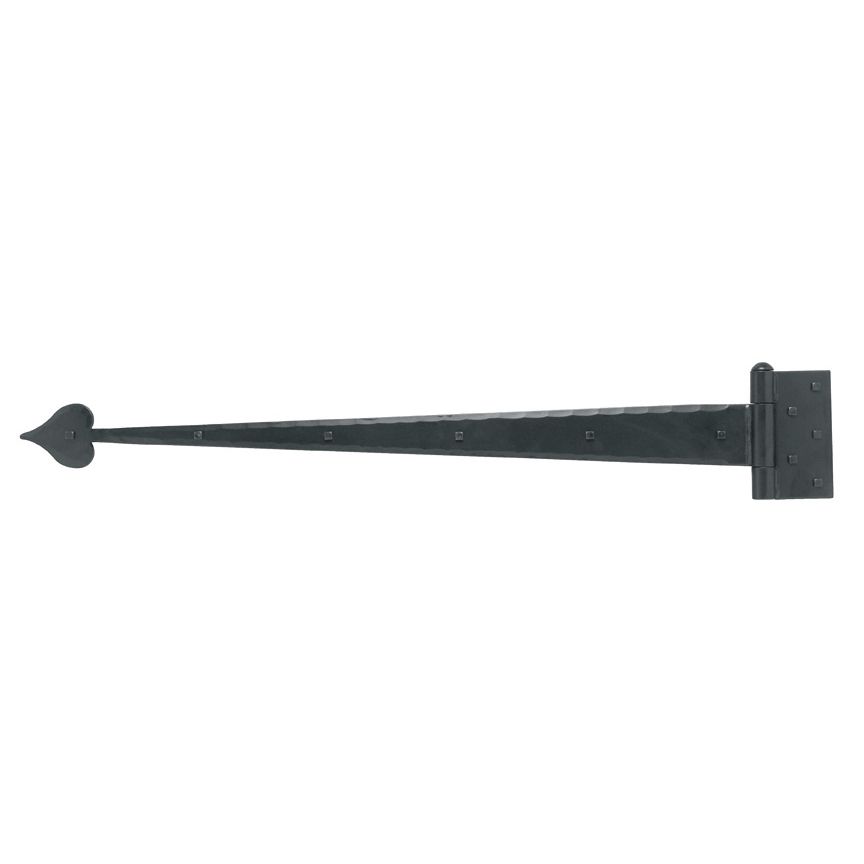

Acorn ISJBP 30-3/4" Heavy Duty Stainless Steel Heart Strap Hinge

Acorn ISJBP 30-3/4" Stainless Steel Heavy Duty Heart Strap Hinge is an exceptional choice for those seeking durability and elegance in architectural hardware. Crafted from high-quality stainless steel, this hinge features a striking matte black finish that complements a variety of design aesthetics while ensuring long-lasting performance. With a strap length of 30-3/4" and a width of 3" at the hinge, it delivers robust support for heavier doors. Designed for strength, the hinge boasts a remarkable weight rating of 600 lbs. per pair and has been rigorously tested to withstand up to 1,000 lbs. per pair. The thoughtful construction includes three knuckles, ensuring smooth operation and reliability. A removable pin adds convenience during installation and maintenance. Included with the hinge are 11, 1/4" x 2" square head stainless steel lag screws, facilitating an easy and secure fit. The hinge pad measures 3-3/4" x 6" and is 3/8" thick, providing a solid foundation for your door or gate. Proudly made in the USA, the Acorn ISJBP hinge combines functionality with aesthetic appeal, making it a perfect addition for building professionals and discerning homeowners alike.

30-3/4" Stainless Steel Heavy Duty Heart Strap Hinge

ISJBP - 30-3/4" Stainless Steel, Heavy Duty Heart Strap Hinge

• Made of stainless steel with a matte black finish


• 30-3/4" strap length, 3" strap width at hinge


• 3-3/4" x 6" hinge pad


• 3/8" thick


• Removable Pin


• 11, 1/4" x 2" square head, stainless steel lags included


• Rated for 600 lbs. pair


• Tested to 1,000 lbs. per pair


• 3 knuckles


• Made in the USA

Installation Tips

• Predrill with a 5/32" drill bit


• Hand tighten bolts to prevent paint chipping


• Use clean chrome plated tools to prevent rust
