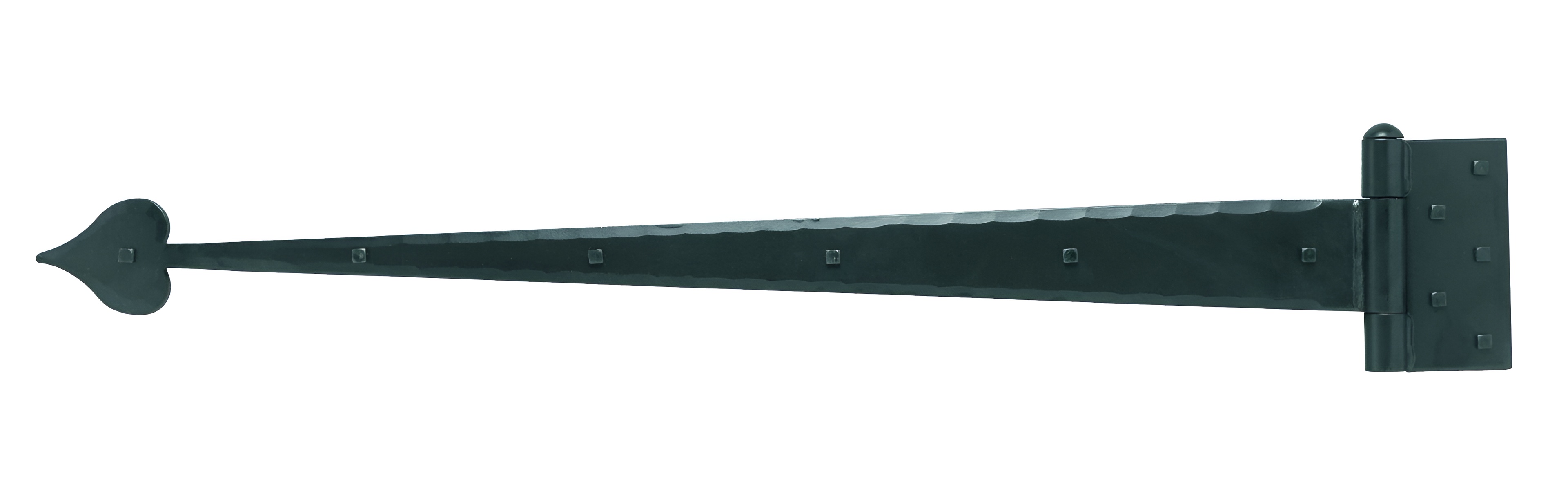

Acorn ISKBP 36-3/4" Stainless Steel Heavy Duty Heart Strap Hinge

Acorn ISKBP 36-3/4" Stainless Steel Heavy Duty Heart Strap Hinge offers a perfect blend of strength and style for your architectural needs. Crafted from high-quality stainless steel and finished in a sleek matte black, this hinge provides both durability and an elegant aesthetic suitable for a variety of applications. Measuring 36-3/4" in length and 3" in width at the hinge, the ISKBP is designed to handle substantial weight with ease. It is rated for a robust 600 lbs. per pair, having been rigorously tested to support up to 1,000 lbs. per pair. The hinge features three knuckles for smooth operation and includes a removable pin for easy installation and maintenance. With a sturdy 3/8" thickness, the hinge comes with a 3-3/4" x 6" hinge pad, ensuring a secure fit. Additionally, the product is accompanied by 11, 1/4" x 2" square head stainless steel lags, making it ready for installation right out of the box. Made in the USA, the ISKBP combines functionality with American craftsmanship, making it a reliable choice for discerning builders and homeowners alike.

36-3/4" Stainless Steel Heavy Duty Heart Strap Hinge

ISKBP - 36-3/4" Stainless Steel Heavy Duty Heart Strap Hinge

• Made of stainless steel with a matte black finish


• 36-3/4" strap length, 3" strap width at hinge


• 3-3/4" x 6" hinge pad


• 3/8" thick


• Removable pin


• 11, 1/4" x 2" square head, stainless steel lags included


• Rated for 600 lbs. pair


• Tested to 1,000 lbs. per pair


• 3 knuckles


• Made in the USA

Installation Tips

• Predrill with a 5/32" drill bit


• Hand tighten bolts to prevent paint chipping


• Use clean chrome plated tools to prevent rust
