Acorn ISLBP 30-3/4" Stainless Steel Heavy Duty Bean Strap Hinge combines robust construction with a sleek design, making it an ideal choice for heavy-duty applications. Crafted from stainless steel and finished in a sophisticated matte black, this hinge not only ensures durability but also enhances the aesthetic appeal of your doors or gates. Measuring 30-3/4" in strap length and 3" in width at the hinge, this product is engineered to support significant weight, rated for up to 600 lbs. per pair and tested to withstand up to 1,000 lbs. per pair. The hinge features a substantial 3-3/4" x 6" hinge pad, and its 3/8" thickness adds to its strength and reliability. Equipped with a removable pin, the hinge allows for easy maintenance and adjustments. Included with the hinge are stainless steel lags, measuring 11/4" x 2", ensuring a secure installation. This product is proudly made in the USA, reflecting Acorn's commitment to quality craftsmanship. For optimal installation, predrill with a 5/32" drill bit and hand tighten bolts to prevent paint chipping, utilizing clean chrome plated tools to avoid rust. Choose the Acorn ISLBP hinge for a dependable, stylish hardware solution.

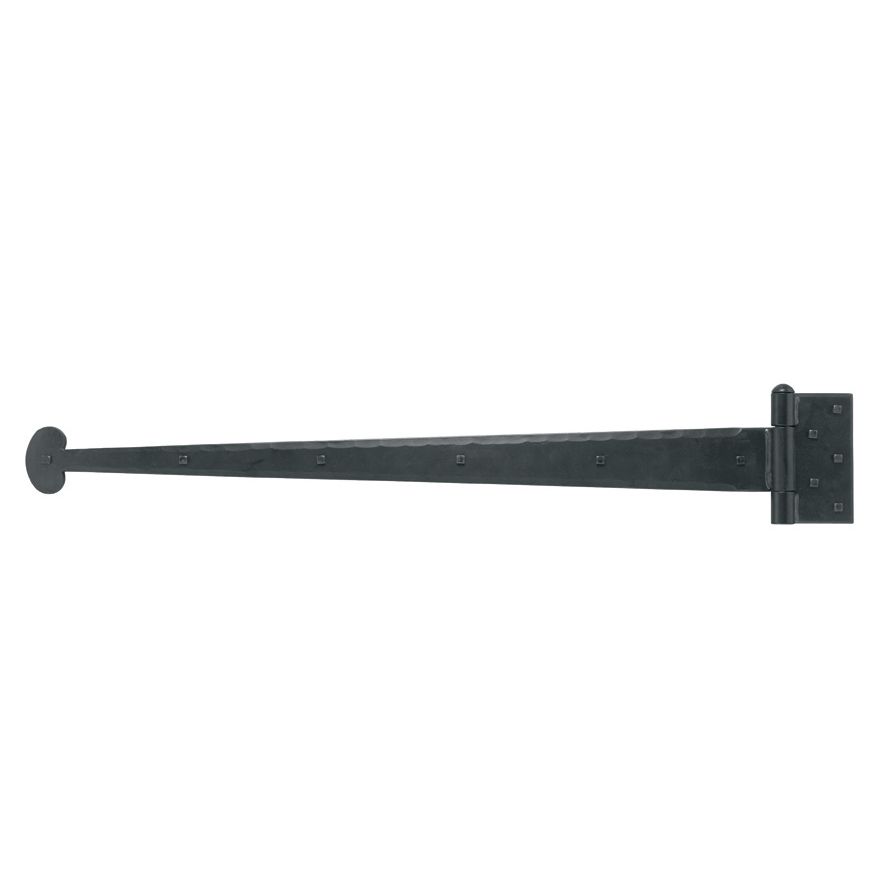

30-3/4" Stainless Steel Heavy Duty Bean Strap Hinge

ISLBP - 30-3/4" Stainless Steel Heavy Duty Bean Strap Hinge

• Made of stainless steel with a matte black finish


• 30-3/4" strap length, 3" strap width at hinge


• 3-3/4" x 6" hinge pad


• 3/8" thick


• Removable Pin


• 11, 1/4" x 2" square head, stainless steel lags included


• Rated for 600 lbs. pair


• Tested to 1,000 lbs. per pair


• 3 knuckles


• Made in the USA

Installation Tips

• Predrill with a 5/32" drill bit


• Hand tighten bolts to prevent paint chipping


• Use clean chrome plated tools to prevent rust
