Acorn IZABI Iron Art Round Deadbolt

Acorn IZABI Iron Art Round Deadbolt combines artistry with security, making it an ideal choice for discerning homeowners and building professionals. Finished in a matte black with a rough texture, this deadbolt not only enhances your door's aesthetic but also provides robust protection. Designed to accommodate 1-3/4" thick doors, it offers versatility for various applications; for thicker doors, Acorn encourages you to contact their office for assistance. This deadbolt features a 1" throw and includes a lock body measuring 3-1/4" in height and 3-1/2" in width. The edge plate dimensions are 4-5/8" x 1-1/8" x 3/16", ensuring a snug fit and reliable operation. Two Schlage keys are included, allowing for easy access, while the thumb turn trim boasts a 2-1/4" diameter with a 1-1/8" projection for effortless locking and unlocking. Installation is straightforward with the inclusion of compatible screws, and Acorn provides essential tips for a hassle-free setup, such as predrilling for different wood types and hand-tightening screws to protect the finish. Available in both 2-1/2" and 2-3/4" backsets, the Acorn IZABI Iron Art Round Deadbolt is proudly made in the USA, reflecting quality craftsmanship and attention to detail.

Iron Art Round Deadbolt

IZ - Iron Art Mortise Deadbolt

• Trim is finished in matte black with a rough texture


• Deadbolt will work with 1-3/4" thick doors, for thicker doors, please call our office


• 4, #8 x 1/2" pyramid head screws included for trim


• 2 Schlage keys included


• Availbe in 2-1/2" and 2-3/4" backset


• Made in the USA

Deadbolt

• Deadbolt includes compatible screws


• Edge plate: 4-5/8" x 1-1/8" x 3/16"


• Lock body: 3-1/4" height x 3-1/2" width


• 1" throw

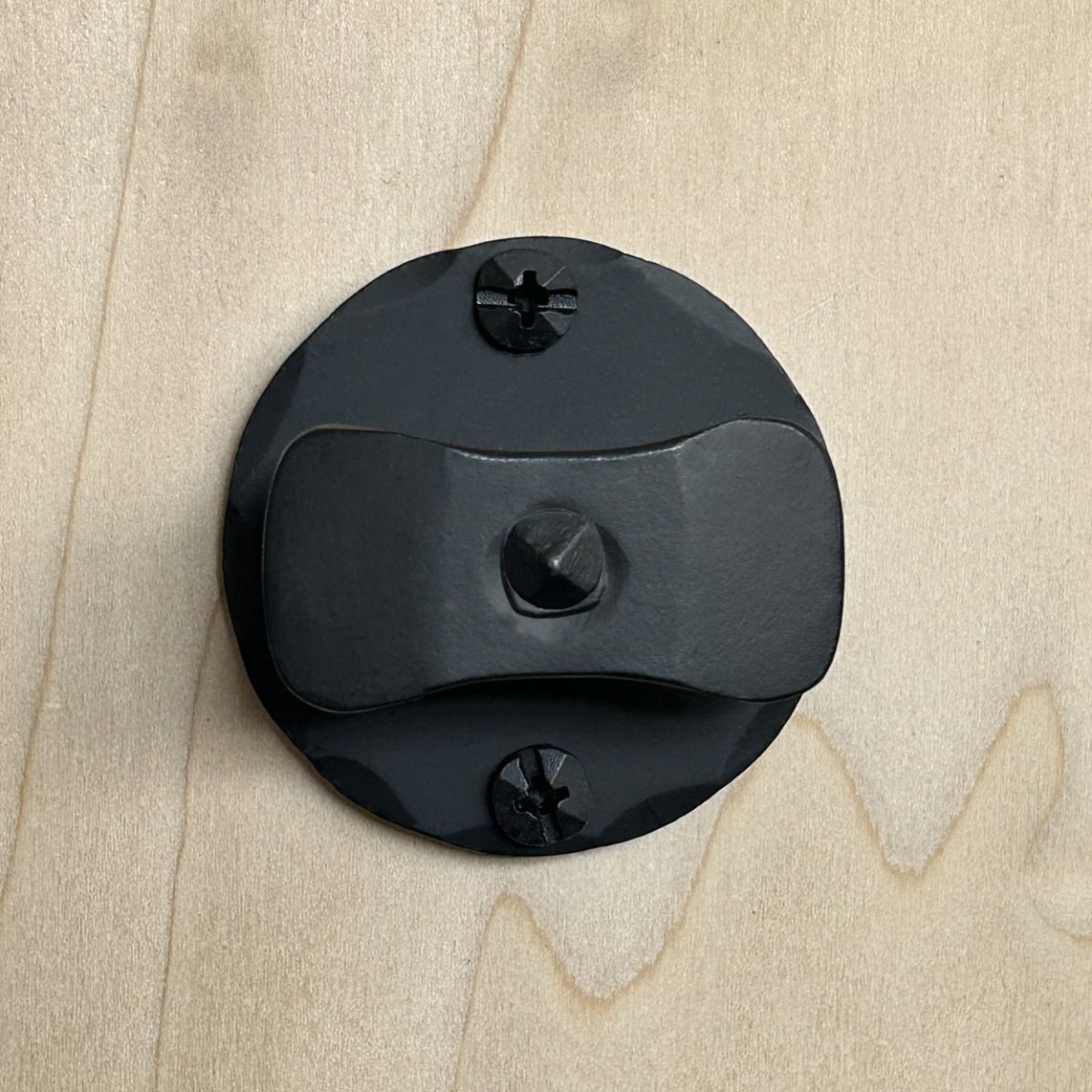

Thumb Turn Trim

• 2-1/4" diameter


• 1-1/8" projection

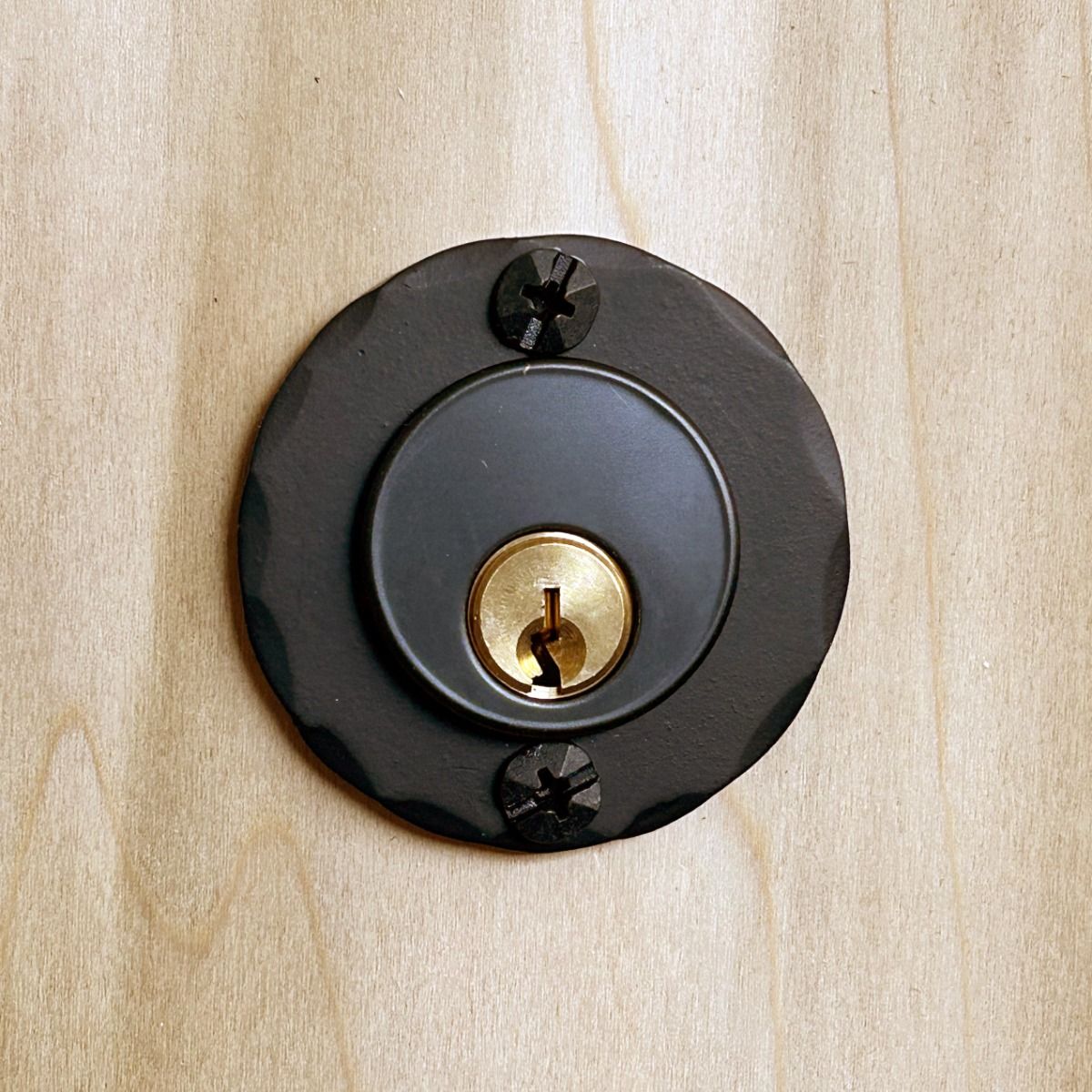

Key Side Trim

• 2-1/4" diameter

Installation Tips

• Predrill with 7/64" drillbit for softwood or 1/8" drillbit for hardwood.


• Hand tighten screws only, do not use power tools to porotect the finish.
