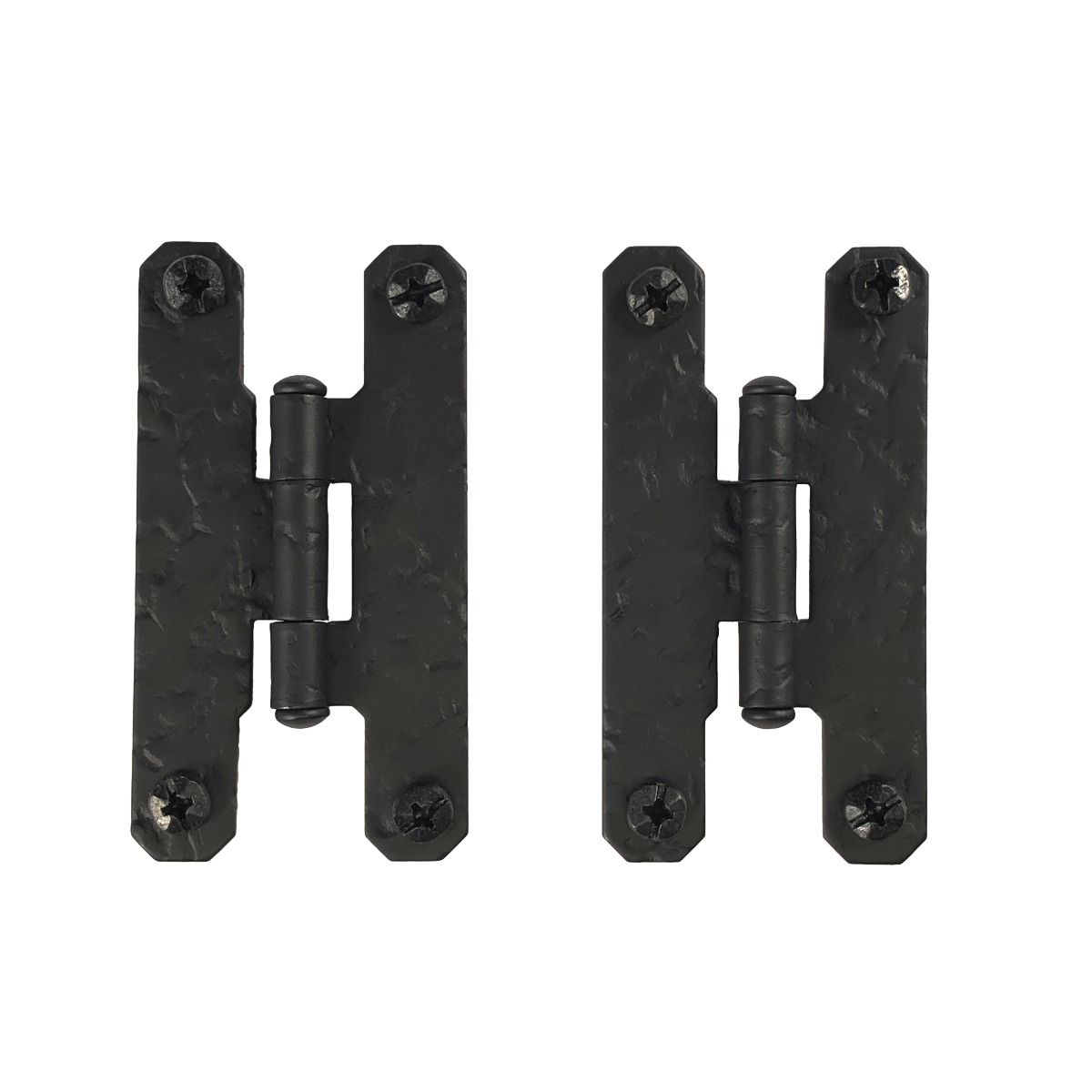

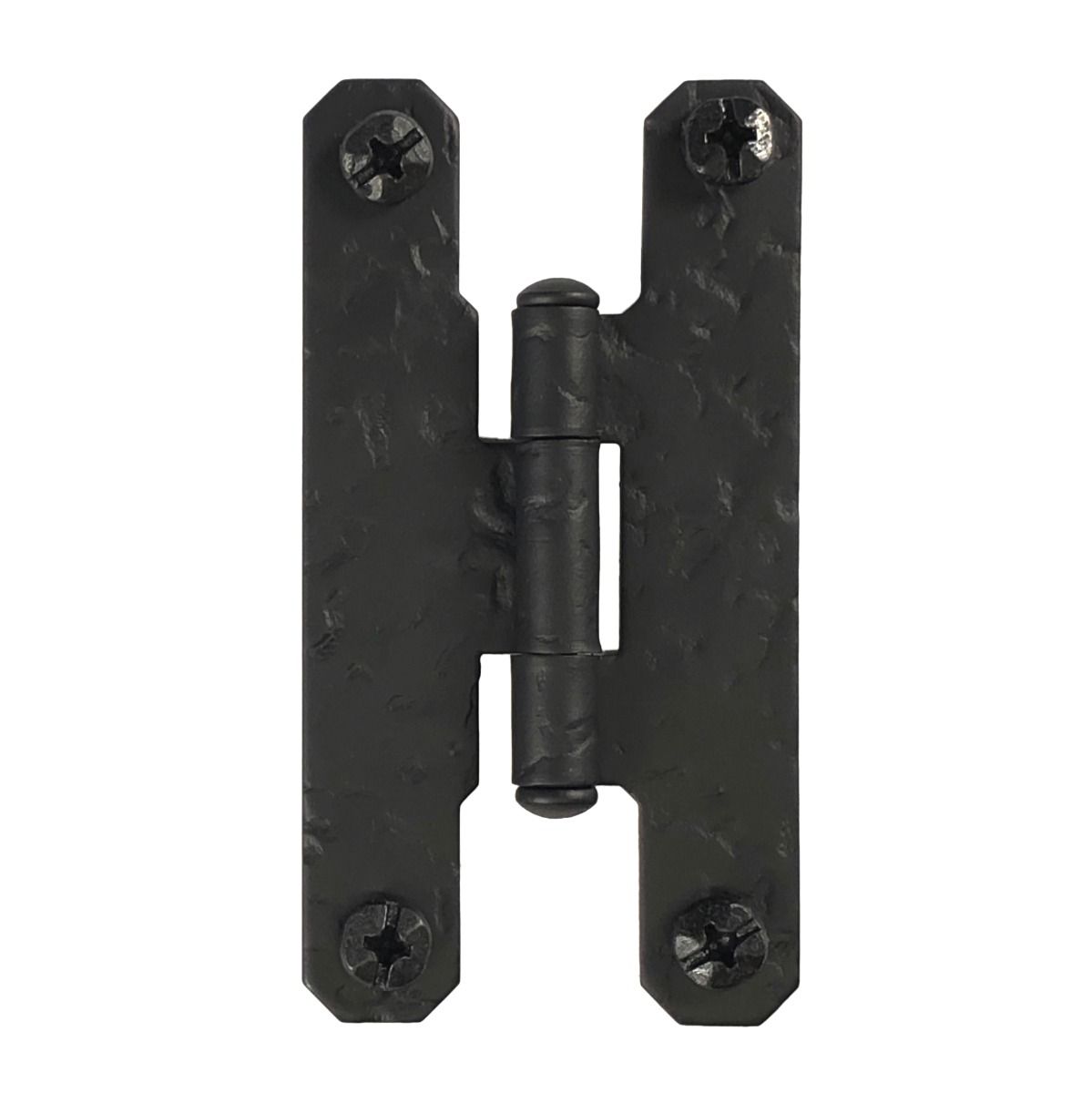

Acorn RH1BQ 3" Rough H Hinge, Pair

Acorn RH1BQ 3" Cabinet H Hinge, Rough, Pair features a robust design that combines functionality with style. Crafted from high-quality steel and finished in a sleek matte black, these hinges bring a contemporary touch to any cabinetry project. The rough texture enhances their rustic appeal, making them an excellent choice for both traditional and modern interiors. Measuring 3" in height and 1-9/16" in width when opened, each hinge is designed to support doors weighing up to 25 lbs. With leaves that are 0.062" thick and barrels measuring 0.27" thick, they offer durability and strength that you can rely on. The versatility of the RH1BQ allows it to be used for both right and left swinging doors, providing flexibility in your design. Included with your purchase are 8 #7 x 5/8" pyramid head screws, ensuring you have everything needed for installation. For optimal results, it is recommended to predrill with a 3/32" drill bit for softwood or a 7/64" drill bit for hardwood, and to hand-tighten screws to protect the finish. Proudly made in the USA, Acorn's RH1BQ hinges are not only a practical choice but also a testament to quality craftsmanship. Upgrade your cabinetry with these stylish and sturdy hinges today.

3" Cabinet H Hinge, Rough, Pair

RH1BQ - 3" Cabinet H Hinge, Rough, Pair

• Hinges are made from steel and finished in matte black


• Rough texture


• Can be used for right or left swinging doors.


• Opened hinges measure 3" height x 1-9/16" width


• Hinges leaves are 0.062" thick


• Barrells are 0.27" thick


• Includes 8, #7 x 5/8" pyramid head screws, for extra screws orderAQ2B9


• Two hinges hold 25 lbs.


• Made in the USA

Installation Tips

• Predrill with 3/32" drillbit for softwood or 7/64" drillbit for hardwood.


• Hand tighten screws only, do not use power tools to porotect the finish.
