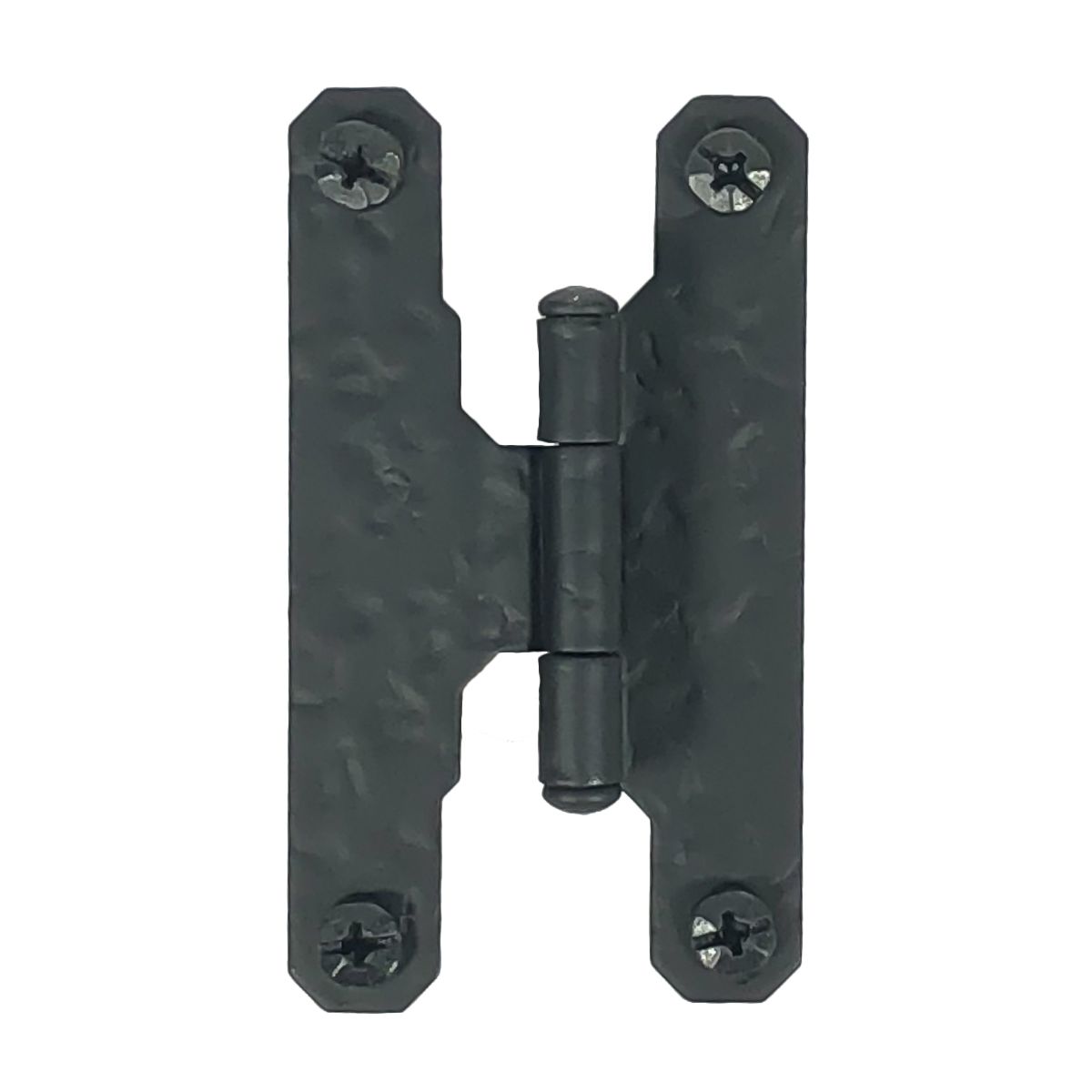

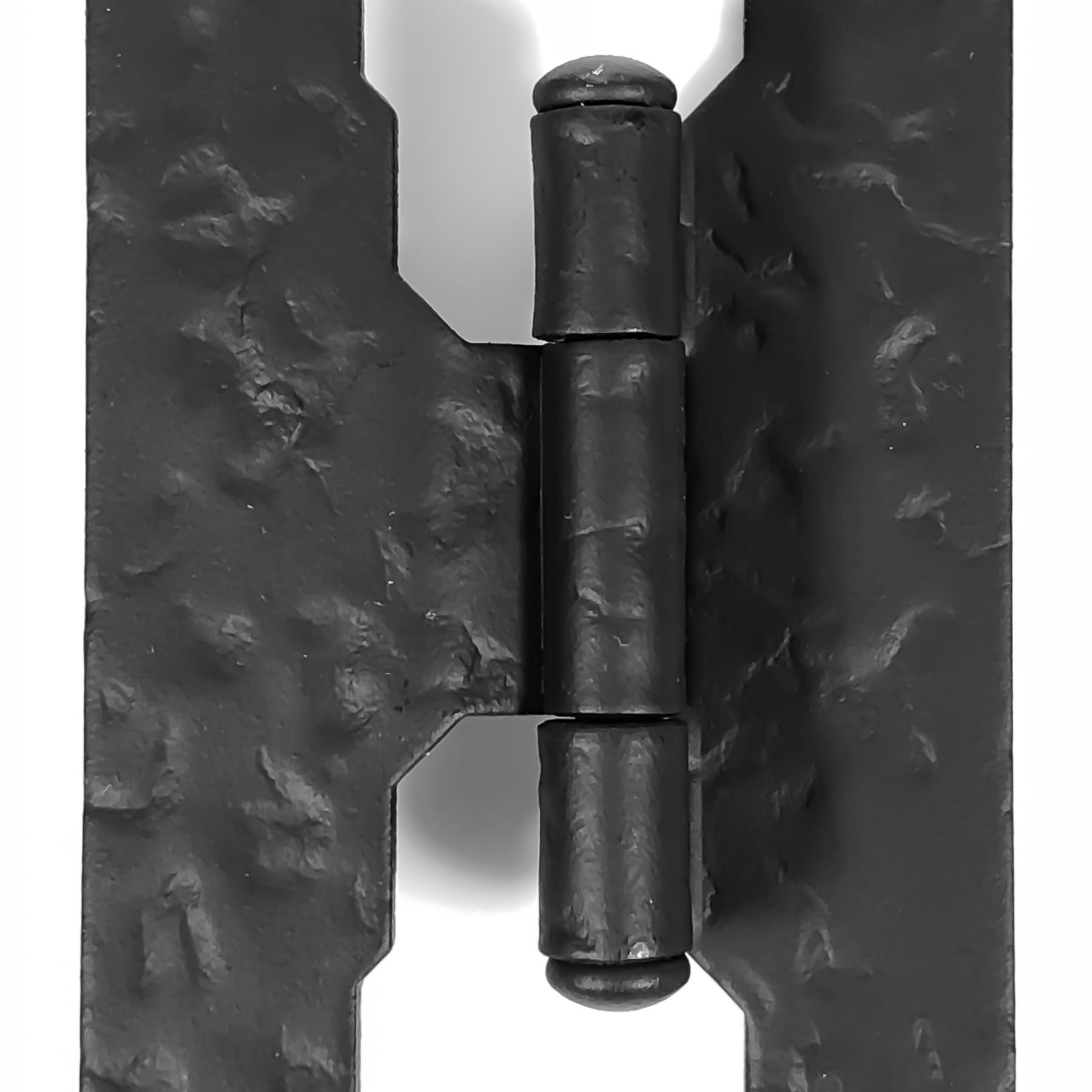

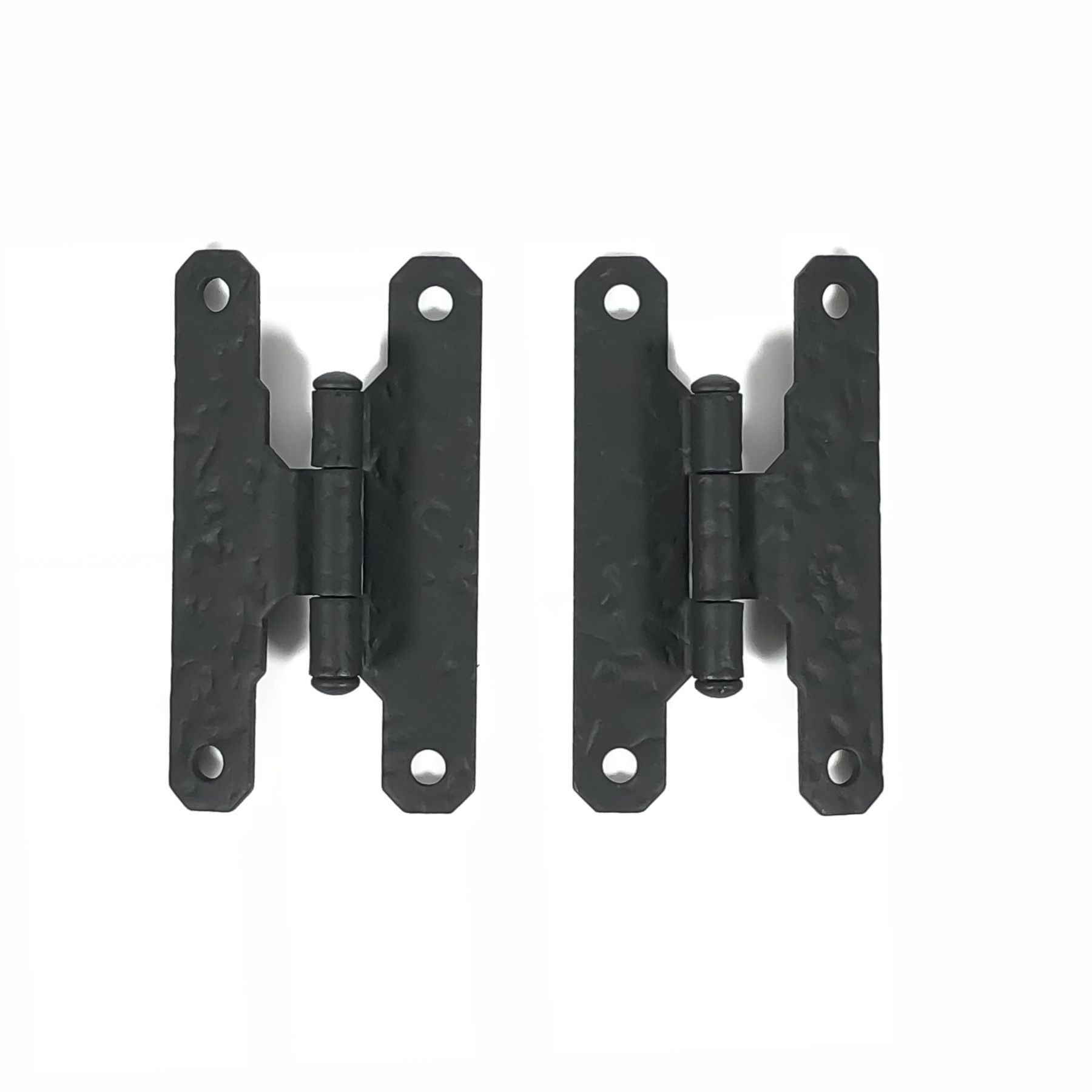

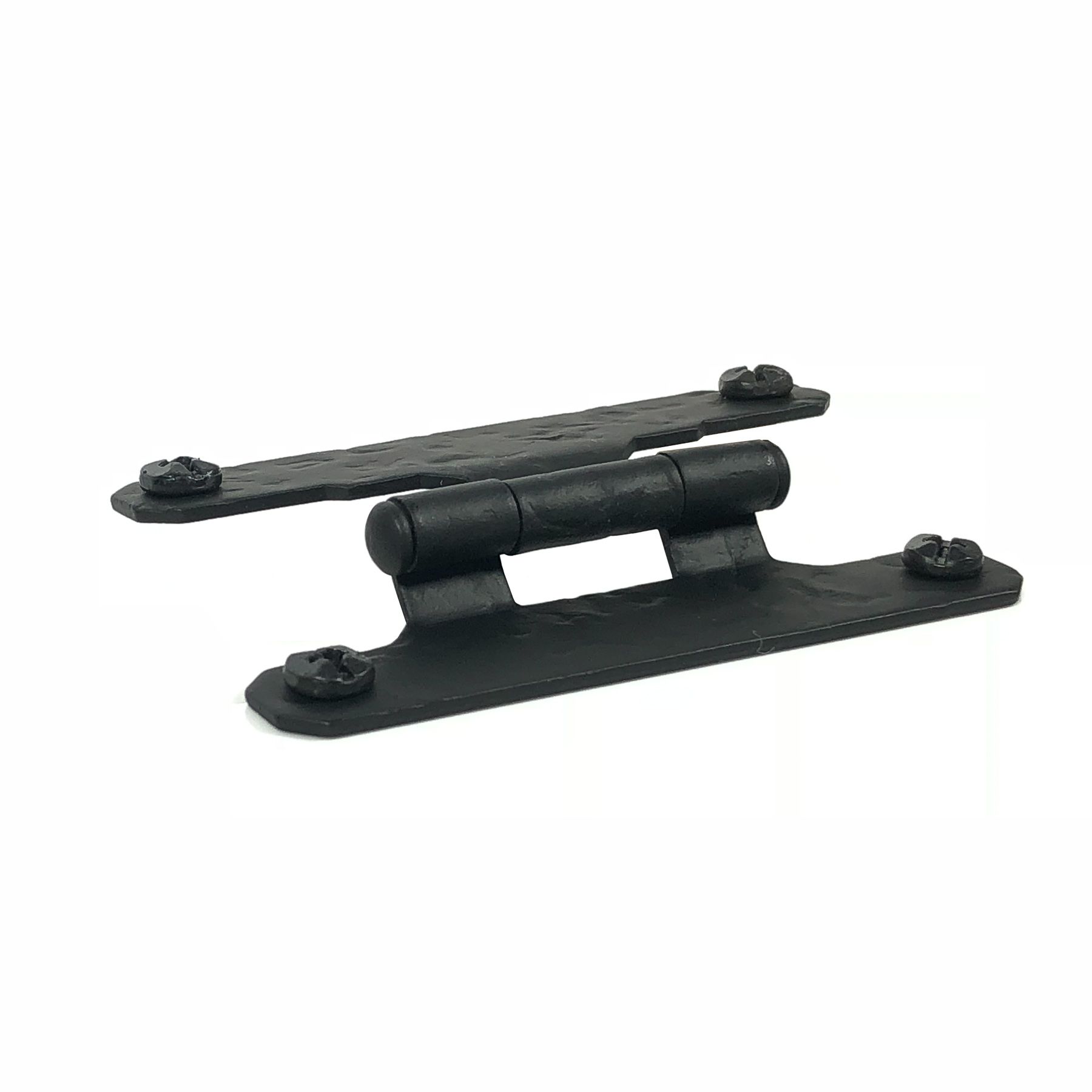

Acorn RH2BQ 3" Rough Offset H Hinge, Pair

Acorn RH2BQ 3" Offset Cabinet H Hinge, Rough, Pair offers a perfect blend of durability and style for your cabinetry needs. Crafted from high-quality steel and finished in a sophisticated matte black, these hinges feature a distinctive rough texture that adds a rustic charm to any space. Designed as 3/8" offset surface mount hinges, they are versatile enough to accommodate both right and left swinging doors, ensuring seamless functionality in your home or project. With an open hinge measurement of 3" in height and 1-5/8" in width, each hinge leaf boasts a thickness of 0.062" and includes sturdy barrels that are 0.27" thick. This robust construction allows two hinges to support up to 25 lbs, providing reliable performance for your cabinets. Installation is straightforward with the included eight #7 x 5/8" pyramid head screws, enabling a secure fit. For optimal results, predrilling is recommended-use a 3/32" drill bit for softwood and a 7/64" drill bit for hardwood. To maintain the finish's integrity, hand-tightening the screws is advised. Proudly made in the USA, the Acorn RH2BQ hinges bring a touch of craftsmanship and elegance to your cabinetry solutions.

3" Offset Cabinet H Hinge, Rough, Pair

RH2BQ - 3" Offset Cabinet H Hinge, Rough, Pair

• Hinges are made from steel and finished in matte black


• Rough texture


• 3/8" offset surface mount cabinet hinges


• Can be used for right or left swinging doors.


• Opened hinges measure 3" height x 1-5/8" width


• Hinges leaves are 0.062" thick


• Barrells are 0.27" thick


• Includes 8, #7 x 5/8" pyramid head screws, for extra screws orderAQ2B9


• Two hinges hold 25 lbs.


• Made in the USA

Installation Tips

• Predrill with 3/32" drillbit for softwood or 7/64" drillbit for hardwood.


• Hand tighten screws only, do not use power tools to porotect the finish.
