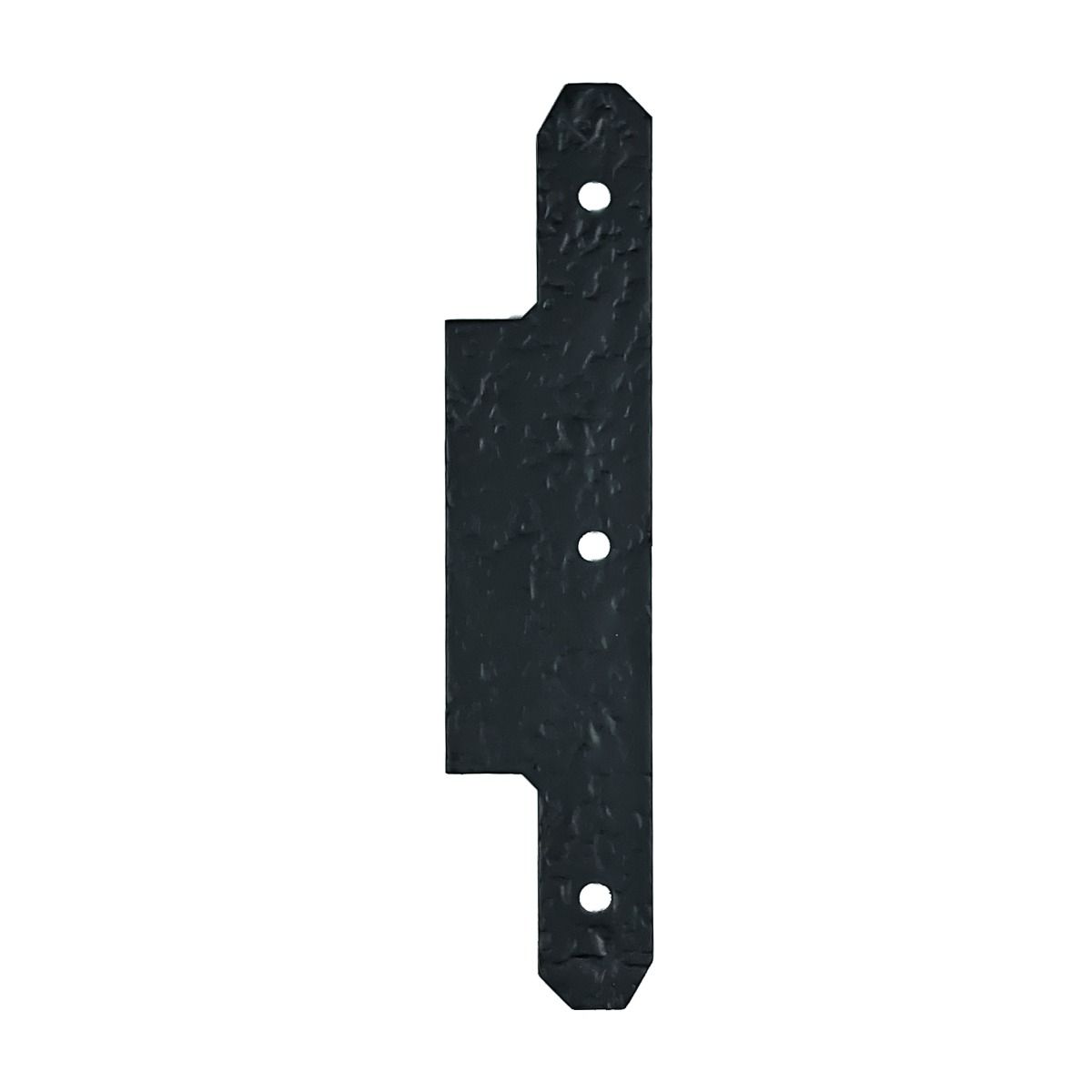

Acorn RH5BP 7" Rough Door H Plate

Acorn RH5BP 7" Rough Door H Plate is an exceptional addition for any door where traditional hinges cannot be installed. With a height of 7 inches and a width of 1-9/16 inches, this dummy hinge is designed to mimic the appearance of a standard H hinge, providing an elegant solution for both right and left-hand doors. Crafted with a rough textured, matte black finish, the RH5BP enhances the aesthetic of your space while ensuring durability. The hinge is finished on both sides and is fully reversible, allowing for versatility in installation. It pairs seamlessly with 3-1/2" or 4" butt hinges, making it a practical choice for various applications. Included with the hinge are three 3/4" x #8 pyramid head screws for easy installation. For optimal results, it is recommended to install the hinge while the door is closed, marking holes prior to pre-drilling. Use a 7/64" drill bit for softwood and a 1/8" drill bit for hardwood; hand-tightening is advised to protect the finish. Proudly made in the USA, the Acorn RH5BP 7" Rough Door H Plate combines functionality with an appealing design, making it an ideal choice for discerning homeowners and professionals alike.

7" Rough Door H Plate

7" H, Rough, Dummy Hinge

• Designed to look like an H hinge where traditional indtallation will not work.


• Has a roug textured, Matte Black finish.


• Finished on both sides, fully reversable.


• Can be used on either right or left-hand doors.


• Can be used with 3-1/2" or 4" Butt higes.


• 3, 3/4" x #8 pyramid head screws included.


• 7" tall x 1-9/16" wide


• Sold by each.


• Proudly made in the USA.

Installation Tips

• Install while door is closed.


• Mark holes before pre-drilling for screws.


• Pre-drill with 7/64" drill bit for softwood and 1/8" drill bit for hardwood.


• Do not use a drill or mechanical screwdriver to install the screws. Hand tighten only to protect the finish.
