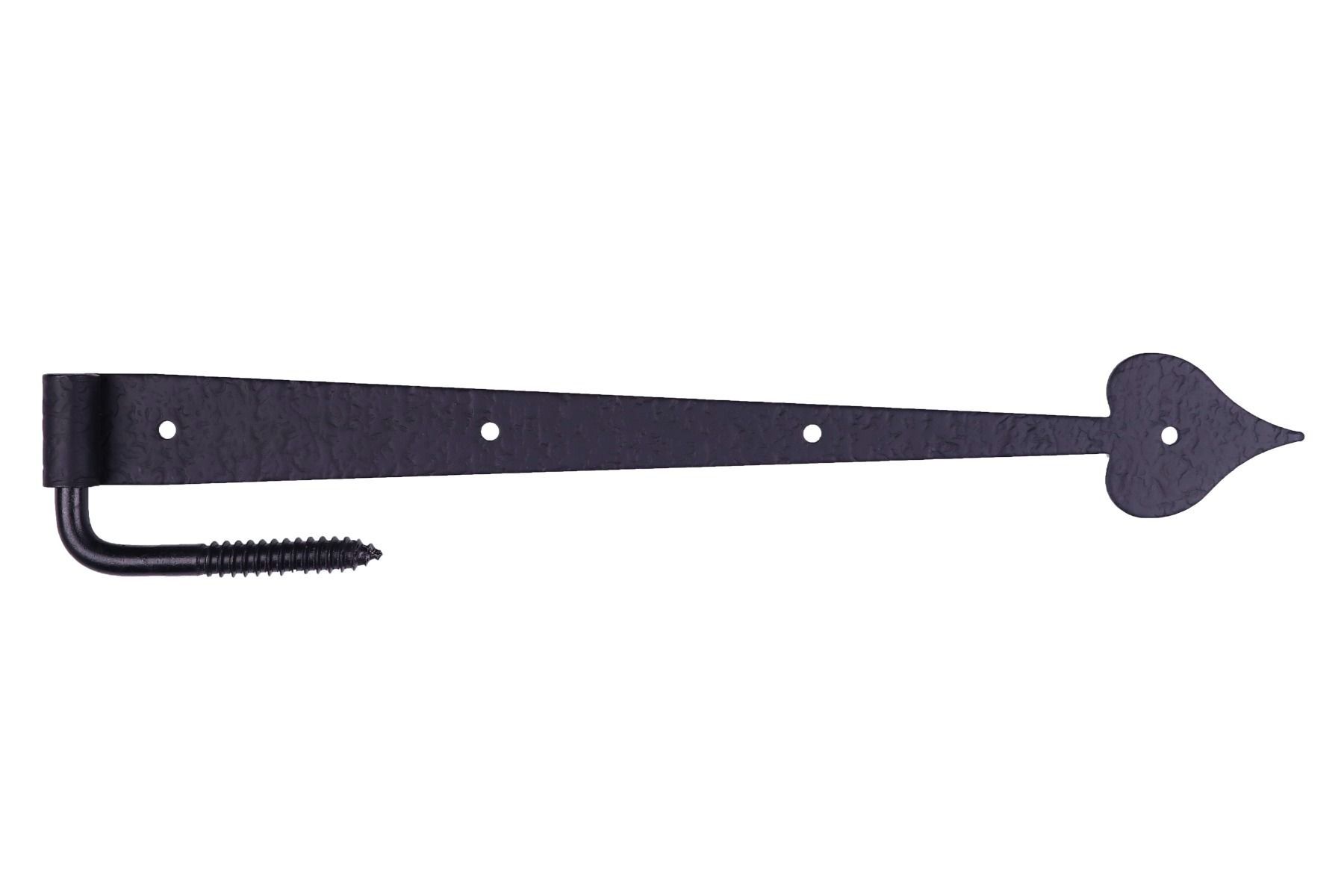

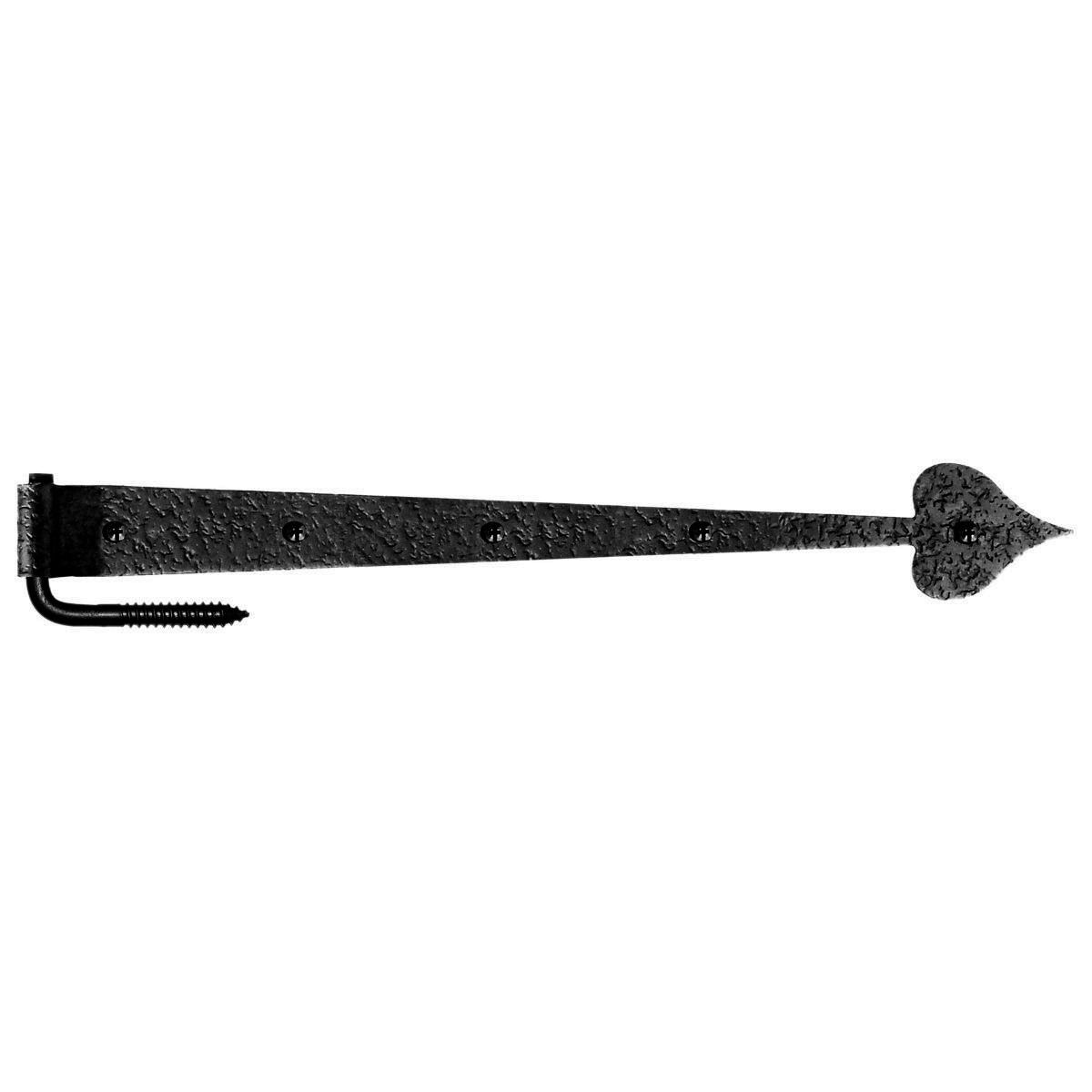

Acorn RIIBP 17" Rough Heart Gate Hinge Pintle

Acorn RIIBP 17" Rough Heart Gate Hinge Pintle showcases a perfect blend of strength and rustic charm, ideal for enhancing the functionality and aesthetics of your gates. Crafted from durable steel and finished in a matte black, this hinge features a rough texture that adds a distinctive touch to any outdoor setting. Designed for versatility, the hinge can accommodate both right and left swinging gates, making it suitable for various applications. With dimensions of 17" long from the end of the curl, 1-1/2" wide at the barrel, and 2-1/4" wide at the heart end, it provides robust support for doors weighing up to 175 lbs when two hinges are used. The hinge's thickness of 0.155" ensures long-lasting durability. Included with the hinge are four #12 x 1-1/4" black stainless, pyramid head screws for a secure installation. Additionally, the pintle measures 2-1/2" x 4-1/2" x 0.445", providing a sturdy point of rotation. Made in the USA, the Acorn RIIBP hinge not only embodies superior craftsmanship but also supports American manufacturing. Whether you are a building professional or a discerning homeowner, this hinge is an excellent choice for both function and style.

17" Rough Heart Gate Hinge Pintle

RIIBP - Heart Gate Strap Hinge, 17", Rough

• Hinges are made from steel and finished in matte black


• Rough texture


• Can be used for right or left swinging gates.


• 17" long from end of curl, 1-1/2" wide at the barrel, and 2-1/4" wide at the heart end


• Hinge is 0.155" thick.

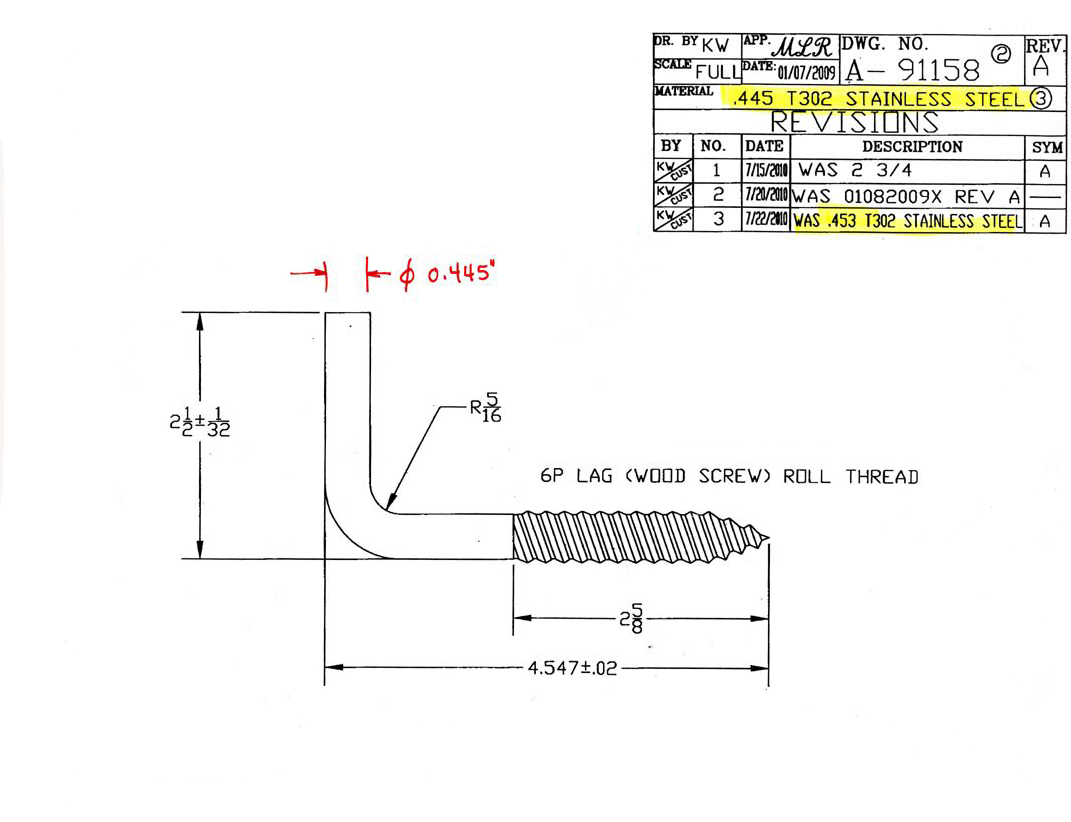

• Pintle 2-1/2" x 4-1/2" x 0.445" pintle


• Includes 4, #12 x 1-1/4" black stainless, pyramid head screws, for extra screws orderAS1B9


• Two hinges carry doors up to 175 lbs.


• Made in the USA

Installation Tips

• Predrill with 9/64" drillbit for softwood or 5/32" drillbit for hardwood.


• Predrill for lag pintle with a 1/4" drill bit.


• Hand tighten screws only, do not use power tools to porotect the finish.
