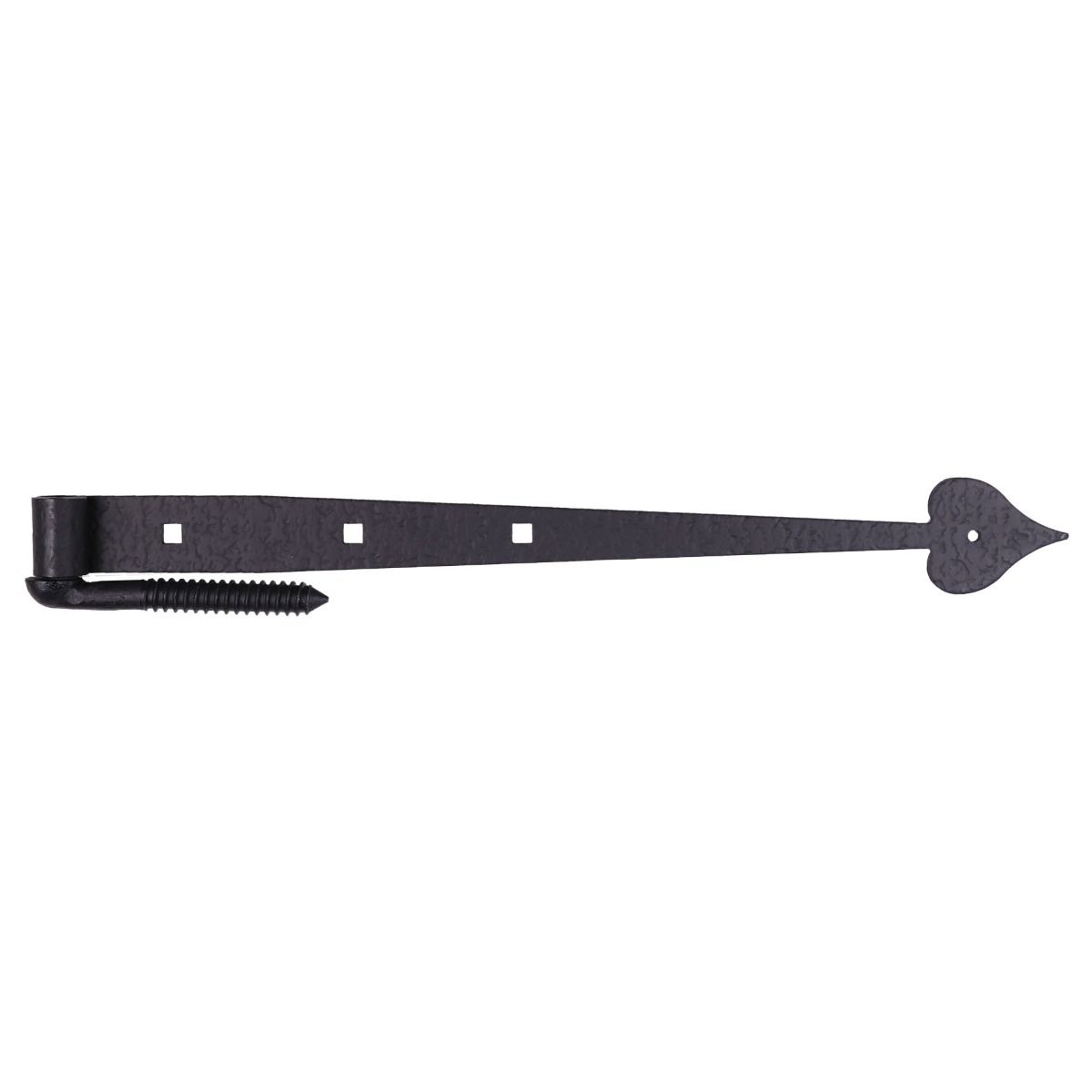

Acorn RIKBP 19-7/8" Rough Heart Gate Hinge with Carriage Bolts

Acorn RIKBP 19-7/8" Rough Heart Gate Hinge with Carriage Bolts Pintle is a beautifully crafted hinge designed for both functionality and aesthetic appeal. Made from durable steel and finished in a striking matte black, this hinge features a unique rough texture that enhances its rustic charm, making it an ideal choice for traditional or farmhouse-style gates. Measuring 19-7/8 inches long from the end of the curl, 1-1/2 inches wide at the barrel, and 2-1/4 inches wide at the heart end, this hinge is robust and capable of supporting gates weighing up to 250 lbs when paired with a second hinge. It can accommodate right or left swinging gates, ensuring versatile installation options. Included with the hinge are three 3/8"-16 x 5" carriage bolts, a #12 x 1-1/4" black stainless pyramid head screw, three 3/8"-16 hex nuts, and three 3/8" washers, providing everything needed for a secure installation. The pintle measures 1-1/2" x 6" x 0.61", ensuring a reliable connection. Proudly made in the USA, the Acorn RIKBP hinge is the perfect choice for those seeking quality and style in their architectural hardware.

19-7/8" Rough Heart Gate Hinge with Carriage Bolts Pintle

RIKBP - Heart Gate Strap Hinge with Carriage Bolts, 19-7/8", Rough

• Hinges are made from steel and finished in matte black


• Rough texture


• Can be used for right or left swinging gates.

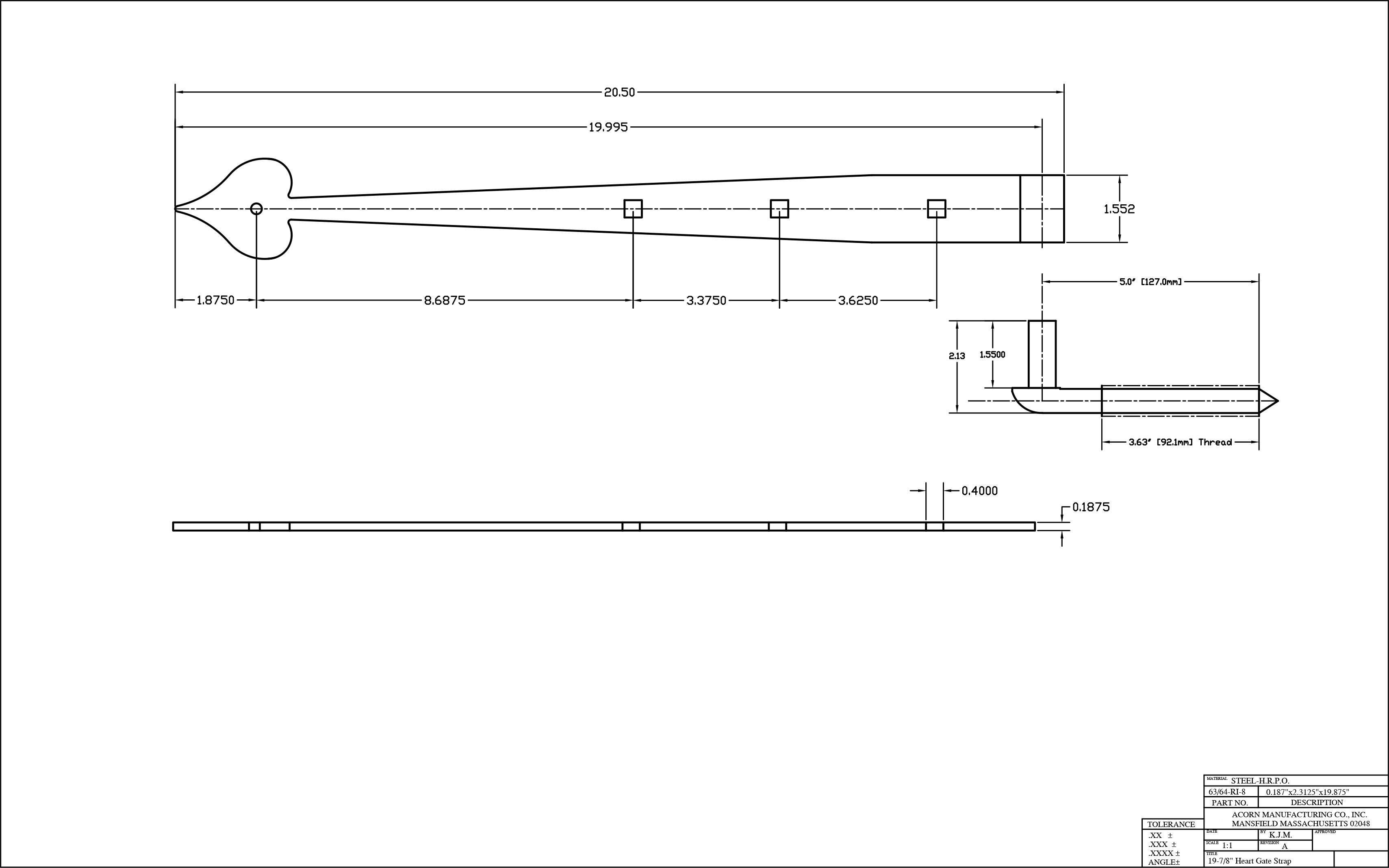

• 19-7/8" long from end of curl, 1-1/2" wide at the barrel, and 2-1/4" wide at the heart end


• Hinge is 0.155" thick.


• Pintle 1-1/2" x 6" x 0.61" pintle


• Includes 3, 3/8"-16 x 5" carriage bolt, 1, #12 x 1-1/4" black stainless, pyramid head screw, 3, 3/8"-16 hex nuts, and 3, 3/8" washers


• Two hinges carry doors up to 250 lbs.


• Match with compatiable dummy hingeRINBP


• Made in the USA

Installation Tips

• For #12 screw predrill with 9/64" drillbit for softwood or 5/32" drillbit for hardwood.


• For the carriage bolts, predrill with 3/8" drill bit.


• Predrill for lag pintle with a 3/8" drill bit.


• Hand tighten screws only, do not use power tools to porotect the finish.
