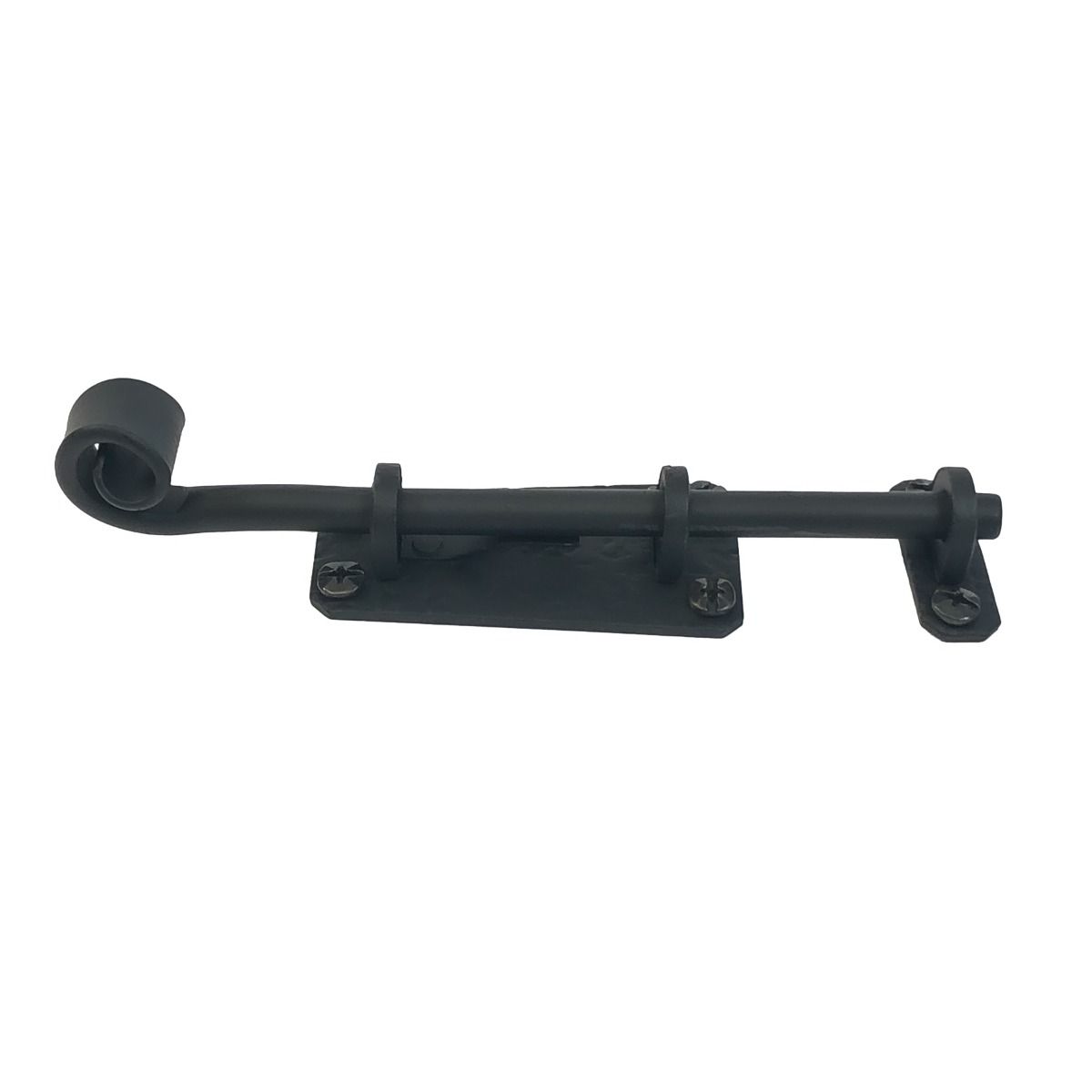

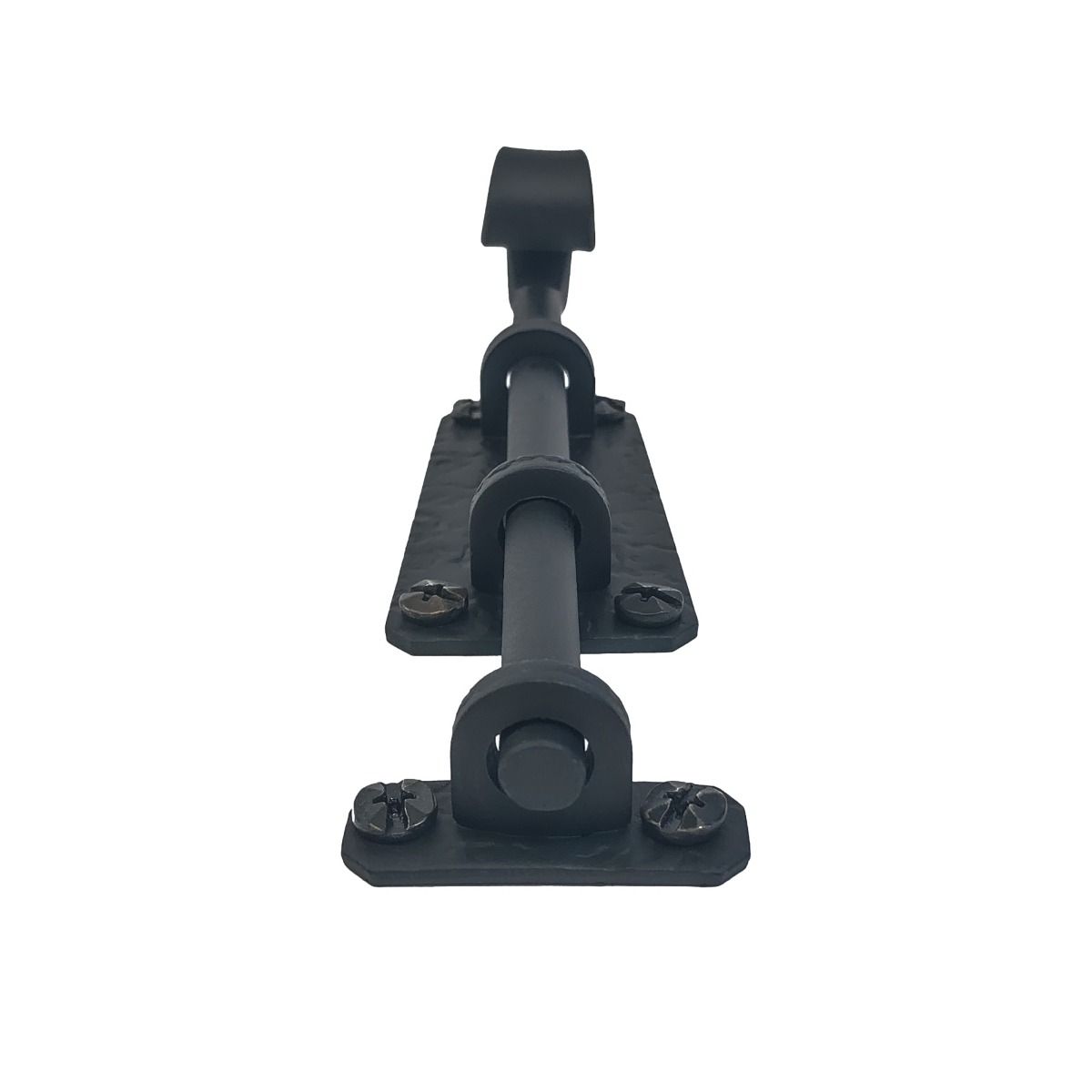

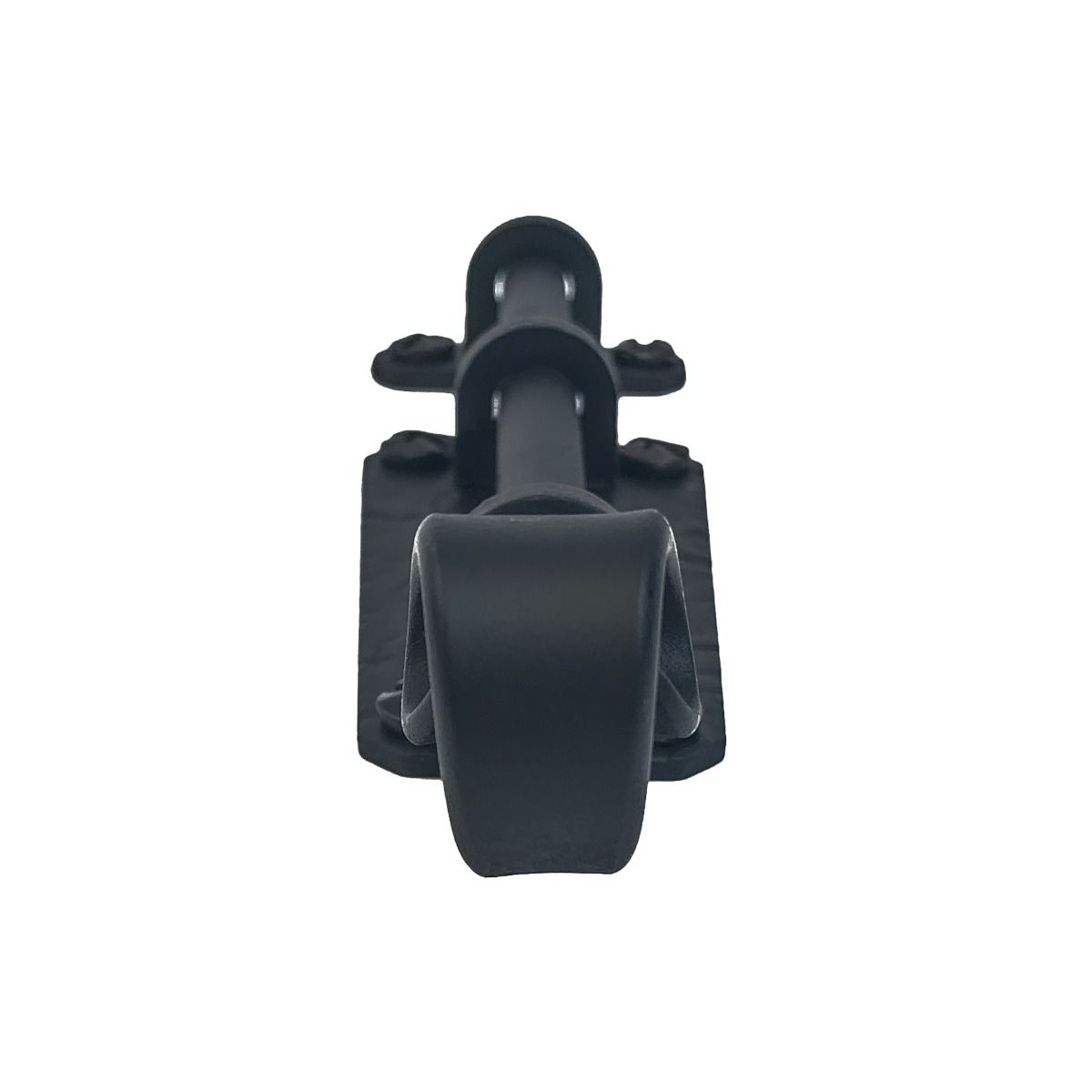

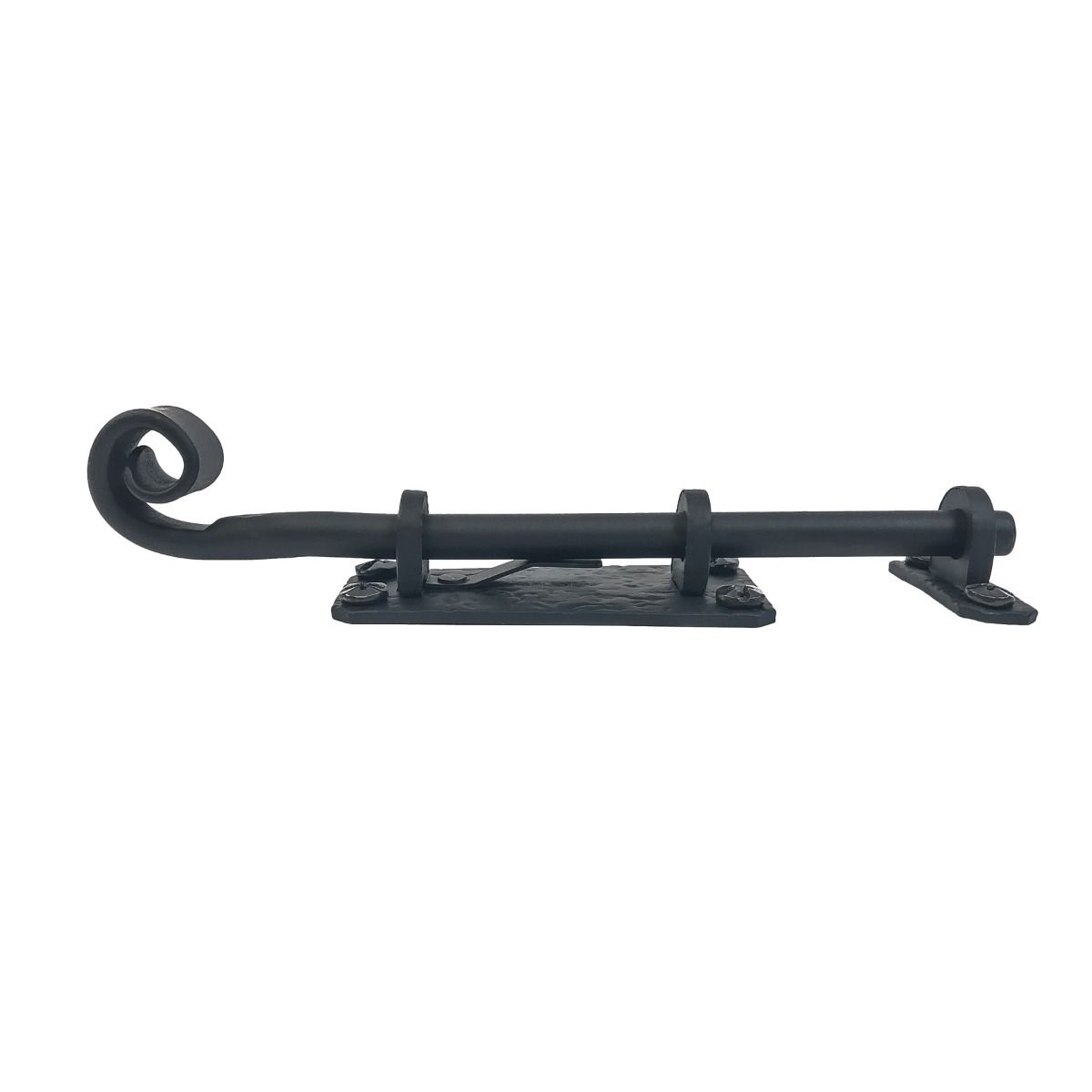

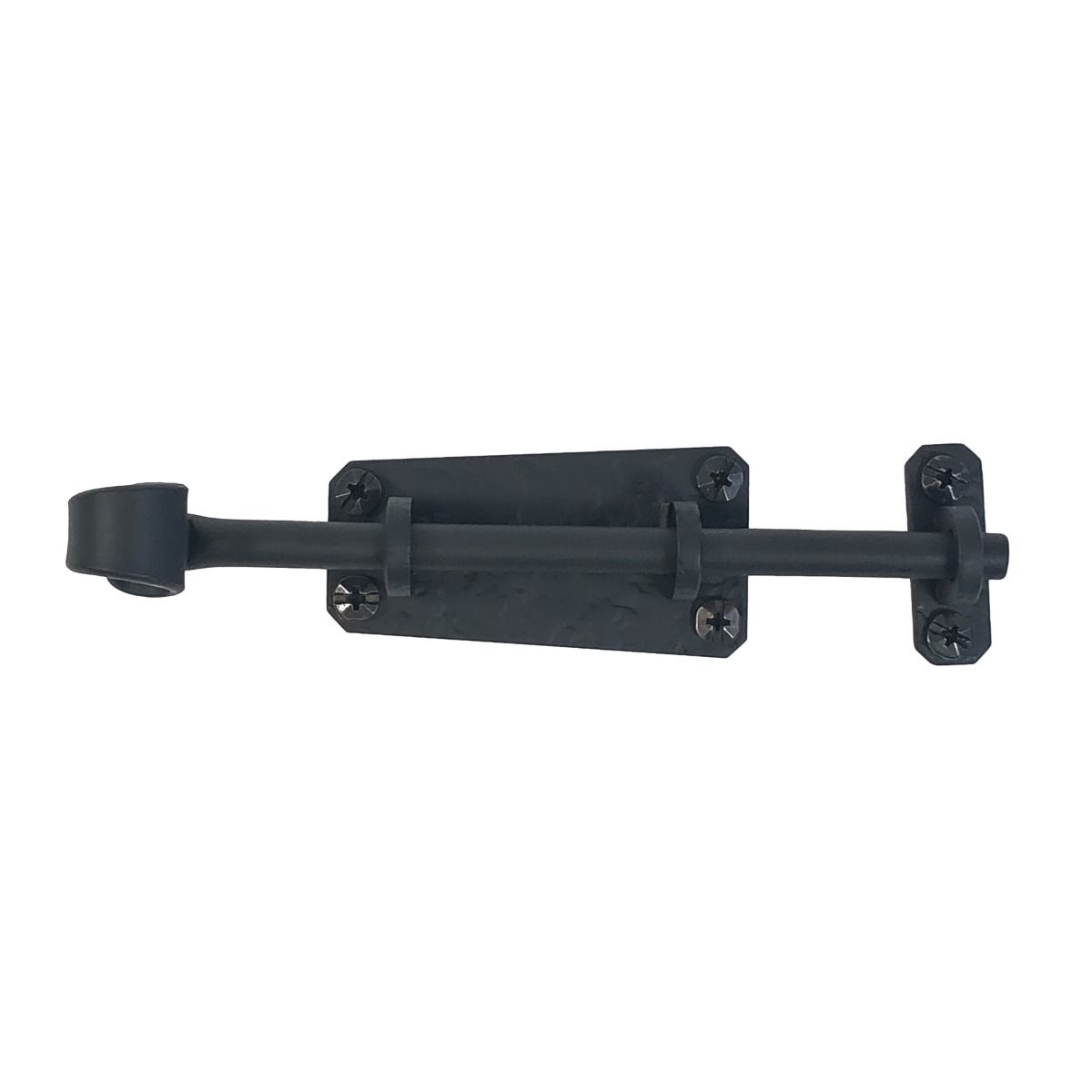

Acorn RL5BP 6" Forged Iron Curled Round Bolt

Acorn RL5BP 6" Forged Iron Curled Round Bolt offers a blend of durability and style for your architectural needs. Crafted from rugged steel and finished in a matte black, this slide bolt features a distinctive rough texture that adds a touch of sophistication to any door or cabinet. With an overall length of 6-3/4 inches and a 3/8 inch diameter bolt, it provides a secure locking mechanism with a generous 1-7/8 inch throw. The spring-loaded design ensures easy operation in both vertical and horizontal orientations, making it versatile for various installations. Included with the bolt are three types of strikes-surface, rim, and mortise-allowing for flexible applications tailored to your specific requirements. The main pad measures 1-5/8 inches by 3-1/4 inches, providing ample surface area for mounting. Every component, including the six #8 x 3/4 inch pyramid head screws and two #7 x 1 inch flat head screws, is made from stainless steel, ensuring longevity and resistance to rust. Proudly made in the USA, the Acorn RL5BP combines quality craftsmanship with practical functionality, making it an excellent choice for both building professionals and discerning homeowners.

6" Forged Iron Curled Round Bolt

RL5BP - 6" Forged Iron, Curled Slide Bolt

• Made of steel with a matte black finish


• Rough textured steel

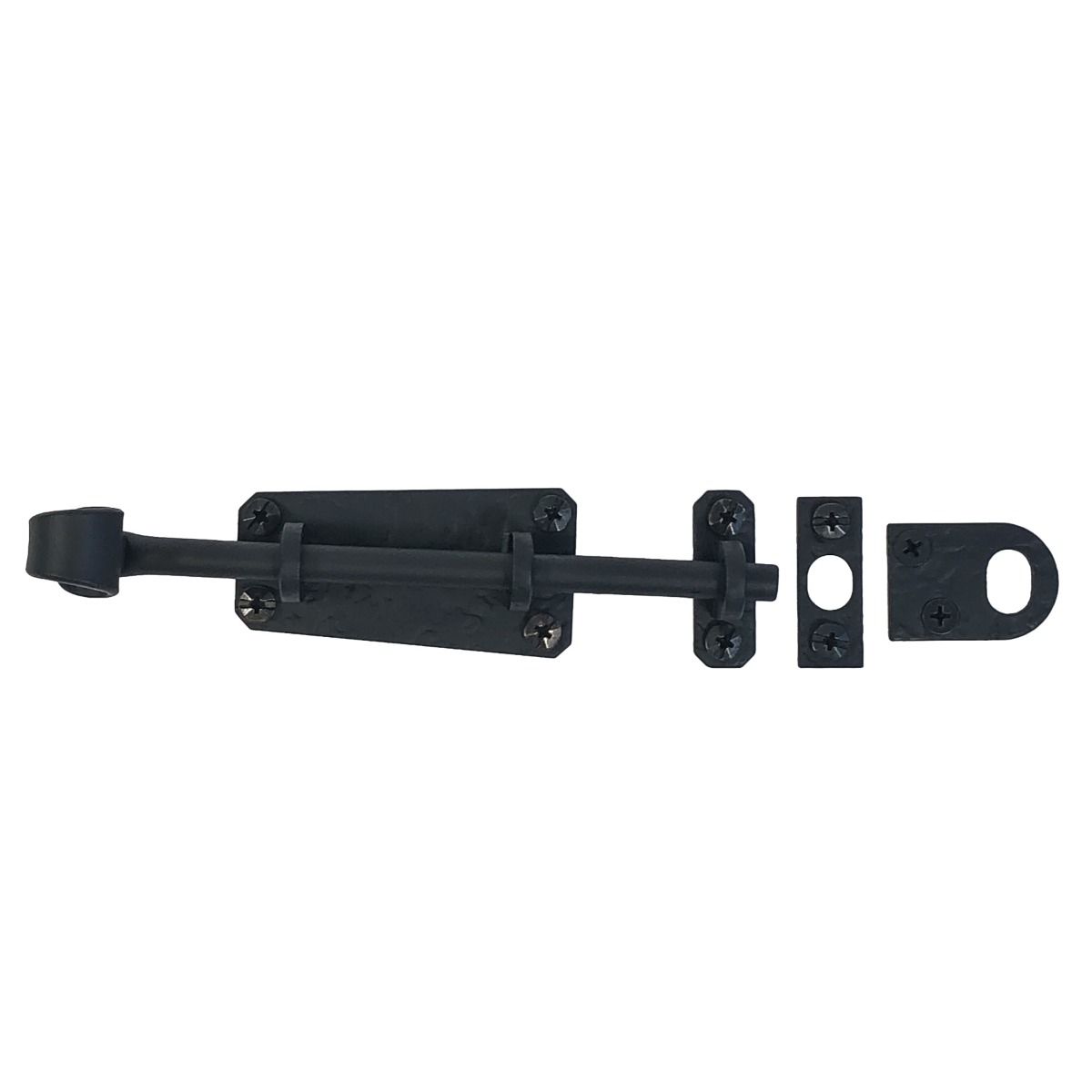

• 3 strikes included, surface, rim, and mortise


• Spring loaded for vertical or horizontal use


• 1-7/8" throw


• Main pad, 1-5/8" x 3-1/4"


• 3/8" bolt diameter


• 6-3/4" overall bolt length


• 1-1/2" projection


• All screws made from stainless steel


• 6, #8 x 3/4" pyramid head and 2, #7 x 1" flat head screws included


• Need extra screws? OrderASRB6andAS9B7


• Made in the USA

Installation Tips

• For bolt and surface strike install with #8 screws, predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood


• For mortise and rim strike install with #7 flat head screws, predrill with 3/32" drill bit for softwood or 7/64: drill bit for hardwood


• Hand tighten screws, do not use power tools with screws.


• When installing decorative hardwre use hand tools in good condition
