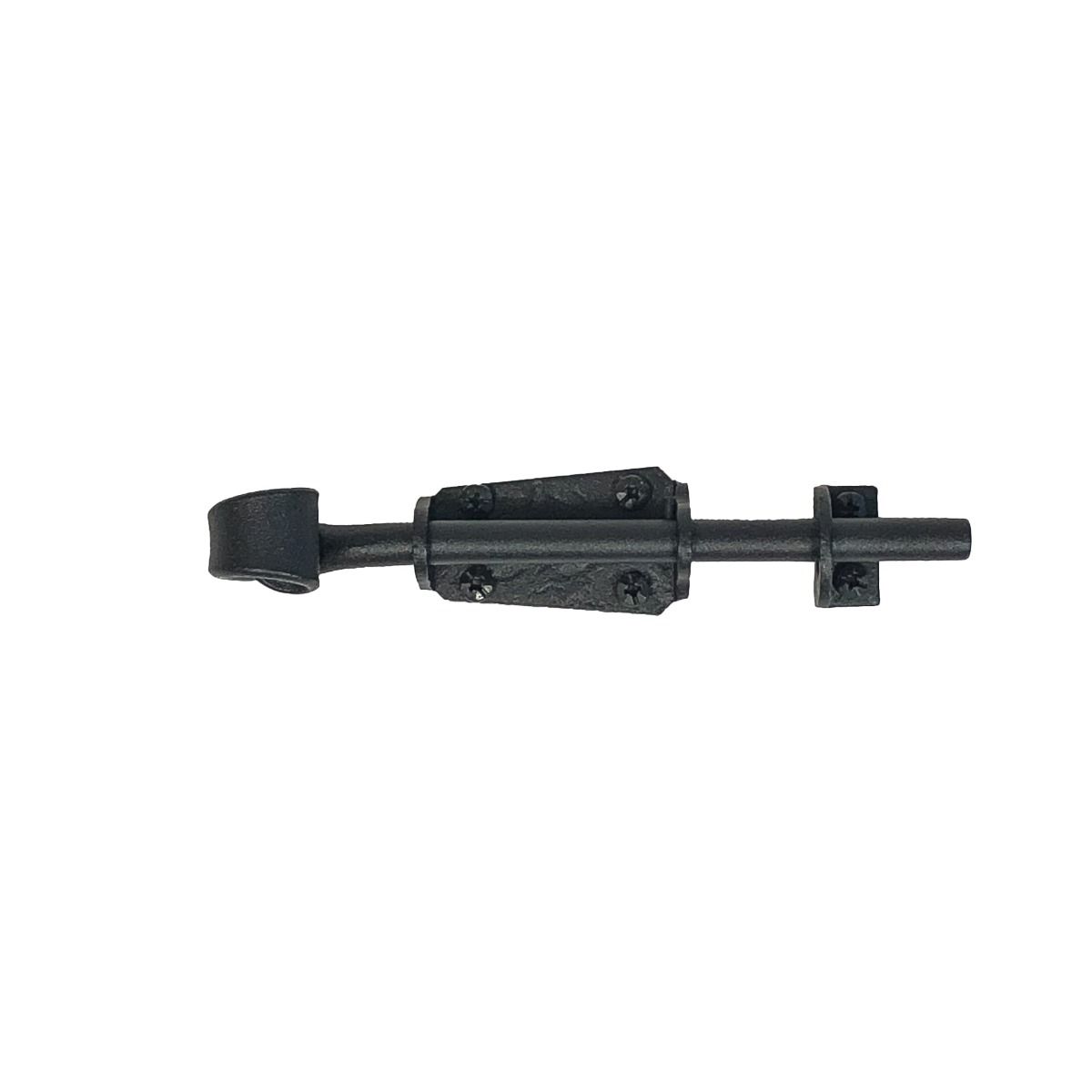

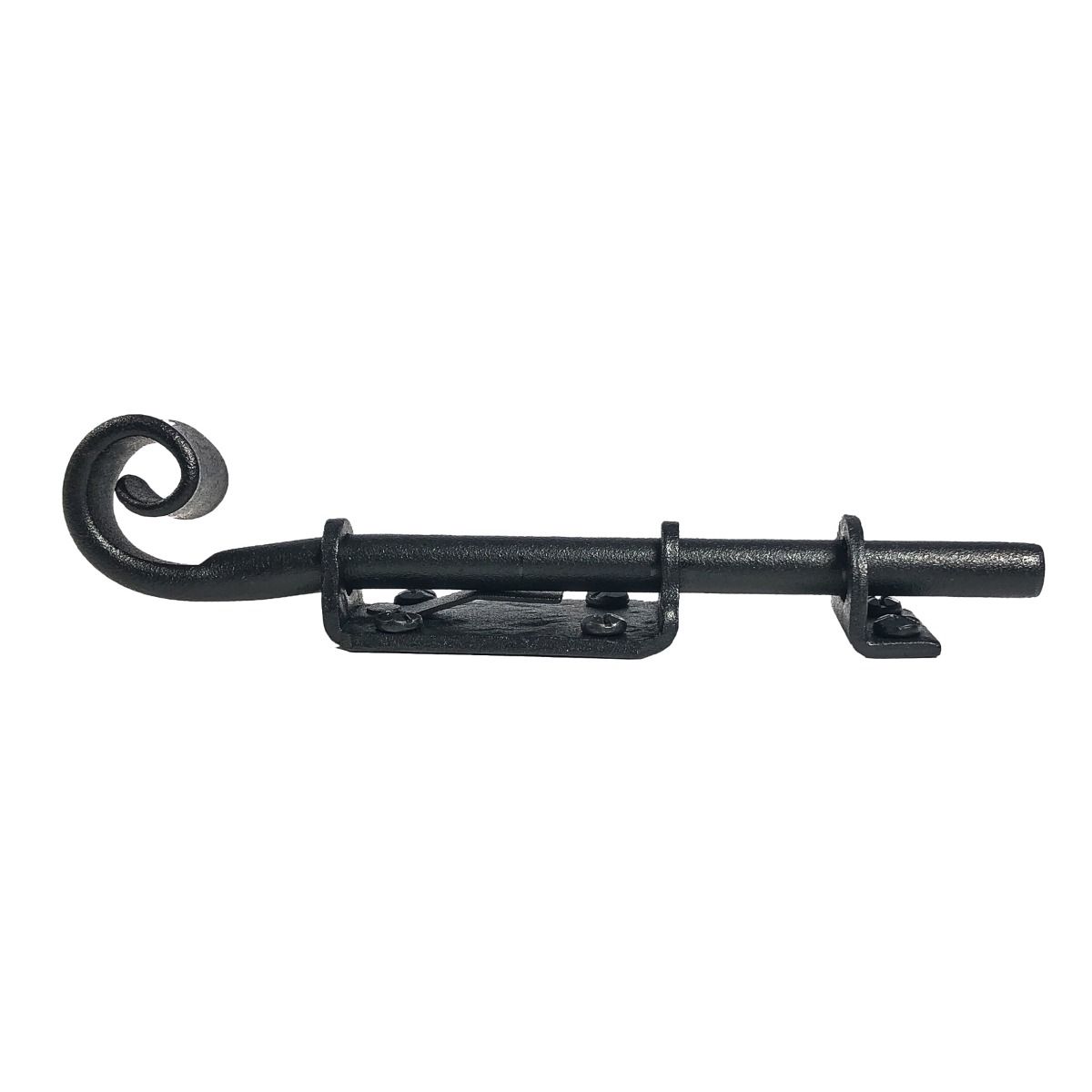

Acorn RLABP 6" Forged Iron Gate Bolt

Acorn RLABP 6" Forged Iron Gate Bolt is a masterfully crafted security solution, designed for both functionality and style. Made from robust steel and finished in a sleek matte black, this gate bolt offers a rough textured surface that enhances its rustic charm, making it a perfect addition to any architectural project. With a 6-1/8" overall length and a 3/8" bolt diameter, the RLABP provides a reliable locking mechanism with a generous 1-7/8" throw. This versatile bolt is designed for both vertical and horizontal use, featuring a spring-loaded mechanism that ensures ease of operation. It includes three types of strikes-surface, rim, and mortise-allowing flexibility in installation options. Installation is straightforward, with all necessary stainless steel screws included: eight #6 x 7/8" pyramid head screws and two #7 x 1" flat head screws. The RLABP is made in the USA, underscoring its quality craftsmanship and durability. Whether you are a building professional or a knowledgeable homeowner, the Acorn RLABP 6" Forged Iron Gate Bolt combines security and aesthetic appeal, making it an essential component for enhancing your entryways.

6" Forged Iron Gate Bolt

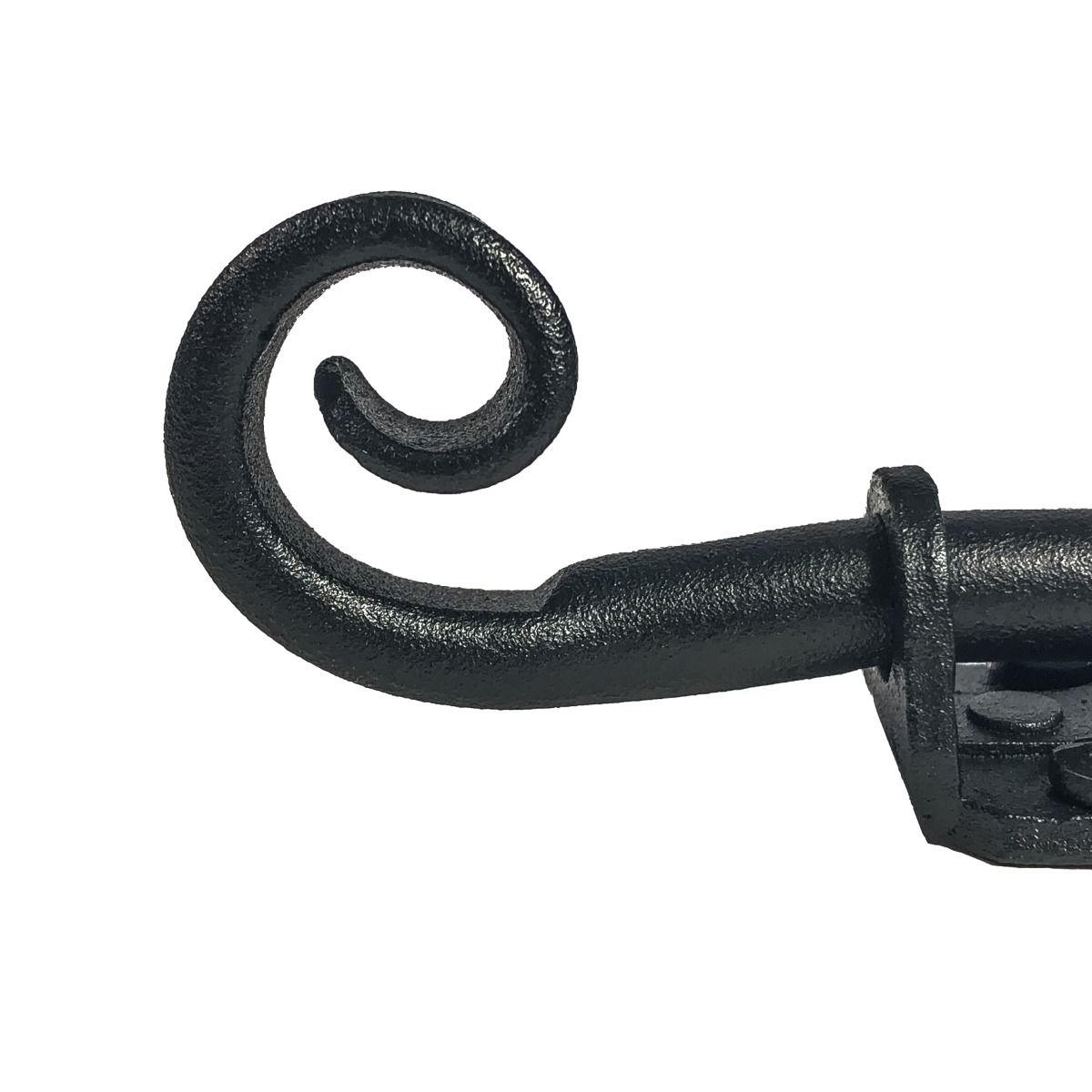

RLABP - 6" Forged Iron, Curled Slide Bolt

• Made of steel with a matte black finish


• Rough textured steel

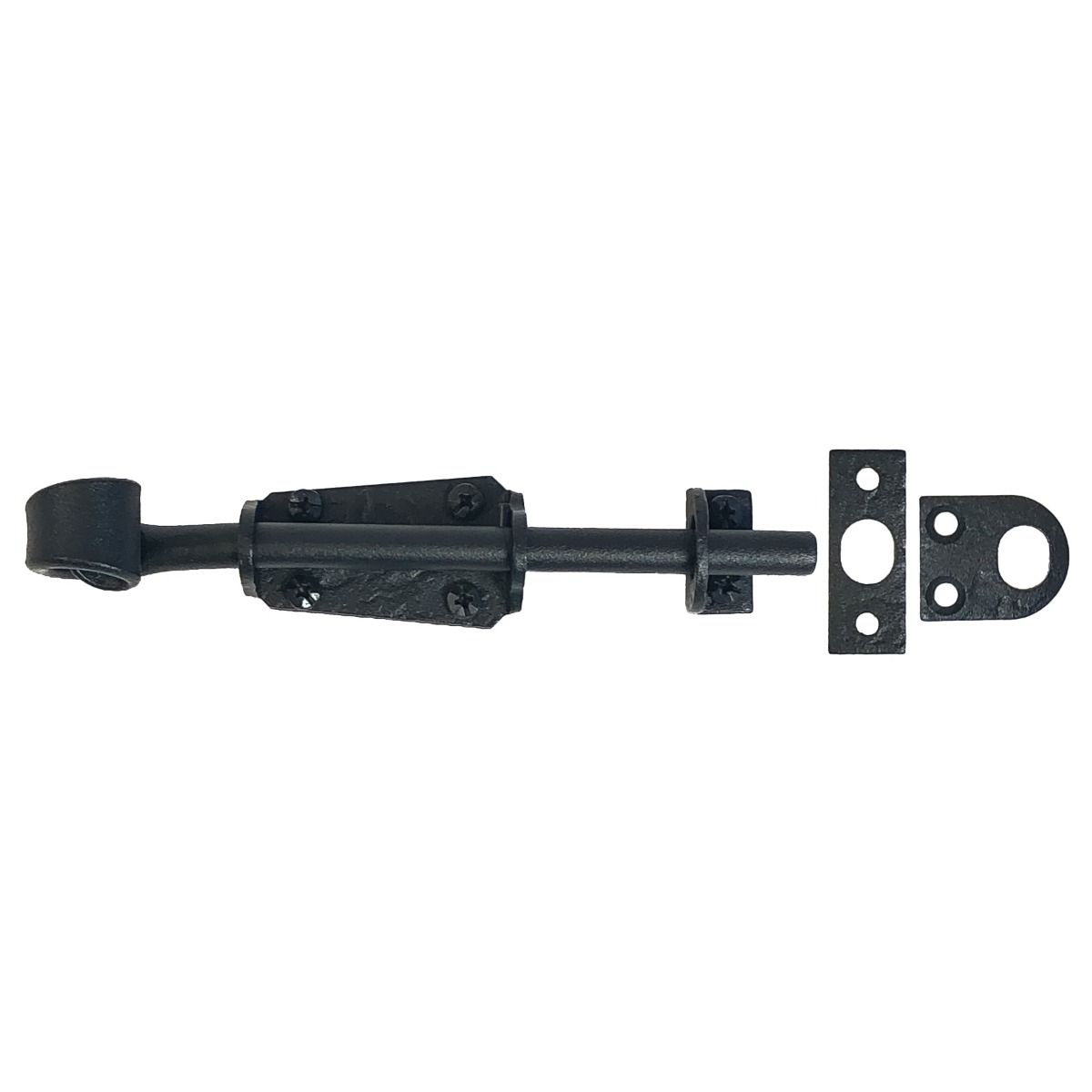

• 3 strikes included, surface, rim, and mortise


• Spring loaded for vertical or horizontal use


• 1-7/8" throw


• Main pad, 1-1/4" x 2-1/4"


• 3/8" bolt diameter


• 6-1/8" overall bolt length


• 1-3/8" projection


• All screws made from stainless steel


• 8, #6 x 7/8" pyramid head and 2, #7 x 1" flat head screws included


• Need extra screws? OrderASWB9andAS9B7


• Made in the USA

Installation Tips

• For bolt and surface strike install with #6 screws, predrill with 3/32" drill bit for soft wood or 7/64" drill bit for hardwood


• For mortise and rim strike install with #7 flat head screws, predrill with 3/32" drill bit for softwood or 7/64: drill bit for hardwood


• Hand tighten screws, do not use power tools with screws.


• When installing decorative hardwre use hand tools in good condition
