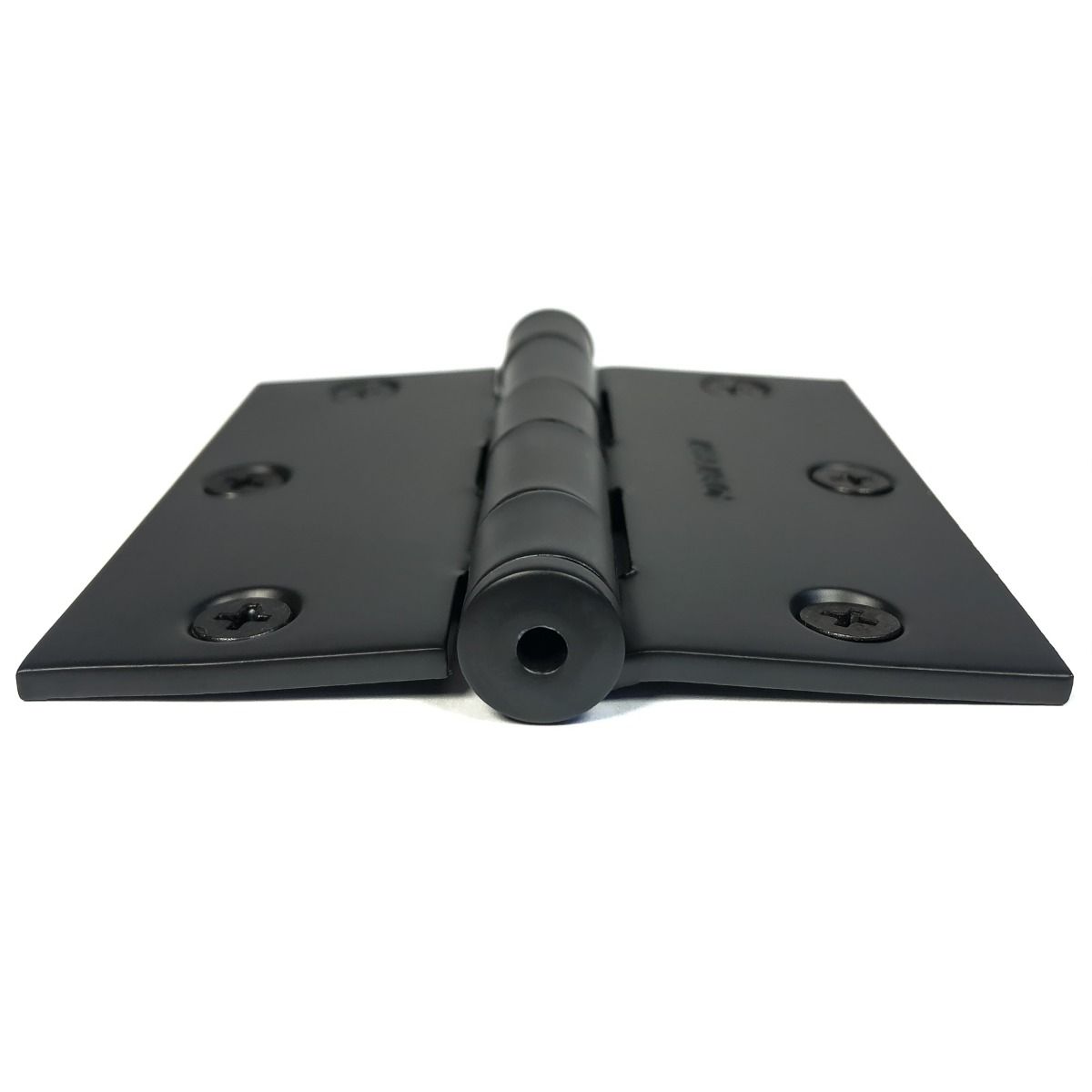

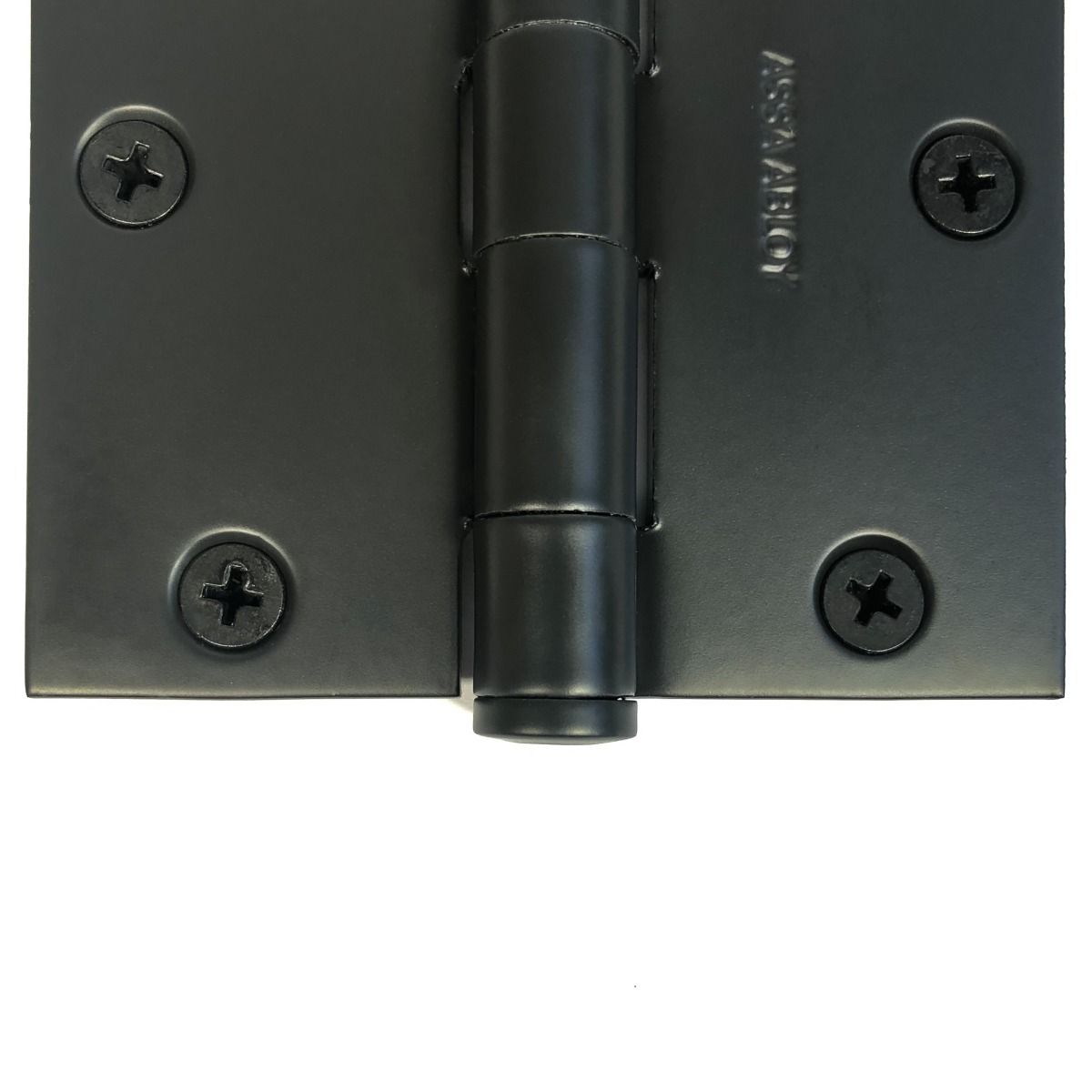

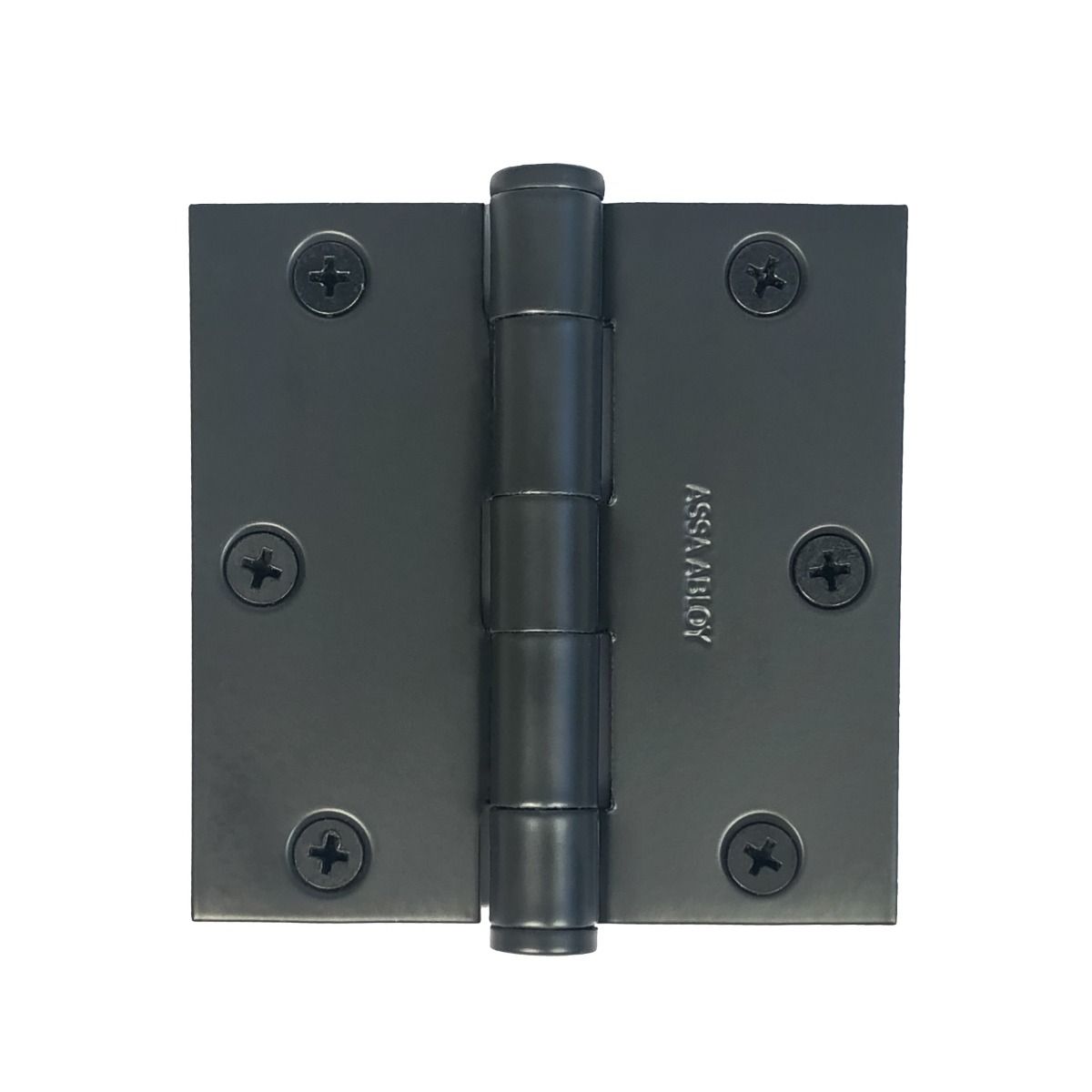

Acorn TJ4BP 3-1/2" x 3-1/2" Butt Hinge

Acorn TJ4BP 3-1/2" x 3-1/2" Butt Hinge is a robust and essential component for any door installation. Crafted from cold-rolled steel, this hinge boasts exceptional strength and durability, making it ideal for residential use. Measuring 3-1/2 inches in height and width, it features a full mortise design that allows for seamless integration into your door system. The TJ4BP includes five knuckles that ensure smooth operation and longevity, while the flush pin design provides a clean, finished appearance. Finished in Acorn's signature matte black, this hinge complements a variety of door hardware styles, enhancing the overall aesthetic of your space. Sold individually, the hinge comes with six 1" x #8 flat head screws for easy installation. Its square corners and removable pin design add to its practicality, allowing for straightforward maintenance and replacement. Designed specifically for doors, the TJ4BP is engineered to meet residential strength requirements, ensuring reliability in everyday use. Make your door installations both functional and stylish with the Acorn TJ4BP Butt Hinge, a versatile choice for discerning homeowners and building professionals alike.

3-1/2" x 3-1/2" Butt Hinge

TJ4BP - 3-1/2"x 3-1/2" Square Corner Mortise Butt Hinge

The TJ4BP is made from cold-rolled steel for added strength with five knuckes for ease of use and length of life.  Made with a flush pin for a finished look, finished in Acorn matte black to match the rest of door hardware.

• Made of Steel with a Matte Black finish


• 3-1/2" tall x 3-1/2" wide (open)


• Sold as Single Hinge


• Residential Strength


• Full mortise design


• Removable Pin


• 6, 1" x #8 flat head screws included


• Square Corners


• For doors


• 5 knuckles


• Arc Hole Pattern


• Made in the USA

Installation Tips

• Mounting: These have traditional standard square corners for mortised door butt hinges. It is recommended that three hinges be used on doors up to and including 90" with one additional hinge for each additional 30"


• Make sure you check your current hinges before making a purchase.


• General Hinge Size Selection









































  Thickness of Door	Width of Door	Hinge Size to Use
  1-1/4"	28" to 32"	3" Hinge
  1-3/8"	Up to 32"	3-1/2" Hinge
  1-3/8"	32" to 36"	4" Hinge
  1-3/4"	Up to 36"	4-1/2" Hinge
  1-3/4"	36" to 48"	5" Hinge
  2" to 2-1/2"	Up to 42"	5" Heavy Duty Commercial
