Acorn TJ5BP 4" x 4" Butt Hinge

Acorn TJ5BP 4" x 4" Butt Hinge offers a robust solution for your door needs, combining functionality and style in one elegant design. Crafted from cold-rolled steel, this butt hinge boasts exceptional strength and durability, ensuring it withstands daily use. Its full mortise design features five knuckles, allowing for smooth operation and a long lifespan. The flush pin adds a polished touch, while the matte black finish harmonizes beautifully with other Acorn hardware. Measuring 4 inches tall by 4 inches wide when open, the TJ5BP is sold as a single hinge, making it an ideal choice for residential applications. The square corners and removable pin enhance its versatility, while the included eight 1-1/4" x #12 flat head screws ensure a secure installation. This hinge is designed for traditional mortised doors and is proudly made in the USA. For optimal performance, it is recommended to use three hinges on doors up to 90 inches, with an additional hinge for each extra 30 inches. Whether you are a building professional or a discerning homeowner, the Acorn TJ5BP 4" x 4" Butt Hinge is a reliable, attractive choice that meets your architectural hardware needs.

4" x 4" Butt Hinge

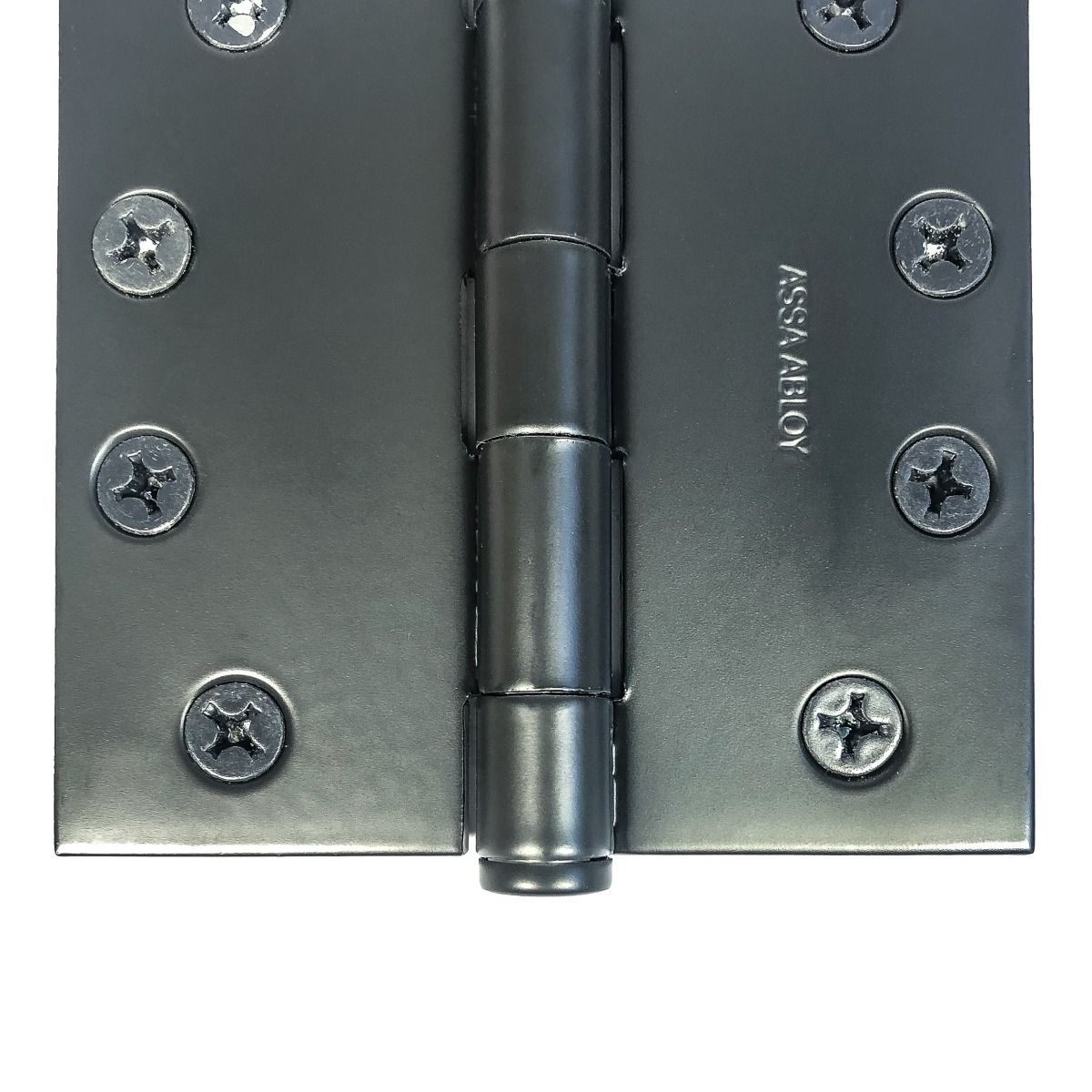

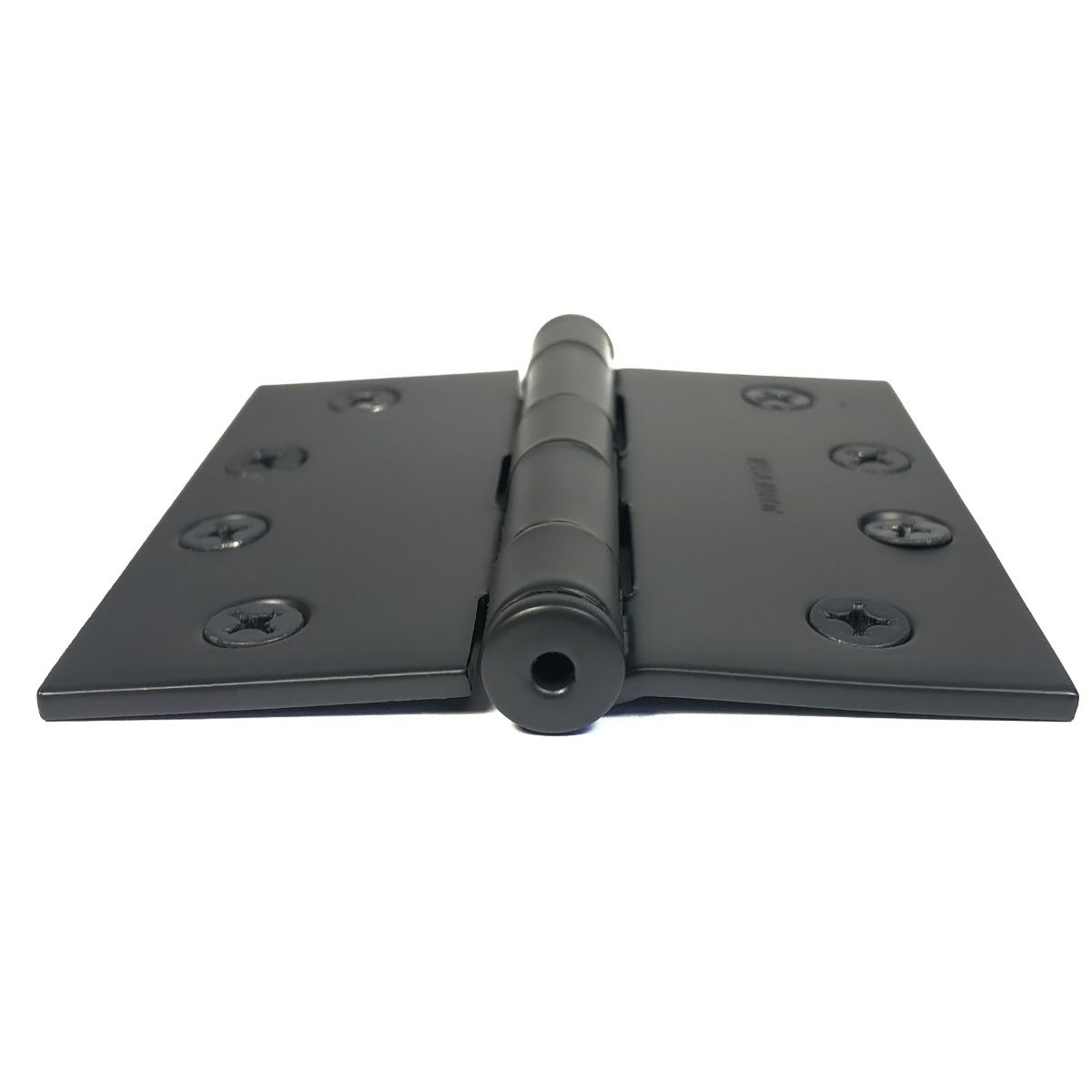

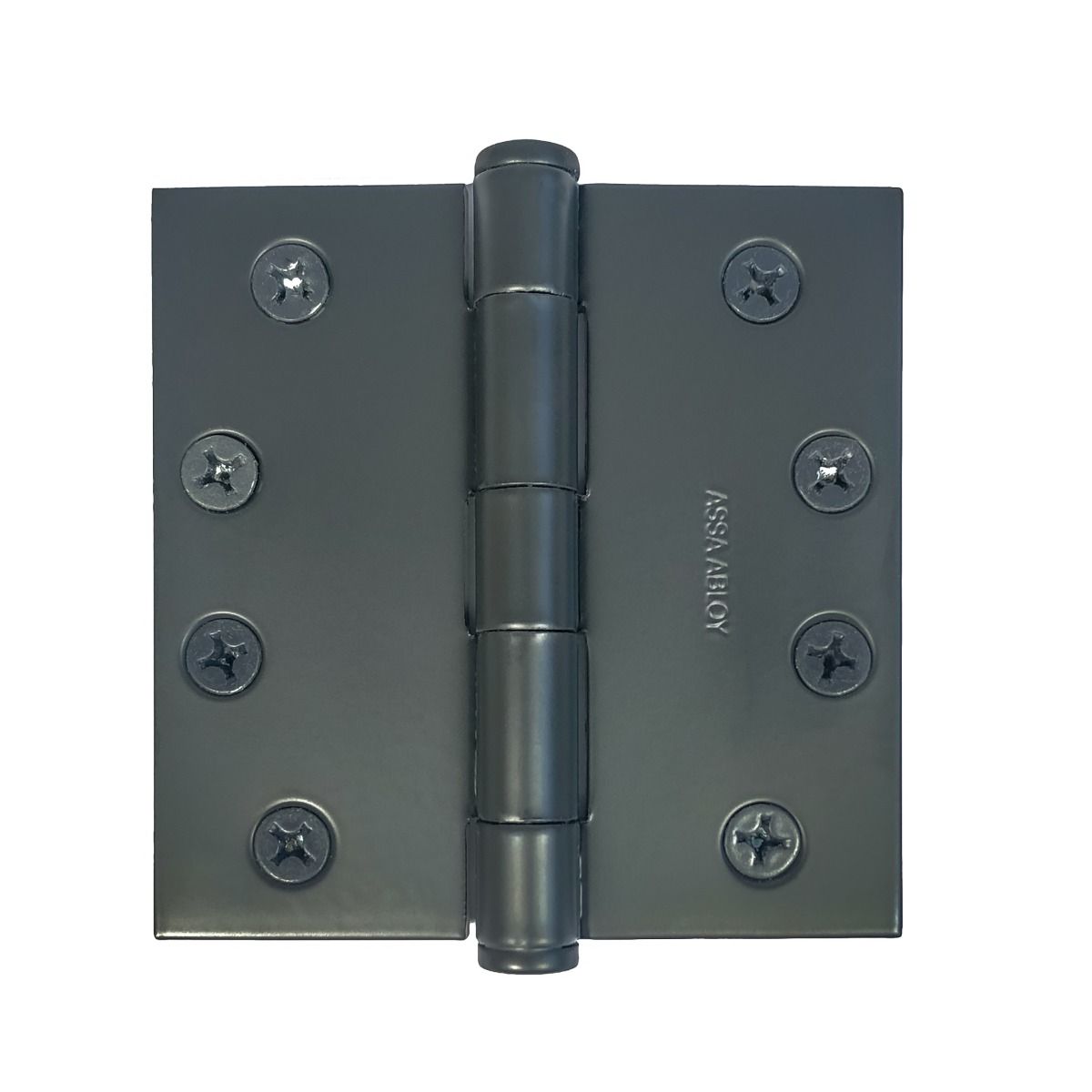

TJ5BP - 4"x 4" Square Corner Mortise Butt Hinge

The TJ5BP is made from cold-rolled steel for added strength with five knuckes for ease of use and length of life.  Made with a flush pin for a finished look, finished in Acorn matte black to match the rest of door hardware.

• Made of Steel with a Matte Black finish


• 4" tall x 4" wide (open)


• Sold as Single Hinge


• Residential Strength


• Full mortise design


• Removable Pin


• 8, 1-1/4" x #12 flat head screws included


• Square Corners


• 5 knuckles


• Arc Hole Pattern


• Made in the USA

Installation Tips

• Mounting: These have traditional standard square corners for mortised door butt hinges. It is recommended that three hinges be used on doors up to and including 90" with one additional hinge for each additional 30"


• Make sure you check your current hinges before making a purchase.


• General Hinge Size Selection









































  Thickness of Door	Width of Door	Hinge Size to Use
  1-1/4"	28" to 32"	3" Hinge
  1-3/8"	Up to 32"	3-1/2" Hinge
  1-3/8"	32" to 36"	4" Hinge
  1-3/4"	Up to 36"	4-1/2" Hinge
  1-3/4"	36" to 48"	5" Hinge
  2" to 2-1/2"	Up to 42"	5" Heavy Duty Commercial
