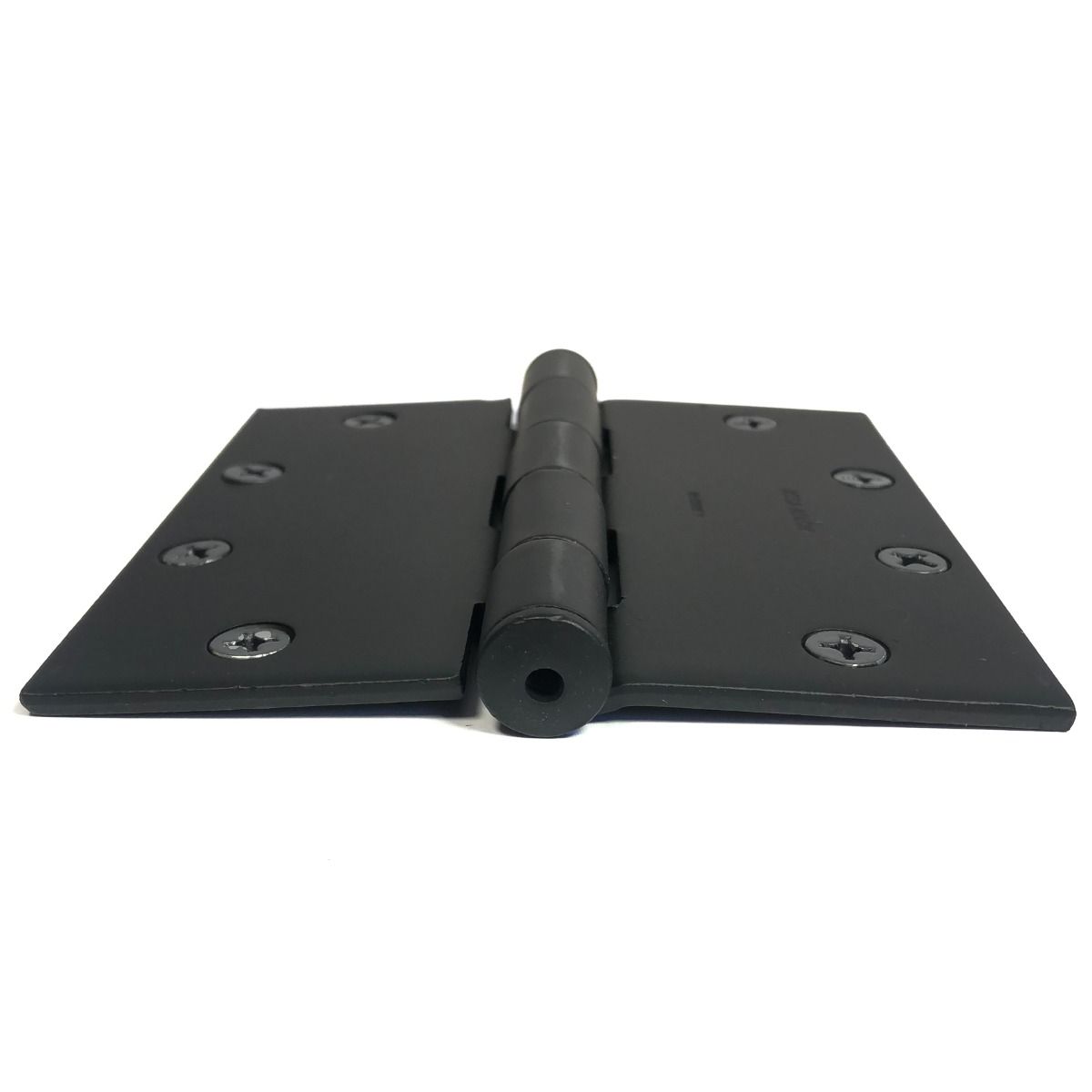

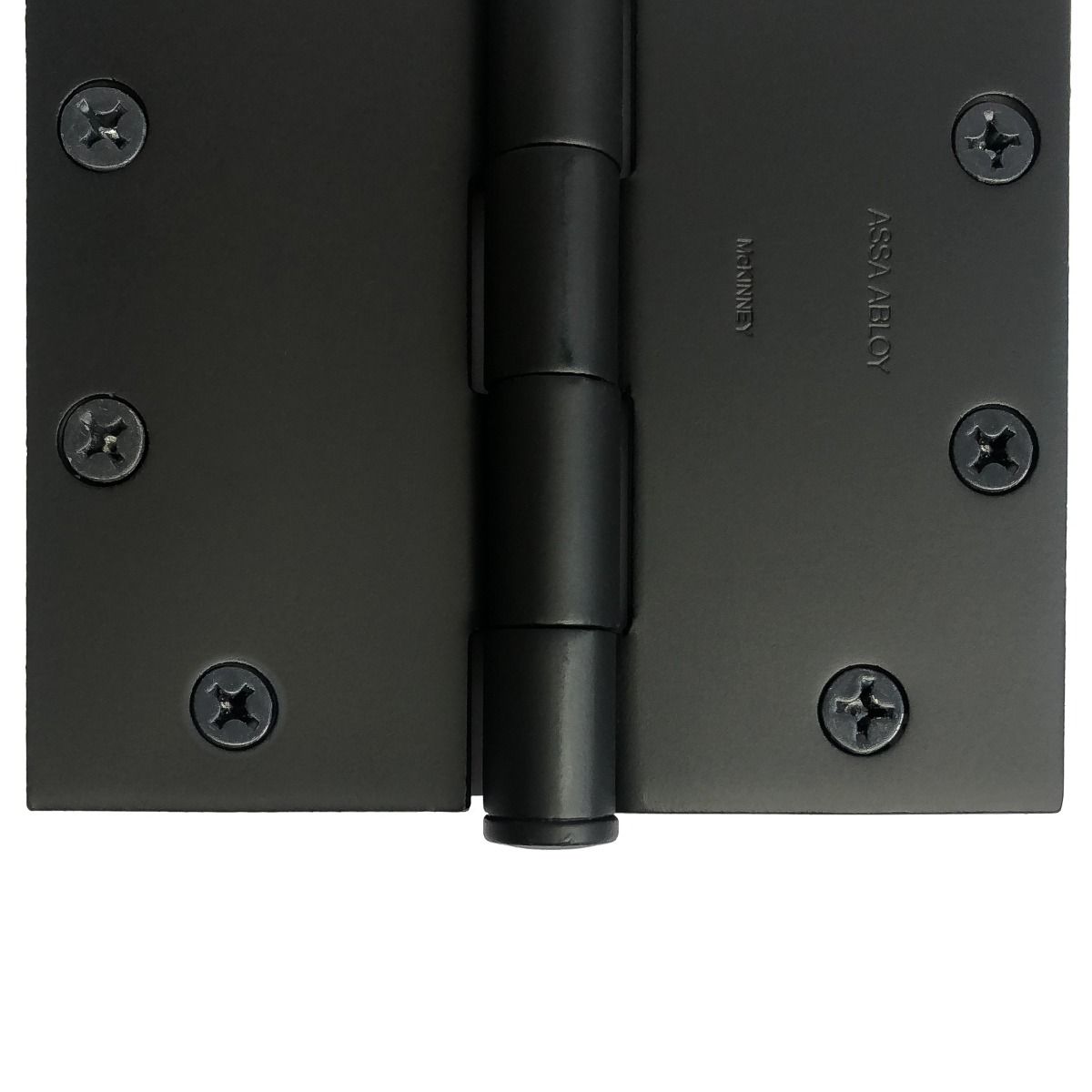

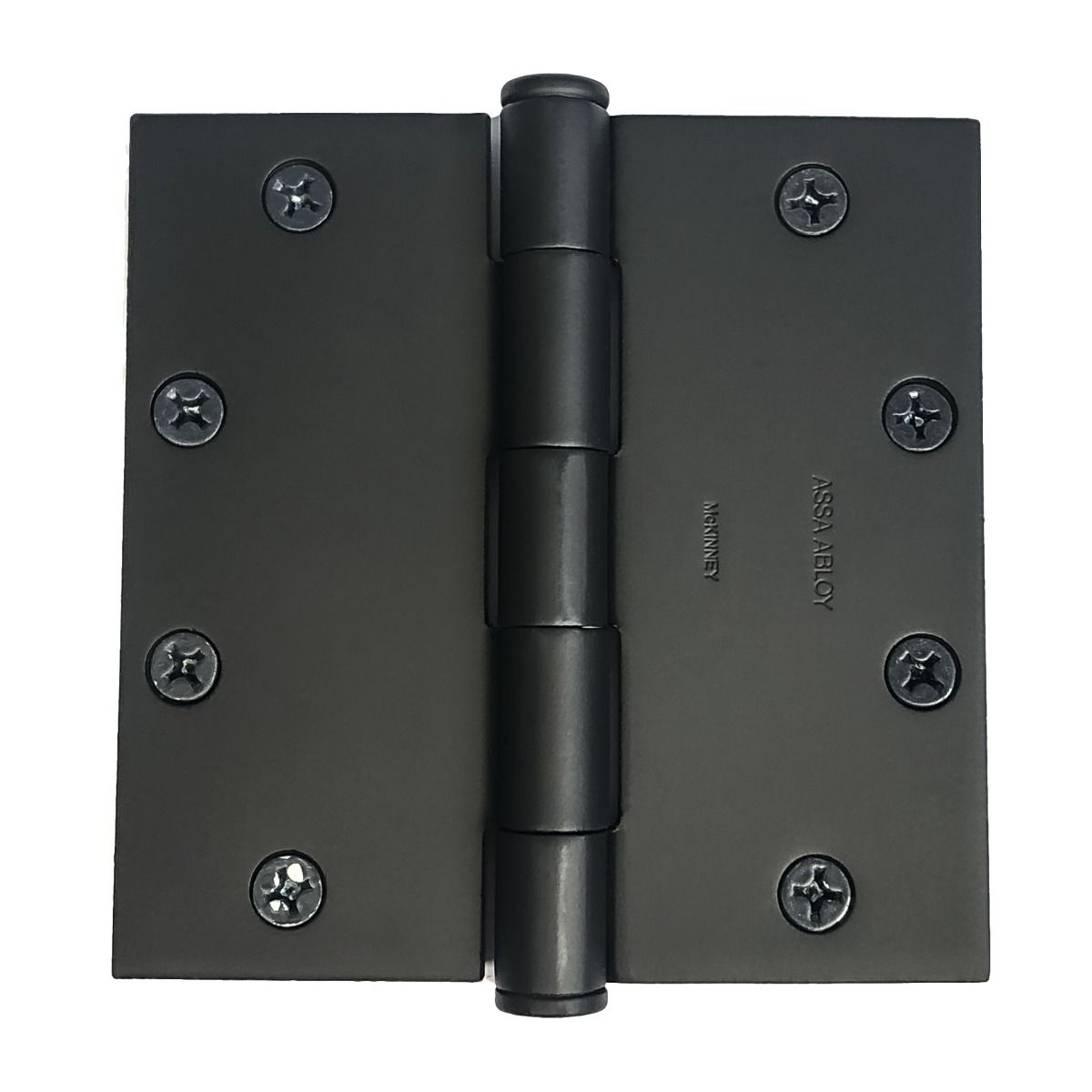

Acorn TJ7BP 5" x 5" Butt Hinge

Acorn TJ7BP 5" x 5" Butt Hinge is expertly crafted from cold-rolled steel, offering exceptional strength and durability for your residential projects. Designed with five knuckles, this full mortise hinge ensures smooth operation and longevity, making it a reliable choice for any door. The flush pin design provides a sleek, finished appearance, while the matte black finish complements a variety of door hardware styles. Measuring 5 inches tall and 5 inches wide when open, this hinge is sold as a single unit and is ideal for standard doors. Its square corners and removable pin enhance its functionality, making installation and maintenance a breeze. Included with the hinge are eight 1-1/4" x #12 flat head screws, ensuring you have everything needed for a secure fit. The TJ7BP is made in the USA and adheres to residential strength standards, making it suitable for applications where both aesthetics and performance matter. For optimal support, it is recommended to use three hinges for doors up to 90 inches tall, adding one additional hinge for every extra 30 inches. Upgrade your door hardware with the Acorn TJ7BP Butt Hinge for a blend of quality and style that stands the test of time.

5" x 5" Butt Hinge

TJ7BP - 5"x 5" Square Corner Mortise Butt Hinge

The TJ7BP is made from cold-rolled steel for added strength with five knuckes for ease of use and length of life.  Made with a flush pin for a finished look, finished in Acorn matte black to match the rest of door hardware.

• Made of Steel with a Matte Black finish


• 5" tall x 5" wide (open)


• Sold as Single Hinge


• Residential Strength


• Full mortise design


• Removable Pin


• 8, 1-1/4" x #12 flat head screws included


• Square Corners


• 5 knuckles


• Arc Hole Pattern


• Made in the USA

Installation Tips

• Mounting: These have traditional standard square corners for mortised door butt hinges. It is recommended that three hinges be used on doors up to and including 90" with one additional hinge for each additional 30"


• Make sure you check your current hinges before making a purchase.


• General Hinge Size Selection









































  Thickness of Door	Width of Door	Hinge Size to Use
  1-1/4"	28" to 32"	3" Hinge
  1-3/8"	Up to 32"	3-1/2" Hinge
  1-3/8"	32" to 36"	4" Hinge
  1-3/4"	Up to 36"	4-1/2" Hinge
  1-3/4"	36" to 48"	5" Hinge
  2" to 2-1/2"	Up to 42"	5" Heavy Duty Commercial
