Acorn WUQBI Warwick Mortise Deadbolt
Images may not represent actual product and finish

Acorn WUQBI Warwick Mortise Deadbolt

Your Price: $414.40
Retail Price:$592.000
Your Savings:$177.60(30%)
Acorn WUQBI Warwick Mortise Deadbolt in matte black, designed for 1-3/4" doors; ideal for secure residential applications.
Part Number : ACO_WUQBI
Availability: 0 Ship time varies. We email you if your order is delayed.

Choose Options

*
*
*
Visa, Mastercard, American Express, Discover, PayPal, Amazon Pay

Net 30 terms available

Acorn WUQBI Warwick Mortise Deadbolt

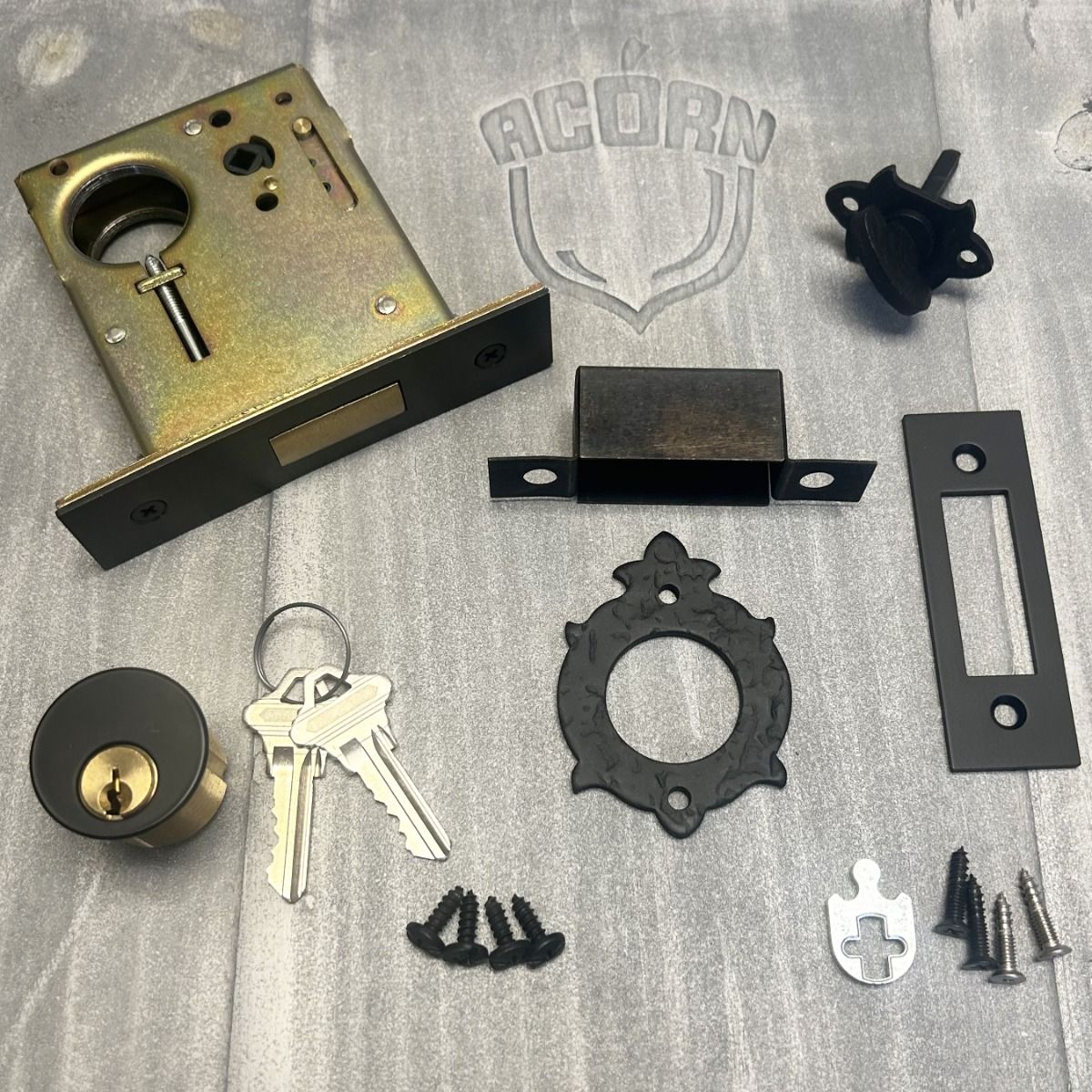

Acorn WUQBI Warwick Mortise Deadbolt combines robust security with timeless design, making it an ideal choice for discerning homeowners and professionals alike. Finished in a striking matte black with a rough texture, this deadbolt is not only functional but also enhances the aesthetic of your doors. Designed to accommodate doors that are 1-3/4" thick, it provides an additional layer of protection; for thicker doors, consultation with Acorn's office is recommended. Included with the deadbolt are four #8 x 1/2" pyramid head screws, along with two Schlage keys for added convenience. The deadbolt features a 1" throw and a lock body measuring 3-1/4" in height and 3-1/2" in width, ensuring reliable operation. Choose between 2-1/2" and 2-3/4" backsets to fit your specific needs. The thumb turn trim measures 1-3/4" in height and 1-1/8" in width, while the key side trim is sized at 2-3/4" by 2-1/8". Installation is straightforward with pre-drilling recommendations and the advice to hand-tighten screws to preserve the finish. Proudly made in the USA, the Acorn Warwick Mortise Deadbolt exemplifies quality craftsmanship and style.

Warwick Mortise Deadbolt

WUQ - Warwick Mortise Deadbolt


  • Trim is finished in matte black with a rough texture

  • Deadbolt will work with 1-3/4" thick doors, for thicker doors, please call our office

  • 4, #8 x 1/2" pyramid head screws included for trim

  • 2 Schlage keys included

  • Availbe in 2-1/2" and 2-3/4" backset

  • Made in the USA


Deadbolt



  • Deadbolt includes compatible screws

  • Edge plate: 4-5/8" x 1-1/8" x 3/16"

  • Lock body: 3-1/4" height x 3-1/2" width

  • 1" throw

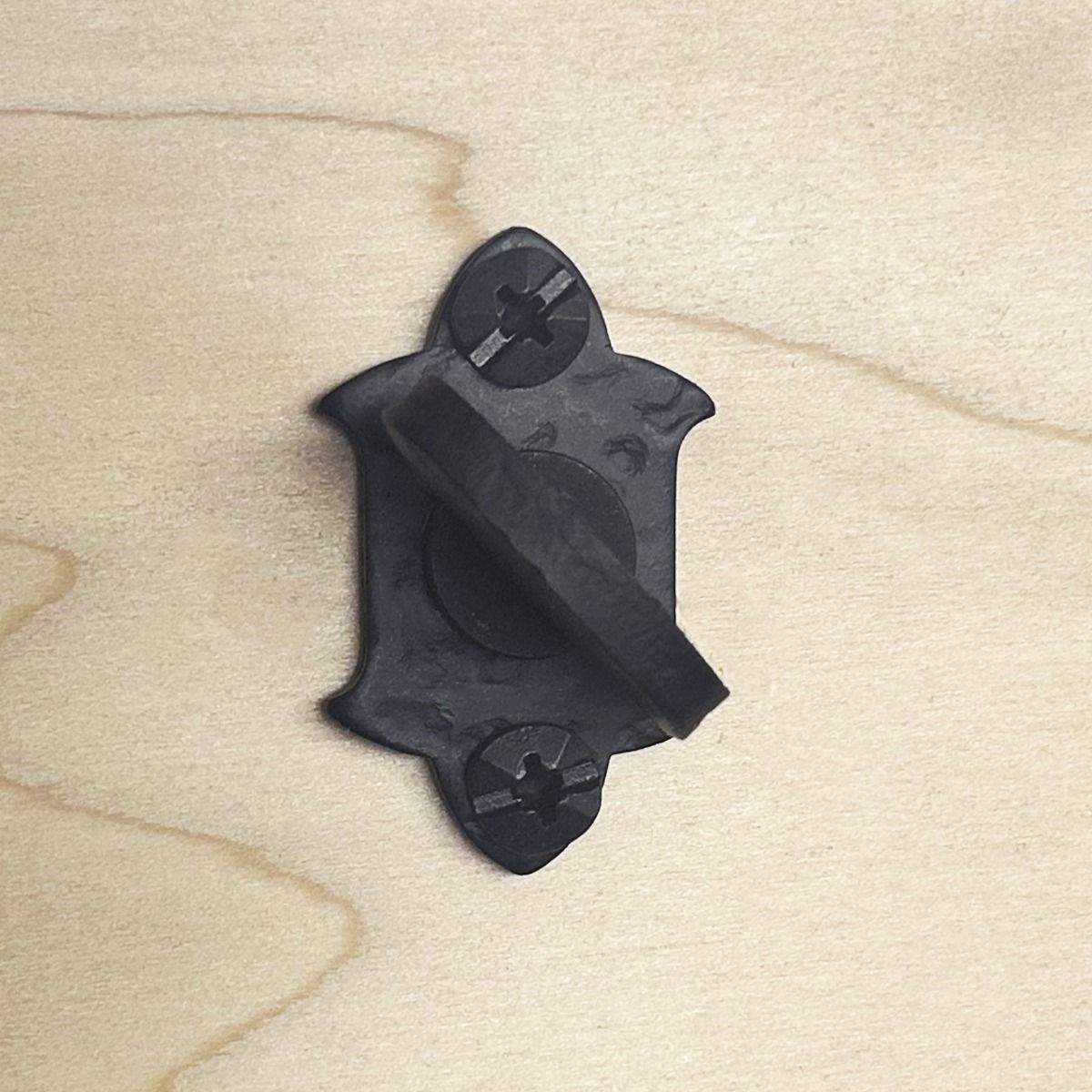

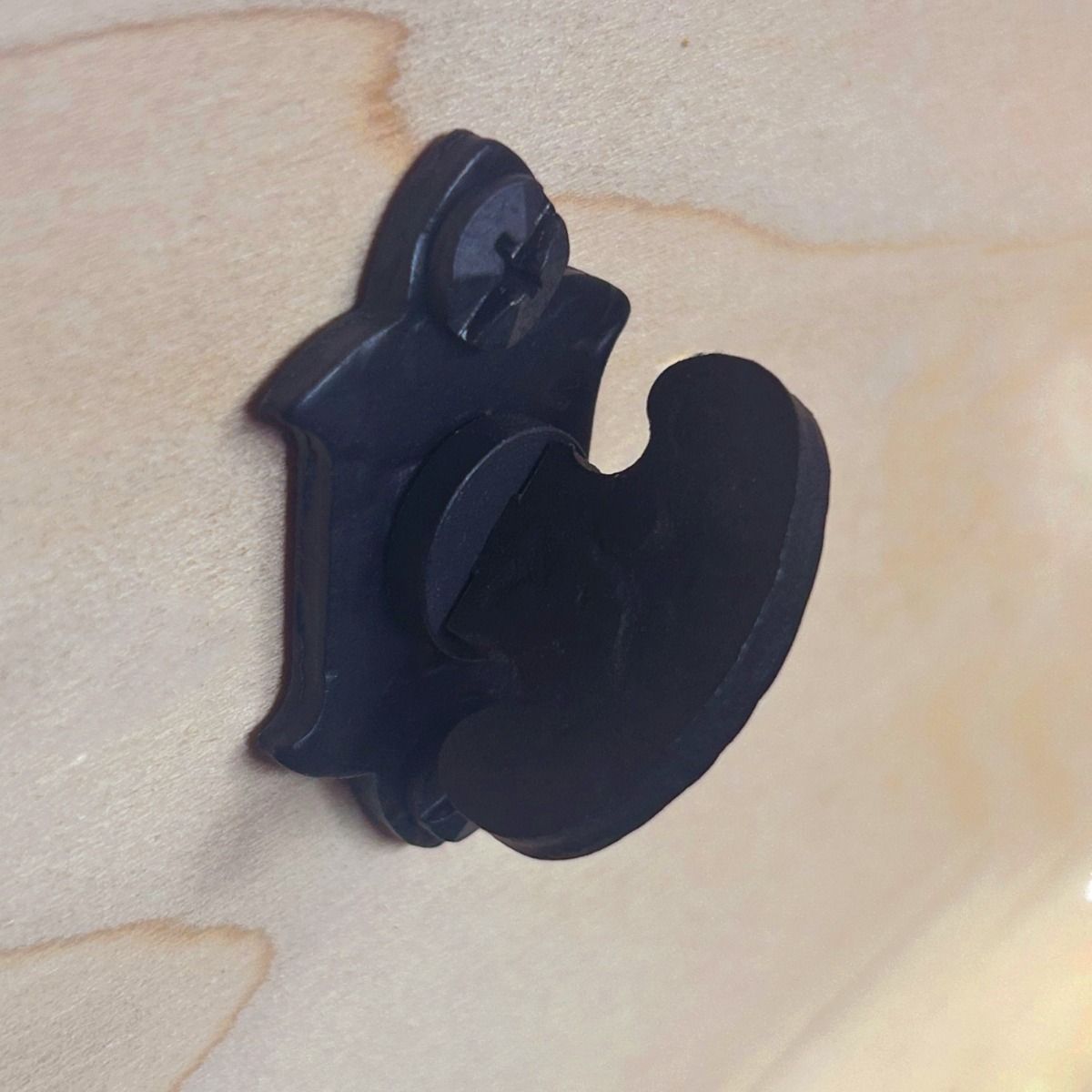

Thumb Turn Trim



  • 1-3/4" height x 1-1/8" width

  • 1" projection

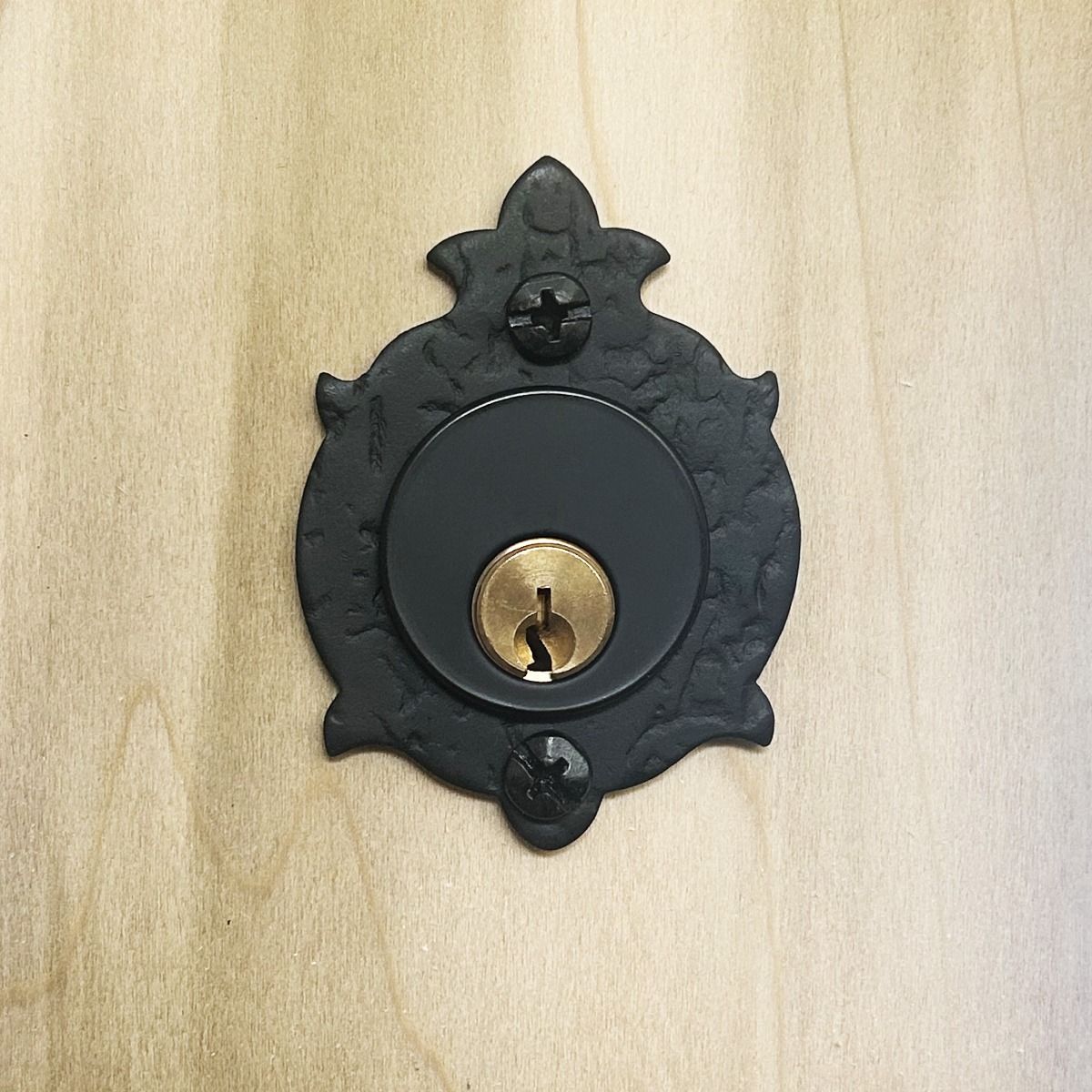

Key Side Trim



  • 2-3/4" height x 2-1/8" width


Installation Tips



  • Predrill with 7/64" drillbit for softwood or 1/8" drillbit for hardwood.

  • Hand tighten screws only, do not use power tools to porotect the finish.


Attributes

Upc: 052763213562
