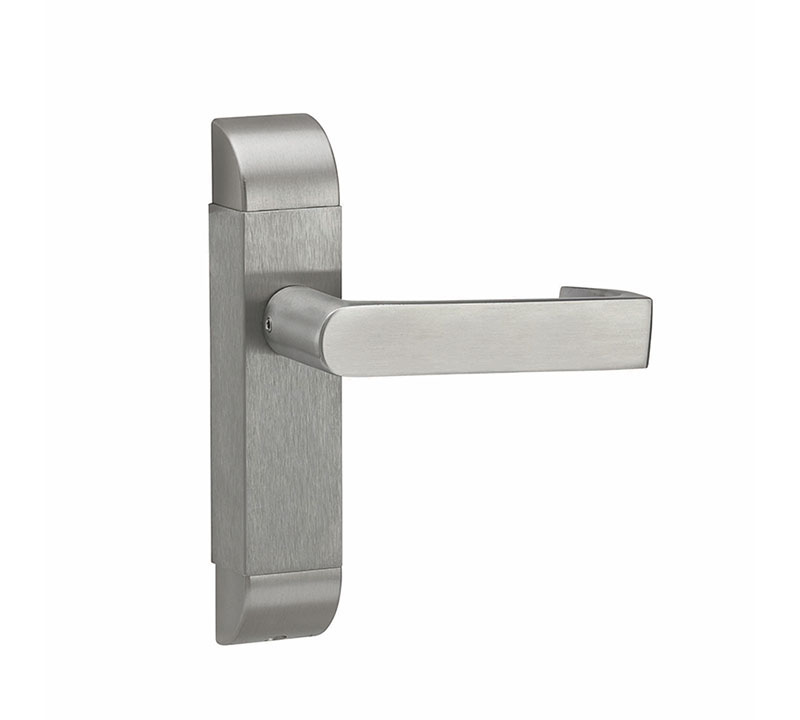

Adams Rite 4600-02-612-10B Heavy-Duty Lever Handle

Adams Rite 4600-02-612-10B Heavy Duty Lever is a Grade 1 passage mortise trim pack designed for both functionality and aesthetic appeal. This non-keyed, right-hand lever is suitable for doors with a thickness between 1-3/4" and 2", featuring a dark oxidized satin bronze oil-rubbed finish that adds a touch of elegance to any narrow stile door. Engineered to operate seamlessly with Adams Rite deadlatches, the 4600 series lever can also retrofit onto the 2190 interconnected deadbolt/deadlatch. Its patented adjustable drive mechanism ensures compatibility with multiple deadlatch series, including the 4300, 4500, and 4900, while offering a robust design that withstands daily use. The lever is crafted from solid materials and is available in standard and designer styles to complement your architectural vision. Its escutcheon is secured by hidden screws and features a 1/4" square heat-treated spindle, ensuring durability and ease of installation. Handing is shipped pre-configured but can be easily reversed in the field for adaptability. Perfect for commercial applications, the Adams Rite 4600 Heavy Duty Lever combines strength, style, and versatility, making it an excellent choice for any professional or discerning homeowner seeking high-quality door hardware.

Heavy Duty Lever

Grade 1 Passage Mortise Trim Pack Only, Non-Keyed, Round Lever, Escutcheon, 1-3/4" - 2" Door Thickness, Dark Oxidized Satin Bronze Oil Rubbed Finish, Right Hand/Right Hand Reverse, Field Reversible

The 4600 Heavy Duty Designer Deadlatch Handles are designed to operate Adams Rite deadlatches and retro-fit onto the 2190 Interconnected Deadbolt/Deadlatch. Offered in a wide range of lever designs and architectural finishes to match the clean lines of a narrow stile door.

Designed with a patented adjustable drive mechanism to operate the 4300, 4500, and 4900 Series Deadlatches.

4600 Deadlatch Handles can be retrofitted in the field onto the 2190/2290 Interconnected Deadbolt/Deadlatch. Shipped handed, but easily reconfigured to accommodate either door swing (MV and MN handle types cannot be re-handed).

• Design: Designed to match the clean lines of a narrow stile door, the 4600 Heavy Duty Designer Series Deadlatch Handles combine aesthetics, function, and strength in a compact yet robust package. Offered in a wide range of lever designs and architectural finishes, the 4600 Series Deadlatch Handle complements the most contemporary door systems.
• Handles: Available in standard and designer series levers to blend with existing architecture or to create a new design statement. Made from solid cast stainless, brass, or bronze, and finished to match any design requirement. Standard series lever styles (-01, -02, -03) are designed to return within 1/2” of the door face, as required by code in some areas.
• Escutcheon: Mounted base is secured by hidden screws and has two large helical compression springs. A 1/4” square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
• Cam Plug (4581): Used when matched with 4300, 4500, or 4900 Series Deadlatches. Secured to the latch body by cylinder setscrew, the cam plug is tied to the handle escutcheon by integral anti-rotation pins. Handing easily reversed with push-and-release cam design.
• Options: Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing. Standard handles are for 1-3/4” thick doors. Available by special order for doors up to 3-1/4”. Fixed lever (dummy) kit available – use part number DTK-4600. Through-bolt mounting kit for back-to-back mounting on wood doors, use part number TBK-4600-XX (specify door thickness).
• Standard Package: Packed individually with cam plug (as needed), fasteners, and optional equipment specified.

Resources

• 4600 Deadlatch Handle with 2190 Installation Instructions
• 4600 Deadlatch Handle with 4300/4500/4900 Installation Instructions
• 4600 Heavy Duty Deadlatch Handle Cut Sheet
• 4603 Rectifier Installation Instructions
• 4605 Power Supply Transformer Installation Instructions
• 4612 Frame and Door Preparation Installation Instructions
• Adams Rite 4600 Series Designer Levers
