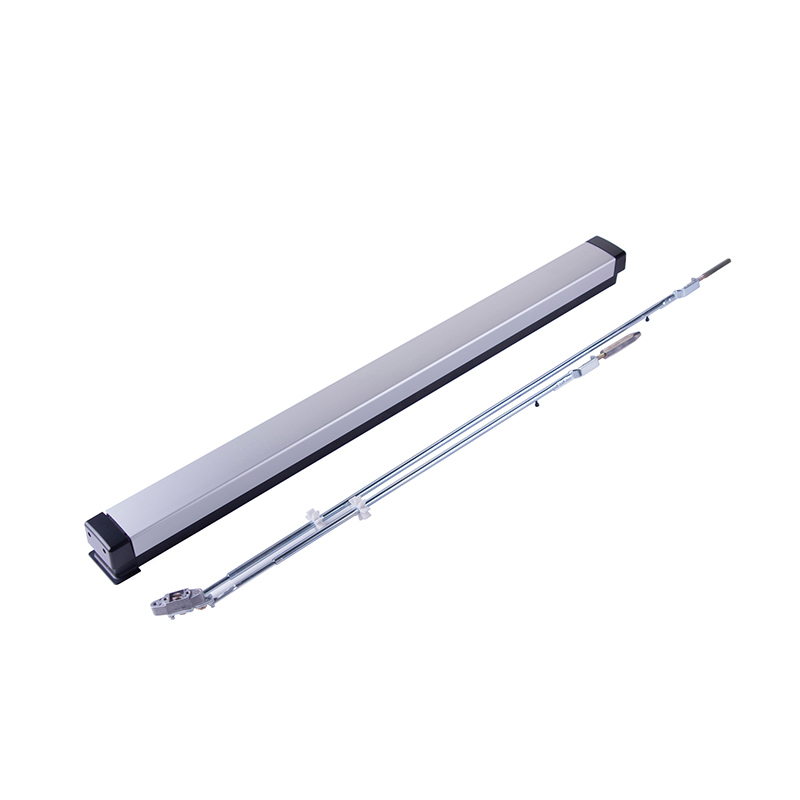

Adams Rite 8611-30 Concealed Vertical Rod Device

Adams Rite 8611-30 Concealed Vertical Rod Device offers a sleek and unobtrusive solution for secure aluminum applications. Designed specifically for narrow stile aluminum doors, this 30-inch exit device features a satin aluminum clear anodized finish, making it both functional and aesthetically pleasing. The patented "Starwheel" bolt provides an innovative interlocking mechanism that secures the door to its frame upon closure. When the pushbar is activated, the deadlocking slide retracts, allowing for easy egress while ensuring robust security. Installation is straightforward, and the device is non-handed, allowing for flexibility in various setups. Compatible with doors up to 8 feet tall, the pushbar adjusts from 30 to 44 inches in height, catering to a range of building requirements. It accommodates standard door thicknesses of 1-3/4 to 2-1/4 inches and requires a minimum stile width of 3-3/4 inches. The device can be equipped with optional cylinder dogging and offers compatibility with standard rim cylinders. With a five-year limited warranty, the Adams Rite 8611-30 is a reliable choice for commercial settings, ensuring safety and ease of use without compromising on design.

Concealed Vertical Rod Device

Narrow Stile Concealed Vertical Rod Exit Device, For Aluminum Applications, 30 In., Satin Aluminum Clear Anodized

CVR Exit Device, Narrow Stile Aluminum Door, 30", Aluminum

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited.
