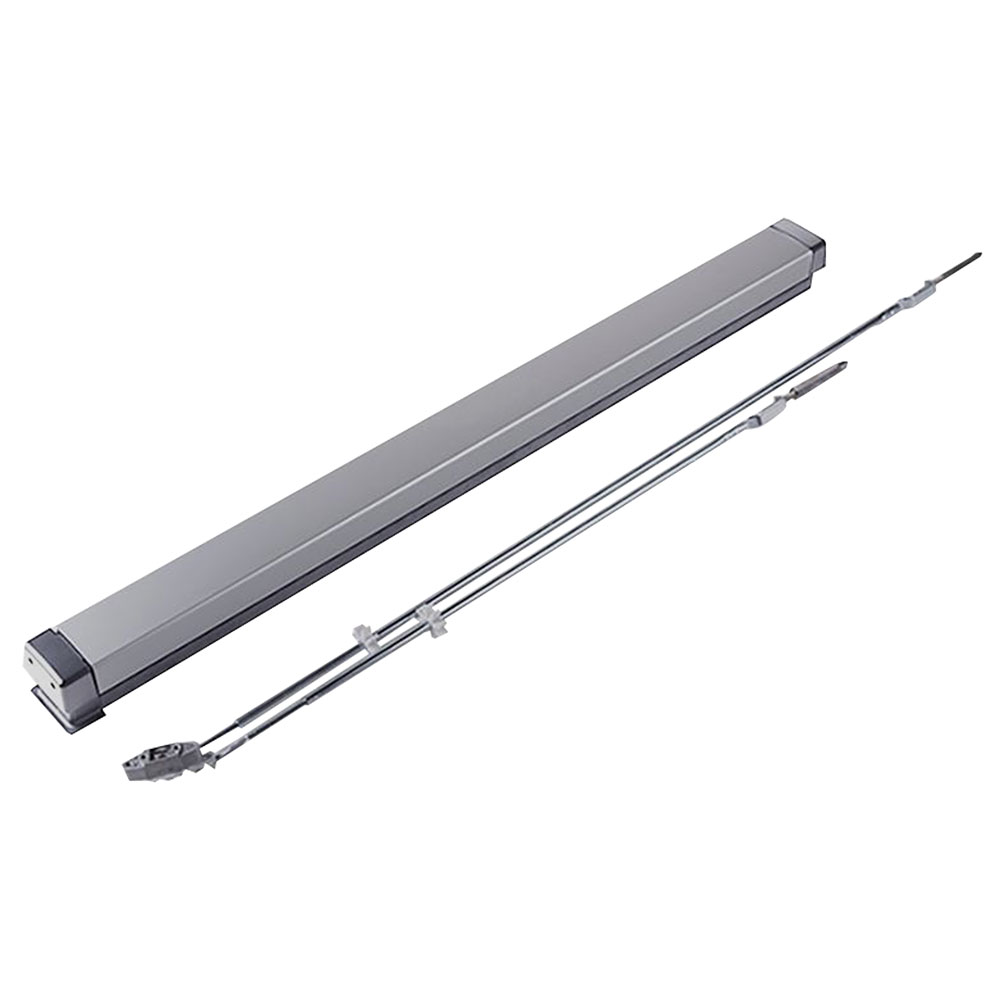

Adams Rite 8611C-36 Concealed Vertical Rod Device

Adams Rite 8611C-36 Concealed Vertical Rod Device offers a sophisticated solution for secure exit access in aluminum applications. This narrow stile exit device features a clean, unobtrusive design that integrates seamlessly into any commercial environment. Measuring 36 inches, it is ideal for doors up to 8 feet tall, accommodating standard door thicknesses of 1-3/4 inches to 2-1/4 inches. The patented "Starwheel" bolt mechanism enhances security by interlocking the door to the frame upon closure, providing peace of mind. When the pushbar is depressed, the deadlocking slide retracts, allowing for easy egress. The device is non-handed, ensuring versatility in installation, and the pushbar can be field cut to fit various opening sizes. Constructed from durable extruded aluminum, the device is available in a satin aluminum clear anodized finish, blending aesthetics with functionality. Standard dogging is achieved with a hex key, while optional cylinder dogging is available. Additional features include compatibility with standard rim cylinders and the option for electric dogging in select series. With a five-year limited warranty, the Adams Rite 8611C-36 is a reliable choice for building professionals seeking efficient and effective exit solutions.

Concealed Vertical Rod Device

Narrow Stile Concealed Vertical Rod Exit Device, Cylinder Dogging, For Aluminum Applications, 36 In., Satin Aluminum Clear Anodized

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited.
