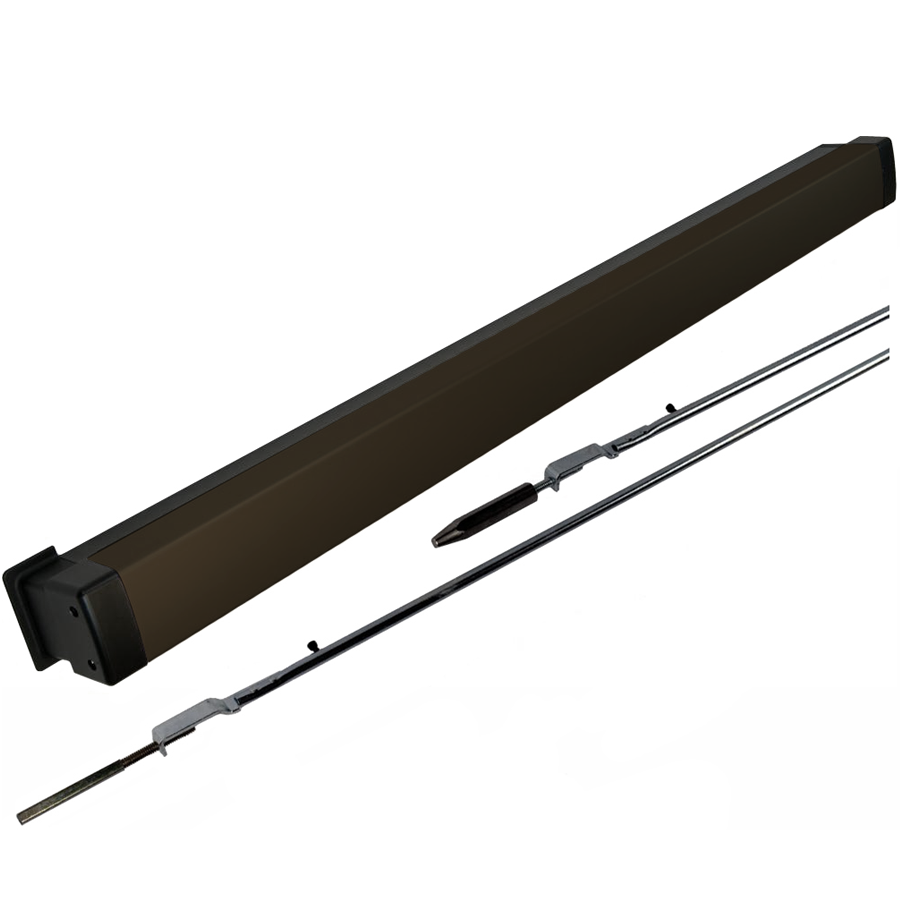

Adams Rite 8622MLR-36-24V CVR Motorized Electric Exit Device for Aluminum Doors, 36in x 96in, Dark Bronze

Adams Rite Manufacturing 8622MLR-36-24V Concealed Vertical Rod Exit Device (CVR) offers a robust solution for life-safety needs in narrow stile aluminum doors. This exit device features motorized electric retraction, ensuring a swift and efficient exit in emergencies. Designed for installations on both single and double doors, it accommodates door sizes of up to 36 inches by 96 inches. One of its standout features is the patented top latching mechanism that securely interlocks the door to its frame, providing enhanced security. The adjustable steel rods are cleverly protected in contoured covers, ensuring durability and ease of use. With a clean, unobtrusive design, it seamlessly integrates into various architectural styles. This device is crafted from extruded aluminum and is available in a striking anodized dark bronze finish (313), making it both functional and aesthetically pleasing. It is non-handed, allowing for flexible installation, and supports door thicknesses of 1-3/4 inches up to 2-1/4 inches with modification. Certified to ANSI/BHMA A156.3 Grade 1, the Adams Rite 8622MLR-36-24V stands as a reliable choice for those seeking a high-level security exit solution that meets rigorous standards and enhances safety without compromising style.

Concealed Vertical Rod Exit Device (CVR), Motorized Electric Retraction (MLR), Fits Narrow and Wide Stile Aluminum Doors, 36in x 96in, 695/SP313 Anodized Dark Bronze

The 8600 series narrow stile concealed vertical rod exit device is designed for narrow stile aluminum applications that require a life-safety exit device with concealed vertical rods for two-point locking. Designed for use in applications with single doors or pairs of doors.

Features:

• Patented top latching mechanism interlocks door to frame
• Strong, durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install
• Clean, unobtrusive design

Specifications:

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length Standard sizes: dimensioned for 30", 36", 42", and 48" openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30" to 44".
• Door Height: Standard unit adjustable for doors up to 66" above the selected bar height. For doors over 66" above bar height, up to 10 ft use 8655 Tall Door Kit.
• Door Thickness: Suits 1-3/4" standard, up to 2-1/4". Device requires modification when used with cylinder in doors over 1-3/4".
• Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.
• Certifications: ANSI/BHMA A156.3 Grade 1

Device Options:

• LR: Electric latch retraction (solenoid)
• MLR: Motorized latch retraction
• C: Cylinder dogging (non-fire rated devices only)
• A: Alarm
• (Blank) No option

Finishes:

• 313 - Dark bronze anodized
• 335 - Black anodized
• 628 - Clear anodized
• US3 - Bright brass
• US4 - Satin brass
• US32 - Bright stainless
• US32D - Satin stainless
