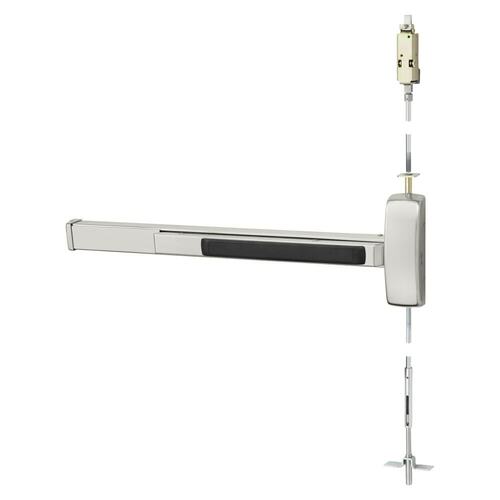

Adams Rite 8622MLR36 Narrow Stile Concealed Vertical Rod Single Switch Exit Device is expertly designed for commercial, industrial, and institutional settings, ensuring safety and accessibility. This 36" exit device features a patented top latching mechanism that interlocks the door to the frame, providing robust security while maintaining a sleek, modern aesthetic. Crafted from extruded aluminum and finished in a sophisticated dark bronze, it seamlessly integrates with narrow stile aluminum openings. The device is easy to install, making it a practical choice for any building project. It's specifically designed to accommodate door thicknesses ranging from 1-3/4" to 2-1/4", ensuring versatility in various applications. Although not fire-rated, the 8622MLR36 is warranted free from defects in workmanship and materials under normal use, reflecting Adams Rite’s commitment to quality. As part of the 8600 Series, this exit device is powered by a wired system and is suitable for exit doors only. With a limited one-year warranty, you can trust in the reliability of this product. Elevate your building's security with the Adams Rite 8622MLR36, where functionality meets contemporary design.
For over 100 years, Adams Rite has been the Aluminum Hardware Authority, known for their innovative designs and high quality products. When the Maximum Security (MS) Lock� launched in 1955, it quickly became the industry standard and even now remains the dominant locking solution for narrow stile aluminum openings. Today Adams Rite designs, manufactures and markets door and door hardware products to the commercial, industrial and institutional building construction industry and is recognized as one of the leading suppliers in its area of specialization. Our product lines include electromechanical deadlocks and deadlatches, electric strikes and exit devices for exterior and interior doors as well as integrated door assemblies. Our products are designed to complement the clean lines of modern doors, while at the same time meeting safety and access codes.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: 8622MLR36
Ansi: A156.3
Base Material: Aluminum
Category: Commercial Electronic Devices
Commercial Residential: Commercial
Device Length: 36 In.
Device Type: Concealed Vertical Rod
Dimension: 36"
Dogging Options: Electric Dogging
Door Height: 66 In. Above Bar
Door Material: Aluminum
Door Range: 1-3/4" to 2-1/4"
Door Thickness: 1-3/4" to 2-1/4"
Door Width: 1-3/4 In. to 2-1/4 In.
Electric Options: Motor Latch Retraction
Finish: Dark Bronze
Finish Description: Dark Bronze Anodized Aluminum
Finish Family: Dark Bronze
Fire Rated: No
Function: Exit Only
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Includes Trim: No
Installation: Commercial
Manufacturer Warranty: Limited 1 Year Warranty
Material: Extruded Aluminum
Minimum Stile Size: 2"
Minimum Style Size: 2 In.
No Of Inners: 1
Order_ Qty: 1
Pack Qty: 1
Pbs Options: 10,399,206,157,406,900
Physical Appearance: Narrow Stile Pushpad
Power Supply: Wired
Product Type Used With: Exit Doors
Reversible: Yes
Series: 8600 Series
Ship Weight: 12 lbs.
Strike: Standard Header Strike
Strike Top: 31-0945
Subcategory: Electronic Exit Devices
Subtype: Exit Device
Top Strike: 31-0945
Type: GLASS ALUMINUM HARDWARE
Ul Listing: UL 305 Panic Hardware
Ul Listing Type: UL 305
Unit of Measure: Each
