Adams Rite Manufacturing 8633MLR-36-24V Concealed Vertical Rod Exit Device (CVR) is engineered for narrow stile aluminum doors that require a reliable and secure life-safety exit solution. This motorized electric retraction device seamlessly integrates into doors measuring 36 inches by 96 inches, featuring a sleek black anodized finish that complements any architectural design. One of its standout features is the patented top latching mechanism, which interlocks the door to the frame, ensuring enhanced security. The device boasts durable construction with adjustable steel rods housed in contoured covers for added protection. Installation is straightforward, making it ideal for both professionals and knowledgeable homeowners. The 8633MLR is UL 305 panic hardware certified and meets ANSI/BHMA A156.3 Grade 1 standards, making it a trusted choice for safety. It accommodates door thicknesses of 1-3/4 inches to 2-1/4 inches and is versatile enough to fit a minimum stile width of 2 inches. Additionally, the device is non-handed, allowing for easy field reversibility. With options for alarmed exits and electric dogging, the Adams Rite 8633MLR-36-24V offers flexibility to suit various security needs. This exit device is a robust solution for those prioritizing safety without compromising aesthetics.

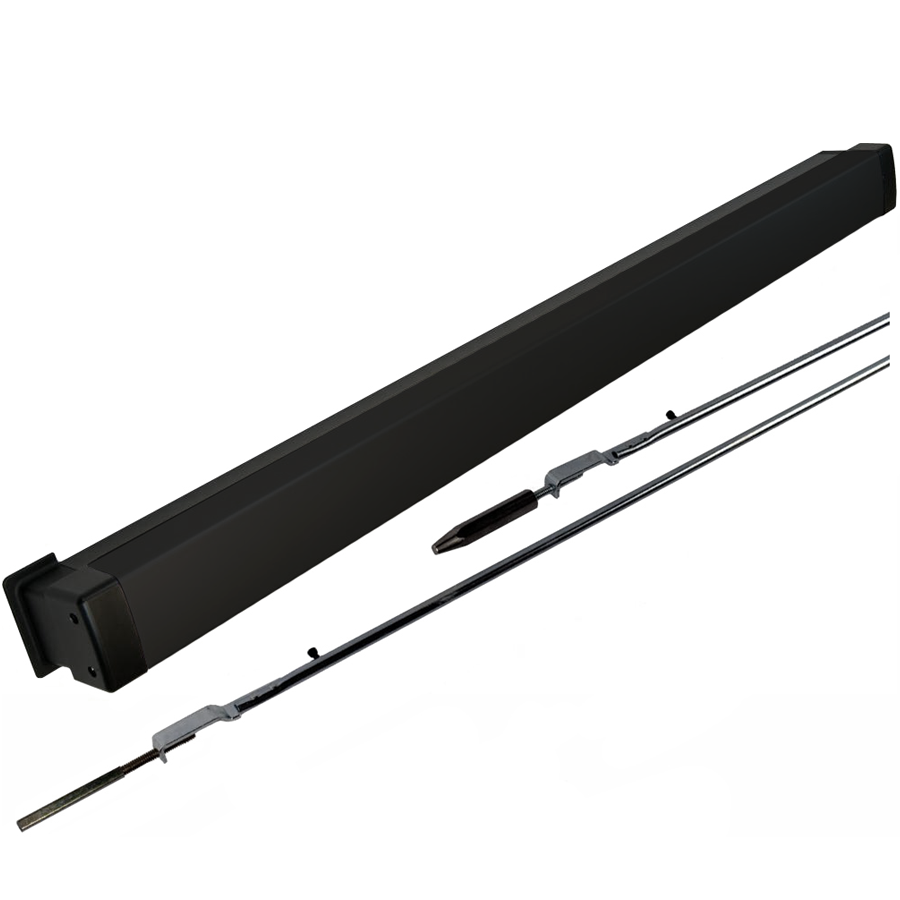

Concealed Vertical Rod Exit Device (CVR), Motorized Electric Retraction (MLR), Fits Narrow and Wide Stile Aluminum Doors, 36in x 96in, 711/335 Black Anodized

The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with concealed vertical rods for two-point locking.

Features:

• Patented top latching mechanism interlocks door to frame
• Strong, durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install
• Clean, unobtrusive design

Certifications:

• UL 305 Panic Hardware
• ANSI/BHMA A156.3 Grade 1
• California State Fire Marshall
• New York City MEA

Specifications:

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length Standard sizes: dimensioned for 30", 36", 42", and 48" openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30" to 44".
• Door Height: Standard unit adjustable for doors up to 66" above the selected bar height. For doors over 66" above bar height, up to 10 ft use 8655 Tall Door Kit.
• Door Thickness: Suits 1-3/4" standard, up to 2-1/4". Device requires modification when used with cylinder in doors over 1-3/4".
• Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.

Series Options:

• Alarmed Exit Device: This battery-operated option emits a loud (95 decibel) alarm to notify management of unauthorized exit. Available on minimum opening width 36"". Cannot be ordered with other exit device Options.
• Request to Exit (REX) – Monitor / Signal Switch: Mounted in the exit device pushbar on the hinge end, the switch can be used to activate signal light, horn, monitor, or other devices.
• Cylinder Dogging: For management control of dogging exit devices for life-safety exit devices only.
• Electric Dogging: A holding magnet keeps the pushbar depressed (set manually) and the latch retracted for lower profile exit devices, resulting in less damage and quieter operation.
• Matching End Caps: Matching end caps are available for applications where it is preferable that the end caps match the finish of the exit device. Available for US finishes only.
• Bolts and Strikes: The patented top latching mechanism utilizes a rotating top bolt which deadlatches around the header strike, interlocking the door to the frame. Supplied with standard header strike. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability.

Finishes:

• 313 - Dark Bronze Anodized
• 335 - Black Anodized
• 628 - Clear Anodized
• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless
