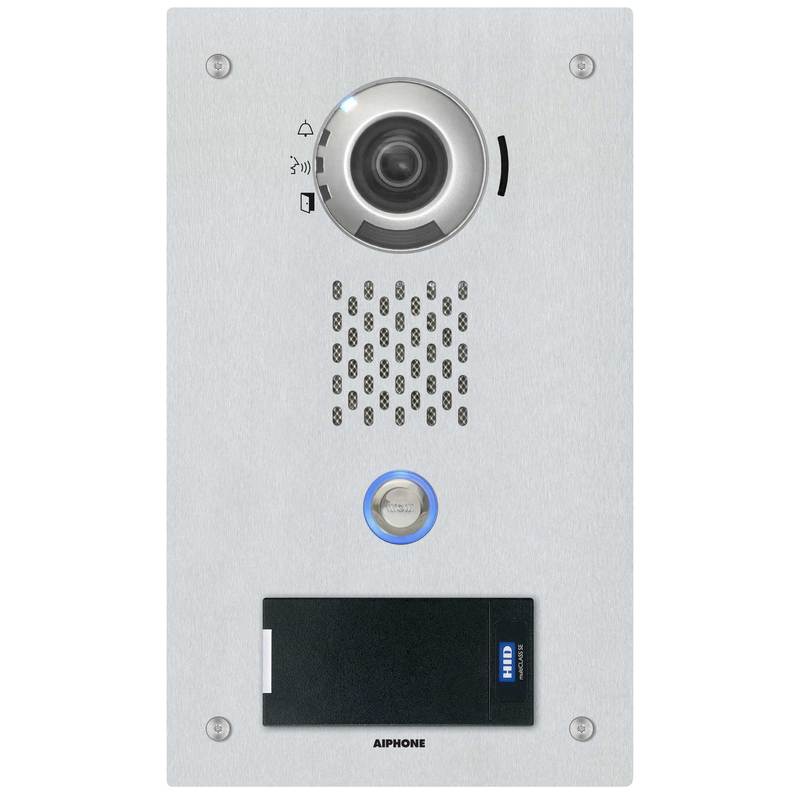

Aiphone AX-DVF-P Fixed Camera Door Station

Aiphone AX-DVF-P Door Station Fixed Camera offers a robust solution for secure entry with its flush mount design and HID ProxPoint Plus card reader. Constructed with a stainless steel faceplate, this door station is both vandal and weather-resistant, ensuring durability in various environments. The AX Series can support up to 8 interior master stations and 120 door or interior stations, making it a versatile choice for commercial applications. Utilizing CAT-5e/6 cable for wiring, the system simplifies installation while providing two talk channels for effective communication. The tremolo call tone is programmable, lasting from 10 to 600 seconds, and the LCD monitor remains active for up to 10 minutes, enhancing user interaction during calls. Featuring a 3.5" direct view TFT color LCD, the door station ensures clear visibility of visitors. The door release mechanism is customizable, supporting N/O or N/C configurations, and is programmable per station. Designed for easy integration and extensive coverage, the AX-DVF-P can communicate effectively over distances of up to 980 feet from both the door station to the Central Equipment Unit (CEU) and the master station to CEU. Backed by a 1-year limited warranty, this product is an excellent investment for comprehensive security management.

Door Station Fixed Camera

Flush Mount Video Door w/HID ProxPoint Plus Card Reader, Vandal and Weather Resistant, Fixed Camera, Stainless Steel Faceplate

The AX Series supports up to 8 interior master stations and 120 door or interior stations. All components are wired using CAT-5e/6 cable. A wide variety of system components are available to meet almost any specification.

Supports up to 8 interior master stations and 120 door or interior stations.

All components use CAT-5e wiring homerun from each station and has two talk channels.

• Power Source ; 24V DC - Use two PS-2420UL (110V AC) per system
• Door Station Calling: Tremolo call tone programmable from 10-600 seconds, or infinite. LCD monitor remains on for duration of call tone up to 10 minutes max.
• Master Station Calling: Select station to call, pretone sounds, then speak hands-free or push-to-talk
• Video Monitor: 3.5” direct view TFT color LCD
• Door Release: N/O or N/C, programmable per station 24V AC/DC (500mA max.)
• Wiring: CAT-5e UTP-4 homerun from each station to CEU
• Distance: Door station to CEU: 980’ Master station to CEU: 980’
• CO Tel Adaptor: Viking Model K-1900-5 Programmable Dialer
