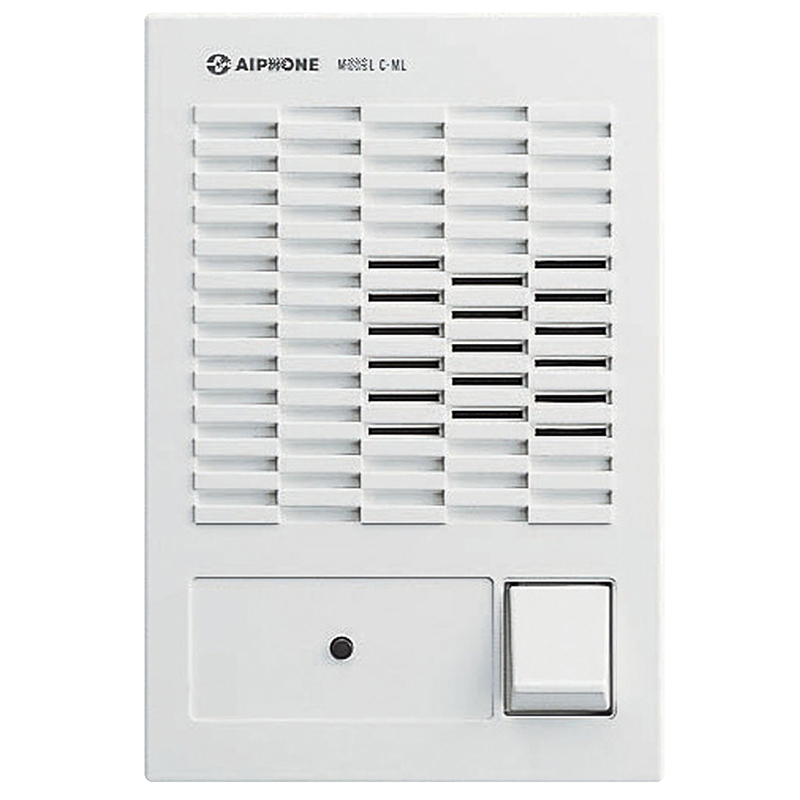

Aiphone C-ML/A RM Station C123/A with DAK2S

Aiphone C-ML/A RM Station C123/A incl DAK2S is an audio master station designed for seamless communication within the C-123L/A intercom system. This unit features adjustable communication volume, allowing users to tailor their audio experience for clarity and comfort. It operates on a 6V DC power supply or can utilize four "C" batteries, ensuring versatility in power options. The C-ML/A enhances security and convenience by enabling audio communication with door stations and facilitating door release activation. With an open voice answering feature, the station simplifies interaction; users can respond to door calls with a simple press of the TALK button and listen by releasing it. An automatic turn-off feature activates after 20 seconds to conserve power. Installation is straightforward, with wiring requiring a 2-conductor setup and overall shielding for effective transmission. The station supports a maximum distance of 245 feet with 22 AWG wire and up to 490 feet with 18 AWG wire. Its compact dimensions of 7-1/2"x4-13/16"x1-3/4" allow for surface wall mounting in commercial settings. Aiphone ensures reliable performance with a contact rating of 50V AC at 1A for door release. With its robust design and functionality, the C-ML/A is an excellent addition to any intercom system.

RM STATION C123/A INCL DAK2S

Audio Master Station For C-123L/A, Incl. DAK-2S

Adjustable communication volume. Batteries or 6V DC power supply (1 per master). Automatically turns off in 20 seconds.

Provides audio communication with door station and door release activation.

The C-123L has open voice door asnwering and adjustable communication volume as well as a 20 second automatic turn off.

• Power Source: 6V DC - Use SKK-620 or 4 "C" Batteries
• Communication: Door calls in with 2-tone chime, not adjustable, press TALK button to reply, release to listen, power automatically shuts off circuit
• Door Release: Contact rating: 50V AC @ 1A
• Wiring: Door to master: 2-cond., overall shield Between masters: 2-cond., overall shield
• Distance: Door to farthest master: 245’(22AWG) 490’(18AWG)
• Wire Type: Aiphone #822202  or Aiphone #821802
