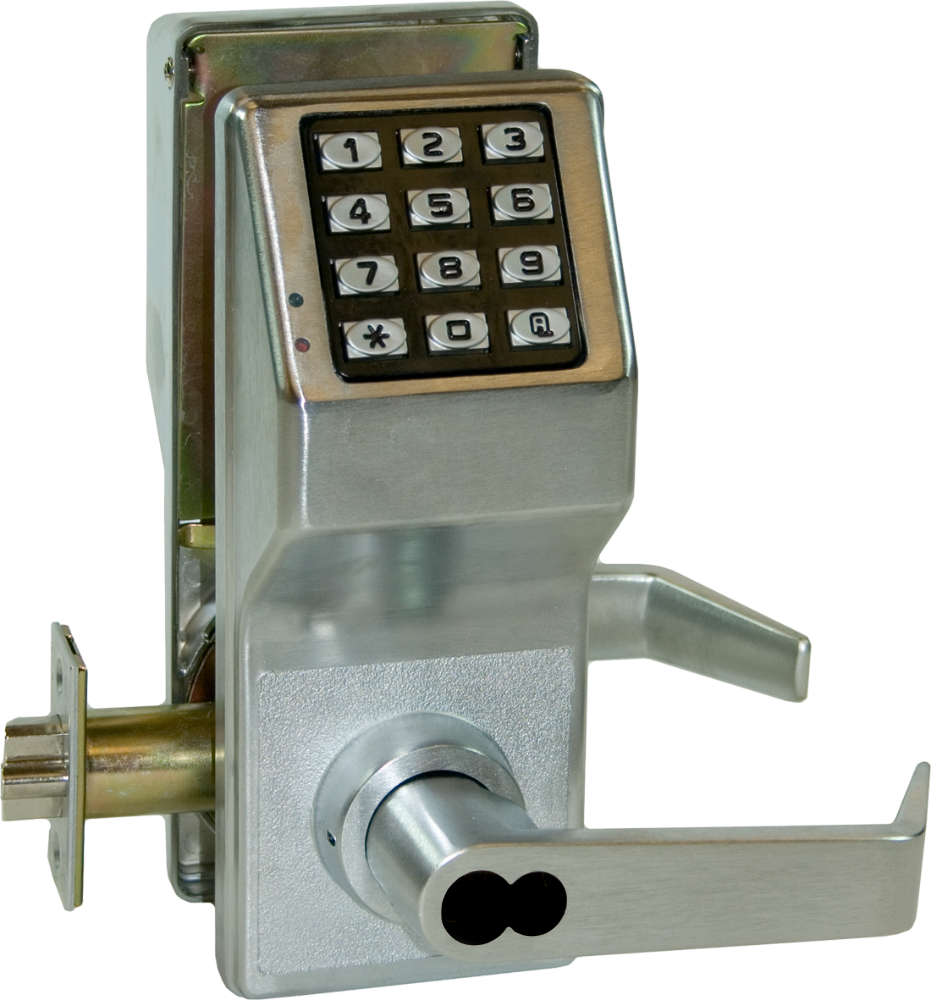

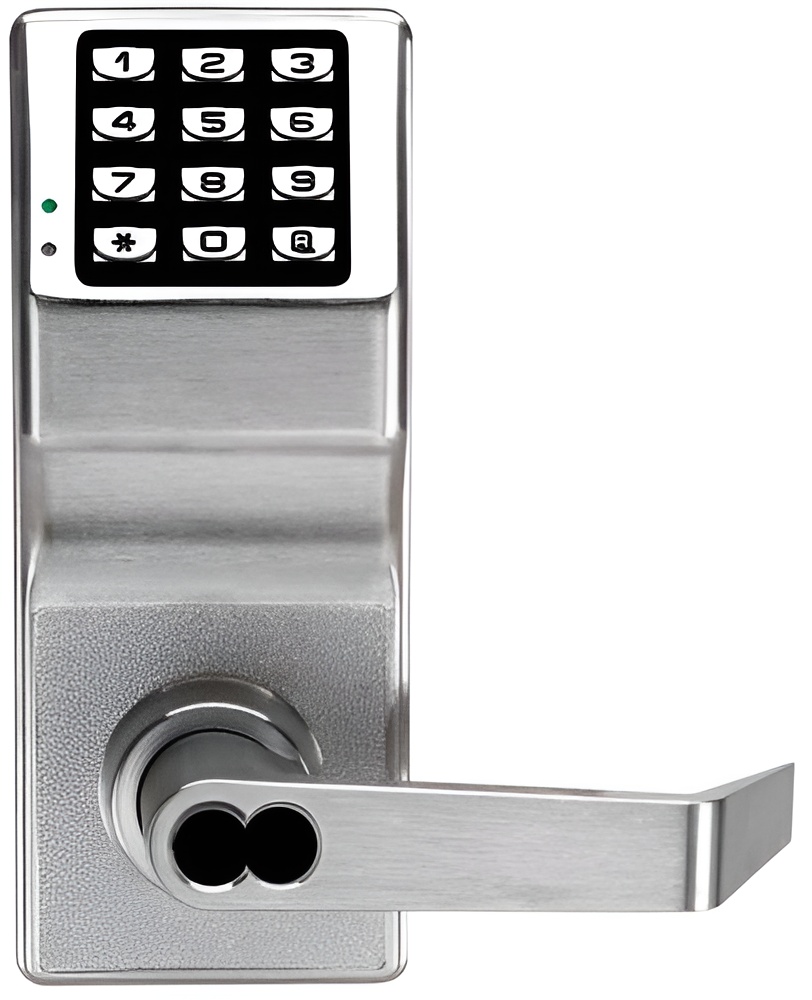

Alarm Lock DL2700IC/26D-S Trilogy Electronic Digital Lever Lock, Schlage Prep, Satin Chrome, Core Interchangeable

Alarm Lock DL2700IC26DS Non-Weatherized Trilogy Electronic Digital Lever Lock with Interchangeable Core for Schlage Prep Satin Chrome Finish offers a robust solution for securing commercial spaces. Engineered from solid steel, this lock is designed for durability and reliability. Its reversible handing feature allows for versatile installation, making it suitable for various door configurations. Equipped with a digital keypad, the DL2700IC26DS supports multi-level user codes and one-time service codes, ensuring enhanced access control. The ability to set free passage, group, or total lock-out codes adds further flexibility for different security needs. With a typical battery life of 150,000 cycles powered by five AA batteries, this lock ensures longevity and minimal maintenance. Designed to fit door thicknesses of 1-5/8" to 1-7/8", it features a cylindrical chassis and a crossbore size of 2-1/8". The sleek satin chrome finish (US26D) enhances the aesthetic appeal while maintaining a professional look. Additionally, the lock is fire-rated and complies with UL10C standards, ensuring safety and peace of mind. Backed by a limited 2-year warranty, the Alarm Lock DL2700IC26DS is an ideal choice for building professionals looking to implement effective access control solutions.

Non-Weatherized Trilogy Electronic Digital Lever Lock with Interchangeable Core for Schlage Prep Satin Chrome Finish

For four decades Alarm Lock Systems has built a strong reputation as a respected leader in the design and manufacture of electronic and mechanical access and egress control keyless entry products. Originally known worldwide for its superior Sirenlock panic exit and delayed egress exit alarms in full-door and clapper styles, Alarm Lock has nearly eclipsed its original product success with that of another -- the incredibly-popular, innovative Trilogy line of standalone access keyless locks that enable security professionals securing buildings of all kinds to more cost-effectively add dependable wireless access control a door at a time with a field-proven access solution and with a consistent model for every door type in a facility.

• OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.
• DOOR THICKNESS: 1-5/8" to 1-7/8" Other thicknesses may be available special order.
• BACKSET:
• 2-3/4" Standard.
• 2-3/8" backset also available.
• KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.
• STANDARD KEY OVERRIDE CYLINDERS: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.
• INTERCHANGEABLE CORE MODELS: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
• LATCHBOLT: UL Listed, fire rated, 3 hours, 1/2" throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.
• STRIKE: 1-1/8" x 2-3/4" T strike & 1-1/4" x 4-7/8" ASA strike included. With screws for wood or metal jambs.
• LATCH FRONT: 1-1/8" x 2-1/4" wrought brass or stainless steel.
• HANDING: Non-handed.
• POWER: 5 AA alkaline batteries are now rated at 120,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive" motor.
• DOOR PREP: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
• COMPLIANCES: Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets.
• Constructed from Solid Steel
• Reversible Handing
• Multi-Level User Codes and One-Time Service Codes
• Free Passage, Group or Total Lock-Out Codes
• Typical 150,000 Cycle Battery Life
