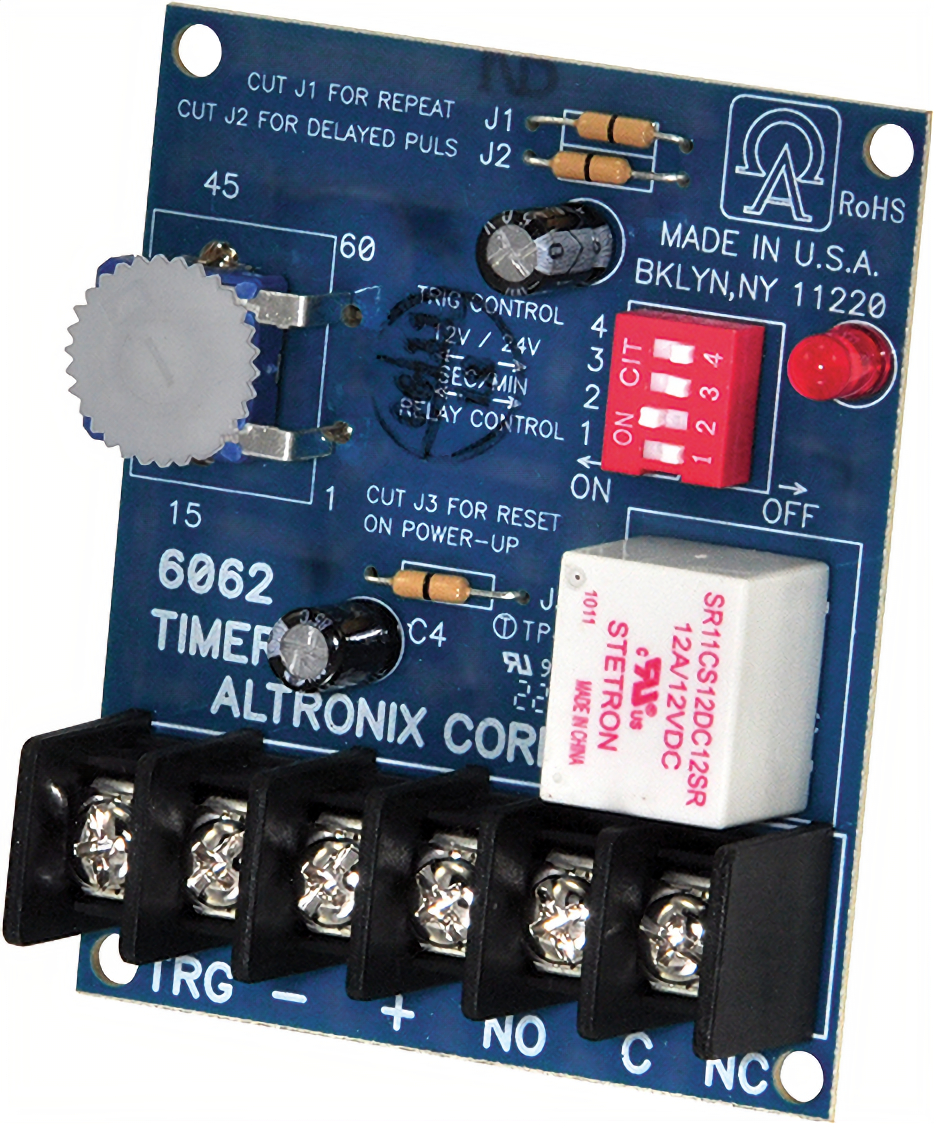

Altronix 6062 Full Function Timer 1 Second to 60 Minutes, 12/24VDC

Altronix 6062 Full Function Timer offers exceptional versatility for various timed operations, making it an ideal choice for access control applications, siren/bell cut-off modules, dialer delays, and guard tour supervisory timers. This programmable timer can be configured for operation at either 12VDC or 24VDC, allowing for flexibility to meet specific requirements. With an impressive time range adjustment from 1 second to 60 minutes, the 6062 features multiple optional functions including One Shot, Delayed Release, Delayed Operate, Delayed Pulse, and Pulser/Flasher. It provides selectable relay activation at the start or end of the timing cycle, with a momentary relay activation at the end, simplifying your setup and reducing the need for multiple timers. The timer triggers through positive DC voltage, dry contact closure, or removal of contact closure, ensuring reliable performance in various applications. Additionally, the built-in reset feature allows for easy cancellation of the timing cycle, while the repeat mode enables pulsing or flashing functions. Constructed for durability, the device operates efficiently in temperatures ranging from -20º C to 49º C. With dimensions of approximately 3" x 2.5" x 0.75" and a weight of just under a pound, the Altronix 6062 is both compact and lightweight, making it a practical addition to your security hardware lineup.

Full Function Timer 1 Second to 60 Minutes, 12/24VDC

Programmable timer is suitable for many functions that require a timed operation e.g. Access Control Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, etc.

Optional Functions Include:

• One Shot
• Delayed Release
• Delayed Operate
• Delayed Pulse
• Pulser/Flasher

Specifications:

• Input: 12VDC or 24VDC operation is selectable.
• Relay:
  • Selectable relay activation at the start or end of the timing cycle.
  • One (1) second momentary relay activation at the end of the timing cycle (eliminates the need to use two (2) timers for this function).
• Features:
  • Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure.
  • Quick and extremely accurate time range adjustment from 1 second to 60 minutes.
  • Built-in reset feature which cancels timing cycle.
  • Repeat (flasher/pulse) mode.
• Visual Indicators: LED indicates relay is energized.
• Electrical: Operating temperature: -20º C to 49º C ambient.
• Mechanical:
  • Snap Trac compatible (order Altronix model #ST3).
  • Board Dimensions (L x W x H approx.): 3" (76.2mm) x 2.5" (63.5mm) x 0.75" (19.05mm).
  • Product weight (approx.): 0.98 lbs. (0.44 kg).
  • Shipping weight (approx.): 1.2 lbs. (0.54 kg).

Features

• Delayed Pulse
• Pulser/Flasher
• Delayed Release
• Delayed Operate
• One Shot
