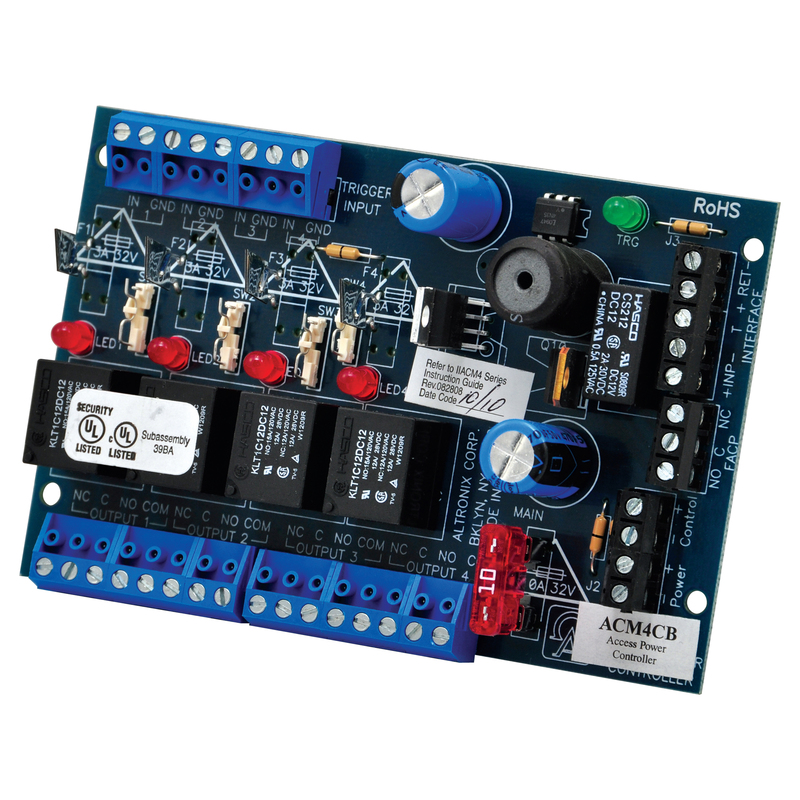

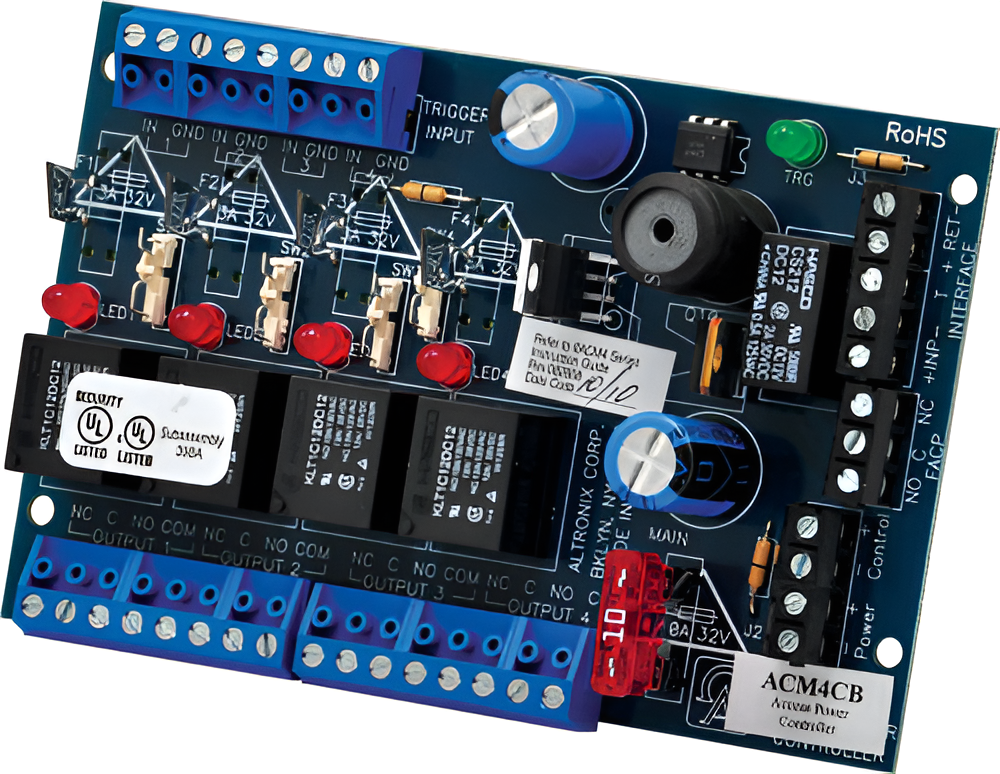

Altronix ACM4CB Power Supply

Your Price: $89.34

Retail Price:$118.50

Your Savings:$29.16(25%)

Access Power Controller, Input 12/24VAC/DC, 4 PTC Outputs

Part Number : ALT_ACM4CB

Availability: 99 In Stock

Quantity

Description

Altronix ACM4CB Power Supply

ACM4CB converts one (1) 12 to 24 volt AC or DC input into four (4) independently controlled Class 2 Rated Power Limited PTC protected outputs. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. Unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the four (4) outputs.

Attributes

Manufacturer surcharge: $ 0.0

Alternate Codes: ACM4CB

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Installation: Commercial

Pack Qty: 1

Purpose: Access Control

Series: Altronix Power Supplies

Subtype: Power Supply

Type: Wire-In Transformer

Unit of Measure: Each
