Altronix AL1024ULACM Power Supply Charger Guide

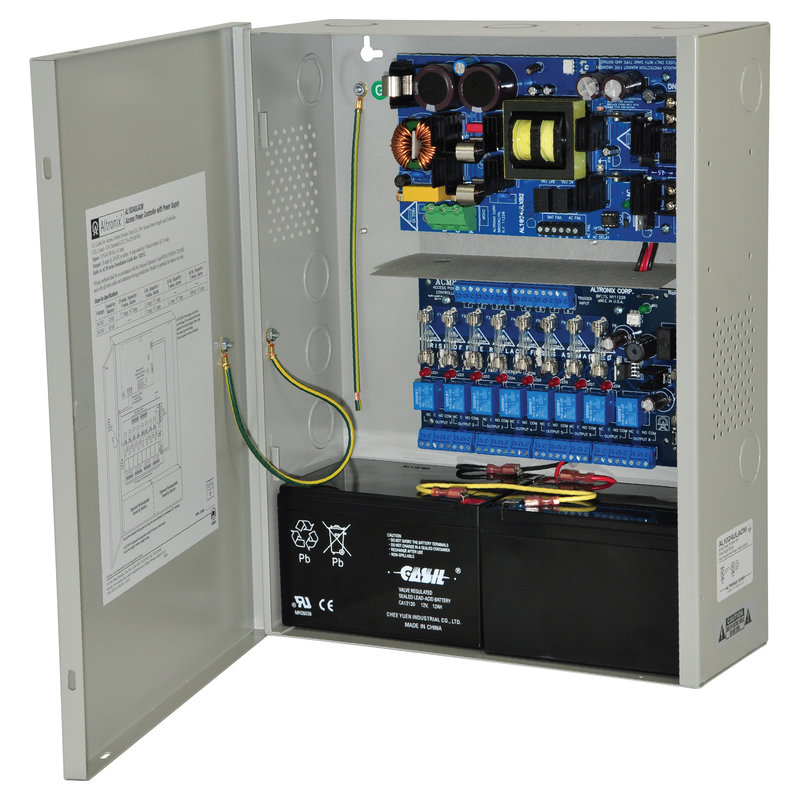

Altronix AL1024ULACM Power Supply / Charger delivers reliable and efficient power management for a variety of access control applications. This versatile unit converts a 115VAC 60Hz input into eight independently controlled outputs, each providing 24VDC at a total of 10A continuous supply current. The grey enclosure houses features that make it ideal for both Fail-Safe and Fail-Secure configurations, allowing seamless integration with devices like Mag Locks, Electric Strikes, and Magnetic Door Holders. Activation of the outputs is facilitated by an open collector sink or a normally open (NO) dry trigger input from various access control systems, including card readers and keypads. The design offers flexibility, enabling operation from a single power source or two independent sources for board and locking device power. Additionally, the FACP Interface supports emergency egress and alarm monitoring, with the ability to customize fire alarm disconnect features for each output. Weighing 11.5 lbs, the AL1024ULACM is suited for commercial installations and various applications, including CCTV, Fire Alarm, and POIP. Altronix stands at the forefront of power management solutions, ensuring your security systems operate at peak performance.

Power Supply / Charger

Power Supply/Access Power Controller, Input 115VAC 60Hz at 4.2A, 8 Fused Outputs, 24VDC at 10A, Grey Enclosure

Altronix AL1024ULACM converts a 115VAC 60Hz input into eight independently controlled 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 10A. continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two totally independent power sources, one providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP
