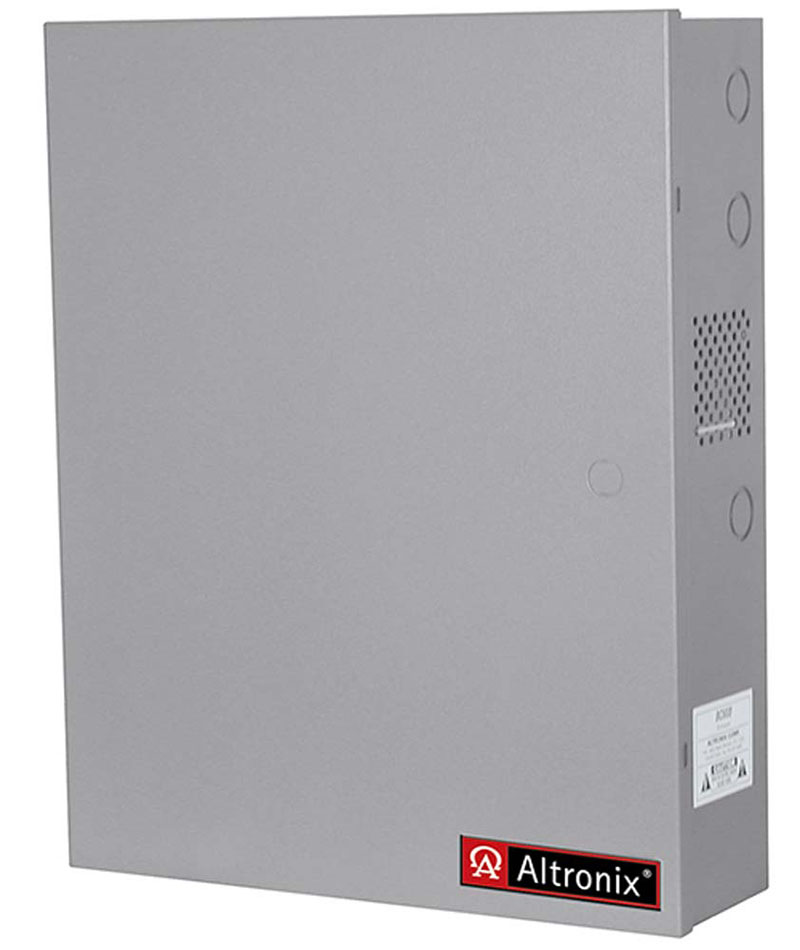

Altronix AL1024ULACMCBJ Power Supply Charger

Altronix AL1024ULACMCBJ Power Supply / Charger is a robust solution designed for effective access control applications. This power supply converts a 115VAC 60Hz input into eight independently controlled outputs of 24VDC, delivering a total continuous supply current of 10A. Each output can operate in Fail-Safe or Fail-Secure modes, providing flexibility for various locking mechanisms such as Mag Locks and Electric Strikes. The unit features open collector sink or normally open (NO) dry trigger inputs, allowing seamless connection to an Access Control System, Card Reader, Keypad, or other triggering devices. With the ability to be powered by a single common source or two independent power sources, the AL1024ULACMCBJ ensures reliable operation for both the board and attached locking devices. Designed with safety in mind, this power supply includes a Fire Alarm Control Panel (FACP) interface for emergency egress, alarm monitoring, and triggering auxiliary devices. Additionally, the fire alarm disconnect feature is individually selectable for each output, enhancing its versatility. Ideal for various applications, including CCTV and Fire Alarm systems, the Altronix AL1024ULACMCBJ is a dependable choice for both commercial installations and residential needs, making it a vital component in modern security infrastructure.

Power Supply / Charger

Power Supply/Access Power Controller, Input 115VAC 60Hz at 4.2A, 8 PTC Outputs, 24VDC at 10A

Altronix AL1024ULACMCBJ converts a 115VAC 60Hz input into eight independently controlled 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 10A. continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two totally independent power sources, one providing power for board operation and the other for lock/accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP
