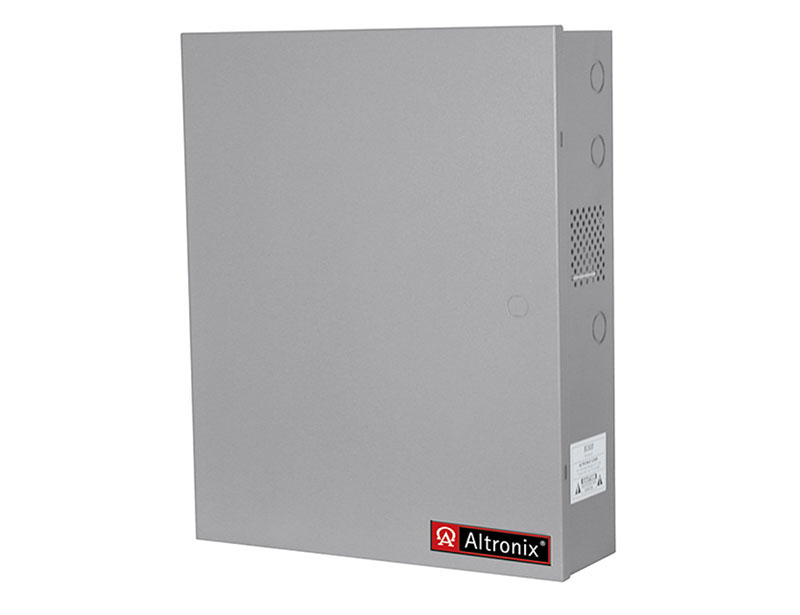

Altronix AL1024ULACMJ Power Supply Charger

Altronix AL1024ULACMJ Power Supply / Charger delivers exceptional performance by converting 115VAC 60Hz input into eight independently controlled 24VDC outputs, offering a total of 10A continuous supply current. Designed with flexibility in mind, this unit supports both Fail-Safe and Fail-Secure modes, making it ideal for a variety of access control applications including Mag Locks, Electric Strikes, and Magnetic Door Holders. The AL1024ULACMJ features eight fused outputs that can be activated by an open collector sink or normally open (NO) dry trigger input from various access control devices such as card readers, keypads, and PIR sensors. For added versatility, these outputs can be configured as dry form "C" contacts. The power supply can be powered by a single source for both board operation and locking devices or two independent power sources, ensuring reliability and ease of installation. This power supply is perfect for commercial environments, supporting applications like CCTV, Fire Alarm, and POIP. With its fire alarm disconnect feature, you can individually select outputs to enhance safety protocols. Altronix continues to lead in power and transmission technologies, providing innovative solutions for professional security system integrations.

Power Supply / Charger

Power Supply/Access Power Controller, Input 115VAC 60Hz at 4.2A, 8 Fused Outputs, 24VDC at 10A

Altronix AL1024ULACMJ converts a 115VAC 60Hz input into eight independently controlled 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 10A. continuous supply current. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two totally independent power sources, one providing power for board operation and the other for lock/accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP
