Altronix AL1024ULX Power Supply
Images may not represent actual product and finish

Altronix AL1024ULX Power Supply

Your Price: $401.32
Retail Price:$558.85
Your Savings:$157.53(28%)
Power Supply/Charger, Input 115VAC 60Hz at 4.2A, Single Output, 24VDC at 8A or 10A, Grey Enclosure
Part Number : ALT_AL1024ULX
Availability: 94 In Stock

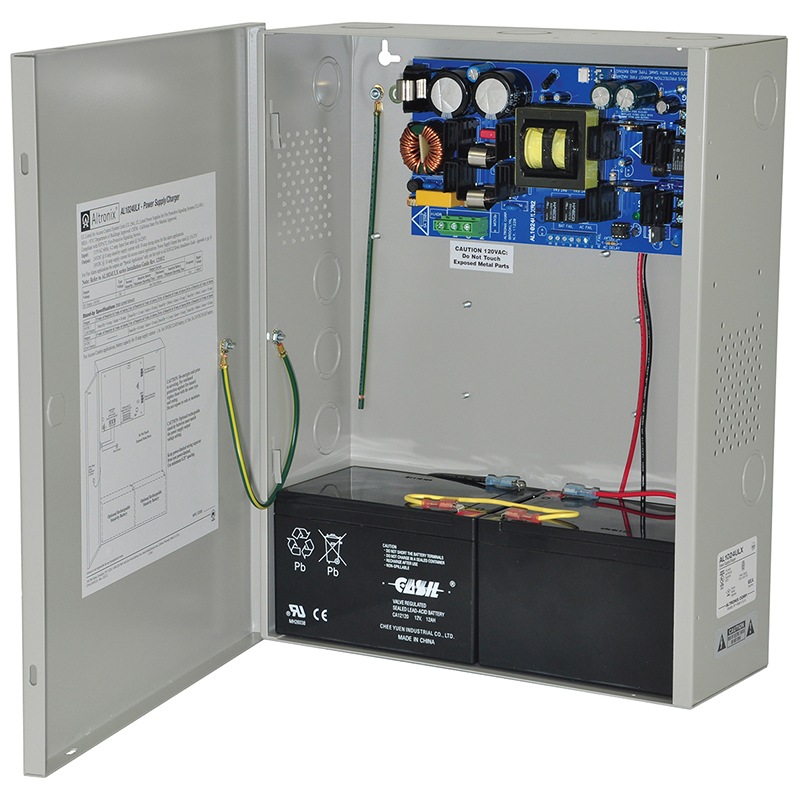

Altronix AL1024ULX Power Supply

AL1024ULX is a power supply/charger that converts a 115VAC, 60Hz input into a single 24VDC non-power limited output.
  • Input:
  • Input 115VAC, 60Hz, 4.2 amp.
  • Input fuse rated @ 3.5 amp/250V.
  • Output:
  • 24VDC output.
  • 10 amp of continuous supply current for Access Control applications.
  • 8 amp of continuous supply current for Fire Alarm applications.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.
  • Battery Backup:
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • Maximum charge current 3.6 amp.
  • Supervision:
  • AC fail supervision (form "C" contacts).
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery supervision (form "C" contacts).
  • Battery presence supervision (form "C" contacts).
  • Visual Indicators:
  • AC input and DC output LED indicators.
  • Electrical:
  • Operating temperature: 0° C to 49° C ambient.
  • 122.84 BTU/Hr.
  • System AC input VA requirement: 483VA.
  • Mechanical:
  • Enclosure Dimensions (H x W x D approx.): 15.5" x 12" x 4.5" (393.7mm x 304.8mm x 114.3mm)
  • Accommodates up to two (2) 12VDC/12AH batteries.
  • Product weight (approx.): 10.1 lbs. (4.58 kg).
  • Shipping weight (approx.): 11.4 lbs. (5.17 kg).

Features

  • Supervision:
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Input:
  • Battery Backup:
  • Enclosure Dimensions (H x W x D approx.): 15.5" x 12" x 4.5" (393.7mm x 304.8mm x 114.3mm)
  • Battery presence supervision (form "C" contacts).
  • Visual Indicators:
  • Electrical:
  • Mechanical:
  • 122.84 BTU/Hr.
  • Shipping weight (approx.): 11.4 lbs. (5.17 kg).
  • Short circuit and thermal overload protection.
  • 24VDC output.
  • 8 amp of continuous supply current for Fire Alarm applications.
  • AC fail supervision (form "C" contacts).
  • Low battery supervision (form "C" contacts).
  • AC input and DC output LED indicators.
  • Input 115VAC, 60Hz, 4.2 amp.
  • Maximum charge current 3.6 amp.
  • Filtered and electronically regulated output.
  • Automatic switch over to stand-by battery when AC fails.
  • 10 amp of continuous supply current for Access Control applications.
  • Output:
  • Accommodates up to two (2) 12VDC/12AH batteries.
  • Input fuse rated @ 3.5 amp/250V.
  • Operating temperature: 0° C to 49° C ambient.
  • System AC input VA requirement: 483VA.
  • Product weight (approx.): 10.1 lbs. (4.58 kg).
  • Built-in charger for sealed lead acid or gel type batteries.

Attributes

Manufacturer surcharge: $ 0.0

Access Type: Power Supply

Alternate Codes: AL1024ULX

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Installation: Commercial

Output Amps: 10/8 AMPS

Output Volts: 24VDC

Pack Qty: 1

Purpose: General

Series: Altronix Power Supplies

Ship Weight: 11.5 lbs.

Subtype: Power Supply

Transformer Output: 5 to 10 Amps

Transformer Type: DC

Type: Wire-In Transformer

Unit of Measure: Each

Voltage/ Amp Rating: 24V DC
